Search › Model › AW11

AW11

Toyota MR-2-MR-S · 1984 · 6,136 parts · 271 categories

6,136 items

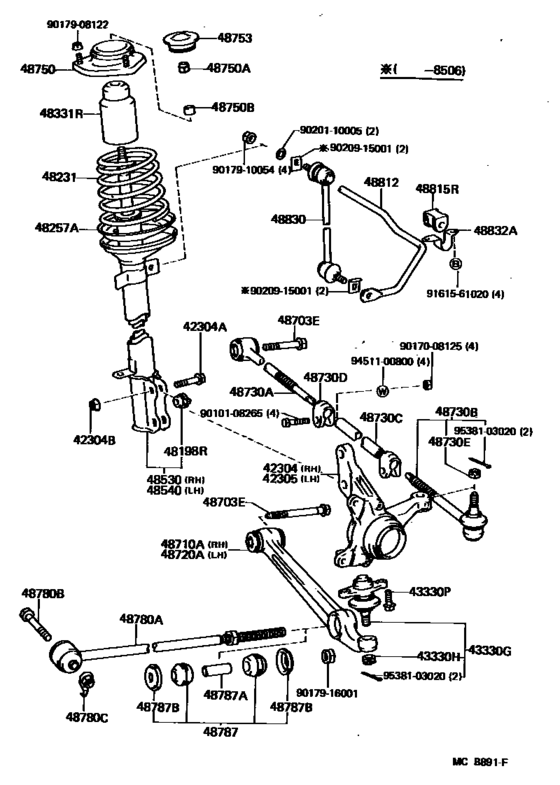

Rear Spring & Shock Absorber ([11.1984 - ] (8411- )) 62

#	OEM	Part name
42304	42313-17020	Carrier Sub-Assy, Rear Axle, Rh
42304	90105-15001	Bolt (For Rear Axle Carrier)
42304	90179-15001	Nut (For Rear Axle Carrier)
42305	42314-17020	Carrier Sub-Assy, Rear Axle, Lh
43330	43330-39135	Joint Assy, Lower Ball, Front
43330	43330-39275	Joint Assy, Lower Ball, Rear
43330	90171-14002	Nut (For Rear Steering Knuckle Arm)
43330	90105-12059	Bolt (For Front Lower Ball Joint)
48198	48194-32020	Cam, Camber Adjust, Rh
48198	48198-32020	Cam, Camber Adjust, Lh
48231	48231-17340	Spring, Coil, Rear
48231	48231-17470	Spring, Coil, Rear
48257	48258-16010	Insulator, Rear Coil Spring, Lower
48331	48331-14020	Bumper, Front Spring, No.1
48530	48530-17070	Absorber Assy, Shock, Rear Rh
48530	48530-80118	Absorber Assy, Shock, Rear Rh
48530	48530-17100	Absorber Assy, Shock, Rear Rh
48530	48530-19185	Absorber Assy, Shock, Rear Rh
48540	48540-17070	Absorber Assy, Shock, Rear Lh
48540	48540-19385	Absorber Assy, Shock, Rear Lh
48540	48540-17100	Absorber Assy, Shock, Rear Lh
48540	48540-19025	Absorber Assy, Shock, Rear Lh
48703	90119-12083	Bolt(For Front Suspension Lower Arm)
48703	90119-12130	Bolt(For Rear Suspension Arm)
48710	48703-17010	Arm Assy, Rear Suspension, No.1 Rh
48730	48709-17020	Arm Assy, Rear Suspension, No.2
48730	45046-19185	End Sub-Assy, Tie Rod(For Rear Suspension Arm)
48730	45465-12020	Rod, Steering Tie
48730	45466-22010	Clamp, Tie Rod End
48730	90171-12028	Nut, Castle(For Pitman Arm)
48750	48750-17010	Support Assy, Rear Suspension
48750	90179-14015	Nut, Castle (For Front Lower Ball Joint Setting)
48750	90387-15012	Collar(For Rear Support To Rear Shock Absorber)
48750	90387-15027	Collar(For Rear Support To Rear Shock Absorber)
48753	48753-17010	Cover, Rear Suspension Support
48780	48780-17020	Rod Assy, Strut, Rear
48780	90119-12131	Bolt(For Strut Rod)
48780	90080-11133	Bolt(For Strut Rod)
48780	90179-12039	Nut(For Strut Rod)
48787	48787-19015	Cushion, Strut Bar
48787	90387-16003	Coller(For Strut Bar Cushion)
48787	90948-02057	Retainer, Cushion(For Strut Bar Cushion)
48812	48812-17030	Bar, Stabilizer, Rear
48812	48812-17050	Bar, Stabilizer, Rear
48815	48818-17030	Bush, Stabilizer(For Rear)
48815	48818-17050	Bush, Stabilizer(For Rear)
48815	48818-17060	Bush, Stabilizer(For Rear)
48830	48830-17020	Link Assy, Rear Stabilizer
48830	48830-12050	Link Assy, Rear Stabilizer
48832	48832-17010	Bracket, Rear Stabilizer Bar, No.1
48832	48832-17020	Bracket, Rear Stabilizer Bar, No.1
9010108265	90101-08265	New Genuine Part
9017008125	90170-08125	New Genuine Part
9017908122	90179-08122	Nut(For Rear Suspension Support)
9017910054	90179-10054	Nut, No.1 (For Center Support Bearing)
9017916001	90179-16001	New Genuine Part
9020110005	90201-10005	Washer, Plate(For Cylinder Head Set)
9020915001	90209-15001	New Genuine Part
9161561020	91615-61020	Bolt (For Transfer Case)Cover No.2
9161561020	91612-B1020	Bolt (For Transfer Case)Cover No.2
9451100800	94511-00800	WASHERSPRING
9538103020	95381-03020	Pin, Cotter(For Reverse Shaft Restrict Pin)

OEM	Part name	Category
42313-17020	Carrier Sub-Assy, Rear Axle, Rh	Rear Spring & Shock Absorber ([11.1984 - ] (8411- ))
42314-17020	Carrier Sub-Assy, Rear Axle, Lh	Rear Spring & Shock Absorber ([11.1984 - ] (8411- ))
43330-39135	Joint Assy, Lower Ball, Front	Rear Spring & Shock Absorber ([11.1984 - ] (8411- ))
43330-39275	Joint Assy, Lower Ball, Rear	Rear Spring & Shock Absorber ([11.1984 - ] (8411- ))
45046-19185	End Sub-Assy, Tie Rod(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([11.1984 - ] (8411- ))
45465-12020	Rod, Steering Tie	Rear Spring & Shock Absorber ([11.1984 - ] (8411- ))
45466-22010	Clamp, Tie Rod End	Rear Spring & Shock Absorber ([11.1984 - ] (8411- ))
48194-32020	Cam, Camber Adjust, Rh	Rear Spring & Shock Absorber ([11.1984 - ] (8411- ))
48198-32020	Cam, Camber Adjust, Lh	Rear Spring & Shock Absorber ([11.1984 - ] (8411- ))
48231-17340	Spring, Coil, Rear	Rear Spring & Shock Absorber ([11.1984 - ] (8411- ))
48231-17470	Spring, Coil, Rear	Rear Spring & Shock Absorber ([11.1984 - ] (8411- ))
48258-16010	Insulator, Rear Coil Spring, Lower	Rear Spring & Shock Absorber ([11.1984 - ] (8411- ))
48331-14020	Bumper, Front Spring, No.1	Rear Spring & Shock Absorber ([11.1984 - ] (8411- ))
48530-17070	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([11.1984 - ] (8411- ))
48530-17100	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([11.1984 - ] (8411- ))
48530-19185	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([11.1984 - ] (8411- ))
48530-80118	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([11.1984 - ] (8411- ))
48540-17070	Absorber Assy, Shock, Rear Lh	Rear Spring & Shock Absorber ([11.1984 - ] (8411- ))
48540-17100	Absorber Assy, Shock, Rear Lh	Rear Spring & Shock Absorber ([11.1984 - ] (8411- ))
48540-19025	Absorber Assy, Shock, Rear Lh	Rear Spring & Shock Absorber ([11.1984 - ] (8411- ))
48540-19385	Absorber Assy, Shock, Rear Lh	Rear Spring & Shock Absorber ([11.1984 - ] (8411- ))
48703-17010	Arm Assy, Rear Suspension, No.1 Rh	Rear Spring & Shock Absorber ([11.1984 - ] (8411- ))
48709-17020	Arm Assy, Rear Suspension, No.2	Rear Spring & Shock Absorber ([11.1984 - ] (8411- ))
48750-17010	Support Assy, Rear Suspension	Rear Spring & Shock Absorber ([11.1984 - ] (8411- ))
48753-17010	Cover, Rear Suspension Support	Rear Spring & Shock Absorber ([11.1984 - ] (8411- ))
48780-17020	Rod Assy, Strut, Rear	Rear Spring & Shock Absorber ([11.1984 - ] (8411- ))
48787-19015	Cushion, Strut Bar	Rear Spring & Shock Absorber ([11.1984 - ] (8411- ))
48812-17030	Bar, Stabilizer, Rear	Rear Spring & Shock Absorber ([11.1984 - ] (8411- ))
48812-17050	Bar, Stabilizer, Rear	Rear Spring & Shock Absorber ([11.1984 - ] (8411- ))
48818-17030	Bush, Stabilizer(For Rear)	Rear Spring & Shock Absorber ([11.1984 - ] (8411- ))
48818-17050	Bush, Stabilizer(For Rear)	Rear Spring & Shock Absorber ([11.1984 - ] (8411- ))
48818-17060	Bush, Stabilizer(For Rear)	Rear Spring & Shock Absorber ([11.1984 - ] (8411- ))
48830-12050	Link Assy, Rear Stabilizer	Rear Spring & Shock Absorber ([11.1984 - ] (8411- ))
48830-17020	Link Assy, Rear Stabilizer	Rear Spring & Shock Absorber ([11.1984 - ] (8411- ))
48832-17010	Bracket, Rear Stabilizer Bar, No.1	Rear Spring & Shock Absorber ([11.1984 - ] (8411- ))
48832-17020	Bracket, Rear Stabilizer Bar, No.1	Rear Spring & Shock Absorber ([11.1984 - ] (8411- ))
90080-11133	Bolt(For Strut Rod)	Rear Spring & Shock Absorber ([11.1984 - ] (8411- ))
90101-08265	New Genuine Part	Rear Spring & Shock Absorber ([11.1984 - ] (8411- ))
90105-12059	Bolt (For Front Lower Ball Joint)	Rear Spring & Shock Absorber ([11.1984 - ] (8411- ))
90105-15001	Bolt (For Rear Axle Carrier)	Rear Spring & Shock Absorber ([11.1984 - ] (8411- ))
90119-12083	Bolt(For Front Suspension Lower Arm)	Rear Spring & Shock Absorber ([11.1984 - ] (8411- ))
90119-12130	Bolt(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([11.1984 - ] (8411- ))
90119-12131	Bolt(For Strut Rod)	Rear Spring & Shock Absorber ([11.1984 - ] (8411- ))
90170-08125	New Genuine Part	Rear Spring & Shock Absorber ([11.1984 - ] (8411- ))
90171-12028	Nut, Castle(For Pitman Arm)	Rear Spring & Shock Absorber ([11.1984 - ] (8411- ))
90171-14002	Nut (For Rear Steering Knuckle Arm)	Rear Spring & Shock Absorber ([11.1984 - ] (8411- ))
90179-08122	Nut(For Rear Suspension Support)	Rear Spring & Shock Absorber ([11.1984 - ] (8411- ))
90179-10054	Nut, No.1 (For Center Support Bearing)	Rear Spring & Shock Absorber ([11.1984 - ] (8411- ))
90179-12039	Nut(For Strut Rod)	Rear Spring & Shock Absorber ([11.1984 - ] (8411- ))
90179-14015	Nut, Castle (For Front Lower Ball Joint Setting)	Rear Spring & Shock Absorber ([11.1984 - ] (8411- ))
90179-15001	Nut (For Rear Axle Carrier)	Rear Spring & Shock Absorber ([11.1984 - ] (8411- ))
90179-16001	New Genuine Part	Rear Spring & Shock Absorber ([11.1984 - ] (8411- ))
90201-10005	Washer, Plate(For Cylinder Head Set)	Rear Spring & Shock Absorber ([11.1984 - ] (8411- ))
90209-15001	New Genuine Part	Rear Spring & Shock Absorber ([11.1984 - ] (8411- ))
90387-15012	Collar(For Rear Support To Rear Shock Absorber)	Rear Spring & Shock Absorber ([11.1984 - ] (8411- ))
90387-15027	Collar(For Rear Support To Rear Shock Absorber)	Rear Spring & Shock Absorber ([11.1984 - ] (8411- ))
90387-16003	Coller(For Strut Bar Cushion)	Rear Spring & Shock Absorber ([11.1984 - ] (8411- ))
90948-02057	Retainer, Cushion(For Strut Bar Cushion)	Rear Spring & Shock Absorber ([11.1984 - ] (8411- ))
91612-B1020	Bolt (For Transfer Case)Cover No.2	Rear Spring & Shock Absorber ([11.1984 - ] (8411- ))
91615-61020	Bolt (For Transfer Case)Cover No.2	Rear Spring & Shock Absorber ([11.1984 - ] (8411- ))
94511-00800	WASHERSPRING	Rear Spring & Shock Absorber ([11.1984 - ] (8411- ))
95381-03020	Pin, Cotter(For Reverse Shaft Restrict Pin)	Rear Spring & Shock Absorber ([11.1984 - ] (8411- ))
