検索 › 型式 › AW11

AW11

Toyota MR2 / MR-S · 1984 · 6,136 部品 · 271 カテゴリ
AW11 ×

← カテゴリ一覧に戻る

6,136 件

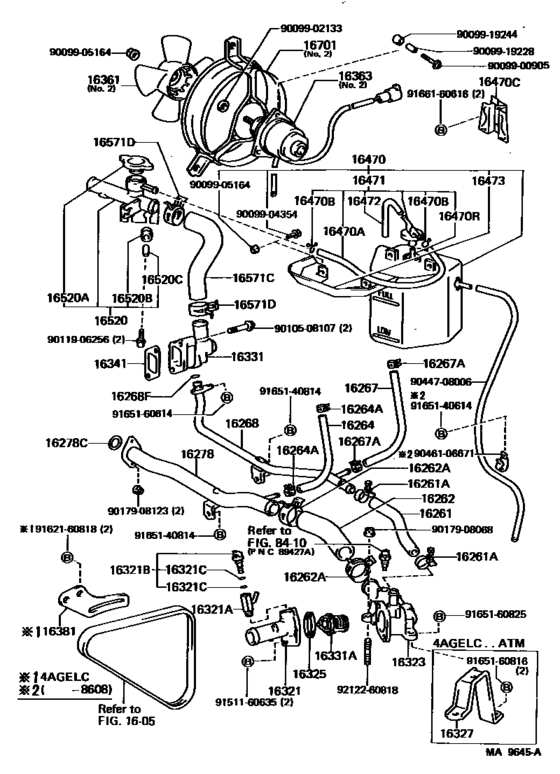

Radiator & Water Outlet ([12.1984 - ] (8412- )) 108
#OEM部品名
16261 16261-15010 Hose, Water By-Pass
16261 96112-10250 Clamp Or Clip, Hose(For Oil Cooler Hose)
16262 16262-15010 Hose, Water Inlet
16262 90467-34003 Clip(For Oil Return Hose)
16262 90467-34004 Clamp Or Clip, Hose(For Water By-Pass Hose)
16264 16264-16041 Hose, Water By-Pass, No.2
16264 90467-13001 Clamp Or Clip, Hose(For Water By-Pass Hose)
16264 96135-51300 Clamp, Hose
16267 16267-16031 Hose, Water By-Pass, No.3
16268 16268-16040 Pipe, Water By-Pass, No.1
16268 16268-16041 Pipe, Water By-Pass, No.1
16268 96711-24013 Ring, O(For Water By-Pass Pipe)
16278 16322-16020 Pipe, Water By-Pass, No.2
16278 16322-16021 Pipe, Water By-Pass, No.2
16278 96711-24035 Ring, O(For Water Pump)
16278 96761-24035 Ring, O(For Water Pump)
16321 16321-16011 Inlet, Water
16321 90404-08002 Union(For Water Inlet)
16321 90910-09081 Plug, Drain Cock(For Water Inlet)
16321 90910-09093 Plug, Drain Cock(For Water Inlet)
16321 96761-19004 Ring, O(For Water Inlet Union Drain Cock Plug)
16321 96761-19006 Ring, O(For Water Inlet Union Drain Cock Plug)
16323 16323-16100 Housing, Water Inlet
16325 16325-63010 Gasket, Water Inlet Housing, No.1
16325 16325-63011 Gasket, Water Inlet Housing, No.1
16331 16331-16070 Outlet, Water
16331 90916-03060 Thermostat
16331 90916-03090 Thermostat
16341 16341-16020 Gasket, Water Outlet
16361 16361-16030 Fan
16361 16361-16041 Fan
16363 16363-15090 Motor, Cooling Fan
16363 16363-16020 Motor, Cooling Fan
16400 16400-16120 Radiator Assy
16400 90910-09054 Plug, Radiator Drain Cock
16400 96710-01004 Packing(For Radiator Drain Cock)
16400 96711-19006 Packing(For Radiator Drain Cock)
16400 96711-19007 Packing(For Radiator Drain Cock)
16470 16470-16060 Tank Assy, Radiator Reserve
16470 90445-12043 Hose Or Pipe(For Radiator Reserve Tank)
16470 90445-12078 Hose(For Radiator Breather)
16470 90467-11085 Clamp Or Clip(For Radiator Breather Hose)
16470 16611-16050 Bracket(For Radiator Reserve Tank)
16471 16405-16020 Cap Sub-Assy, Reserve Tank
16472 85338-22030 Hose, Breather
16473 16473-16021 Support(For Radiator Reserve Tank)
16507 16507-16020 Pipe Sub-Assy, Radiator
16508 16508-16010 Pipe Sub-Assy, Radiator, No.2
16520 16520-16011 Filler Assy, Water
16520 16401-63010 Cap Sub-Assy,
16520 16444-15010 Bushing(For Water Filler)
16520 16445-15010 Pipe(For Water Filler)
16533 16505-16020 Support, Radiator, Upper
16558 16558-16020 Hose, Radiator, No.7
16571 16571-16080 Hose, Radiator, No.1
16572 16572-16040 Hose, Radiator, No.2
16573 16573-16020 Hose, Radiator, No.3
16574 16574-16020 Hose, Radiator, No.4
16574 90467-34001 Clamp Or Clip, Hose(For Radiator Inlet)
16574 90467-33003 Clamp Or Clip, Hose(For Radiator Inlet)
16575 16575-16020 Hose, Radiator, No.5
16576 16576-16020 Hose, Radiator, No.6
16581 90929-01176 Clamp, Hose(For Water Hose)
16701 16711-16031 Shroud Sub-Assy, Fan
16701 16711-16120 Shroud Sub-Assy, Fan
16712 16712-16030 Shroud, Fan, No.2
9009900183 90099-00183 New Genuine Part
9009900905 90099-00905 New Genuine Part
9009902133 90099-02133 New Genuine Part
9009904354 90099-04354 New Genuine Part
9009905164 90099-05164 Nut
9009919228 90099-19228 New Genuine Part
9009919244 90099-19244 New Genuine Part
9010508088 90105-08088 New Genuine Part
9010508107 90105-08107 New Genuine Part
9011906256 90119-06256 BOLT
9017908068 90179-08068 NUT
9017908123 90179-08123 Nut (For Front Wiper Arm Setting)
9038510012 90385-10012 New Genuine Part
9043008088 90430-08088 New Genuine Part
9044609013 90446-09013 New Genuine Part
9044708006 90447-08006 New Genuine Part
9046106671 90461-06671 New Genuine Part
9048023010 90480-23010 New Genuine Part
9056108006 90561-08006 New Genuine Part
9092901081 90929-01081 New Genuine Part
9092901092 90929-01092 New Genuine Part
9151160635 91511-60635 Bolt
9151160635 90080-10195 Bolt
9151160816 91511-60816 BOLT
9151160816 91511-B0816 BOLT
9162160818 91621-60818 Bolt(For Automatic Transmission Case Protector)
9162160818 91651-B0820 Bolt, Radiator Side Support Plate
9165140612 91651-40612 BOLT
9165140612 90080-11225 New Genuine Part
9165140614 91651-40614 Bolt
9165140814 91651-40814 BOLT
9165140814 90080-11228 New Genuine Part
9165160614 91651-60614 Bolt
9165160816 91651-60816 BOLT
9165160816 90080-11396 Bolt
9165160825 91651-60825 Bolt, Hexagon(For Steering Column Bracket)
9165160825 91651-B0825 Bolt, Hexagon(For Steering Column Bracket)
9165640818 91656-40818 Clamp Or Clip, Hose(For Radiator Outlet No.1)
9165640818 91651-B0814 Bolt with washer
9165640825 91656-40825 New Genuine Part
9166160616 91661-60616 BOLT
9212260818 92122-60818 Bolt, Stud(For Water Pump Pulley Seat)
