Search › Model › AW11

AW11

Toyota MR-2-MR-S · 1984 · 6,136 parts · 271 categories

6,136 items

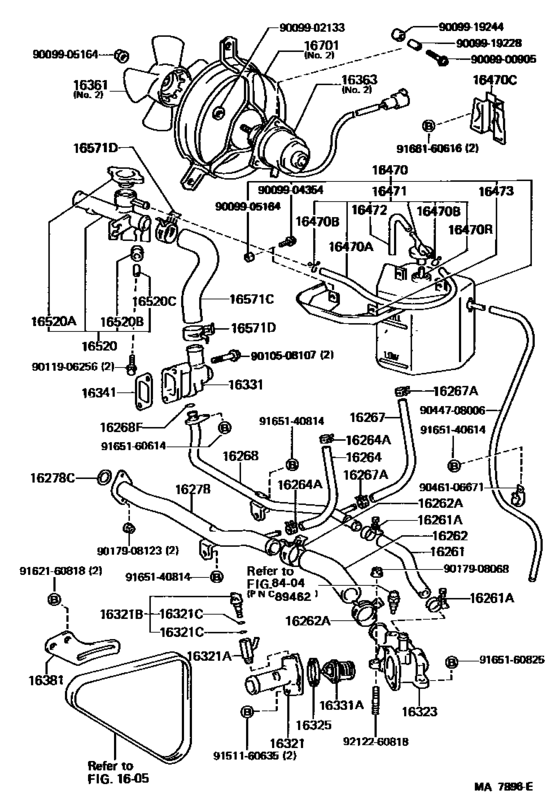

Radiator & Water Outlet ([11.1984 - ] (8411- )) 106

#	OEM	Part name
16261	16261-15010	Hose, Water By-Pass
16261	96112-10250	Clamp Or Clip, Hose(For Oil Cooler Hose)
16262	16262-15010	Hose, Water Inlet
16262	90467-34003	Clip(For Oil Return Hose)
16262	90467-34004	Clamp Or Clip, Hose(For Water By-Pass Hose)
16264	16264-16030	Hose, Water By-Pass, No.2
16264	90467-13001	Clamp Or Clip, Hose(For Water By-Pass Hose)
16264	96135-51300	Clamp, Hose
16267	16267-16010	Hose, Water By-Pass, No.3
16268	16268-16070	Pipe, Water By-Pass, No.1
16268	16268-16071	Pipe, Water By-Pass, No.1
16268	96711-24013	Ring, O(For Water By-Pass Pipe)
16278	16278-16060	Pipe, Water By-Pass, No.2
16278	16278-16061	Pipe, Water By-Pass, No.2
16278	96711-24035	Ring, O(For Water Pump)
16278	96761-24035	Ring, O(For Water Pump)
16321	16321-16011	Inlet, Water
16321	90404-08002	Union(For Water Inlet)
16321	90910-09081	Plug, Drain Cock(For Water Inlet)
16321	90910-09093	Plug, Drain Cock(For Water Inlet)
16321	96761-19004	Ring, O(For Water Inlet Union Drain Cock Plug)
16321	96761-19006	Ring, O(For Water Inlet Union Drain Cock Plug)
16323	16323-16050	Housing, Water Inlet
16325	16325-63010	Gasket, Water Inlet Housing, No.1
16325	16325-63011	Gasket, Water Inlet Housing, No.1
16331	16331-16030	Outlet, Water
16331	90916-03060	Thermostat
16331	90916-03090	Thermostat
16341	16341-16020	Gasket, Water Outlet
16361	16361-16020	Fan
16361	16361-16041	Fan
16363	16363-15090	Motor, Cooling Fan
16363	16363-16010	Motor, Cooling Fan
16381	16381-16030	Bar, Fan Belt Adjusting
16381	16381-16050	Bar, Fan Belt Adjusting
16400	16400-16110	Radiator Assy
16400	16400-16120	Radiator Assy
16400	90910-09054	Plug, Radiator Drain Cock
16400	96710-01004	Packing(For Radiator Drain Cock)
16400	96711-19006	Packing(For Radiator Drain Cock)
16400	96711-19007	Packing(For Radiator Drain Cock)
16470	16470-16021	Tank Assy, Radiator Reserve
16470	90445-12043	Hose Or Pipe(For Radiator Reserve Tank)
16470	90445-12078	Hose(For Radiator Breather)
16470	90467-11085	Clamp Or Clip(For Radiator Breather Hose)
16470	16611-16050	Bracket(For Radiator Reserve Tank)
16471	16405-16020	Cap Sub-Assy, Reserve Tank
16472	85338-22030	Hose, Breather
16473	16473-16021	Support(For Radiator Reserve Tank)
16507	16507-16020	Pipe Sub-Assy, Radiator
16520	16520-16011	Filler Assy, Water
16520	16401-63010	Cap Sub-Assy,
16520	16444-15010	Bushing(For Water Filler)
16520	16445-15010	Pipe(For Water Filler)
16533	16505-16020	Support, Radiator, Upper
16571	16571-16030	Hose, Radiator, No.1
16572	16572-16040	Hose, Radiator, No.2
16573	16573-16020	Hose, Radiator, No.3
16574	16574-16020	Hose, Radiator, No.4
16574	90467-34001	Clamp Or Clip, Hose(For Radiator Inlet)
16574	90467-33003	Clamp Or Clip, Hose(For Radiator Inlet)
16575	16575-16020	Hose, Radiator, No.5
16576	16576-16011	Hose, Radiator, No.6
16581	90929-01175	Clamp, Hose(For Water Hose)
16701	16711-16031	Shroud Sub-Assy, Fan
16701	16711-16110	Shroud Sub-Assy, Fan
16712	16712-16030	Shroud, Fan, No.2
8857817040	88578-17040	Paking, Cooler Air Duct
8857817050	88578-17050	Paking, Cooler Air Duct
8857817060	88578-17060	Paking, Cooler Air Duct
8859614010	88596-14010	Plate, Caution(For Fan Shroud)
9009900183	90099-00183	New Genuine Part
9009900905	90099-00905	New Genuine Part
9009902133	90099-02133	New Genuine Part
9009904354	90099-04354	New Genuine Part
9009905164	90099-05164	Nut
9009919228	90099-19228	New Genuine Part
9009919244	90099-19244	New Genuine Part
9010508088	90105-08088	New Genuine Part
9010508107	90105-08107	New Genuine Part
9011906256	90119-06256	BOLT
9017908068	90179-08068	NUT
9017908123	90179-08123	Nut (For Front Wiper Arm Setting)
9043008008	90430-08008	New Genuine Part
9044708006	90447-08006	New Genuine Part
9046106671	90461-06671	New Genuine Part
9048023010	90480-23010	New Genuine Part
9092901081	90929-01081	New Genuine Part
9092901092	90929-01092	New Genuine Part
9151160635	91511-60635	Bolt
9151160635	90080-10195	Bolt
9151160816	91511-60816	BOLT
9151160816	91511-B0816	BOLT
9162160818	91621-60818	Bolt(For Automatic Transmission Case Protector)
9162160818	91651-B0820	Bolt, Radiator Side Support Plate
9165140612	91651-40612	BOLT
9165140612	90080-11225	New Genuine Part
9165140614	91651-40614	Bolt
9165140814	91651-40814	BOLT
9165140814	90080-11228	New Genuine Part
9165160614	91651-60614	Bolt
9165160825	91651-60825	Bolt, Hexagon(For Steering Column Bracket)
9165160825	91651-B0825	Bolt, Hexagon(For Steering Column Bracket)
9165640825	91656-40825	New Genuine Part
9166160616	91661-60616	BOLT
9212260818	92122-60818	Bolt, Stud(For Water Pump Pulley Seat)

OEM	Part name	Category
16261-15010	Hose, Water By-Pass	Radiator & Water Outlet ([11.1984 - ] (8411- ))
16262-15010	Hose, Water Inlet	Radiator & Water Outlet ([11.1984 - ] (8411- ))
16264-16030	Hose, Water By-Pass, No.2	Radiator & Water Outlet ([11.1984 - ] (8411- ))
16267-16010	Hose, Water By-Pass, No.3	Radiator & Water Outlet ([11.1984 - ] (8411- ))
16268-16070	Pipe, Water By-Pass, No.1	Radiator & Water Outlet ([11.1984 - ] (8411- ))
16268-16071	Pipe, Water By-Pass, No.1	Radiator & Water Outlet ([11.1984 - ] (8411- ))
16278-16060	Pipe, Water By-Pass, No.2	Radiator & Water Outlet ([11.1984 - ] (8411- ))
16278-16061	Pipe, Water By-Pass, No.2	Radiator & Water Outlet ([11.1984 - ] (8411- ))
16321-16011	Inlet, Water	Radiator & Water Outlet ([11.1984 - ] (8411- ))
16323-16050	Housing, Water Inlet	Radiator & Water Outlet ([11.1984 - ] (8411- ))
16325-63010	Gasket, Water Inlet Housing, No.1	Radiator & Water Outlet ([11.1984 - ] (8411- ))
16325-63011	Gasket, Water Inlet Housing, No.1	Radiator & Water Outlet ([11.1984 - ] (8411- ))
16331-16030	Outlet, Water	Radiator & Water Outlet ([11.1984 - ] (8411- ))
16341-16020	Gasket, Water Outlet	Radiator & Water Outlet ([11.1984 - ] (8411- ))
16361-16020	Fan	Radiator & Water Outlet ([11.1984 - ] (8411- ))
16361-16041	Fan	Radiator & Water Outlet ([11.1984 - ] (8411- ))
16363-15090	Motor, Cooling Fan	Radiator & Water Outlet ([11.1984 - ] (8411- ))
16363-16010	Motor, Cooling Fan	Radiator & Water Outlet ([11.1984 - ] (8411- ))
16381-16030	Bar, Fan Belt Adjusting	Radiator & Water Outlet ([11.1984 - ] (8411- ))
16381-16050	Bar, Fan Belt Adjusting	Radiator & Water Outlet ([11.1984 - ] (8411- ))
16400-16110	Radiator Assy	Radiator & Water Outlet ([11.1984 - ] (8411- ))
16400-16120	Radiator Assy	Radiator & Water Outlet ([11.1984 - ] (8411- ))
16401-63010	Cap Sub-Assy,	Radiator & Water Outlet ([11.1984 - ] (8411- ))
16405-16020	Cap Sub-Assy, Reserve Tank	Radiator & Water Outlet ([11.1984 - ] (8411- ))
16444-15010	Bushing(For Water Filler)	Radiator & Water Outlet ([11.1984 - ] (8411- ))
16445-15010	Pipe(For Water Filler)	Radiator & Water Outlet ([11.1984 - ] (8411- ))
16470-16021	Tank Assy, Radiator Reserve	Radiator & Water Outlet ([11.1984 - ] (8411- ))
16473-16021	Support(For Radiator Reserve Tank)	Radiator & Water Outlet ([11.1984 - ] (8411- ))
16505-16020	Support, Radiator, Upper	Radiator & Water Outlet ([11.1984 - ] (8411- ))
16507-16020	Pipe Sub-Assy, Radiator	Radiator & Water Outlet ([11.1984 - ] (8411- ))
16520-16011	Filler Assy, Water	Radiator & Water Outlet ([11.1984 - ] (8411- ))
16571-16030	Hose, Radiator, No.1	Radiator & Water Outlet ([11.1984 - ] (8411- ))
16572-16040	Hose, Radiator, No.2	Radiator & Water Outlet ([11.1984 - ] (8411- ))
16573-16020	Hose, Radiator, No.3	Radiator & Water Outlet ([11.1984 - ] (8411- ))
16574-16020	Hose, Radiator, No.4	Radiator & Water Outlet ([11.1984 - ] (8411- ))
16575-16020	Hose, Radiator, No.5	Radiator & Water Outlet ([11.1984 - ] (8411- ))
16576-16011	Hose, Radiator, No.6	Radiator & Water Outlet ([11.1984 - ] (8411- ))
16611-16050	Bracket(For Radiator Reserve Tank)	Radiator & Water Outlet ([11.1984 - ] (8411- ))
16711-16031	Shroud Sub-Assy, Fan	Radiator & Water Outlet ([11.1984 - ] (8411- ))
16711-16110	Shroud Sub-Assy, Fan	Radiator & Water Outlet ([11.1984 - ] (8411- ))
16712-16030	Shroud, Fan, No.2	Radiator & Water Outlet ([11.1984 - ] (8411- ))
85338-22030	Hose, Breather	Radiator & Water Outlet ([11.1984 - ] (8411- ))
88578-17040	Paking, Cooler Air Duct	Radiator & Water Outlet ([11.1984 - ] (8411- ))
88578-17050	Paking, Cooler Air Duct	Radiator & Water Outlet ([11.1984 - ] (8411- ))
88578-17060	Paking, Cooler Air Duct	Radiator & Water Outlet ([11.1984 - ] (8411- ))
88596-14010	Plate, Caution(For Fan Shroud)	Radiator & Water Outlet ([11.1984 - ] (8411- ))
90080-10195	Bolt	Radiator & Water Outlet ([11.1984 - ] (8411- ))
90080-11225	New Genuine Part	Radiator & Water Outlet ([11.1984 - ] (8411- ))
90080-11228	New Genuine Part	Radiator & Water Outlet ([11.1984 - ] (8411- ))
90099-00183	New Genuine Part	Radiator & Water Outlet ([11.1984 - ] (8411- ))
90099-00905	New Genuine Part	Radiator & Water Outlet ([11.1984 - ] (8411- ))
90099-02133	New Genuine Part	Radiator & Water Outlet ([11.1984 - ] (8411- ))
90099-04354	New Genuine Part	Radiator & Water Outlet ([11.1984 - ] (8411- ))
90099-05164	Nut	Radiator & Water Outlet ([11.1984 - ] (8411- ))
90099-19228	New Genuine Part	Radiator & Water Outlet ([11.1984 - ] (8411- ))
90099-19244	New Genuine Part	Radiator & Water Outlet ([11.1984 - ] (8411- ))
90105-08088	New Genuine Part	Radiator & Water Outlet ([11.1984 - ] (8411- ))
90105-08107	New Genuine Part	Radiator & Water Outlet ([11.1984 - ] (8411- ))
90119-06256	BOLT	Radiator & Water Outlet ([11.1984 - ] (8411- ))
90179-08068	NUT	Radiator & Water Outlet ([11.1984 - ] (8411- ))
90179-08123	Nut (For Front Wiper Arm Setting)	Radiator & Water Outlet ([11.1984 - ] (8411- ))
90404-08002	Union(For Water Inlet)	Radiator & Water Outlet ([11.1984 - ] (8411- ))
90430-08008	New Genuine Part	Radiator & Water Outlet ([11.1984 - ] (8411- ))
90445-12043	Hose Or Pipe(For Radiator Reserve Tank)	Radiator & Water Outlet ([11.1984 - ] (8411- ))
90445-12078	Hose(For Radiator Breather)	Radiator & Water Outlet ([11.1984 - ] (8411- ))
90447-08006	New Genuine Part	Radiator & Water Outlet ([11.1984 - ] (8411- ))
90461-06671	New Genuine Part	Radiator & Water Outlet ([11.1984 - ] (8411- ))
90467-11085	Clamp Or Clip(For Radiator Breather Hose)	Radiator & Water Outlet ([11.1984 - ] (8411- ))
90467-13001	Clamp Or Clip, Hose(For Water By-Pass Hose)	Radiator & Water Outlet ([11.1984 - ] (8411- ))
90467-33003	Clamp Or Clip, Hose(For Radiator Inlet)	Radiator & Water Outlet ([11.1984 - ] (8411- ))
90467-34001	Clamp Or Clip, Hose(For Radiator Inlet)	Radiator & Water Outlet ([11.1984 - ] (8411- ))
90467-34003	Clip(For Oil Return Hose)	Radiator & Water Outlet ([11.1984 - ] (8411- ))
90467-34004	Clamp Or Clip, Hose(For Water By-Pass Hose)	Radiator & Water Outlet ([11.1984 - ] (8411- ))
90480-23010	New Genuine Part	Radiator & Water Outlet ([11.1984 - ] (8411- ))
90910-09054	Plug, Radiator Drain Cock	Radiator & Water Outlet ([11.1984 - ] (8411- ))
90910-09081	Plug, Drain Cock(For Water Inlet)	Radiator & Water Outlet ([11.1984 - ] (8411- ))
90910-09093	Plug, Drain Cock(For Water Inlet)	Radiator & Water Outlet ([11.1984 - ] (8411- ))
90916-03060	Thermostat	Radiator & Water Outlet ([11.1984 - ] (8411- ))
90916-03090	Thermostat	Radiator & Water Outlet ([11.1984 - ] (8411- ))
90929-01081	New Genuine Part	Radiator & Water Outlet ([11.1984 - ] (8411- ))
90929-01092	New Genuine Part	Radiator & Water Outlet ([11.1984 - ] (8411- ))
90929-01175	Clamp, Hose(For Water Hose)	Radiator & Water Outlet ([11.1984 - ] (8411- ))
91511-60635	Bolt	Radiator & Water Outlet ([11.1984 - ] (8411- ))
91511-60816	BOLT	Radiator & Water Outlet ([11.1984 - ] (8411- ))
91511-B0816	BOLT	Radiator & Water Outlet ([11.1984 - ] (8411- ))
91621-60818	Bolt(For Automatic Transmission Case Protector)	Radiator & Water Outlet ([11.1984 - ] (8411- ))
91651-40612	BOLT	Radiator & Water Outlet ([11.1984 - ] (8411- ))
91651-40614	Bolt	Radiator & Water Outlet ([11.1984 - ] (8411- ))
91651-40814	BOLT	Radiator & Water Outlet ([11.1984 - ] (8411- ))
91651-60614	Bolt	Radiator & Water Outlet ([11.1984 - ] (8411- ))
91651-60825	Bolt, Hexagon(For Steering Column Bracket)	Radiator & Water Outlet ([11.1984 - ] (8411- ))
91651-B0820	Bolt, Radiator Side Support Plate	Radiator & Water Outlet ([11.1984 - ] (8411- ))
91651-B0825	Bolt, Hexagon(For Steering Column Bracket)	Radiator & Water Outlet ([11.1984 - ] (8411- ))
91656-40825	New Genuine Part	Radiator & Water Outlet ([11.1984 - ] (8411- ))
91661-60616	BOLT	Radiator & Water Outlet ([11.1984 - ] (8411- ))
92122-60818	Bolt, Stud(For Water Pump Pulley Seat)	Radiator & Water Outlet ([11.1984 - ] (8411- ))
96112-10250	Clamp Or Clip, Hose(For Oil Cooler Hose)	Radiator & Water Outlet ([11.1984 - ] (8411- ))
96135-51300	Clamp, Hose	Radiator & Water Outlet ([11.1984 - ] (8411- ))
96710-01004	Packing(For Radiator Drain Cock)	Radiator & Water Outlet ([11.1984 - ] (8411- ))
96711-19006	Packing(For Radiator Drain Cock)	Radiator & Water Outlet ([11.1984 - ] (8411- ))
96711-19007	Packing(For Radiator Drain Cock)	Radiator & Water Outlet ([11.1984 - ] (8411- ))
96711-24013	Ring, O(For Water By-Pass Pipe)	Radiator & Water Outlet ([11.1984 - ] (8411- ))
96711-24035	Ring, O(For Water Pump)	Radiator & Water Outlet ([11.1984 - ] (8411- ))
96761-19004	Ring, O(For Water Inlet Union Drain Cock Plug)	Radiator & Water Outlet ([11.1984 - ] (8411- ))
96761-19006	Ring, O(For Water Inlet Union Drain Cock Plug)	Radiator & Water Outlet ([11.1984 - ] (8411- ))
96761-24035	Ring, O(For Water Pump)	Radiator & Water Outlet ([11.1984 - ] (8411- ))

Source: Public OEM parts-catalog data
Variants: 2 / 50
Category: 271
Collected: 2026-08-04
