Search › Model › AW11

AW11

Toyota MR-2-MR-S · 1984 · 6,136 parts · 271 categories

6,136 items

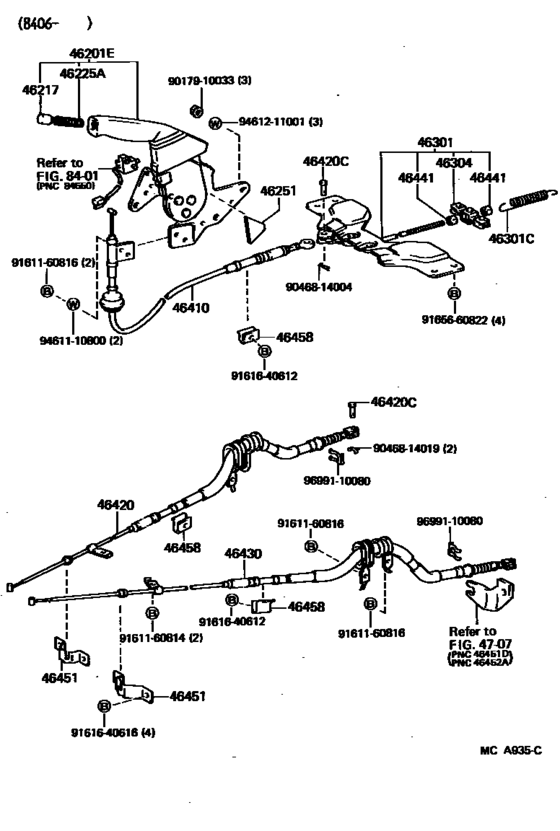

Parking Brake & Cable ([11.1984 - ] (8411- )) 42

#	OEM	Part name
46201	46201-17040-01	Lever Sub-Assy, Parking Brake
46201	46201-17041-11	Lever Sub-Assy, Parking Brake
46201	46201-17040-04	Lever Sub-Assy, Parking Brake
46201	46201-17040-05	Lever Sub-Assy, Parking Brake
46201	46201-17041-01	Lever Sub-Assy, Parking Brake
46201	46201-17041-04	Lever Sub-Assy, Parking Brake
46217	46217-22040-01	Knob, Parking Brake Release Rod
46217	46217-22040-14	Knob, Parking Brake Release Rod
46217	46217-22040-J0	Knob, Parking Brake Release Rod
46217	46217-22040-15	Knob, Parking Brake Release Rod
46217	46217-32010-01	Knob, Parking Brake Release Rod
46217	46217-32010-11	Knob, Parking Brake Release Rod
46217	46217-32010-J0	Knob, Parking Brake Release Rod
46225	90501-10069	Spring, Compression(For Parking Brake Pawl Rod)
46251	46251-17010	Spacer, Parking Brake Lever
46301	46320-17012	Lever Sub-Assy, Parking Brake Intermediate
46301	90506-18048	Spring, Tension(For Intermediate Lever)
46304	46304-17010	Equalizer Sub-Assy, Parking Brake
46410	46410-17021	Cable Assy, Parking Brake, No.1
46420	46420-17030	Cable Assy, Parking Brake, No.2
46420	90240-08040	Pin, W/hole(For Clutch Master Cylinder Push Rod Clevis)
46430	46430-17030	Cable Assy, Parking Brake, No.3
46441	46441-30030	Nut, Wire Adjusting, No.1
46451	46451-17010	Bracket, Cable Support
46451	46452-17010	Bracket, Cable Support
46458	46458-20020	Retainer, Cable
46458	46458-50010	Retainer, Cable
9017910033	90179-10033	Nut (For Front Wiper Arm Setting)
9046814004	90468-14004	Union, Auxiliary Fuel Band
9046814019	90468-14019	New Genuine Part
9161160814	91611-60814	Bolt
9161160816	91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160816	91611-B0816	Bolt
9161640612	91616-40612	Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9161640612	91611-G0612	Bolt
9161640616	91616-40616	Screw Or Bolt(for Valve Rocker Shaft Lock)
9161640616	91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)
9165660822	91656-60822	Bolt, Radiator Side Support Plate
9165660822	91651-B0820	Bolt, Radiator Side Support Plate
9461110800	94611-10800	Washer, Plate (For Transmission Control Cable)
9461211001	94612-11001	Washer, Plate (For Center Support Bearing Housing)
9699110080	96991-10080	CLIP

OEM	Part name	Category
46201-17040-01	Lever Sub-Assy, Parking Brake	Parking Brake & Cable ([11.1984 - ] (8411- ))
46201-17040-04	Lever Sub-Assy, Parking Brake	Parking Brake & Cable ([11.1984 - ] (8411- ))
46201-17040-05	Lever Sub-Assy, Parking Brake	Parking Brake & Cable ([11.1984 - ] (8411- ))
46201-17041-01	Lever Sub-Assy, Parking Brake	Parking Brake & Cable ([11.1984 - ] (8411- ))
46201-17041-04	Lever Sub-Assy, Parking Brake	Parking Brake & Cable ([11.1984 - ] (8411- ))
46201-17041-11	Lever Sub-Assy, Parking Brake	Parking Brake & Cable ([11.1984 - ] (8411- ))
46217-22040-01	Knob, Parking Brake Release Rod	Parking Brake & Cable ([11.1984 - ] (8411- ))
46217-22040-14	Knob, Parking Brake Release Rod	Parking Brake & Cable ([11.1984 - ] (8411- ))
46217-22040-15	Knob, Parking Brake Release Rod	Parking Brake & Cable ([11.1984 - ] (8411- ))
46217-22040-J0	Knob, Parking Brake Release Rod	Parking Brake & Cable ([11.1984 - ] (8411- ))
46217-32010-01	Knob, Parking Brake Release Rod	Parking Brake & Cable ([11.1984 - ] (8411- ))
46217-32010-11	Knob, Parking Brake Release Rod	Parking Brake & Cable ([11.1984 - ] (8411- ))
46217-32010-J0	Knob, Parking Brake Release Rod	Parking Brake & Cable ([11.1984 - ] (8411- ))
46251-17010	Spacer, Parking Brake Lever	Parking Brake & Cable ([11.1984 - ] (8411- ))
46304-17010	Equalizer Sub-Assy, Parking Brake	Parking Brake & Cable ([11.1984 - ] (8411- ))
46320-17012	Lever Sub-Assy, Parking Brake Intermediate	Parking Brake & Cable ([11.1984 - ] (8411- ))
46410-17021	Cable Assy, Parking Brake, No.1	Parking Brake & Cable ([11.1984 - ] (8411- ))
46420-17030	Cable Assy, Parking Brake, No.2	Parking Brake & Cable ([11.1984 - ] (8411- ))
46430-17030	Cable Assy, Parking Brake, No.3	Parking Brake & Cable ([11.1984 - ] (8411- ))
46441-30030	Nut, Wire Adjusting, No.1	Parking Brake & Cable ([11.1984 - ] (8411- ))
46451-17010	Bracket, Cable Support	Parking Brake & Cable ([11.1984 - ] (8411- ))
46452-17010	Bracket, Cable Support	Parking Brake & Cable ([11.1984 - ] (8411- ))
46458-20020	Retainer, Cable	Parking Brake & Cable ([11.1984 - ] (8411- ))
46458-50010	Retainer, Cable	Parking Brake & Cable ([11.1984 - ] (8411- ))
90179-10033	Nut (For Front Wiper Arm Setting)	Parking Brake & Cable ([11.1984 - ] (8411- ))
90240-08040	Pin, W/hole(For Clutch Master Cylinder Push Rod Clevis)	Parking Brake & Cable ([11.1984 - ] (8411- ))
90468-14004	Union, Auxiliary Fuel Band	Parking Brake & Cable ([11.1984 - ] (8411- ))
90468-14019	New Genuine Part	Parking Brake & Cable ([11.1984 - ] (8411- ))
90501-10069	Spring, Compression(For Parking Brake Pawl Rod)	Parking Brake & Cable ([11.1984 - ] (8411- ))
90506-18048	Spring, Tension(For Intermediate Lever)	Parking Brake & Cable ([11.1984 - ] (8411- ))
91611-60814	Bolt	Parking Brake & Cable ([11.1984 - ] (8411- ))
91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)	Parking Brake & Cable ([11.1984 - ] (8411- ))
91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)	Parking Brake & Cable ([11.1984 - ] (8411- ))
91611-B0816	Bolt	Parking Brake & Cable ([11.1984 - ] (8411- ))
91611-G0612	Bolt	Parking Brake & Cable ([11.1984 - ] (8411- ))
91616-40612	Bolt(For Dust Cover To Steering Knuckle Arm Setting)	Parking Brake & Cable ([11.1984 - ] (8411- ))
91616-40616	Screw Or Bolt(for Valve Rocker Shaft Lock)	Parking Brake & Cable ([11.1984 - ] (8411- ))
91651-B0820	Bolt, Radiator Side Support Plate	Parking Brake & Cable ([11.1984 - ] (8411- ))
91656-60822	Bolt, Radiator Side Support Plate	Parking Brake & Cable ([11.1984 - ] (8411- ))
94611-10800	Washer, Plate (For Transmission Control Cable)	Parking Brake & Cable ([11.1984 - ] (8411- ))
94612-11001	Washer, Plate (For Center Support Bearing Housing)	Parking Brake & Cable ([11.1984 - ] (8411- ))
96991-10080	CLIP	Parking Brake & Cable ([11.1984 - ] (8411- ))

Source: Public OEM parts-catalog data
Variants: 2 / 50
Category: 271
Collected: 2026-08-04
