AW11

Toyota MR-2-MR-S · 1984 · 6,136 parts · 271 categories
AW11 ×

← Back to categories

6,136 items

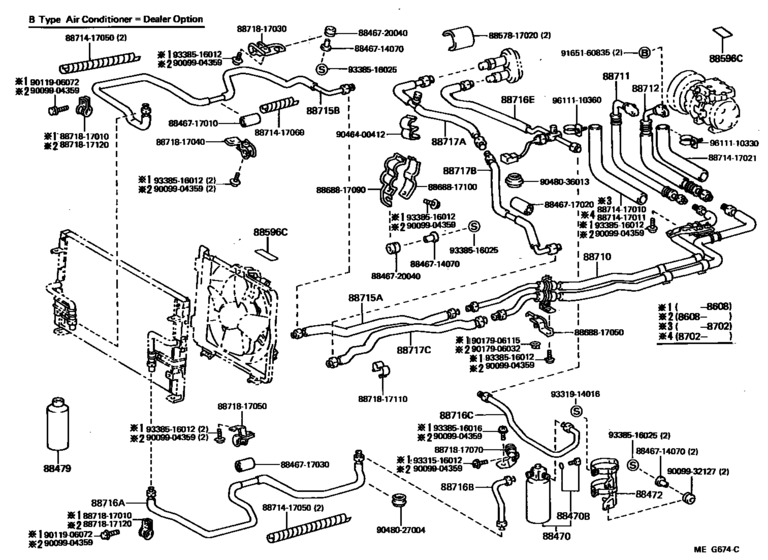

Heating & Air Conditioning - Cooler Piping ([08.1985 - ] (8508- )) 56
#OEMPart name
88470 88471-16010 Receiver & Dryer Assy, Cooler
88470 88475-12020 Bolt, Fuse
88472 88473-17010 Bracket, Receiver Tank, No.1
88596 88723-17010 Plate, Caution, No.2 - COOLER SERVICE CAUTION
88711 88711-17050 Hose, Cooler Refrigerant Discharge, No.1
88711 88703-17020 Hose, Cooler Refrigerant Discharge, No.1
88712 88712-17030 Hose, Cooler Refrigerant Suction, No.1
88712 88704-17010 Hose, Cooler Refrigerant Suction, No.1
88715 88715-17020 Pipe, Cooler Refrigerant Discharge, A
88715 88715-17080 Pipe, Cooler Refrigerant Discharge, B
88715 88705-17010 Pipe, Cooler Refrigerant Discharge, B
88716 88716-17080 Pipe, Cooler Refrigerant Liquid, A
88716 88716-17030 Pipe, Cooler Refrigerant Liquid, B
88716 88716-17040 Pipe, Cooler Refrigerant Liquid, C
88716 88716-17072 Pipe, Cooler Refrigerant Liquid, E
88717 88717-17040 Pipe, Cooler Refrigerant Suction, A
88717 88717-17050 Pipe, Cooler Refrigerant Suction, B
8846714070 88467-14070 Insulator (For Power Take-Off Cable Bracket)
8846717010 88467-17010 Cushion, Cooler Condenser, No.1
8846717020 88467-17020 Cushion, Cooler Condenser, No.1
8846717038 88467-17038 Cushion, Cooler Condenser, No.1
8846720040 88467-20040 Insulator, Cooler Condenser Mounting
8857817020 88578-17020 Paking, Cooler Air Duct
8868817050 88688-17050 Bracket, Cooler Diaphragm
8868817090 88688-17090 Bracket, Cooler Diaphragm
8868817100 88688-17100 Bracket, Cooler Diaphragm
8871417010 88714-17010 Hose, Cooler Refrigerant Liquid, No.1
8871417010 88714-17011 Hose, Cooler Refrigerant Liquid, No.1
8871417021 88714-17021 Cover, Cooler Refrigerant Pipe, No.1
8871417050 88714-17050 Hose, Cooler Refrigerant Liquid, No.1
8871417060 88714-17060 Hose, Cooler Refrigerant Liquid, No.1
8871817010 88718-17010 Pipe, Cooler Refrigerant Suction, No.2
8871817030 88718-17030 Pipe, Cooler Refrigerant Suction, No.2
8871817040 88718-17040 Pipe, Cooler Refrigerant Suction, No.2
8871817050 88718-17050 Pipe, Cooler Refrigerant Suction, No.2
8871817070 88718-17070 Pipe, Cooler Refrigerant Suction, No.2
8871817110 88718-17110 Pipe, Cooler Refrigerant Suction, No.2
8871817120 88718-17120 Pipe, Cooler Refrigerant Suction, No.2
9009904359 90099-04359 New Genuine Part
9009932127 90099-32127 Grommet (For Power Take-Off Cable Bracket)
9009932127 90099-32130 Grommet (For Power Take-Off Cable Bracket)
9011906072 90119-06072 Bolt
9017906032 90179-06032 Direct
9017906032 90179-06274 Nut
9017906115 90179-06115 Nut (For Rear Wiper Arm Setting)
9046400412 90464-00412 New Genuine Part
9048027004 90480-27004 New Genuine Part
9048036013 90480-36013 New Genuine Part
9165160835 91651-60835 Bolt(For Front Suspension Control Accumulator)
9331516012 93315-16012 New Genuine Part
9331914016 93319-14016 New Genuine Part
9338516012 93385-16012 New Genuine Part
9338516016 93385-16016 New Genuine Part
9338516025 93385-16025 New Genuine Part
9611110330 96111-10330 Clamp Or Clip, Hose(For Water By-Pass Hose)
9611110360 96111-10360 Clamp Or Clip, No.1(For Air Injection System Hose, No.1)
