検索 › 型式 › AW11
AW11

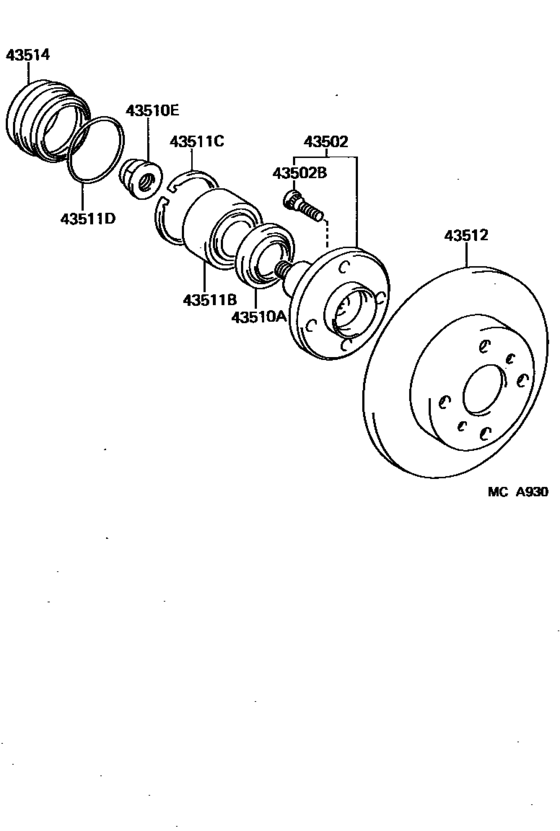

Front Axle Hub ([11.1984 - ] (8411- )) 9
| # | OEM | 部品名 |
|---|---|---|
| 43502 | 43502-17010 | Shaft Sub-Assy, Axle |
| 43502 | 90942-02047 | Bolt, Hub |
| 43510 | 90311-41004 | Seal, Oil (For Axle Shaft) |
| 43510 | 90179-20003 | Nut (For Rear Axle Shaft) |
| 43511 | 90369-28006 | Bearing (For Axle Shaft) |
| 43511 | 90521-66003 | Ring, Hole Snap (For Front Axle Hub) |
| 43511 | 96711-35056 | Ring, O (For Front Axle Hub) |
| 43512 | 43512-17010 | Disc, Front |
| 43514 | 43514-17010 | Cap, Front Hub Grease |
| OEM | 部品名 | カテゴリ |
|---|---|---|
| 43502-17010 | Shaft Sub-Assy, Axle | Front Axle Hub ([11.1984 - ] (8411- )) |
| 43512-17010 | Disc, Front | Front Axle Hub ([11.1984 - ] (8411- )) |
| 43514-17010 | Cap, Front Hub Grease | Front Axle Hub ([11.1984 - ] (8411- )) |
| 90179-20003 | Nut (For Rear Axle Shaft) | Front Axle Hub ([11.1984 - ] (8411- )) |
| 90311-41004 | Seal, Oil (For Axle Shaft) | Front Axle Hub ([11.1984 - ] (8411- )) |
| 90369-28006 | Bearing (For Axle Shaft) | Front Axle Hub ([11.1984 - ] (8411- )) |
| 90521-66003 | Ring, Hole Snap (For Front Axle Hub) | Front Axle Hub ([11.1984 - ] (8411- )) |
| 90942-02047 | Bolt, Hub | Front Axle Hub ([11.1984 - ] (8411- )) |
| 96711-35056 | Ring, O (For Front Axle Hub) | Front Axle Hub ([11.1984 - ] (8411- )) |
