Search › Model › AW11

AW11

Toyota MR-2-MR-S · 1984 · 6,136 parts · 271 categories

6,136 items

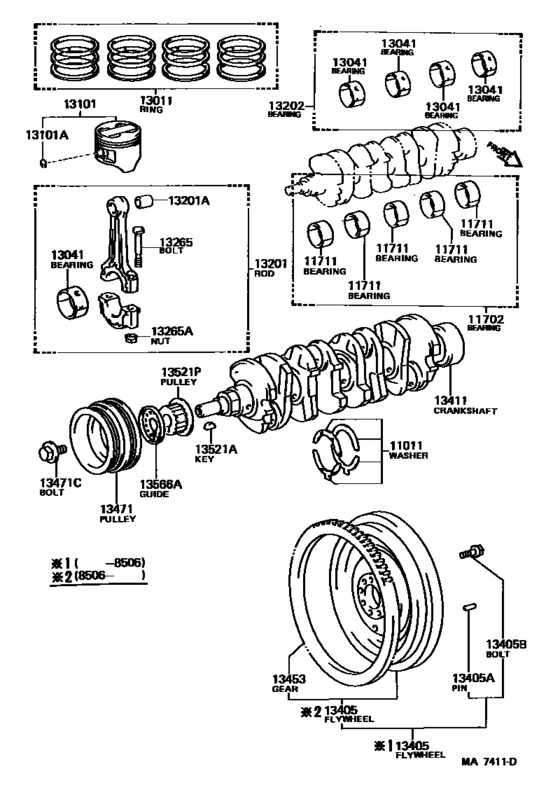

Crankshaft & Piston ([11.1984 - ] (8411- )) 55

#	OEM	Part name
11011	11011-15010	Washer Set, Crankshaft Thrust
11011	11011-15021	Washer Set, Crankshaft Thrust
11702	11704-15050	Bearing Set, Crankshaft
11702	11704-16010	Bearing Set, Crankshaft
11711	11701-15050-01	Bearing, Crankshaft
11711	11701-16010-01	Bearing, Crankshaft
11711	11701-15050-02	Bearing, Crankshaft
11711	11701-16010-02	Bearing, Crankshaft
11711	11701-15050-03	Bearing, Crankshaft
11711	11701-16010-03	Bearing, Crankshaft
11711	11701-15050-04	Bearing, Crankshaft
11711	11701-16010-04	Bearing, Crankshaft
11711	11701-15050-05	Bearing, Crankshaft
11711	11701-16010-05	Bearing, Crankshaft
13011	13011-16170	Ring Set, Piston
13011	13013-16170	Ring Set, Piston
13041	13041-16040-01	Bearing, Connecting Rod
13041	13041-16040-02	Bearing, Connecting Rod
13041	13041-16040-03	Bearing, Connecting Rod
13041	13041-16070-01	Bearing, Connecting Rod
13041	13041-16071-01	Bearing, Connecting Rod
13041	13041-16070-02	Bearing, Connecting Rod
13041	13041-16071-02	Bearing, Connecting Rod
13041	13041-16070-03	Bearing, Connecting Rod
13041	13041-16071-03	Bearing, Connecting Rod
13101	13101-16070	Piston Sub-Assy, W/pin
13101	13101-16070-02	Piston Sub-Assy, W/pin
13101	13101-16070-01	Piston Sub-Assy, W/pin
13101	13101-16070-03	Piston Sub-Assy, W/pin
13101	13103-16070	Piston Sub-Assy, W/pin
13101	90521-23005	Ring, Hole Snap(For Piston Pin)
13201	13201-19065	Rod Sub-Assy, Connecting
13201	13201-19066	Rod Sub-Assy, Connecting
13201	13201-19095	Rod Sub-Assy, Connecting
13201	13201-19096	Rod Sub-Assy, Connecting
13201	90999-73111	Bush(For Connecting Rod Small End)
13202	13204-16040	Bearing Set, Connecting Rod
13202	13204-16070	Bearing Set, Connecting Rod
13202	13204-16071	Bearing Set, Connecting Rod
13265	13265-15020	Bolt, Connecting Rod
13265	13265-16010	Bolt, Connecting Rod
13265	90170-09003	Nut, Hexagon(For Connecting Rod Bolt)
13265	90170-09001	Nut, Hexagon(For Connecting Rod Bolt)
13405	13405-16030	Flywheel Sub-Assy
13405	90250-08120	Pin, Straight, No.1
13405	90105-10076	Bolt, Flywheel Setting
13411	13401-16010	Crankshaft
13411	13401-16020	Crankshaft
13453	13453-10010	Gear, Flywheel Ring
13471	13470-16020	Pulley, Crankshaft
13471	90119-12127	Bolt(For Crankshaft Pulley Set)
13521	90280-05010	Key(For Oil Pump Drive Spline)
13521	95161-10519	Key(For Oil Pump Drive Spline)
13521	13521-16010	Pulley, Crankshaft Timing
13566	13566-15010	Guide, Timing Belt

OEM	Part name	Category
11011-15010	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([11.1984 - ] (8411- ))
11011-15021	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([11.1984 - ] (8411- ))
11701-15050-01	Bearing, Crankshaft	Crankshaft & Piston ([11.1984 - ] (8411- ))
11701-15050-02	Bearing, Crankshaft	Crankshaft & Piston ([11.1984 - ] (8411- ))
11701-15050-03	Bearing, Crankshaft	Crankshaft & Piston ([11.1984 - ] (8411- ))
11701-15050-04	Bearing, Crankshaft	Crankshaft & Piston ([11.1984 - ] (8411- ))
11701-15050-05	Bearing, Crankshaft	Crankshaft & Piston ([11.1984 - ] (8411- ))
11701-16010-01	Bearing, Crankshaft	Crankshaft & Piston ([11.1984 - ] (8411- ))
11701-16010-02	Bearing, Crankshaft	Crankshaft & Piston ([11.1984 - ] (8411- ))
11701-16010-03	Bearing, Crankshaft	Crankshaft & Piston ([11.1984 - ] (8411- ))
11701-16010-04	Bearing, Crankshaft	Crankshaft & Piston ([11.1984 - ] (8411- ))
11701-16010-05	Bearing, Crankshaft	Crankshaft & Piston ([11.1984 - ] (8411- ))
11704-15050	Bearing Set, Crankshaft	Crankshaft & Piston ([11.1984 - ] (8411- ))
11704-16010	Bearing Set, Crankshaft	Crankshaft & Piston ([11.1984 - ] (8411- ))
13011-16170	Ring Set, Piston	Crankshaft & Piston ([11.1984 - ] (8411- ))
13013-16170	Ring Set, Piston	Crankshaft & Piston ([11.1984 - ] (8411- ))
13041-16040-01	Bearing, Connecting Rod	Crankshaft & Piston ([11.1984 - ] (8411- ))
13041-16040-02	Bearing, Connecting Rod	Crankshaft & Piston ([11.1984 - ] (8411- ))
13041-16040-03	Bearing, Connecting Rod	Crankshaft & Piston ([11.1984 - ] (8411- ))
13041-16070-01	Bearing, Connecting Rod	Crankshaft & Piston ([11.1984 - ] (8411- ))
13041-16070-02	Bearing, Connecting Rod	Crankshaft & Piston ([11.1984 - ] (8411- ))
13041-16070-03	Bearing, Connecting Rod	Crankshaft & Piston ([11.1984 - ] (8411- ))
13041-16071-01	Bearing, Connecting Rod	Crankshaft & Piston ([11.1984 - ] (8411- ))
13041-16071-02	Bearing, Connecting Rod	Crankshaft & Piston ([11.1984 - ] (8411- ))
13041-16071-03	Bearing, Connecting Rod	Crankshaft & Piston ([11.1984 - ] (8411- ))
13101-16070	Piston Sub-Assy, W/pin	Crankshaft & Piston ([11.1984 - ] (8411- ))
13101-16070-01	Piston Sub-Assy, W/pin	Crankshaft & Piston ([11.1984 - ] (8411- ))
13101-16070-02	Piston Sub-Assy, W/pin	Crankshaft & Piston ([11.1984 - ] (8411- ))
13101-16070-03	Piston Sub-Assy, W/pin	Crankshaft & Piston ([11.1984 - ] (8411- ))
13103-16070	Piston Sub-Assy, W/pin	Crankshaft & Piston ([11.1984 - ] (8411- ))
13201-19065	Rod Sub-Assy, Connecting	Crankshaft & Piston ([11.1984 - ] (8411- ))
13201-19066	Rod Sub-Assy, Connecting	Crankshaft & Piston ([11.1984 - ] (8411- ))
13201-19095	Rod Sub-Assy, Connecting	Crankshaft & Piston ([11.1984 - ] (8411- ))
13201-19096	Rod Sub-Assy, Connecting	Crankshaft & Piston ([11.1984 - ] (8411- ))
13204-16040	Bearing Set, Connecting Rod	Crankshaft & Piston ([11.1984 - ] (8411- ))
13204-16070	Bearing Set, Connecting Rod	Crankshaft & Piston ([11.1984 - ] (8411- ))
13204-16071	Bearing Set, Connecting Rod	Crankshaft & Piston ([11.1984 - ] (8411- ))
13265-15020	Bolt, Connecting Rod	Crankshaft & Piston ([11.1984 - ] (8411- ))
13265-16010	Bolt, Connecting Rod	Crankshaft & Piston ([11.1984 - ] (8411- ))
13401-16010	Crankshaft	Crankshaft & Piston ([11.1984 - ] (8411- ))
13401-16020	Crankshaft	Crankshaft & Piston ([11.1984 - ] (8411- ))
13405-16030	Flywheel Sub-Assy	Crankshaft & Piston ([11.1984 - ] (8411- ))
13453-10010	Gear, Flywheel Ring	Crankshaft & Piston ([11.1984 - ] (8411- ))
13470-16020	Pulley, Crankshaft	Crankshaft & Piston ([11.1984 - ] (8411- ))
13521-16010	Pulley, Crankshaft Timing	Crankshaft & Piston ([11.1984 - ] (8411- ))
13566-15010	Guide, Timing Belt	Crankshaft & Piston ([11.1984 - ] (8411- ))
90105-10076	Bolt, Flywheel Setting	Crankshaft & Piston ([11.1984 - ] (8411- ))
90119-12127	Bolt(For Crankshaft Pulley Set)	Crankshaft & Piston ([11.1984 - ] (8411- ))
90170-09001	Nut, Hexagon(For Connecting Rod Bolt)	Crankshaft & Piston ([11.1984 - ] (8411- ))
90170-09003	Nut, Hexagon(For Connecting Rod Bolt)	Crankshaft & Piston ([11.1984 - ] (8411- ))
90250-08120	Pin, Straight, No.1	Crankshaft & Piston ([11.1984 - ] (8411- ))
90280-05010	Key(For Oil Pump Drive Spline)	Crankshaft & Piston ([11.1984 - ] (8411- ))
90521-23005	Ring, Hole Snap(For Piston Pin)	Crankshaft & Piston ([11.1984 - ] (8411- ))
90999-73111	Bush(For Connecting Rod Small End)	Crankshaft & Piston ([11.1984 - ] (8411- ))
95161-10519	Key(For Oil Pump Drive Spline)	Crankshaft & Piston ([11.1984 - ] (8411- ))
