AVA44

Toyota RAV4-VANGUARD · 2015 · 2,890 parts · 183 categories

← Back to categories

2,890 items

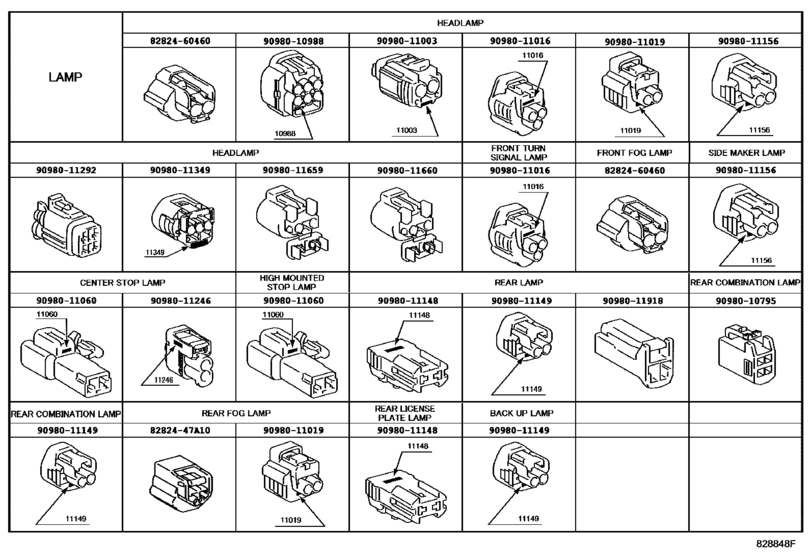

Wiring & Clamp ([12.2012 - ] CONNECTOR 1/3 (1212- )) 17

#	OEM	Part name
8282447	82824-47A10	Connector, Wiring Harness
8282460460	82824-60460	Connector, Wiring Harness
9098010795	90980-10795	HOUSING CONNECTOR
9098010988	90980-10988	HOUSING CONNECTOR
9098011003	90980-11003	Housing, Connector
9098011016	90980-11016	Housing, Connector
9098011019	90980-11019	HOUSING, CONNECTOR
9098011060	90980-11060	New Genuine Part
9098011148	90980-11148	Housing, Connector
9098011149	90980-11149	Connector, housing
9098011156	90980-11156	Housing, Connector
9098011246	90980-11246	HOUSING, CONNECTOR
9098011292	90980-11292	HOUSING CONNECTOR
9098011349	90980-11349	Housing, Connector
9098011659	90980-11659	HOUSING CONNECTOR
9098011660	90980-11660	HOUSING CONNECTOR
9098011918	90980-11918	HOUSING CONNECTOR

OEM	Part name	Category
82824-47A10	Connector, Wiring Harness	Wiring & Clamp ([12.2012 - ] CONNECTOR 1/3 (1212- ))
82824-60460	Connector, Wiring Harness	Wiring & Clamp ([12.2012 - ] CONNECTOR 1/3 (1212- ))
90980-10795	HOUSING CONNECTOR	Wiring & Clamp ([12.2012 - ] CONNECTOR 1/3 (1212- ))
90980-10988	HOUSING CONNECTOR	Wiring & Clamp ([12.2012 - ] CONNECTOR 1/3 (1212- ))
90980-11003	Housing, Connector	Wiring & Clamp ([12.2012 - ] CONNECTOR 1/3 (1212- ))
90980-11016	Housing, Connector	Wiring & Clamp ([12.2012 - ] CONNECTOR 1/3 (1212- ))
90980-11019	HOUSING, CONNECTOR	Wiring & Clamp ([12.2012 - ] CONNECTOR 1/3 (1212- ))
90980-11060	New Genuine Part	Wiring & Clamp ([12.2012 - ] CONNECTOR 1/3 (1212- ))
90980-11148	Housing, Connector	Wiring & Clamp ([12.2012 - ] CONNECTOR 1/3 (1212- ))
90980-11149	Connector, housing	Wiring & Clamp ([12.2012 - ] CONNECTOR 1/3 (1212- ))
90980-11156	Housing, Connector	Wiring & Clamp ([12.2012 - ] CONNECTOR 1/3 (1212- ))
90980-11246	HOUSING, CONNECTOR	Wiring & Clamp ([12.2012 - ] CONNECTOR 1/3 (1212- ))
90980-11292	HOUSING CONNECTOR	Wiring & Clamp ([12.2012 - ] CONNECTOR 1/3 (1212- ))
90980-11349	Housing, Connector	Wiring & Clamp ([12.2012 - ] CONNECTOR 1/3 (1212- ))
90980-11659	HOUSING CONNECTOR	Wiring & Clamp ([12.2012 - ] CONNECTOR 1/3 (1212- ))
90980-11660	HOUSING CONNECTOR	Wiring & Clamp ([12.2012 - ] CONNECTOR 1/3 (1212- ))
90980-11918	HOUSING CONNECTOR	Wiring & Clamp ([12.2012 - ] CONNECTOR 1/3 (1212- ))

Source: Public OEM parts-catalog data
Variants: 2 / 14
Category: 183
Collected: 2026-08-02
