Accelerator pedal 14

#	OEM	部品名
1	17800-SA5-020	Pedal assy - ACCELERATOR
2	17812-634-670	Washer - ACCELERATOR PEDAL
2	17812-SA7-010	Washer - ACCELERATOR PEDAL
3	17814-SA5-000	Spring - ACCELERATOR PEDAL
5	17833-SA5-000	Bolt - ACCELERATOR STOPPER
6	17834-SA5-000	Bolt - ACCELERATOR PEDAL
7	17835-SA0-670	Base b - ACCELERATOR STOPPER
16	17910-SA5-601	Wire - THROTTLE
16	17910-SA5-620	Wire - THROTTLE
17	17921-689-000	Seal - THROTTLE CABLE
37	46590-SA5-040	Bracket - PEDAL
37	46590-SA5-060	Bracket - PEDAL
37	46590-SA5-985	Bracket - PEDAL
37	46590-SA5-983	Bracket - PEDAL

Air cleaner 24

#	OEM	部品名
4	17216-671-000	Clip A - WIRE (DACRO COATING)
5	17217-657-000	Clip b - WIRE (DACRO COATING)
6	17220-PC3-601	Element - AIR CLEANER
7	17221-PC1-300	Gasket - ELEMENT
8	17240-PC3-732	Case assy. - AIR CLEANER
8	17240-PC3-733	Case assy. - AIR CLEANER
9	17242-PC1-003	Pipe - AIR INTAKE
10	17243-689-000	Clip - AIR INTAKE TUBE
11	17244-PC1-000	Stay - AIR HOSE
12	17245-689-013	Diaphragm - CONTROL VALVE
13	17247-689-000	Insulator - SENSOR
14	17250-PA0-003	Sensor comp - AIR IN.
15	17251-PB2-691	Valve comp. - AIR CONTROL
16	17253-689-300	Plug - CONTROL VALVE
17	17255-PC3-732	Stay - CLEANER CASE
18	17257-689-310	Pin - PLUG LOCK
19	17258-689-310	Packing - AIR CLEANER COVER
20	17266-PC3-640	Insulator - CLEANER CASE
22	17271-PC1-000	Chamber - BREATHER
23	17272-PB2-010	Packing - BREATHER
24	17415-PC3-731	Plate - RECTIFY
25	77302-124-000	Washer - SEAT MOUNTING
26	90070-PC1-000	Screw - TAPPING, 6X16
27	90203-PB2-000	Nut - AIR CLEANER COVER (DACRO COATING)

Air cleaner tubing 6

#	OEM	部品名
4	17150-PA6-004	Valve - CHECK
5	17243-679-010	Clip - AIR INTAKE TUBE
6	17302-PC3-641	Pipe - HOT AIR
7	17303-PC3-600	Clamp - HOT AIR PIPE
12	91405-679-004	Clamp - TUBE (D17)
12	91405-PM5-004	Clamp - TUBE (D17)

Air conditioner (CARBURETOR COMPONENTS) 10

#	OEM	部品名
1	16137-657-670	Joint - THREE WAY
2	36062-671-000	Clamp b - TUBE
3	36138-PA0-004	Filter assy - SOLENOID VALVE
4	38771-PA6-014	Valve assy. - AIR CONDITIONER SOLENOID
5	38775-PC1-000	Stay - AIR CONDITIONER SOLENOID VALVE
6	38776-671-000	Cap - AIR FILTER
7	38781-665-601	Diaphragm assy.
8	38788-665-600	Stay - WIRE
9	38789-676-300	Washer - PLAIN
10	90092-657-000	Screw-washer - 5X8

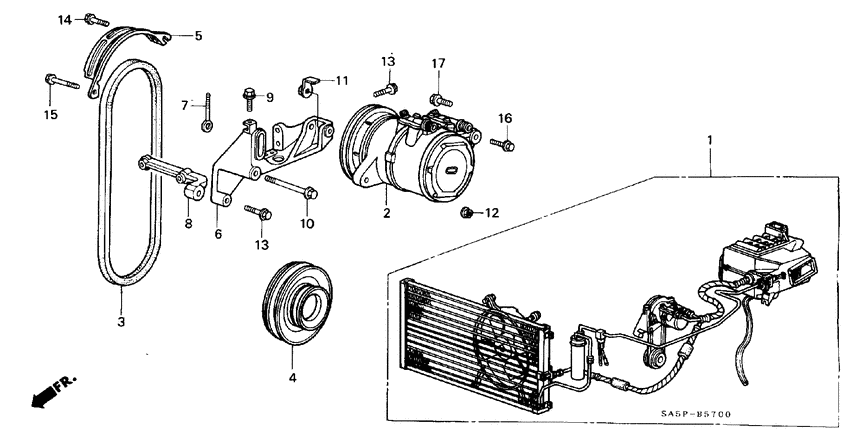

Air conditioner (COMPRESSOR) 13

#	OEM	部品名
1	38000-SA5-602	Conditioner kit - AIR
1	38000-SA5-601	Conditioner kit - AIR
2	38800-PC1-013	Compressor assy - DENSO
3	38920-PC1-003	Belt - COMPRESSOR (MITSUBOSHI)
3	38920-PC1-004	Belt - COMPRESSOR (BANDO)
4	38921-PC3-600	Pulley - CRANKSHAFT
5	38925-PC1-013	Cover - COMPRESSOR BELT
6	38930-PC1-010	Bracket comp. - COMPRESSOR
7	38934-PC1-003	Bolt - ADJUSTING
8	56999-PA6-910	Bracket - POWER STEERING SPACER
9	90003-PC1-000	Bolt b - MOUNTING, 8X45
10	90036-PA0-000	Bolt - FLANGE, 10X145
11	90438-PC1-003	Nut - PLATE BASED

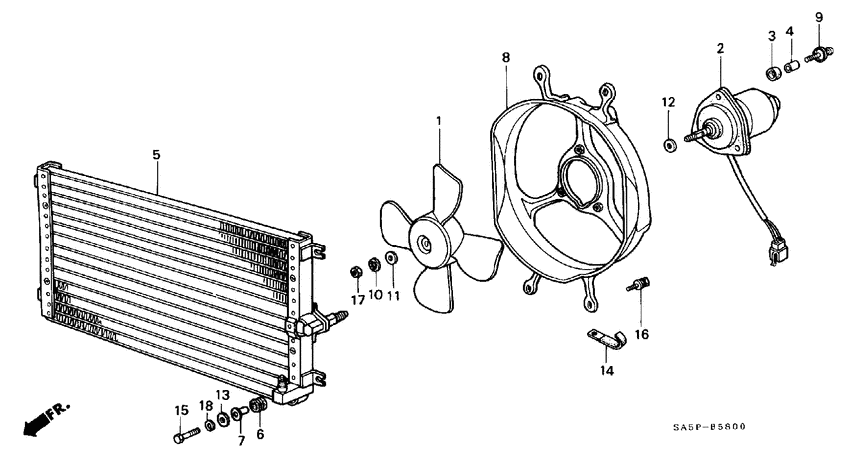

Air conditioner (CONDENSER) 15

#	OEM	部品名
1	19020-637-003	Fan comp - COOLING
2	19030-PA6-661	Motor - FAN
3	19040-611-003	Bush
4	19041-611-003	Rubber - BUSHING
5	38600-SA5-003	Condenser assy
6	38608-SA5-900	Rubber - MOUNTING
7	38609-SA5-900	Collar - DISTANCE
8	38615-PC1-003	Shroud comp.
9	90041-679-003	Screw-washer - 4X18
10	90401-679-003	Washer - SPRING, 5MM
11	90402-679-003	Washer - PLAIN, 5MM
12	90403-679-003	Washer - PLAIN, 6.8MM (DENSO)
12	90501-671-003	Washer - SPECIAL
13	90438-671-000	Washer - SPECIAL, 6MM
14	91405-671-000	Clip - WIRE

Air conditioner (COOLER UNIT) 17

#	OEM	部品名
1	37553-SA0-003	Bulb & socket - 14V 1.4W
2	38620-SA5-003	Cooler unit
3	38626-SA5-003	Hose - DRAIN
4	38627-692-000	Grommet - DRAIN HOSE
5	38638-SA5-000	Joint comp - EVAPORATOR
6	38639-SA5-000	Band b - AIR CONDITIONER
7	38650-SA5-003	Valve - EXPANSION
8	38660-SA5-003	Thermostat - AIR CONDITIONER
9	38678-SA5-671	Knob - AIR CONDITIONER
9	38678-SA5-003	Knob - AIR CONDITIONER
10	38679-SA5-000	Packing - COOLING
11	38679-SA5-003	Knob - AIR CONDITIONER FAN SWITCH
12	38680-SA5-023	Switch assy - AIR CONDITIONER
12	38680-SA5-013	Switch assy - AIR CONDITIONER
13	38690-SA5-003	Control assy. - BLOWER
14	38760-SA5-003	Resistor - BLOWER
15	39246-671-003	Clamp - CASE HOLD

Air conditioner (HOSES/PIPES; RH) 22

#	OEM	部品名
1	38640-SA5-003	Receiver assy
2	38641-692-003	Switch - PRESSURE (SHOWA)
3	38646-SA5-003	O-ring - 8MM
4	38647-692-660	O-ring - 1/2"
5	38648-692-660	O-ring - 5/8"
6	38670-SA5-003	Hose comp. - SUCTION
7	38671-SA5-003	Hose comp. - DISCHARGE
8	38675-SA5-000	Stay - DISCHARGE HOSE
9	38677-SA5-010	Clamp - SUCTION HOSE
9	38677-SA5-003	Clamp - SUCTION HOSE
10	38681-SA5-000	Pipe comp - RECEIVER
11	38682-SA5-000	Pipe - CONDENSER
12	38684-SA5-003	Clamp b - RECEIVER PIPE
13	38685-SA5-000	Clip - WIRE HARNESS
14	38691-680-960	Grommet - SUCTION PIPE
15	38692-680-960	Grommet - LIQUID PIPE
16	38710-SA5-603	Harness - AIR CONDITIONER WIRE
16	38710-SA5-602	Harness - AIR CONDITIONER WIRE
17	38711-692-010	Protector - PRESSURE SWITCH
18	38725-SA5-003	Diode assy.
19	39400-657-672	Relay assy - FAN (DENSO)
20	90690-671-000	Band - HOSE

Alternator components (1) 24

#	OEM	部品名
1	31100-PA6-901	Alternator assy - CKZ31
2	31101-689-004	Rotor assy. - ALTERNATOR
3	31102-PB2-004	Stator assy. - ALTERNATOR
4	31108-PB2-004	Sub rectifier assy.
5	31109-PB2-004	Frame assy - DRIVE END
6	31111-671-004	Bearing - RR.
7	31114-671-004	Bearing - FR.
8	31115-PB2-004	Fan - ALTERNATOR
9	31116-671-004	Ring - SPACE
10	31118-PA0-662	Bush - INSULATION
11	31119-671-004	Insulator - TERMINAL
12	31121-PB2-004	Frame - RECTIFIER SIDE END
13	31125-671-004	Washer - INSULATION
14	31129-671-004	Spring - BRUSH
15	31130-PA0-662	Condenser
16	31133-PA0-662	Collar - SPACE
17	31134-671-004	Collar - SPACE
18	31141-PA6-004	Pulley - ALTERNATOR
19	31144-671-004	Brush
20	31145-634-671	Bolt - THROUGH
21	38755-590-004	Nut - PULLEY LOCK
22	90093-PB1-004	Screw-washer - 5X15
23	90094-PB1-004	Washer - SPRING, 14MM
24	91415-PA0-004	Clip - CORD

Auto radio 21

#	OEM	部品名
1	39100-SA5-681	Tuner assy - RADIO (AM) (PANASONIC)
1	39100-SA5-651	Tuner assy - RADIO (FM/AM) (PANASONIC)
3	39102-647-771	Knob - INNER TUNING
4	39103-647-771	Knob - TONE CONTROL
7	39104-647-771	Knob - ON-OFF VOLUME CONTROL
8	39105-647-771	Nut - PANASONIC
9	39106-647-771	Washer - PANASONIC
10	39107-SA5-600	Panel - RADIO
11	39109-671-003	Plate - DIAL (PANASONIC)
12	39110-647-771	Fuse - 1A) (PANASONIC
14	39111-647-771	Bulb - 12V3W) (PANASONIC
14	34908-GB4-700	Bulb
15	39112-SA0-791	Scale - DIAL
16	39117-SA5-000	Rubber - RADIO MOUNTING
17	39120-SA5-601	Speaker assy - 100MM) (PANASONIC
18	39123-SA5-900	Bracket comp. - DOOR SPEAKER
24	39150-SA6-003	Antenna assy - PANASONIC
24	39150-SA6-004	Antenna assy - ALPINE
27	90102-693-000	Screw - PAN, 4X12
28	90502-SA0-003	Washer - WATER PROOF
29	90662-671-003	Grommet - SCREW, 5MM (WHITE)

Body structure components (1) 1

#	OEM	部品名
24	90147-634-003	Bolt - FENDER, 6X18

Body structure components (2) 2

#	OEM	部品名
2	60519-SA5-000	Plug - R. UPPER DASHBOARD
3	60569-SA5-000	Plug - L. UPPER DASHBOARD

Body structure components (4; 4D) 1

#	OEM	部品名
25	80322-SA5-000	Seal - RR. UPPER SKIRT

Brake hose/brake pipe 25

#	OEM	部品名
1	46210-SA5-015	Valve assy. - PROPORTIONING
4	46310-SA5-010	Pipe comp. a - BRAKE
5	46320-SA5-000	Pipe comp. b - BRAKE
7	46321-SA5-000	Pipe comp. h - BRAKE
9	46330-SA5-000	Pipe comp. c - BRAKE
10	46331-SA5-000	Pipe comp. e - R. BRAKE
11	46340-SA5-000	Pipe comp. d - BRAKE
12	46360-SA5-010	Pipe comp. f - BRAKE
14	46361-SA5-000	Pipe comp. e - L. BRAKE
19	46380-594-300	Grommet a - BRAKE PIPE
20	17712-SA0-000	Grommet - FUEL PIPE
21	46382-SA0-300	Grommet a - BRAKE PIPE
24	46391-692-003	Clip s - BRAKE PIPE
25	46392-692-003	Clip d - BRAKE PIPE (WHITE)
26	46410-SA5-023	Hose - FR. BRAKE (NICHIRIN)
26	46410-SA5-024	Hose - FR. BRAKE (MEIJI)
26	46410-SA5-025	Hose - FR. BRAKE (TOYODA)
27	46430-SA5-003	Hose - RR. BRAKE (NICHIRIN)
27	46430-SA5-005	Hose - RR. BRAKE (TOYODA)
27	46430-SA5-004	Hose - RR. BRAKE (MEIJI)
29	46462-663-670	Bolt - OIL
30	46472-568-000	Packing - OIL BOLT
31	70253-SA5-000	Bracket - R. RR. BRAKE HOSE
32	70263-SA5-000	Bracket - L. RR. BRAKE HOSE
34	90651-538-000	Clip - BRAKE HOSE

Brake master cylinder 15

#	OEM	部品名
1	46100-SA5-602	Cylinder assy. - MASTER
2	46120-SA5-003	Piston assy. - PRIMARY
3	46122-SA5-003	Piston assy. - SECONDARY
4	46126-SA5-013	Cup - SECONDARY
5	46138-568-671	Packing
6	46139-632-000	Bolt - STOPPER
7	46181-SA5-013	Plate - RETURN STOPPER
8	46182-SA5-003	Circlip
9	46183-SA5-013	Bush
10	46185-SA5-003	Seal - VACUUM
11	46660-692-013	Tank - RESERVE
12	46662-692-603	Cap comp. - RESERVE TANK
13	46665-671-651	Band - RESERVE TANK
14	46666-692-013	Filter - MASTER CYLINDER
15	46669-692-003	Seal - RESERVE TANK

Bumper 24

#	OEM	部品名
1	60861-SA5-020	Skirt - FR. LOWER
2	62510-SA5-000	Bumper comp. - FR.
3	62521-SA5-000	Panel - R. FR. FENDER LOWER
4	62526-SA5-000	Panel - L. FR. FENDER LOWER
5	62530-SA5-010	Stay - FR. BUMPER
6	62531-SA5-000	Cushion - BUMPER STAY
9	70292-SA5-671	Hook - R. ROPE
10	70293-SA5-671	Hook - L. ROPE
11	84110-SA5-000	Bumper comp. - RR.
12	84121-SA6-000	Panel - R. RR. FENDER LOWER
13	84126-SA6-000	Panel - L. RR. FENDER LOWER
15	84141-SA5-000	Molding - RR. APRON CENTER
16	84142-SA6-000	Molding - R. RR. APRON SIDE
17	84147-SA6-000	Molding - L. RR. APRON SIDE
19	90306-SA5-003	Nut - CLIP, 4MM
21	90662-671-003	Grommet - SCREW, 5MM (WHITE)
22	90663-SA5-003	Clip - RR. APRON SIDE MOLDING
23	90664-SA5-003	Clip - RR. APRON CENTER MOLDING
24	90665-SA5-003	Bush - RR. SIDE MOLDING
25	90667-SA5-003	Bush - RR. SIDE MOLDING
26	90672-671-811	Grommet - SCREW, 4MM
27	90675-SA5-003	Nut - CLIP, 6MM
28	90683-SA5-003	Clip - FR. SKIRT
29	90684-SA5-003	Clip - RR. CORNER(BLACK)

Cabin wire harness/ battery cable 25

#	OEM	部品名
1	32100-SA5-790	Harness - CABIN WIRE
2	32105-SA5-773	Cord assy - HONDAMATIC
3	32105-692-010	Sub cord - FAN SWITCH
3	32106-SA5-000	Sub cord - FAN SWITCH
4	32110-SA5-652	Sub cord - ENGINE
5	32113-SA5-000	Grommet - WIRE HARNESS
6	32117-SA5-794	Harness - INSTRUMENT WIRE
7	32158-SA5-921	Sub cord - HEATER SOLENOID
8	32410-SA5-677	Cable assy - STARTER (SUMITOMO)
8	32410-SA5-676	Cable assy - STARTER (FURUKAWA)
9	32600-SA5-671	Cable assy - EARTH (SUMITOMO)
9	32600-SA5-672	Cable assy - EARTH (FURUKAWA)
10	32601-SA5-003	Bolt - BATTERY TERMINAL (SUMITOMO)
10	32601-SA5-004	Bolt - BATTERY TERMINAL (FURUKAWA)
11	32602-SA5-004	Nut - BATTERY TERMINAL (FURUKAWA)
11	32602-SA5-003	Nut - BATTERY TERMINAL (SUMITOMO)
12	32610-671-000	Cable - SUB EARTH
13	32877-SA5-020	Protector - CABIN WIRE HARNESS
15	66872-SA5-010	Clip - WIRE HARNESS MAIN
16	66873-SA5-000	Clip - SUB WIRE HARNESS
17	66874-SA5-020	Clip - WIRE HARNESS
18	66875-SA5-010	Clip - ASHTRAY ILLUMINATION WIRE HARNESS
19	90668-671-003	Strap a - CABLE, 95MM (WHITE)
20	91504-SA5-010	Clip - WIRE HARNESS
21	91507-693-003	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)

Camshaft/timing belt 11

#	OEM	部品名
1	14110-PC3-602	Camshaft
2	14210-PA0-000	Pulley - TIMING BELT DRIVEN
3	14400-657-024	Belt - TIMING
4	14510-PC1-003	Adjuster comp - TIMING BELT
5	14516-657-000	Spring - TIMING BELT ADJUSTER
6	90016-PC1-000	Bolt - TIMING BELT ADJUSTING
7	90401-PC1-000	Rubber - TIMING BELT ADJUSTER
8	90406-371-000	Washer - 8MM
9	90435-611-000	Washer - SPECIAL, 28X8.5X4.0
11	91203-611-004	Oil seal - 27X43X9 (NOK)
11	91203-PFB-013	OIL SEAL

Canister 8

#	OEM	部品名
1	16874-SA5-610	Hose comp. - FUEL
1	16874-SA5-611	Hose comp. - FUEL
3	17700-SA5-000	Pipe comp - FUEL FEED
4	17706-SA5-003	Clamp - FUEL PIPE
5	17706-692-003	Clamp - FUEL PIPE
6	17711-SA7-930	Grommet - FUEL PIPE
9	17714-SA5-013	Cover - FUEL PIPE
12	90684-693-013	Clip - FUEL HOSE

Carburetor 30

#	OEM	部品名
1	16010-PC3-601	Gasket set
2	16011-PC3-601	Valve set - FLOAT
3	16013-PA1-641	Float set
4	16016-PA1-751	Screw set a
5	16019-PC3-601	Rod set - PUMP
6	16020-PC3-601	Diaphragm assy.
7	16021-PC3-601	Diaphragm set - PUMP
9	16028-PC3-601	Screw set b
10	16032-PC3-601	Rod set - THROTTLE
11	16041-PC3-601	Economizer set
13	16071-PC3-601	Plug
14	16080-676-641	Bolt-washer - 4X10
15	16081-PC3-601	Bolt
16	16100-PC3-681	Carburetor assy - DE06B A
16	16100-PC3-751	Carburetor assy - DE06C A
18	16134-PC3-601	Clamp
19	16164-664-005	Tube - EMULSION SECONDARY
20	16166-PA1-005	Tube - EMULSION PRIMARY
21	16168-634-671	Tube - PRIMARY SLOW EMULSION
22	16178-548-004	O-ring - 5.8X1.9
23	16199-PC3-601	Tube
24	16230-PA1-641	Valve - FUEL MAGNETIC
25	22415-551-000	Washer - 6.5MM
26	90085-676-000	Bolt - STUD, 6X81
34	90409-PC3-730	Washer - SPRING, 6MM
38	99103-PC3-0500	Jet - SLOW, #50
39	99105-663-0700	Jet - AIR, #70
40	99105-663-0950	Jet - AIR, #95
40	99105-663-1000	Jet - AIR, #100
41	99107-663-1600	Jet - SLOW AIR, #160

Carburetor insulator/ manifold 19

#	OEM	部品名
1	16105-PC3-601	Gasket - CARBURETOR INSULATOR
2	16212-PC3-602	Insulator comp. - CARBURETOR
3	16215-PC3-600	Gasket - HEAT INSULATOR
4	16217-PC3-600	Plate - MANIFOLD INSULATOR
4	16217-PC3-601	Plate - MANIFOLD INSULATOR
5	17101-PC3-601	Manifold - INTAKE
6	17106-PC1-020	Gasket - MANIFOLD RISER
7	17303-PC3-600	Clamp - HOT AIR PIPE
8	18100-PC3-601	Manifold - EX.
9	18115-PC1-004	Gasket - MANIFOLD (NIPPON LEAKLESS)
9	18115-PC1-003	Gasket - MANIFOLD (ISHINO GASKET)
10	18120-PC1-010	Cover - EX. MANIFOLD UPPER
11	25713-580-010	Joint - MASTER POWER HOSE
12	90007-657-010	Bolt - HEX., 8X60
13	90065-PC1-300	Bolt - STUD, 10X34.5
14	90067-PC3-300	Bolt - STUD, 6X55
15	90217-657-000	Nut, SPECIAL, 8MM
16	90402-657-000	Washer - SPECIAL, 8X18
17	90474-580-000	Washer - 12MM

Center console 16

#	OEM	部品名
2	66150-SA5-010	Stay - CENTER CONSOLE
4	72829-SA5-661	Cover - PARKING BRAKE
7	77704-SA5-000	Plate - BOOT SETTING
8	77705-SA5-000	Bracket - CONSOLE FR.
8	77705-SA5-980	Bracket - CONSOLE FR.
9	77706-SA5-000	Bracket - CONSOLE CENTER
10	77707-SA5-000	Bracket - RR. CONSOLE
18	77723-SA5-910	Pin - CONSOLE BOX
19	77724-SA5-910	Spring - R. CONSOLE BOX
20	77725-SA5-910	Spring - L. CONSOLE BOX
21	77726-SA5-910	Stopper - CONSOLE BOX
22	77727-SA5-912	Bracket - CONSOLE BOX
24	77741-SA5-911	Insulator a - R. CONSOLE BOX
25	77742-SA5-913	Insulator b - CONSOLE
26	77743-SA5-911	Insulator a - L. CONSOLE BOX
27	77751-SA5-000	Plate - COVER SETTING

Clutch 32

#	OEM	部品名
1	22000-PC3-731	Clutch assy.
1	22500-PA9-040	Clutch assy. - LOW
2	22100-PC3-732	Flywheel comp.
2	22510-PA9-000	Guide comp - LOW CLUTCH
3	22200-PC2-000	Disk - FRICTION
3	22530-PA9-020	Piston - CLUTCH
4	22300-PC1-020	Disk comp - PRESSURE
4	22541-PA9-000	Spring - CLUTCH RETURN
5	90011-PB2-000	Bolt - HEX., 12MM
5	22542-PA9-000	Seat - CLUTCH SPRING
6	90034-689-000	Bolt - TWELVE POINT, 8MM (TOKAI TRW)
6	22543-PA9-000	Plate - CLUTCH (106MM)
7	22544-PA9-010	Disk - CLUTCH
8	22564-PA9-010	Plate - CLUTCH END (14) (3.05MM)
8	22554-PA9-010	Plate - CLUTCH END (4) (3.2MM)
8	22566-PA9-010	Plate - CLUTCH END (16) (3.65MM)
8	22561-PA9-010	Plate - CLUTCH END (11) (2.15MM)
8	22551-PA9-010	Plate - CLUTCH END (1) (2.3MM)
8	22563-PA9-010	Plate - CLUTCH END (13) (2.75MM)
8	22553-PA9-010	Plate - CLUTCH END (3) (2.9MM)
8	22565-PA9-010	Plate - CLUTCH END (15) (3.35MM)
8	22555-PA9-010	Plate - CLUTCH END (5) (3.5MM)
8	22562-PA9-010	Plate - CLUTCH END (12) (2.45MM)
8	22552-PA9-010	Plate - CLUTCH END (2) (2.6MM)
9	22600-PA9-040	Clutch assy. - SECOND
10	22611-PA9-000	Guide - SECOND CLUTCH
11	90603-PA9-000	Circlip - EXTERNAL, 40MM
12	90605-PA9-000	Ring - SNAP, 114X1.8
13	91302-PA9-003	O-ring, 39.8X2.2 (ARAI)
13	91302-PA9-004	O-ring - 39.8X2.2 (NOK)
14	91303-PA9-003	O-ring - 100X2.2(ARAI)
14	91303-PA9-004	O-ring - 100X2.2 (NOK)

Clutch housing 19

#	OEM	部品名
1	21000-PB6-010	Housing - CLUTCH
2	21101-689-000	Plate - NEEDLE BEARING RETAINING
3	21102-PC8-000	Plate - BEARING SETTING
4	21103-689-000	Plate - OIL GUIDE
5	21121-PB6-000	Magnet - TRANSMISSION
6	21122-PB6-000	Holder - MAGNET
7	21350-689-000	Cover - CLUTCH CASE
8	21391-689-010	Gasket - CLUTCH CASE
8	21391-689-004	Gasket - CLUTCH CASE (NIPPON LEAKLESS)
9	91101-PB6-008	Bearing - NEEDLE, 33X55X17
10	91102-689-008	Bearing - NEEDLE, 26X52X14 (TOYO)
10	91102-689-006	Bearing - NEEDLE, 26X52X14 (THOMPSON)
11	91205-689-005	Oil seal - 35X62X9 (NIPPON OIL SEAL)
11	91205-689-003	Oil seal - 35X62X9 (ARAI)
12	91208-PB6-003	Dust seal - 16X21X4 (ARAI)
12	91208-PB6-005	Dust seal - 16X21X4 (NOK)
13	91215-689-013	Oil seal - 14X25X16
14	91216-689-005	Oil seal - 25X40X7 (NOK)
14	91216-689-003	Oil seal - 25X40X7 (ARAI)

Clutch release 8

#	OEM	部品名
1	22810-PC8-921	Bearing - CLUTCH RELEASE (NSK)
1	22810-PC8-922	Bearing - CLUTCH RELEASE (NTN)
2	22821-PB6-910	Fork - CLUTCH RELEASE
3	22830-PB6-911	Shaft - CLUTCH RELEASE
4	22851-PB6-910	Spring - RELEASE ARM
5	22871-PB6-910	Stay - CLUTCH WIRE
6	90029-PB6-910	Bolt - SPECIAL, 8X24
7	90412-679-000	Washer - CONICAL SPRING, 8MM

Compressor components 31

#	OEM	部品名
1	38811-671-003	Circlip a - EXTERNAL
2	38812-671-003	Ring a - SNAP
3	38813-671-003	Washer a - PLATE
3	38814-671-003	Washer b - PLATE
3	38815-671-003	Washer c - PLATE
4	38816-689-003	Clip - LEAD WIRE
5	38817-PC1-003	Mainshaft
6	38818-PC1-003	Cylinder
7	38819-PC1-003	Head - CYLINDER
8	38822-PC1-003	Bearing
9	38823-PC1-003	Piston
10	38824-PC1-003	Lead - SUCTION VALVE
11	38825-671-003	Pin - STRAIGHT
12	38827-PC1-003	Bolt a
13	38828-PC1-003	Plate a - VALVE
14	38829-PC1-003	Plate b - VALVE
15	38832-PC1-003	Bolt b
16	38833-PC1-003	Head - CYLINDER
17	38834-PC1-003	Seal - SHAFT
18	38836-PC1-003	Key
19	38838-PC1-003	Valve - SUCTION
20	38839-PC1-003	Valve - DISCHARGE
21	38840-PC1-003	Bolt b
22	38842-PC1-003	Gasket kit
23	38843-PC1-003	Ball - PISTON
24	38844-PC1-003	Ring - PISTON
25	38846-PC1-003	Oil seal
26	38848-PC1-003	Pump - OIL
27	38854-PC1-003	Shoe kit
28	38855-PC1-003	Cover comp.
29	38900-PC1-003	Clutch - MAGNETIC

Computer/navigator 1

#	OEM	部品名
4	38376-SA5-010	Bracket - CONTROL

Countershaft 50

#	OEM	部品名
1	13111-360-000	Pin - PISTON
1	13111-444-000	Pin,piston
2	23220-PA9-902	Countershaft
3	23421-PA9-900	Gear - COUNTERSHAFT LOW
4	23422-PA9-901	Gear - PARKING
5	23441-PA9-900	Gear - COUNTERSHAFT SECOND
6	23451-PA9-900	Gear - COUNTERSHAFT THIRD
7	23531-PA9-000	Gear - COUNTERSHAFT REVERSE
8	23541-PA9-010	Gear - REVERSE IDLE
9	23565-639-000	Gear - REVERSE SELECTOR
10	23566-PA9-000	Hub - REVERSE SELECTOR
11	23811-689-020	Holder comp - SPEEDOMETER GEAR
12	23813-689-000	Plate - SPEEDOMETER GEAR HOLDER
13	23814-689-000	Seal - GEAR HOLDER
14	23820-PA9-010	Gear - SPEEDOMETER DRIVEN
15	90201-689-900	Nut - HEX., 20MM
16	90408-PA9-000	Washer - THRUST, 28X45X2.55
16	90401-PA9-010	Washer - THRUST, 28 X 45 X 2.30
16	90403-PA9-010	Washer - THRUST, 28 X 45 X 2.40
16	90407-PA9-000	Washer - THRUST, 28 X 45 X 2.50
16	90409-PA9-000	Washer - THRUST, 28X45X2.60
16	90402-PA9-010	Washer - THRUST, 28 X 45 X 2.35
16	90404-PA9-010	Washer - THRUST, 28 X 45 X 2.45
17	90418-PA9-000	Washer - SPLINE, 35X50X3.25
17	90411-PA9-010	Washer - SPLINE, 35X50X3.00
17	90420-PA9-000	Washer - SPLINE, 35X50X3.35
17	90413-PA9-010	Washer - SPLINE, 35X50X3.10
17	90415-PA9-010	Washer - SPLINE, 35X50X3.20
17	90419-PA9-000	Washer - SPLINE, 35X50X3.30
17	90412-PA9-010	Washer - SPLINE, 35X50X3.05
17	90421-PA9-000	Washer - SPLINE, 35X50X3.40
17	90414-PA9-010	Washer - SPLINE, 35X50X3.15
18	90501-PA9-000	Collar - REVERSE GEAR
19	90503-PA9-000	Collar - DISTANCE, 28MM
20	90603-689-000	Ring - SNAP, 62MM
21	90637-689-000	Clip - SPEEDOMETER CABLE
22	90638-689-000	Clip - SPEEDOMETER GEAR
23	91004-PA9-003	Bearing - BALL, 6305 (NTN)
24	91011-PA9-003	Bearing - NEEDLE, 32X38X20 (NTN)
24	91011-PG4-003	Bearing - NEEDLE, 32X38X20 (NTN)
24	91011-PA9-004	Bearing - NEEDLE, 32X38X20 (KOYO)
25	91014-PA9-003	Bearing - THRUST NEEDLE, 35X52X2 (NTN)
25	91014-PTD-901	Bearing - THRUST NEEDLE, 35X52X2
26	91016-PA9-004	Bearing - NEEDLE, 28X33X20 (KOYO)
26	91016-PA9-003	Bearing - NEEDLE, 28X33X20 (NTN)
27	91024-PA9-003	Bearing - NEEDLE, 30X36X14 (NTN)
28	91025-639-004	Bearing - NEEDLE, 14X18X15 (KOYO)
29	91307-PA9-003	O-ring 31.2X1.9 (ARAI)
29	91307-PA9-004	O-ring - 31.2X1.9 (NOK)
30	91313-611-000	O-ring - 23.5X2

Countershaft/ countershaft gear 21

#	OEM	部品名
1	23220-PB6-913	Countershaft comp.
2	23421-PB6-000	Gear - COUNTERSHAFT LOW
3	23431-PB6-000	Gear - COUNTERSHAFT SECOND
4	23461-PB6-910	Gear - COUNTERSHAFT FIFTH
5	23471-PC8-911	Gear - COUNTERSHAFT THIRD
6	23481-PB6-000	Gear - COUNTERSHAFT FOURTH
7	23521-PC8-305	Sleeve set - SYNCHRONIZER (1-2)
8	23912-689-008	Spacer - 31X38X30.5 (NTN)
8	23912-689-005	Spacer - 31X38X30.5 (NIPPON SEIKO)
9	23917-PB6-000	Collar c - DISTANCE
10	23923-689-000	Washer b - THRUST (+0.02/ 0.00)
10	23925-689-000	Washer d - THRUST (-0.02/-0.04)
10	23922-689-000	Washer a - THRUST (+0.04/+0.02)
10	23924-689-000	Washer c - THRUST ( 0.00/-0.02)
11	23926-PB6-000	Washer - SPRING, 22MM
11	23926-PB6-010	Washer - SPRING, 22MM
12	90202-PB6-000	Nut - HEX., 22MM
13	90603-PB6-000	Ring - SNAP, 62MM
14	91004-PB6-008	Bearing - BALL, 6305 (NTN)
15	91105-PB6-008	Bearing - NEEDLE, 34X39X30
16	91106-689-008	Bearing - NEEDLE, 38X43X30

Crankshaft 26

#	OEM	部品名
1	13310-PB1-000	Crankshaft comp.
2	13327-634-003	Bearing g - MAIN (RED) (DAIDO)
2	13324-634-004	Bearing d - MAIN (GREEN) (TAIHO)
2	13322-634-003	Bearing b - MAIN (BLACK) (DAIDO)
2	13325-634-004	Bearing e - MAIN (YELLOW) (TAIHO)
2	13323-634-003	Bearing c - MAIN (BROWN) (DAIDO)
2	13326-634-004	Bearing f - MAIN (PINK) (TAIHO)
2	13324-634-003	Bearing d - MAIN (GREEN) (DAIDO)
2	13321-634-004	BEARING A - MAIN (BLUE) (TAIHO)
2	13327-634-004	Bearing g - MAIN (RED) (TAIHO)
2	13325-634-003	Bearing e - MAIN (YELLOW) (DAIDO)
2	13322-634-004	Bearing b - MAIN (BLACK) (TAIHO)
2	13326-634-003	Bearing f - MAIN (PINK) (DAIDO)
2	13323-634-004	Bearing c - MAIN (BROWN) (TAIHO)
2	13321-634-003	BEARING A - MAIN (BLUE) (DAIDO)
3	13331-634-003	Washer - THRUST (DAIDO)
3	13331-634-004	Washer - THRUST (TAIHO)
4	13621-657-000	Pulley - TIMING BELT DRIVE
5	13622-PC1-000	Plate - TIMING BELT GUIDE
6	13811-PC3-600	Pulley - CRANKSHAFT
7	90017-PB2-004	Bolt - SPECIAL, 12MM (SAGA)
7	90017-PB2-003	Bolt - SPECIAL, 12MM (SATO)
8	90402-PB2-000	Washer - 12X30X4.5
9	90704-634-000	Key - 4.5X11.0
10	91212-611-003	Oil seal - 35X50X8
11	91214-PB2-003	Oil seal - 76X98X12

Cylinder block/oil pan 26

#	OEM	部品名
1	11000-PC1-020	Block assy - CYLINDER
1	11000-PC1-902	Block assy - CYLINDER
2	11109-689-000	Seal - TIMING RUBBER
3	11200-PC1-010	Pan comp - OIL
4	11251-PA6-003	Gasket - OIL PAN (KOKOKU)
4	11251-PA6-004	Gasket - OIL PAN (OTSUKA)
5	11810-PC1-000	Cover comp. - TIMING BELT LOWER
6	11820-PC1-010	Cover comp. - TIMING BELT UPPER
7	11831-PB2-000	Rubber a - SEAL
8	11840-657-010	Seal - RUBBER (C)
9	11910-PC1-000	Bracket - ENGINE MOUNTING
10	11940-PC1-000	Stay - EX. MANIFOLD
11	11945-PC1-010	Cover - INSULATOR
12	15904-689-000	Joint - OIL COOLER
13	90006-642-000	Bolt - MOUNTING BRACKET
14	90009-634-000	Bolt - DRAIN PLUG, 20MM
15	90010-657-010	Bolt - SPECIAL, 8X20
16	90018-PB2-003	Bolt - FLANGE, 10X68
17	90019-PB2-003	Bolt - FLANGE, 10X88
18	90025-676-640	Bolt - SEALING
19	90091-PC1-000	Bolt-washer - 6X16
20	90115-689-000	Bolt - HEX., 8X28
21	90451-657-000	Washer - SPECIAL, 9X24X4
22	90509-642-000	Washer - PLAIN, 8.5X22X2.3
23	90041-PA5-000	Bolt - STUD, 6X28
28	90443-PA6-000	Washer - DRAIN PLUG, 20MM

Cylinder head 17

#	OEM	部品名
1	12100-PC3-600	Head assy - CYLINDER
2	12204-689-305	Guide - IN. VALVE
3	12205-689-305	Guide - EX. VALVE
4	12210-PC1-003	Seal a - VALVE STEM
5	12211-689-013	Seal b - VALVE STEM (ARAI)
6	12232-PC3-600	Holder - CAM
7	12234-PC3-600	Holder - CAM
8	12251-PC1-000	Gasket - CYLINDER HEAD
10	17342-PC1-010	Bracket - SPACER
11	30150-PC3-305	Holder comp - DISTRIBUTOR
12	90005-634-003	Bolt - FLANGE, 8X77
13	90005-671-003	Bolt - FLANGE, 10X112
14	90062-657-310	Bolt - STUD, 8X48
15	90086-671-000	Bolt - FLANGE, 10X45
16	90438-611-010	Washer - SPECIAL, 23X11X2.3
17	90719-657-000	Dowel pin - 14X20
18	91302-657-000	O-ring - 53.8X3.1

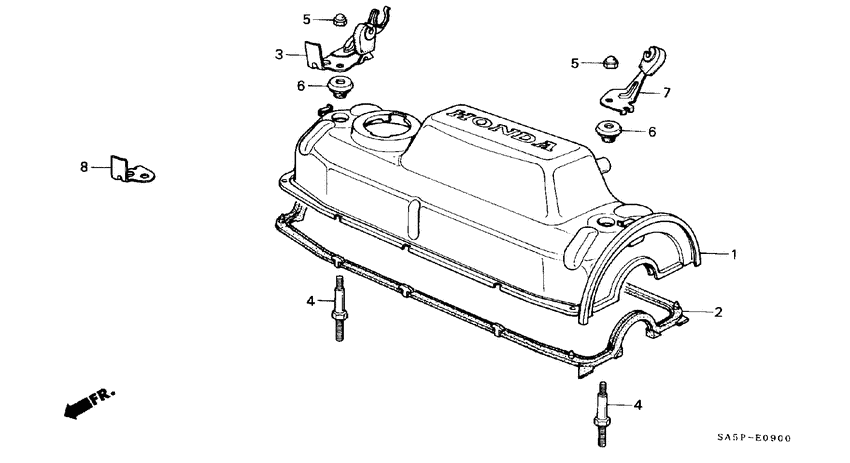

Cylinder head cover 6

#	OEM	部品名
1	12310-PC1-010	Cover comp. - CYLINDER HEAD
2	12341-PC1-010	Gasket - CYLINDER HEAD COVER
3	17261-PA5-000	Clamp comp - CABLE
4	90013-PA0-000	Bolt - HEAD COVER
5	90207-PC0-000	Nut - CAP, 6MM
6	90441-PA6-000	Washer - HEAD COVER

Differential gear 28

#	OEM	部品名
1	41221-PB7-000	Gear - DRIVE PINION
2	41233-PB6-912	Gear - FINAL DRIVEN
2	41233-PA9-900	Gear - FINAL DRIVEN
3	41310-PB6-000	Case - DIFFERENTIAL
3	41311-PA9-000	Case - DIFFERENTIAL
4	41321-689-000	Shaft - PINION
4	41312-PA9-000	Gear - SPEEDOMETER DRIVE
5	41341-PB6-910	Gear - DIFFERENTIAL PINION
5	41321-689-900	Shaft - PINION
6	41351-689-000	Washer a - DIFFERENTIAL PINION (0.7MM)
6	41353-689-000	Washer c - DIFFERENTIAL PINION (0.9MM)
6	41352-689-000	Washer b - DIFFERENTIAL PINION (0.8MM)
6	41354-689-000	Washer d - DIFFERENTIAL PINION (1.0MM)
6	41341-PB7-000	Gear - DIFFERENTIAL PINION
7	90017-689-000	Bolt - SPECIAL, 10MM
8	90414-689-000	Ring 1 - SNAP, 80X2.5
8	90416-689-000	Ring 3 - SNAP, 80X2.7
8	90418-689-000	Ring 5 - SNAP, 80X2.9
8	90415-689-000	Ring 2 - SNAP, 80X2.6
8	90417-689-000	Ring 4 - SNAP, 80X2.8
8	90003-PA9-003	Bolt - FLANGE, 10MM
9	90418-634-000	Ring - SNAP, 72MM (2.85MM)
9	90415-634-000	Ring - SNAP, 72MM (2.55MM)
9	90417-634-000	Ring - SNAP, 72MM (2.75MM)
9	90419-634-000	Ring - SNAP, 72MM (2.95MM)
9	90414-634-000	Ring - SNAP, 72MM (2.45MM)
9	90416-634-000	Ring - SNAP, 72MM (2.65MM)
10	90608-PA9-000	Circlip - EXTERNAL, 90MM

Distributor components (TEC) 25

#	OEM	部品名
1	30100-PC3-645	Distributor assy - TD-01D) (TEC
1	30100-PC3-655	Distributor assy - TD-04D) (TEC
2	30101-PA6-006	Base - PICK UP
3	30102-PC3-642	Cap assy. - DISTRIBUTOR
4	30103-PA1-732	Head - ROTOR
5	30104-PC3-642	Control assy. - VACUUM
5	30104-PC3-652	Control assy. - VACUUM
6	30107-PC3-732	Terminal
7	30108-PC3-643	Coil assy - DISTRIBUTOR
8	30109-PB1-006	Plate - SETTING
9	30110-PA1-732	O-ring - 26.4X3.1 (TEC)
10	30111-PA1-732	E-ring - 3.2MM
11	30115-PA1-732	Point set - CARBON
12	30116-PA6-006	Spring - GOVERNOR
13	30126-PC3-642	Reluctor set
14	30127-PA6-006	Shaft set - PICK UP
15	30132-PB1-006	Rubber - SEAL
16	30134-PA6-006	Screw-washer - 4X30
17	30142-PA6-006	Pipe - VENTILATOR
18	30143-PC1-006	Pinion set
19	30146-PA1-732	Washer - THRUST, 5X0.2
20	30167-PB1-006	Collar - SETTING
21	90048-PC1-004	Bolt-washer - 4X18
22	90056-PC1-004	Bolt-washer - 5X16
23	90051-PC1-004	Screw-washer - 4X14

Door lining (4D) 12

#	OEM	部品名
8	39126-SA5-000	Ring - DOOR SPEAKER
9	39127-SA5-000	Plate - DOOR SPEAKER
10	73862-672-003	Clip - DOOR WEATHERSTRIP
14	75826-SA6-000	Seal a - R. FR. DOOR PANEL HOLE
20	75836-SA6-000	Seal a - L. FR. DOOR PANEL HOLE
21	75851-SA6-670	Weatherstrip - FR. DOOR INNER
23	75880-SA6-911	Weatherstrip - R. FR. DOOR
24	75885-SA6-911	Weatherstrip - L. FR. DOOR
25	90307-SA5-003	Nut b - SPIRE
26	90663-671-003	Clip - LINING
27	90664-671-003	Clip - CANOE
28	90666-SA5-003	Grommet - SCREW, 6MM

Door trim (4D) 11

#	OEM	部品名
3	66418-579-000	Stopper - GLOVE BOX LID
22	75893-SA6-003	Seal - R. FR. DOOR
23	75898-SA6-003	Seal - L. FR. DOOR
24	76893-SA6-003	Seal - R. RR. DOOR
25	76898-SA6-003	Seal - L. RR. DOOR
26	90103-693-000	Screw - FLANGE TAPPING, 4X12
27	90609-SA6-000	Clip A - PILLAR GARNISH
28	90610-SA5-010	Clip - PILLAR GARNISH
29	90656-SA4-003	Clip - RR. PILLAR MOLDING
30	90658-SA5-003	Grommet - FR. PILLAR MOLDING
32	90681-693-000	Grommet - SCREW, 4MM

Door window/regulator 18

#	OEM	部品名
1	60525-SA5-010	Guard - R. FR. SPLASH
2	60575-SA5-000	Guard - L. FR. SPLASH
3	60823-SA5-000	Cover - FR. BULKHEAD
4	60872-SA5-000	Guard - ALTERNATOR SPLASH
6	61114-SA5-000	Stay - FR. FENDER
7	61117-SA5-000	Stopper - FR. FENDER
8	61140-SA5-000	Cowl assy. - R. FR. INSIDE
9	61150-SA5-000	Cowl assy. - L. FR. INSIDE
11	61810-SA5-000	Mudguard - R. FR.
12	61820-SA5-000	Mudguard - L. FR.
12	61820-SA5-630	Mudguard - L. FR.
13	75522-611-000	Grommet - SCREW, 4MM
15	81810-SA6-000	Mudguard - R. RR.
16	81820-SA6-000	Mudguard - L. RR.
17	90147-634-003	Bolt - FENDER, 6X18
18	90306-SA5-003	Nut - CLIP, 4MM
19	90662-671-003	Grommet - SCREW, 5MM (WHITE)
20	90672-671-811	Grommet - SCREW, 4MM

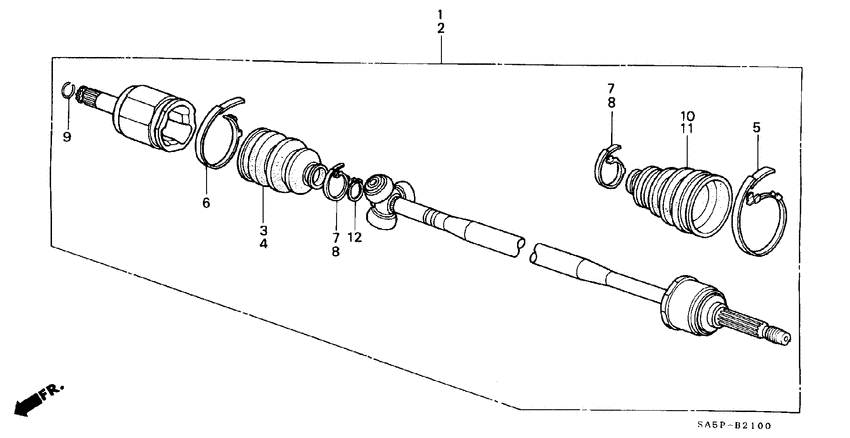

Driveshaft/ front brake disk 15

#	OEM	部品名
1	44305-SA5-621	Driveshaft assy. - R.
1	44305-SA5-620	Driveshaft assy. - R.
2	44306-SA5-621	Driveshaft assy. - L.
2	44306-SA5-620	Driveshaft assy. - L.
3	44315-SA2-300	Boot b
4	44315-SA5-004	Boot b - OTSUKA
4	44315-SA5-003	Boot b - NOK
5	44316-SA2-310	Band a - BOOT
6	44317-SA2-300	Band b - BOOT
7	44318-SA5-300	Band c - BOOT
8	44318-689-300	Band c - BOOT
9	44319-SA2-000	Set ring - 26X1.8
10	44333-SA2-310	Boot a - OTSUKA
11	44333-SA5-003	Boot a - NOK
12	44338-SA2-300	Circlip - 24MM

Emblem 4

#	OEM	部品名
3	42760-SA5-680	Placard - TIRE PRESSURE SPECIFICATION
5	87301-671-020	Emblem - RR. (HONDA)
12	87306-SA5-980	Emblem - HONDAMATIC
13	87307-SA5-000	Emblem - ACCORD

Engine electrical (1) 13

#	OEM	部品名
1	32700-PC3-610	Wire assy. - SPARK PLUG
2	32710-PC3-650	Wire - PLUG, NO.1
3	32712-PC3-650	Wire - PLUG, NO.2
4	32713-PC3-650	Wire - PLUG, NO.3
5	32714-PC3-650	Wire - PLUG, NO.4
6	32723-PC3-610	Cord comp - IGNITION CENTER
7	32762-PA0-000	Clamp - HIGH TENSION CORD
8	32764-PC1-000	Clamp - CORD
9	32765-PA6-000	Clamp - HIGH TENSION CORD
9	32768-PJ7-000	Clamp - CENTER CORD
10	32777-PA0-000	Clamp - HIGH TENSION CORD
11	90482-567-000	Washer - SPECIAL, 6MM
11	90581-831-650	Washer (18mm)

Engine electrical (2) 17

#	OEM	部品名
1	31110-PA6-911	Belt - ALTERNATOR (MITSUBOSHI)
1	31110-PA6-912	Belt - ALTERNATOR (BANDO)
2	31112-PA6-900	Bracket - ALTERNATOR
3	31113-PC1-000	Stay - ALTERNATOR
5	32110-SA5-652	Sub cord - ENGINE
6	32742-PC1-000	Clamp b - ENGINE WIRE HARNESS
7	32744-PC1-000	Clamp c - ENGINE WIRE HARNESS
7	32744-PC1-900	Clamp c - ENGINE WIRE HARNESS
8	35600-PA5-013	Switch assy - BACK UP LIGHT
9	37240-657-013	Switch - OIL PRESSURE (DENSO)
9	37240-P13-013	Switch assy - OIL PRESSURE (DENSO)
10	37750-PC1-004	Thermo unit - DENSO
11	90002-PA6-003	Bolt-washer - 4X8 (DENSO)
12	90057-671-000	Bolt - ALTERNATOR
14	90430-657-000	Washer - 23X8.3X3.2
15	90438-611-010	Washer - SPECIAL, 23X11X2.3
16	91404-PC1-000	Clip - CORD

Engine mounts 18

#	OEM	部品名
1	11950-PC1-000	Stiffener - ENGINE
2	50811-SA5-000	Rubber - ENGINE MOUNTING INSULATOR
2	50811-SA0-020	Rubber - ENGINE MOUNTING INSULATOR
3	50812-SA0-000	Insulator - RR. MOUNTING HEAT
4	50815-SA5-000	Rubber - WIND STOPPER (MT)
4	50815-SA5-982	Rubber - WIND STOPPER
4	50815-SA6-980	Rubber - WIND STOPPER (AT)
5	50816-SA5-000	Plate - WIND STOPPER
6	50820-SA5-000	Bracket - WIND STOPPER
7	50821-SA5-010	Rubber - ENGINE SIDE INSULATOR
8	50822-634-940	Washer b - MOUNTING RUBBER
9	50823-SA0-000	Stopper - SIDE MOUNTING RUBBER
10	50824-SA5-010	Bracket - SIDE MOUNTING
11	50825-SA5-000	Bracket - FR. ENGINE MOUNTING
12	50827-SA5-010	Bracket - ENGINE RR. MOUNTING
14	90116-634-940	Bolt - HEX., 8X20
15	90130-679-000	Bolt - LOWER ARM
16	90504-SA0-000	Washer - PLAIN, 10MM

Exhaust pipe 18

#	OEM	部品名
1	18210-SA5-600	Pipe a - EX.
2	18212-671-003	Gasket - EX. PIPE(ISHINO) (59.5MM-60.5MM)
2	18212-SA0-003	Gasket - EX. PIPE(ISHINO)
3	18215-SA0-000	Rubber - SILENCER MOUNTING (74X45X22)
4	18215-671-000	Rubber - SILENCER MOUNTING (74X53X22)
5	18220-SA5-601	Pipe b - EX.
6	18302-659-000	Gasket - EX. PIPE
7	18303-689-000	Gasket - SILENCER
8	18307-SA6-601	Silencer comp - EX.
8	18307-SA6-602	Silencer comp - EX.
9	18310-692-003	Finisher - EX. PIPE
10	70249-SA5-000	Bracket b - BAFFLE PLATE
11	70284-SA5-000	Stay - FUEL TANK BAFFLE PLATE
12	72203-SA5-000	Plate - TANK BAFFLE
13	72204-SA5-600	Plate - PARKING BRAKE WIRE BAFFLE
14	72205-SA5-601	Plate - HONDAMATIC WIRE BAFFLE
15	90115-659-003	Nut - SELF-LOCK, 8MM (CLINCH)
16	90212-SA5-003	Nut - SELF-LOCK, 10MM

Floor mat 7

#	OEM	部品名
1	64841-SA5-000	Insulator - SIDE COWL
2	65841-SA5-010	Insulator - DASHBOARD LOWER
4	72851-SA5-010	Silencer - RR. FLOOR
5	72860-SA5-000	Insulator c - FR. FLOOR
6	72861-SA5-000	Insulator c - RR. FLOOR
9	83801-SA6-000	Lid assy - SPARE TIRE
11	83821-SA6-000	Mat - TRUNK FLOOR

Fresh air vents 17

#	OEM	部品名
1	39379-693-010	Roller - LEVER
2	39386-SA5-000	Clamp - CABLE
3	64420-SA5-010	Valve assy. - R. SIDE VENT
4	64425-SA5-000	Link - VENTILATION VALVE
5	64426-SA5-000	Arm - VENT LINK
6	64427-SA5-000	Lever - VENTILATION
7	64431-SA5-000	Knob - VENTILATION
8	64438-SA5-010	Label - R. VENT (WHITE)
9	64440-SA5-000	Valve assy. - L. SIDE VENT
10	64442-SA5-000	Seal - VENTILATION VALVE
11	64443-SA5-000	Valve - VENTILATION
12	64458-SA5-010	Label - L. VENT (WHITE)
13	66910-SA5-010	Box assy - SOFT
14	66916-SA5-000	Lever - SOFT SIDE
15	66917-SA5-000	Stopper - SPRING
16	66918-SA5-000	Spring - SOFT DAMPER
17	90101-SA4-000	Screw - TAPPING, 4X12

Front brake (1) 21

#	OEM	部品名
1	43352-692-003	Screw - BLEEDER
2	43353-SA0-003	Cap - BLEEDER SCREW
2	43353-SD5-003	Cap - BLEEDER SCREW
3	45022-SA5-000	Pad set - FR.
4	45210-SA5-013	Caliper assy - R. (15CL-13SN) (NISSIN)
4	45210-SA5-003	Caliper assy - R. (15CL-13SN) (NISSIN)
5	45214-692-003	Cover - DUST
6	45215-692-003	Clip - BOOT
7	45216-SA0-003	Piston
8	45217-SA0-003	Seal - PISTON
9	45227-SA0-003	Spring - PAD
10	45228-SA5-003	Shim - BRAKE PAD
11	45230-SA5-013	Caliper assy - L. (15CL-13SN) (NISSIN)
11	45230-SA5-003	Caliper assy - L. (15CL-13SN) (NISSIN)
12	45234-692-013	Cover - DUST
13	45235-SA0-003	Pin a
14	45236-SA0-003	Pin b
15	45237-SA5-003	Retainer - PAD
16	45240-692-003	Bolt - HEX., 8X24
17	90107-663-670	Bolt - CALIPER MOUNTING
18	90116-422-006	Bolt - SOCKET, 8X23

Front combination light 24

#	OEM	部品名
1	33300-SA5-623	Light assy - R. FR. COMBINATION
2	33302-SA5-941	Lens - FR. COMBINATION LIGHT
2	33302-671-671	Lens - FR. COMBINATION LIGHT
3	33305-SA5-941	Packing
4	33350-SA5-623	Light assy - L. FR. COMBINATION
5	33503-506-600	Bulb - 12V 21W) (STANLEY
5	34905-KV7-671	Bulb,winker (12v
5	34908-634-611	Bulb - 12V 21W) (ECE) (STANLEY
6	34300-SA5-943	Light assy - R. TURN SIGNAL
7	34301-SA5-941	Lens - R.
8	34303-SA5-941	Packing - TURN SIGNAL LIGHT
9	34304-SA5-941	Packing - LENS
10	34305-SA5-941	Cord comp
11	34306-SA5-941	Packing - R. SIDE TURN SIGNAL LIGHT
12	34350-SA5-943	Light assy - L. TURN SIGNAL
13	34351-SA5-941	Lens - L.
14	34351-657-921	Bulb - 12V/5W) (STANLEY
15	34356-SA5-941	Packing - L. SIDE TURN SIGNAL LIGHT
16	62324-SA5-000	Molding - R. FR. APRON SIDE
17	62329-SA5-000	Molding - L. FR. APRON SIDE
18	66871-611-000	Nut - CENTER PANEL
19	90140-657-920	Screw - PAN, 4X35
20	90303-SA5-013	Nut - FR. COMBINATION LIGHT
21	90678-SA5-000	Grommet - FR. SIDE MOLDING

Front door locks 24

#	OEM	部品名
4	75410-SA6-921	Lock assy - R. FR. DOOR
5	75411-SA1-003	Cover - R. DOOR LOCK
6	75411-634-000	Joint
7	75412-SA0-000	Fastener
8	75415-SA0-300	Eliminator - R. NOISE
9	75450-SA6-921	Lock assy - L. FR. DOOR
10	75451-SA1-003	Cover - L. DOOR LOCK
11	75455-SA0-300	Eliminator - L. NOISE
12	75510-SA6-003	Handle assy - R. INSIDE
17	75525-SA6-003	Rod - R. FR. INSIDE HANDLE
18	75530-SA6-003	Handle assy - L. INSIDE
19	75551-SA6-003	Holder - DOOR LOCK ROD
20	75555-692-003	Striker - DOOR LOCK
21	75556-605-010	Bolt - LOCK STRIKER
22	75565-SA6-003	Rod - L. FR. DOOR INSIDE
23	75581-SA5-020	Spring - LOCK KEY SETTING
24	75585-SA5-003	Cylinder - DOOR
26	75593-SA6-000	Cover - INSIDE LOCK KNOB
27	75610-SA5-013	Handle assy - R. OUTSIDE
27	75610-SA5-023	Handle assy - R. OUTSIDE
28	75620-SA5-013	Handle assy - L. OUTSIDE
28	75620-SA5-023	Handle assy - L. OUTSIDE
29	90103-693-000	Screw - FLANGE TAPPING, 4X12
30	90662-671-003	Grommet - SCREW, 5MM (WHITE)

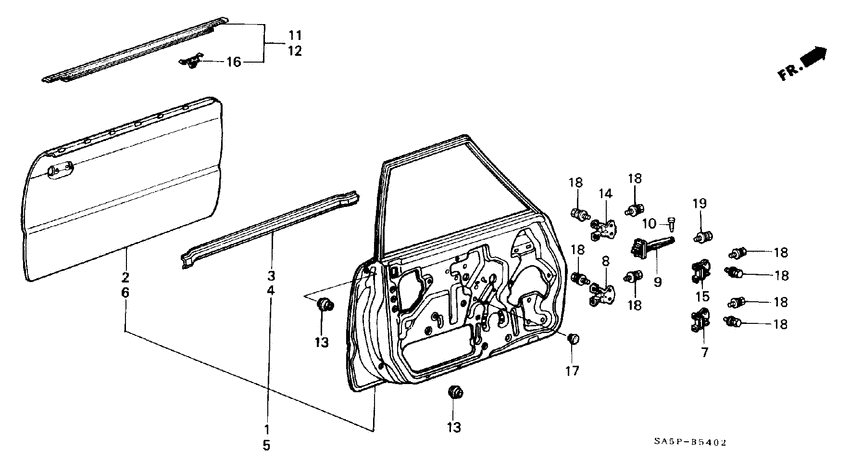

Front door panels 7

#	OEM	部品名
9	75750-SA6-003	Checker - FR. DOOR
10	75760-SA5-003	Pin - DOOR CHECKER
11	75800-SA6-670	Molding assy. - R. FR. DOOR
12	75805-SA6-670	Molding assy. - L. FR. DOOR
13	75891-680-000	Stopper - DOOR
16	90640-SA5-000	Clip - DOOR MOLDING
17	90851-SA6-000	Plug - HOLE

Front door windows/ regulators 12

#	OEM	部品名
3	75213-SA6-670	Holder - R. FR. SASH
4	75216-SA6-000	Sash - R. FR. DOOR
5	75223-SA6-670	Holder - L. FR. SASH
6	75226-SA6-000	Sash - L. FR. DOOR
7	75231-SA6-672	Channel - FR. DOOR RUN
8	75232-SA5-000	Channel - LOWER SASH RUN
9	75310-SA6-003	Regulator - R. FR. DOOR
11	75320-SA6-003	Regulator - L. FR. DOOR
16	75342-679-000	Pin - WINDOW REGULATOR HANDLE
17	75343-657-010	Escutcheon - REGULATOR HANDLE
18	75350-SA6-670	Glass assy - R. FR. DOOR
19	75360-SA6-670	Glass assy - L. FR. DOOR

Front grille 15

#	OEM	部品名
1	62301-SA5-000	Grille - FR.
2	62308-SA5-000	Cushion - FR. GRILLE
3	62309-SA5-000	Collar - FR. GRILLE
4	62320-SA5-000	Molding - FR. GRILLE UPPER
5	62322-SA5-000	Molding - FR. GRILLE
6	62325-SA5-000	Molding - FR. GRILLE LOWER
7	62331-SA5-000	Molding - R. HEADLIGHT
8	62336-SA5-000	Molding - L. HEADLIGHT
9	87101-SA5-000	Emblem - FR. GRILLE (H)
10	90161-SA5-000	Screw - TAPPING, 4X16
11	90301-671-013	Nut - SPECIAL, 5MM
12	90651-SA5-003	Clip - MOLDING
13	90651-689-003	Clip - FR. GRILLE
14	90662-671-003	Grommet - SCREW, 5MM (WHITE)
15	90668-688-003	Grommet - SCREW, 4MM

Front seat components 6

#	OEM	部品名
6	77208-SA5-003	Bush - NYLON (TS TECH)
23	77510-SA6-602	Adjuster f - SLIDE
24	77510-SA6-652	Adjuster f - SLIDE
26	77520-SA6-602	Adjuster - LOCK SLIDE
28	77530-SA6-652	Adjuster - L. SLIDE
35	90108-673-013	Bolt-washer - 8X16

Front shock absorber 19

#	OEM	部品名
1	51401-SA5-004	Spring - FR.
2	51601-SA5-023	Absorber assy - R. FR. SHOCK
3	51602-SA5-023	Absorber assy - L. FR. SHOCK
4	51605-SA5-023	Absorber unit - R. FR. SHOCK
5	51606-SA5-023	Absorber unit - L. FR. SHOCK
6	51687-SA5-003	Cover - FR. SHOCK ABSORBER DUST
7	51689-SA5-013	Seat comp - FR. SPRING UPPER
8	51722-692-006	Rubber - FR. BUMP STOPPER (M.T.P. KASEI)
8	51722-692-005	Rubber - FR. BUMP STOPPER (NOK)
9	51724-692-004	Seal - BUSH (SHOWA)
10	51725-671-004	Seal - DUST
11	51726-671-004	Bearing - NEEDLE (SHOWA)
12	51727-SA5-003	Plate - FR. SHOCK ABSORBER THRUST
13	51727-671-004	Race - THRUST (SHOWA)
14	51728-692-004	Spacer - BEARING (SHOWA)
15	51921-SA5-003	Rubber - FR. SHOCK ABSORBER MOUNTING
16	51933-SA5-000	Cap - FR. SHOCK ABSORBER MOUNTING RUBBER
17	51932-SA5-003	Cap - FR. SHOCK ABSORBER MOUNTING
18	90213-693-003	Nut - SELF-LOCK, 12MM

Front windshield washer (1) 10

#	OEM	部品名
1	38510-SA5-013	Washer comp - WINDSHIELD
3	38512-679-013	Motor - WASHER
4	38513-679-003	Cap - WASHER MOUTH
6	38515-SA0-671	Holder - MOTOR
7	38516-SA0-671	Packing - PARALLEL TYPE) (MITSUBA
8	38518-SA0-671	Cover - WATER SHIELD
9	38540-SA6-013	Nozzle - WINDSHIELD WASHER
10	38564-658-921	Grommet - WASHER TUBE
11	38581-671-003	Joint - TUBE
11	38581-679-003	Joint - TUBE

Front windshield wiper 29

#	OEM	部品名
1	38400-SA5-654	Wiper assy. - WINDSHIELD
2	38402-SA5-003	Bracket
3	38404-693-003	Rubber - SETTING
4	38407-SA5-003	Link a
5	38408-SA5-023	Link b
6	38409-SA5-003	Link c
7	38410-SA5-652	Motor - WIPER
8	38411-693-003	Collar
9	38412-SA5-003	Cap b - PIVOT
10	38413-671-003	Seal - DUST
11	38413-692-003	Seal - DUST
12	38414-SA5-003	Rod unit a
13	38415-SA5-003	Rod unit b
14	38416-SA5-003	Cap a - PIVOT
15	38417-SA5-013	Cover - MOTOR
16	38418-SA5-003	Clip - MOTOR COVER
17	38419-SA5-003	Plate - EARTH
18	38422-693-003	Washer - R.
19	38441-SA5-013	Sleeve
20	38443-SA5-003	Ring - STOPPER
21	38460-SA5-653	Arm - WINDSHIELD WIPER
22	38461-SA0-963	Cover - ARM
24	38463-SA5-003	Screw-washer - 3.5X5.5
26	38470-SA5-601	Blade - WINDSHIELD WIPER
27	38472-693-622	Rubber
28	38480-SA5-601	Blade - WINDSHIELD WIPER (PASSENGER SIDE)
29	38587-SA5-030	Grommet - DRIVER PIVOT
30	38588-SA5-020	Grommet - ASSIST PIVOT
31	38592-SA5-000	Cap - PIVOT

Front windshield/ rear windshield 24

#	OEM	部品名
1	67201-SA6-670	Glass - FR. WINDSHIELD
2	67205-SA6-000	Rubber, FR. WINDSHIELD DAM
2	67205-SA5-010	Rubber - FR. WINDSHIELD DAM
3	67801-SA6-000	Molding - FR. WINDSHIELD UPPER
4	67802-SA6-000	Molding - FR. WINDSHIELD LOWER
5	67803-SA6-000	Molding - R. FR. WINDSHIELD
6	67804-SA6-000	Joint - R. FR. CORNER
7	67806-692-000	Spacer - WINDSHIELD LOWER
8	67813-SA6-000	Molding - L. FR. WINDSHIELD
9	67814-SA6-000	Joint - L. FR. CORNER
10	74201-SA6-000	Glass - RR. WINDSHIELD
11	74205-SA6-000	Rubber, RR. WINDSHIELD DAM
12	74801-SA6-000	Molding - RR. WINDOW UPPER
13	74802-SA6-000	Molding - RR. WINDOW LOWER
14	74803-SA6-000	Molding - R. RR. WINDSHIELD
15	74804-SA6-000	Joint - R. UPPER CORNER
16	74808-SA6-000	Spacer - WINDSHIELD LOWER
17	74813-SA6-000	Molding - L. RR. WINDSHIELD
18	74814-SA6-000	Joint - L. UPPER CORNER
19	90162-SA6-000	Screw - TAPPING, 4X12
20	90674-SA6-003	Clip - RR. WINDSHIELD MOLDING
21	90674-692-003	Clip - FR. WINDSHIELD MOLDING
22	90675-SA6-003	Grommet - RR. WINDSHIELD MOLDING
23	90694-SA6-003	Clip - WINDSHIELD UPPER MOLDING

Fuel pump/fuel strainer 21

#	OEM	部品名
1	16700-PC1-013	Pump assy. - FUEL
4	16711-SA5-000	Rubber - FUEL PUMP MOUNTING
5	16712-SA5-000	Rubber - FUEL PUMP STOPPER
6	16712-657-300	Collar - FUEL PUMP DISTANCE
8	16900-SA5-004	Strainer comp. - FUEL (TOYO ROKI)
8	16900-SA5-003	Strainer comp. - FUEL (TOKYO ROKI)
9	16902-SA5-000	Cover - FUEL STRAINER
10	16910-SA5-020	Bracket - FUEL PUMP
12	16911-SA5-000	Dust shield - FUEL PUMP
13	16913-693-010	Bolt - PUMP MOUNTING
14	16915-SA5-000	Cover - FUEL PUMP
15	17371-SA0-661	Valve - TWO WAY
16	17702-SA5-000	Tube a - FUEL
18	17703-SA5-010	Tube b - FUEL
19	17707-SA5-020	Pipe comp. a - FUEL
22	17709-SA5-003	Clip - FUEL TUBE
23	17715-SA5-000	Plug - FUEL VENT PIPE
24	32175-647-920	Clip - WIRE HARNESS
24	30701-883-000	Clip, high tension cord (8mm)
25	90656-579-000	Clip - AIR BLEED
26	90700-SA5-000	Clip - TUBE

Fuel tank 27

#	OEM	部品名
1	17500-SA5-676	Tank comp. - FUEL
2	17517-SA5-003	Filter comp - FUEL PIPE
3	17521-SA5-020	Band - R. FUEL TANK MOUNTING
4	17522-SA5-020	Band - L. FUEL TANK MOUNTING
5	17525-SA5-010	Bolt - FUEL TANK MOUNTING
6	17555-SA5-003	Guide - FUEL TUBE
7	17556-SA5-003	Clip - FUEL TUBE
8	17651-SA5-000	Tube - FILLER NECK CONNECTING
9	17652-SA5-000	Clip - FILLER TUBE
10	17660-SA5-010	Pipe - FUEL FILLER
11	17662-692-000	Packing - FUEL FILLER
12	17670-SA5-003	Cap comp. - FUEL FILLER
13	17710-SA5-020	Grommet - SEPARATE PIPE
14	17721-SA6-030	Pipe comp - SEPARATE
15	17725-SA5-000	Insulator - BREATHER TUBE
16	32165-SA5-003	Clip - HARNESS, 9MM(WHITE)
16	90674-769-000	Clamp, p.t.o. cable (b)
17	37800-SA5-033	Meter unit - FUEL (DENSO)
17	37800-SA5-034	Meter unit - FUEL (DENSO)
18	37801-SA5-000	Packing - BASE
19	37802-SA5-000	Retainer - FUEL UNIT
22	70495-689-000	Cushion - FUEL FILLER LID
23	70496-SA5-000	Spring - FUEL LID OPENING
24	73215-693-003	Striker - FUEL FILLER
25	73220-SA5-003	Lock - FILLER LID
26	75582-SA5-000	Spring - LOCK KEY SETTING
27	90700-671-000	Clip - TUBE

Fuel tubing 1

#	OEM	部品名
4	17321-PC3-740	Joint - THREE WAY

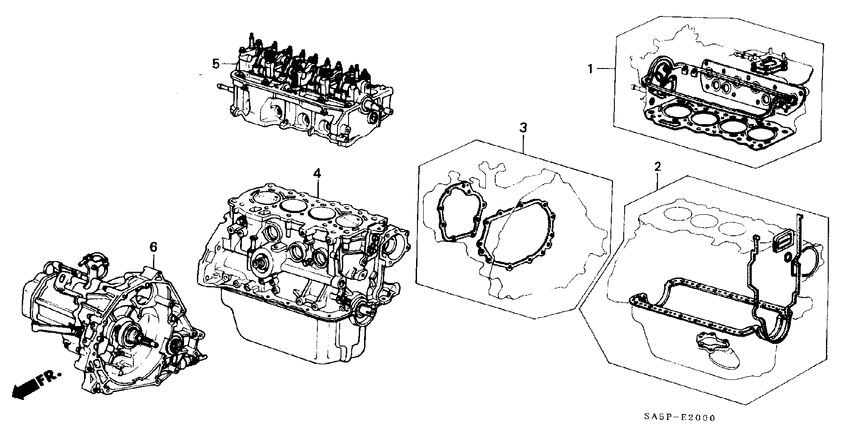

Gasket kit/ transmission assy. 5

#	OEM	部品名
4	10002-PC3-010	Engine assy - BLOCK
4	10002-PC3-901	Engine assy - BLOCK
5	10003-PC3-010	General assy. - CYLINDER HEAD
6	20011-PB6-921	Transmission assy - 5-SPEED
6	20021-PA9-922	Transmission assy - 2MT+OD

Glove box 11

#	OEM	部品名
1	62316-679-003	Grommet - SCREW, 4MM
3	66402-SA5-010	Frame - GLOVE BOX
4	66405-SA5-000	Stay - GLOVE BOX HINGE
5	66406-SA5-000	Plate - GLOVE BOX STOPPER ARM
6	66407-SA5-000	Arm - GLOVE BOX STOPPER
7	66417-SA0-000	Rubber - GLOVE BOX STOPPER
8	66418-SA5-000	Stopper - GLOVE BOX LID
9	66420-SA5-000	Cover - GLOVE BOX
10	66430-SA5-000	Striker - GLOVE BOX
11	66444-SA5-000	Holder - GLOVE BOX
14	66456-SA5-000	Spring - GLOVE BOX ARM

Headlight 7

#	OEM	部品名
1	33100-SA5-702	Headlight assy - R. (STANLEY)
2	33115-692-741	Bulb - HEADLIGHT (12V 60/55W) (PHILIPS) (HALOGEN)
3	33126-SA5-951	Cover - HEADLIGHT BULB RUBBER
4	33128-SA5-951	Socket comp. - POSITION LIGHT
5	33150-SA5-702	Headlight assy - L. (STANLEY)
6	33310-594-601	Bulb - 12V5W
6	34910-504-003	Bulb (12v5w)

Headliner trim 17

#	OEM	部品名
1	70583-SA6-000	Holder - R. RR. ROOF LINING
2	70683-SA6-000	Holder - L. RR. ROOF LINING
4	71804-671-000	Clip - ROOF MOLDING
8	71852-SA5-010	End a - ROOF MOLDING
9	71851-SA6-000	Molding - ROOF
10	71857-SA5-010	End b - ROOF MOLDING
11	71856-SA0-000	Bracket - LIFTING WIRE
13	73801-SA6-000	Molding - R. FR. PILLAR
15	73802-SA6-000	Molding - R. DRIP
16	73803-SA6-010	Molding - R. RR. PILLAR
18	73806-SA6-000	Molding - L. FR. PILLAR
20	73807-SA6-000	Molding - L. DRIP
21	73808-SA6-010	Molding - L. RR. PILLAR
22	90160-SA5-000	Screw - TAPPING, 4X12
23	90161-SA6-000	Screw - TAPPING, 4X12
24	90658-SA5-003	Grommet - FR. PILLAR MOLDING
27	90181-SA0-000	Screw - TAPPING, 3X7

Heater blower 14

#	OEM	部品名
1	39242-671-670	Fan - HEATER
2	39246-671-003	Clamp - CASE HOLD
3	39410-SA5-003	Blower assy
4	39423-SA5-003	Valve assy.
5	39425-SA5-003	Diaphragm assy.
6	39427-SA5-003	Stopper - SPRING
7	39430-SA5-003	Motor assy.
8	39443-SA5-003	Packing
9	39473-SA5-003	Resistor - BLOWER
10	39480-SA5-023	Duct - HEATER
11	90302-671-003	Nut - HEX., 5MM
12	90501-671-003	Washer - SPECIAL
13	90502-671-003	Washer - SPRING, 5MM
14	90503-671-003	Washer - PLAIN, 5MM

Heater duct/defroster 33

#	OEM	部品名
1	39255-SA6-003	Duct - RR. HEATER
2	39256-SA6-003	Duct - CENTER
3	39257-SA6-003	Duct - R.
4	39258-SA6-003	Duct - L.
5	39259-SA6-003	Bracket - RR. HEATER DUCT
6	39271-671-000	Washer - LEVER
7	39386-SA5-000	Clamp - CABLE
8	39496-SA5-000	Tube - VACUUM SOFT
9	39497-SA5-000	Tube - VACUUM SOFT
10	39515-SA5-003	Valve assy. - SOFT SOLENOID
11	39516-SA5-000	Joint - TUBE
12	39520-SA5-003	Diaphragm assy.
14	39531-SA5-020	Duct - HEATER ASSISTANT
16	39541-SA5-000	Bracket - DUCT ASSIST
19	39560-SA5-000	Duct assy - R. HEATER
20	64460-SA5-023	Duct assy - CENTER
21	64465-SA5-003	Plate - SOFT CENTER SPRING
22	64466-SA5-003	Lever - SOFT CENTER
23	64467-SA5-003	Link - SOFT CENTER AIR
24	64468-SA5-003	Seal - CENTER DUCT
25	64469-SA5-003	Cable - SOFT CENTER AIR
26	64481-SA5-020	Duct a - AIR CONDITIONER
27	64482-SA5-020	Duct b - AIR CONDITIONER
28	64483-SA5-020	Duct c - AIR CONDITIONER
29	64484-SA5-000	Duct d - AIR CONDITIONER
30	66920-SA5-020	Duct - CENTER SOFT
31	66921-SA5-010	Duct - DRIVER SOFT
32	70391-SA6-010	Duct - R. RR. OUTLET
33	70396-SA6-000	Duct - L. RR. OUTLET
34	90101-SA4-000	Screw - TAPPING, 4X12
35	90102-SA4-000	Screw - TAPPING, 4X16
36	90672-671-003	Clip - TRIM
37	90699-SA5-000	Clip - DUCT

Heater lever 30

#	OEM	部品名
1	35650-SA5-013	Switch assy - HEATER FAN
2	35651-SA5-003	Knob - FAN SWITCH
3	39273-SA5-000	Cable - WATER VALVE
6	39330-SA5-000	Control assy. - HEATER
6	39330-SA5-602	Control assy. - HEATER
6	39330-SA5-600	Control assy. - HEATER
7	39342-SA5-000	Panel - HEATER CONTROL
8	39350-SA5-000	Lever assy. - SLIDING
9	39351-SA5-000	Lever - HEATER CONTROL
10	39352-SA5-000	Link a - CONTROL LEVER
11	39353-SA5-000	Link b - CONTROL LEVER
12	39354-SA5-000	Link a - CONTROL
13	39355-SA5-000	Link b - CONTROL
14	39371-SA5-000	Cable - TEMPERATURE CONTROL
15	39372-SA5-000	Cable - MODE CONTROL
16	39376-SA5-000	Lever - SLIDER
17	39377-SA5-000	Spring - SLIDER
18	39379-693-010	Roller - LEVER
19	39381-SA5-000	Knob - HEATER CONTROL
20	39383-SA5-000	Clamp - CONTROL CABLE
21	39383-693-000	Clamp - CONTROL CABLE
22	39384-SA5-000	Shaft - CONTROL LEVER
23	39385-SA5-000	Stopper - CONTROL LEVER
24	39388-SA5-010	Holder - HEATER CONTROL
25	39389-SA5-000	Collar - CONTROL
26	39390-SA5-602	Illumination assy. - HEATER
27	39397-SA5-003	Bulb - NEO WEDGE (14V 100MA)
28	39513-SA5-000	Base - CABLE CLAMP
29	39550-SA5-003	Switch assy - MODE CONTROL
31	90302-SA5-003	Nut - 20MM

Heater unit 33

#	OEM	部品名
1	36145-PA6-004	Valve - CHECK
2	38989-SA5-000	Grommet - VACUUM TUBE
3	38989-671-000	Grommet - VACUUM TUBE
4	39210-SA5-053	Heater unit
4	39210-SA5-033	Heater unit
5	39211-SA5-003	Plate - EARTH
6	39214-SA5-000	Grommet - HEATER PIPE
7	39216-SA5-003	Pipe - WATER OUTLET
8	39217-SA5-000	Packing - HEATER
9	39219-671-000	Clamp - HOSE
10	39223-634-671	Clamp - WATER HOSE
11	39223-671-000	Clamp - WATER HOSE
12	39233-692-003	Nut - INSTRUMENT PANEL
13	39245-SA5-003	Core comp - HEATER
14	39248-692-003	Packing - HEATER
15	39270-SA5-013	Valve assy. - WATER
16	39273-SA5-000	Cable - WATER VALVE
17	39274-SA5-000	Grommet - WATER CABLE
18	39280-SA5-003	Diaphragm assy.
19	39282-692-003	Bolt - HEATER SETTING
20	39286-SA5-003	Pipe - WATER IN.
21	39286-692-003	Hose - WATER
22	39290-SA5-003	Sensor - DIVIDE
23	39299-SA5-003	Cover - HEATER PIPE
24	39311-SA5-000	Hose - WATER IN.
25	39312-SA5-000	Hose - WATER OUTLET
26	39313-SA5-000	Hose - WATER VALVE
27	39321-SA5-003	Tank comp. - VACUUM
28	39323-SA5-003	Clamp - VACUUM TUBE
29	39490-SA5-000	Tube a - VACUUM, 2.5X5X420
31	39492-SA5-003	Clip - VACUUM TUBE
32	39510-SA5-004	Valve - DOUBLE VACUUM
34	90661-SA0-000	Holder - WATER HOSE

Hood 15

#	OEM	部品名
2	60640-SA5-000	Grille assy - AIRSCOOP
3	60642-SA5-000	Seal - AIRSCOOP (A)
4	60643-SA5-000	Seal - AIRSCOOP (B)
5	60649-SA5-000	Rubber - RR. HOOD SEAL
6	60895-SA5-000	Rubber - HOOD SEAL
9	63415-SA5-000	Shim - ENGINE HOOD HINGE
10	63450-SA5-003	Wire comp - HOOD
10	63450-SA5-004	Wire comp - HOOD
11	63510-SA5-010	Lock assy - HOOD
12	63511-SA5-003	Cushion - HOOD
13	63511-693-000	Cushion - HOOD
14	63512-SA5-000	Stay - HOOD OPENER
20	90670-SA0-000	Grommet - HOOD STAY
21	90671-SA0-003	Holder - ROD
22	90687-SA5-003	Clip - TRIM

Ignition coil/battery/ regulator 17

#	OEM	部品名
1	30500-SA5-623	Coil assy - IGNITION
4	30510-SA0-923	Condenser comp. - PANASONIC
4	30510-SA0-922	Condenser comp. - HITACHI
5	30510-SA0-933	Condenser comp. - PANASONIC
5	30510-SA0-932	Condenser comp. - HITACHI
6	30550-692-014	Igniter unit - OKI
6	30550-689-003	Igniter unit - NEC
7	31400-SA0-013	Regulator assy
9	31500-507-671	Battery - 32C 24R) (YUASA
10	31511-689-670	Label - BATTERY CAUTION
11	31512-SA5-000	Plate - BATTERY SETTING
12	31513-SA5-000	Bolt - BATTERY SETTING
13	31521-SA0-000	Box assy - BATTERY
14	31542-SA0-611	Plug - VENT (YUASA)
14	31542-634-163	Plug - VENT (PANASONIC)
14	31542-538-007	Plug - VENT (YUASA)
14	31542-692-671	Plug - VENT (FURUKAWA)

Instrument garnish 20

#	OEM	部品名
7	66185-SA5-010	Lid - FUSE BOX
8	66186-SA5-020	Frame - FUSE LID
9	66187-SA5-000	Lock - FUSE LID
10	66188-SA5-010	Label - FUSE
12	66218-SA5-000	Lever assy. - RESET
13	66219-SA5-000	Lid - CHOKE
14	66220-SA5-030	Panel - METER
15	66225-SA5-000	Lid - METER PANEL
17	66242-SA5-010	Lid - REMOTE CONTROL MIRROR SWITCH HOLE
20	66247-SA5-000	Lid - INSTRUMENT ILLUMINATION SWITCH
21	66825-SA5-000	Panel assy. - R. FACE
22	66828-SA5-000	Panel assy. - L. FACE
23	66832-SA5-000	Frame - METER PANEL
24	66885-SA5-010	Cover - DRIVER UNDER
25	66886-SA5-601	Cover - ASSIST UNDER
26	66935-SA5-000	Cover - ASSIST LOWER
27	90101-SA4-000	Screw - TAPPING, 4X12
28	90102-SA4-000	Screw - TAPPING, 4X16
29	90167-SA5-000	Screw-washer - 4X12
30	90685-SA5-003	Clip - UNDER COVER

Instrument panel 24

#	OEM	部品名
1	62316-679-003	Grommet - SCREW, 4MM
2	66130-SA5-010	Frame comp - INSTRUMENT
2	66130-SA5-020	Frame comp - INSTRUMENT
4	66134-SA5-000	Protector - INSTRUMENT PANEL
5	66140-SA5-020	Bracket - R. INSTRUMENT SIDE
6	66145-SA5-010	Bracket - L. INSTRUMENT SIDE
7	66148-SA5-000	Collar - INSTRUMENT SIDE
8	66216-SA5-010	Holder - METER PANEL
10	66833-SA5-010	Stay - R. METER
11	66834-SA5-010	Stay - L. METER
12	66837-SA5-000	Stay - SPEEDOMETER
13	66844-SA5-000	Cap - INSTRUMENT PANEL STAY
14	66845-SA5-030	Plate - BACK
15	66846-SA5-010	Stay - INSTRUMENT PANEL CENTER
16	66847-SA5-000	Stay - INSTRUMENT PANEL DRIVER
17	66854-SA5-000	Seal - INSTRUMENT PANEL
18	66871-611-000	Nut - CENTER PANEL
19	66876-SA5-000	Stay - VISOR
20	66932-SA5-000	Stay - DRIVER LOWER COVER
21	90101-SA4-000	Screw - TAPPING, 4X12
22	90102-SA4-000	Screw - TAPPING, 4X16
23	90128-SA7-000	Bolt-washer - 6X25
24	90659-SA5-003	Grommet - SCREW, 4MM
25	90686-SA5-013	Grommet - SCREW, 4MM

Insulator/grommet 15

#	OEM	部品名
1	32104-671-000	Cap - REMOTE CONTROL MIRROR HOLE
3	60602-605-000	Grommet b - CONTROL CABLE
4	60852-568-680	Plug - HEATER LEVER HOLE
7	66214-671-910	Grommet - SWITCH HOLE
8	70226-611-000	Plug - SETTING HOLE
9	70542-624-000	Plug - DRAIN HOLE
9	90873-SA5-000	Plug - DRAIN HOLE
10	72206-SA5-000	Cap - FLOOR HOLE, 53MM
11	72209-SA5-000	Cap comp. - FLOOR HOLE
12	73871-538-000	Grommet - DOOR SWITCH
12	91612-SA5-000	Grommet - DOOR SWITCH (BLACK) (DIAMETER=20MM)
13	82871-671-000	Grommet - DRAIN HOLE, 25MM
14	82874-538-000	Plug - FLOOR HOLE
15	90850-671-000	Grommet - DOOR WIRE HARNESS HOLE
18	90863-SA5-000	Plug - CONTROL WIRE

Interior light 12

#	OEM	部品名
2	34251-SA5-003	Lens
3	34253-SA5-023	Light assy - FUSE MAINTENANCE
4	34253-671-003	Bulb - 12V 8W)(DAIICHI
4	04110-SWA-305	BULB T10X318W
5	34254-SA5-003	Lamp assy. - GLOVE BOX
6	34260-SA0-013	Light assy - TRUNK ROOM
7	34262-SA0-003	Lens
8	34295-538-003	Bulb - 12V 5W) (DAIICHI
8	34295-SD4-003	Bulb - 12V 5W.K
10	34502-SA5-003	Lamp assy. - RADIO PANEL (STANLEY)
11	34505-SA5-003	Bulb - NEO WEDGE (BLUE)
12	34295-SA5-003	Bulb - 12V 3.4W) (DAIICHI

Knuckle 29

#	OEM	部品名
1	44610-SA5-010	Hub - FR.
1	44610-SA5-000	Hub - FR.
2	45251-SA5-000	Disk - FR. BRAKE
3	45255-SA5-000	Guard - R. FR. BRAKE SPLASH
4	45256-SA5-000	Guard - L. FR. BRAKE SPLASH
5	51211-SA5-000	Knuckle - R.
6	51216-SA5-000	Knuckle - L.
7	51311-SA5-010	Bolt - BALL JOINT, 10X50
8	90113-SA0-005	Bolt - WHEEL (NAGOYA RASHI)
8	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)
8	90113-SA0-013	Bolt - WHEEL (TOKAI TRW)
8	90113-SA0-015	Bolt - WHEEL (NAGOYA RASHI)
8	90113-SA0-023	Bolt - WHEEL (TOKAI TRW)
9	90117-SA5-004	Bolt - SHOCK ABSORBER LOCK, 12X50 (OHASHI)
10	90212-671-005	Nut - SELF-LOCK, 10MM
11	90305-692-000	Nut - SPINDLE
11	90305-692-010	Nut
12	91051-689-018	Bearing - FR. WHEEL (TOYO SEIKO)
12	91051-689-013	Bearing - FR. WHEEL (NIPPON SEIKO)
12	91051-689-008	Bearing - FR. WHEEL (TOYO SEIKO)
12	91051-689-004	Bearing - FR. WHEEL (KOYO SEIKO)
12	91051-689-023	Bearing - FR. WHEEL (NIPPON SEIKO)
13	91250-SA2-025	Dust seal a - FR. BEARING (NOK)
13	91250-SA2-023	Dust seal a - FR. BEARING (ARAI)
13	91250-SA5-000	Dust seal a - FR. BEARING
14	91251-692-013	Dust seal b - FR. BEARING (ARAI)
14	91251-SA5-005	Dust seal b - FR. BEARING (NOK)
14	91251-SA5-003	Dust seal b - FR. BEARING (ARAI)
14	91251-692-015	Dust seal b - FR. BEARING (NOK)

Main fuse/horn 22

#	OEM	部品名
1	16760-SA0-003	Relay assy - FUEL CUT
2	32131-SA5-003	Coupler - SHORT
3	35150-SA5-003	Controller assy - ILLUMINATION
4	38100-SA5-003	Horn assy - LOW
6	38150-SA5-003	Horn assy - HIGH
7	38200-SA5-655	Box assy - FUSE (SUMITOMO)
7	38200-SA5-656	Box assy - FUSE (DAIICHI)
7	38200-SA5-657	Box assy - FUSE (SUMITOMO)
7	38200-SA5-658	Box assy - FUSE (DAIICHI)
8	38202-SA5-950	Bracket - FUSE BOX
9	38205-SA5-653	Label - FUSE
10	38230-SA5-003	Fuse b - 10A) (FURUKAWA
11	38231-SA5-003	Fuse b - 15A) (FURUKAWA
12	38232-SA5-003	Fuse b - 20A) (FURUKAWA
13	38235-SA5-004	Puller - FUSE (DAIICHI)
13	38235-SA5-003	Puller - FUSE (SUMITOMO)
14	38250-SA6-922	Box assy - MAIN FUSE (65A+45A)
15	38290-SA5-003	Relay assy - INTERMITTENT WIPER (MITSUBA) (IS-2206)
16	38300-SA5-013	Relay assy - TURN SIGNAL & HAZARD (DENSO)
16	38300-SA5-004	Relay assy - TURN SIGNAL & HAZARD (MITSUBA)
19	38371-SA5-650	Bracket - RELAY BOX
22	39400-SA5-003	Relay assy - POWER (4P) (MITSUBA)

Mainshaft 37

#	OEM	部品名
1	22814-PA9-023	Ring - SEALING, 32MM
2	23210-PA9-901	Mainshaft
3	23411-PA9-900	Gear - MAINSHAFT LOW
4	23431-PA9-900	Gear - MAINSHAFT SECOND
5	90201-PA9-000	Nut - FLANGE, 19MM
6	90421-PA9-000	Washer - SPLINE, 35X50X3.40
6	90415-PA9-010	Washer - SPLINE, 35X50X3.20
6	90418-PA9-000	Washer - SPLINE, 35X50X3.25
6	90412-PA9-010	Washer - SPLINE, 35X50X3.05
6	90420-PA9-000	Washer - SPLINE, 35X50X3.35
6	90414-PA9-010	Washer - SPLINE, 35X50X3.15
6	90411-PA9-010	Washer - SPLINE, 35X50X3.00
6	90419-PA9-000	Washer - SPLINE, 35X50X3.30
6	90413-PA9-010	Washer - SPLINE, 35X50X3.10
7	90417-PA9-000	Washer - 26 X 45 X 4
8	90422-PA9-000	Washer - THRUST, 26MM
9	90506-PA9-010	Collar - DISTANCE, 20MM
10	90508-PA9-000	Collar - 26MM
11	90603-689-900	Circlip - EXTERNAL, 20MM
12	90609-PA9-000	Ring - SNAP, 68MM
13	90613-PA9-000	Ring - SNAP, 26MM
14	91002-PA9-003	Bearing - BALL, 63/26 (NTN)
15	91011-PA9-004	Bearing - NEEDLE, 32X38X20 (KOYO)
15	91011-PA9-003	Bearing - NEEDLE, 32X38X20 (NTN)
15	91011-PG4-003	Bearing - NEEDLE, 32X38X20 (NTN)
16	91011-428-008	Bearing - NEEDLE, 20X26X20
16	91011-P48-008	Bearing - NEEDLE, 20X26X20
17	91012-PA9-003	Bearing - NEEDLE, 31X36X18.5
18	91014-PA9-003	Bearing - THRUST NEEDLE, 35X52X2 (NTN)
18	91014-PTD-901	Bearing - THRUST NEEDLE, 35X52X2
19	91018-PA9-003	Bearing - THRUST NEEDLE, 32X44X2 (NTN)
19	91018-P56-003	Bearing - THRUST NEEDLE, 32X44X2 (NTN)
20	91019-PA9-013	Bearing - THRUST NEEDLE, 31X47X2
21	91307-PA9-004	O-ring - 31.2X1.9 (NOK)
21	91307-PA9-003	O-ring 31.2X1.9 (ARAI)
22	91308-PA9-003	O-ring - 19.8X1.9 (ARAI)
22	91308-PA9-004	O-ring - 19.8X1.9 (NOK)

Mainshaft/mainshaft gears 18

#	OEM	部品名
1	23211-PB6-962	Mainshaft
2	23261-689-000	Shaft - REVERSE IDLE GEAR
3	23441-PB6-911	Gear - MAINSHAFT THIRD
4	23451-689-961	Gear - MAINSHAFT FOURTH
5	23540-PB6-000	Gear - REVERSE IDLE
6	23581-PB6-911	Gear - MAINSHAFT FIFTH
7	23623-689-315	Sleeve set - SYNCHRONIZER (3-4)
8	23626-689-961	Sleeve set - SYNCHRONIZER (5)
9	23915-689-000	Spacer - 25X32X30
10	23926-PB6-000	Washer - SPRING, 22MM
10	23926-PB6-010	Washer - SPRING, 22MM
11	90201-PB6-000	Nut - FLANGE, 22MM
11	90201-PB6-020	Nut - FLANGE, 22MM
12	90602-PB6-000	Ring - SNAP, 60MM
13	91003-PB6-028	Bearing - BALL, 5205 (TOYO)
14	91104-634-004	Bearing - NEEDLE, 32X37X27 (KOYO)
14	91104-634-008	Bearing - NEEDLE, 32X37X27 (NTN)
14	91104-634-006	Bearing - NEEDLE, 32X37X27 (THOMPSON)

Master power 11

#	OEM	部品名
1	06464-SA5-000	Power set - MASTER (8")
2	46151-SA0-013	Yoke comp - NISSHIN
3	46191-634-000	Gasket - MASTER CYLINDER BRACKET
4	46400-SA5-003	Power assy. - MASTER
5	46402-SA5-602	Tube assy - MASTER POWER
6	46431-692-003	Spring - VALVE
7	46432-SA0-003	Spring - POPPET
8	46433-692-003	Rod - PUSH
9	46443-692-003	Adjuster - PUSH ROD
10	46512-671-000	Pin - PEDAL
11	53729-671-003	Clamp d - 15.5MM

Mirror/sunvisor 22

#	OEM	部品名
1	34266-693-003	Cap
2	34267-693-003	Socket
3	35505-692-003	Bulb - 14V 1.4W
5	66871-611-000	Nut - CENTER PANEL
7	70582-SA5-000	Nut a - GRAB RAIL SPACER
9	70682-SA5-000	Nut b - GRAB RAIL SPACER
19	88141-SA6-000	Holder - RR. VIEW MIRROR
22	88150-SA6-603	Mirror assy - R. DOOR
23	88152-SA6-602	Boot - R.
24	88153-SA5-621	Mirror - R.
25	88154-SA0-672	Knob - DOOR MIRROR
26	88155-SA6-603	Mirror assy - L. DOOR
27	88157-SA6-602	Boot - L.
28	88158-SA5-621	Mirror - L.
29	88171-SA6-671	Garnish - R. DOOR MIRROR
30	88173-SA6-620	Cap - R. DOOR MIRROR GARNISH
31	88176-SA6-671	Garnish - L. DOOR MIRROR
32	88178-SA6-620	Cap - L. DOOR MIRROR GARNISH
37	88322-SA5-610	Holder comp - FR. ASHTRAY
38	88324-SA5-010	Cover - RR. ASHTRAY
43	90135-SA5-000	Screw-washer - 5X25
47	06764-SG0-000	Bracket set - MIRROR

Oil cooler hose/ oil strainer 17

#	OEM	部品名
1	25150-PA9-305	Shaft - TORQUE CONVERTER STATOR
2	25213-PC1-902	Hose - OIL COOLER (YAMASHITA)
2	25213-PC1-901	Hose - OIL COOLER (MEIJI)
3	25214-692-901	Hose - OIL COOLER (MEIJI)
3	25214-692-902	Hose - OIL COOLER (YAMASHITA)
3	25213-639-900	Hose - OIL COOLER, 400MM (MEIJI)
4	25420-PA9-000	Strainer - TRANSMISSION
5	25610-PA9-000	Gauge comp. - ATF
6	25910-639-000	Joint a - OIL HOSE
7	25951-639-000	Bolt - JOINT
8	25960-PA9-000	Joint - OIL HOSE
9	39228-PA0-901	Band - HOSE, 220MM
10	90635-671-000	Clip - OIL HOSE
11	90656-PB1-003	Band - OIL HOSE
12	91301-250-000	O-ring - 21.5MM
12	91307-425-003	O-ring - 21.5X3.2
13	91316-612-000	O-ring - 27.5X1.7

Oil filter/oil gauge 8

#	OEM	部品名
1	15400-PA6-003	Filter - OIL (TOKYO ROKI)
1	15400-PA6-506	OILFILTER CARTRID
1	15400-PA6-004	Filter - OIL (TOYO ROKI)
2	15610-PC1-000	Cap assy. - OIL FILLER
3	15650-PC1-000	Gauge - OIL LEVEL
4	15906-689-000	Hose - OUTLET OIL
5	90015-689-000	Holder - OIL FILTER
6	90635-671-000	Clip - OIL HOSE

Oil pump (1) 16

#	OEM	部品名
1	15100-PC1-010	Pump assy. - OIL
2	15101-PC1-000	Body - OIL PUMP
3	15105-689-010	Gasket - OIL PUMP
4	15109-PA5-000	Gear - OIL PUMP DRIVE
5	15117-PC1-000	Holder - OIL PUMP DRIVE GEAR
6	15120-657-010	Shaft - OIL PUMP DRIVE GEAR
7	15125-PC1-000	Shaft - OIL PUMP
8	15131-PB9-000	Rotor - PUMP INNER
9	15132-PC1-000	Rotor - PUMP OUTER
10	15150-PC1-000	Screen - OIL STRAINER
11	15160-PC1-000	Ring - SNAP, 98MM
12	15221-PC1-010	Body - OIL STRAINER
13	15231-634-010	Valve - OIL PRESSURE RELIEF
13	15231-PE0-000	Valve - RELIEF
14	15232-PB2-000	Spring - RELIEF VALVE
15	15233-634-000	Seat - RELIEF VALVE SPRING

Oil pump (2) 20

#	OEM	部品名
1	15100-PC1-901	Pump assy. - OIL
2	15101-PC1-000	Body - OIL PUMP
3	15102-PC1-900	Spacer comp - OIL PUMP
4	15105-689-010	Gasket - OIL PUMP
5	15109-PA5-000	Gear - OIL PUMP DRIVE
6	15117-PC1-000	Holder - OIL PUMP DRIVE GEAR
7	15120-657-010	Shaft - OIL PUMP DRIVE GEAR
8	15125-PC1-900	Shaft - OIL PUMP
9	15131-PB9-000	Rotor - PUMP INNER
10	15132-PC1-000	Rotor - PUMP OUTER
11	15135-689-003	Rotor b - PUMP INNER
12	15136-PC1-900	Rotor b - PUMP OUTER
13	15150-PC1-000	Screen - OIL STRAINER
14	15160-PC0-003	Ring - SNAP, 92MM
15	15221-PC1-901	Body - OIL STRAINER
16	15231-634-010	Valve - OIL PRESSURE RELIEF
16	15231-PE0-000	Valve - RELIEF
17	15232-PB2-000	Spring - RELIEF VALVE
18	15233-634-000	Seat - RELIEF VALVE SPRING
19	90701-689-000	Dowel pin - 8X35

Parking brake 11

#	OEM	部品名
3	47142-671-010	Knob - PARKING BRAKE PUSH ROD
4	47143-671-310	Spring - PUSH ROD
5	47342-SA5-013	Switch - PARKING BRAKE
6	47360-SA5-000	Equalizer
7	47365-538-000	Pin - EQUALIZER
8	47510-SA5-013	Wire a - R. PARKING BRAKE
8	47510-SA5-023	Wire a - R. PARKING BRAKE
9	47522-594-000	Nut - PARKING BRAKE ADJUSTING
10	47537-671-670	Spring - PARKING BRAKE ROD
11	47560-SA5-013	Wire a - L. PARKING BRAKE
11	47560-SA5-023	Wire a - L. PARKING BRAKE

Pedal 13

#	OEM	部品名
1	22910-SA5-000	Wire comp - CLUTCH
2	22916-SA0-000	Cap c - CUSHION
3	22917-634-000	Seal - CLUTCH WIRE
4	22921-SA0-300	Grommet - CLUTCH WIRE
5	46500-SA5-000	Pedal assy - BRAKE
6	46500-SA5-980	Pedal assy - BRAKE
7	46504-679-300	Bush - PEDAL
8	46505-SA5-000	Pad - PEDAL STOPPER
9	46530-SA5-000	Spring assy - PEDAL RETURN
10	46535-692-000	Collar - PEDAL
11	46545-SA5-000	Cover, Pedal
12	46545-SA5-980	Cover - BRAKE PEDAL
14	46900-SA5-000	Pedal assy - CLUTCH

Piston/connecting rod 27

#	OEM	部品名
1	13011-PC3-601	Ring set - PISTON (STD.) (TEIKOKU)
1	13021-676-602	Ring set - PISTON (0.25)(RIKEN)
1	13021-PC3-601	Ring set - PISTON (OS 0.25) (TEIKOKU)
1	13011-676-602	Ring set - PISTON (STD.)(RIKEN)
2	13102-PC3-600	Piston - OS 0.25
2	13101-PC3-600	Piston - STD.
3	13112-689-000	Pin - PISTON
4	13204-PA6-003	Bolt
4	13204-689-004	Bolt,conn rod
4	13213-422-004	Bolt
5	13205-689-004	Nut - CONNECTING ROD (NAGOYA RASHI)
5	13205-634-010	Nut
6	13210-PB1-000	Rod assy - CONNECTING
7	13216-PC1-003	Bearing f - CONNECTING ROD (PINK) (DAIDO)
7	13211-PC1-004	BEARING A - CONNECTING ROD (BLUE) (TAIHO)
7	13217-PC1-003	Bearing g - CONNECTING ROD (RED) (DAIDO)
7	13214-PC1-004	Bearing d - CONNECTING ROD (GREEN) (TAIHO)
7	13212-PC1-004	Bearing b - CONNECTING ROD (BLACK) (TAIHO)
7	13215-PC1-004	Bearing e - CONNECTING ROD (YELLOW) (TAIHO)
7	13213-PC1-004	Bearing c - CONNECTING ROD (BROWN) (TAIHO)
7	13211-PC1-003	BEARING A - CONNECTING ROD (BLUE) (DAIDO)
7	13216-PC1-004	Bearing f - CONNECTING ROD (PINK) (TAIHO)
7	13214-PC1-003	Bearing d - CONNECTING ROD (GREEN) (DAIDO)
7	13212-PC1-003	Bearing b - CONNECTING ROD (BLACK) (DAIDO)
7	13217-PC1-004	Bearing g - CONNECTING ROD (RED) (TAIHO)
7	13215-PC1-003	Bearing e - CONNECTING ROD (YELLOW) (DAIDO)
7	13213-PC1-003	Bearing c - CONNECTING ROD (BROWN) (DAIDO)

Radiator 46

#	OEM	部品名
1	15901-PB2-003	Cooler comp - OIL
2	15902-PC1-000	Hose comp. - INLET OIL
3	15911-689-000	Protector - HOSE
4	15912-PC1-300	Protector - HOSE
5	15913-689-000	Clamp - OIL HOSE
6	15914-692-000	Plate - OIL FILTER
7	17244-PC1-000	Stay - AIR HOSE
8	19010-PC1-013	Radiator comp.
8	19010-PC1-902	Radiator comp.
9	19011-671-000	Bolt - DRAIN (DENSO)
10	19012-671-300	Packing - DRAIN (DENSO)
11	19015-PC1-013	Shroud comp.
13	19020-637-003	Fan comp - COOLING
13	19020-PA6-003	Fan - COOLING (DENSO)
14	19030-PA6-661	Motor - FAN
14	19030-PA6-003	Motor - FAN
15	19040-611-003	Bush
16	19041-611-003	Rubber - BUSHING
17	19043-PB2-661	Label - RADIATOR CAUTION
18	19045-692-003	Cap comp. - RADIATOR (DENSO)
19	19101-PC1-020	Tank - RESERVOIR
20	19102-689-040	Cap - RESERVOIR TANK
21	19103-PC1-000	Hose - RESERVE TANK
22	19104-PC1-000	Tube - RESERVE TANK
23	19105-PA0-010	Mark - RESERVE TANK
24	19106-689-000	Joint - RESERVE TANK
25	19107-PA0-000	Clip - RESERVE TANK JOINT
26	19109-PC1-010	Baffle - RESERVE TANK
27	19501-PB2-000	Hose - WATER UPPER
28	19502-PC1-000	Hose - WATER LOWER
29	19511-PA6-003	Clip - WATER HOSE(CHUO SPRING)
30	19512-PC1-003	Protector - HOSE
31	19514-PC1-000	Clip - THROTTLE WIRE
33	37760-PB2-003	Switch assy - THERMOSTAT (A-90) (NIPPON THERMOSTAT)
34	60785-689-020	Cushion a - RADIATOR MOUNTING
35	60866-SA5-000	Cushion b - ROD MOUNTING
36	90041-PA6-003	Screw-washer - 4X18 (DENSO)
37	90042-PC1-003	Bolt-washer - 6X14 (DENSO)
38	90401-679-003	Washer - SPRING, 5MM
39	90402-679-003	Washer - PLAIN, 5MM
40	90403-679-003	Washer - PLAIN, 6.8MM (DENSO)
40	90501-671-003	Washer - SPECIAL
41	90635-671-000	Clip - OIL HOSE
42	91307-611-000	O-ring (13.5X1.4)
42	91307-PH7-660	O-ring (13.5X1.4)
43	91405-671-000	Clip - WIRE

Rear brake drum 21

#	OEM	部品名
1	42324-671-010	Washer - RR. HUB
2	42325-671-000	Holder - SPLIT PIN
3	42326-SA0-000	Cap - HUB
4	42610-SA5-000	Drum - RR. BRAKE
5	52210-SA5-010	Carrier comp. - R. RR. HUB
6	52215-SA5-010	Carrier comp. - L. RR. HUB
7	90113-SA0-005	Bolt - WHEEL (NAGOYA RASHI)
7	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)
7	90113-SA0-013	Bolt - WHEEL (TOKAI TRW)
7	90113-SA0-015	Bolt - WHEEL (NAGOYA RASHI)
7	90113-SA0-023	Bolt - WHEEL (TOKAI TRW)
8	90120-SB0-003	Bolt - SHOCK ABSORBER LOCK, 10X42
9	90402-SA0-000	Nut - HUB
10	91052-671-008	Bearing assy - RR. HUB (A) (TOYO SEIKO)
10	91052-671-004	Bearing assy - RR. HUB (A) (KOYO SEIKO)
11	91053-671-008	Bearing assy - RR. HUB (B) (TOYO SEIKO)
11	91053-671-004	Bearing assy - RR. HUB (B) (KOYO SEIKO)
12	91252-692-005	Seal - RR. HUB (NOK)
12	91252-692-003	Seal - RR. HUB (ARAI)
13	91301-567-003	O-ring - 44X1.3
14	91352-692-003	O-ring - 41.5X2.8 (ARAI)

Rear brake shoe 31

#	OEM	部品名
1	43110-SA5-023	Plate - R. RR. BRAKE BACKING
2	43120-SA5-023	Plate - L. RR. BRAKE BACKING
3	43153-SA5-672	Shoe comp - RR. BRAKE
4	43171-SA5-003	Spring a - BRAKE SHOE RETURN
5	43172-SA5-003	Spring b - BRAKE SHOE RETURN
7	43315-671-631	Cover - DUST
7	43315-SN4-003	Cover - DUST
8	43321-SA3-681	Piston - WHEEL CYLINDER
9	43322-663-003	Cup - PISTON
10	43323-663-003	Spring - RR. WHEEL CYLINDER
11	43345-SA5-003	Plug - ADJUSTER
12	43352-567-000	Screw - BLEEDER
13	43353-548-003	Cap - BLEEDER SCREW
14	43361-SA5-003	Lever - R. BRAKE
15	43362-SA5-003	Rod a - R. CONNECTING
16	43363-SA5-003	Bolt - R. ADJUSTER
17	43364-SA5-003	Rod b - CONNECTING
17	43364-S5A-003	Rod b - CONNECTING
18	43365-SA5-003	Pin - PARKING BRAKE LEVER
19	43366-SA5-003	Lever comp - R. ADJUSTER
20	43367-SA5-003	Spring - R. ADJUSTER
21	43371-SA5-003	Lever - L. BRAKE
22	43372-SA5-003	Rod a - L. CONNECTING
23	43373-SA5-003	Bolt - L. ADJUSTER
24	43375-SA0-003	U-clip
25	43376-SA5-003	Lever comp - L. ADJUSTER
26	43377-SA5-003	Spring - L. ADJUSTER
27	43379-SA5-003	Washer - WAVE
28	45172-SA0-003	Spring - SHOE CLAMP
28	45172-S04-003	Spring - SHOE CLAMP
29	45175-SA0-003	Pin - TENSIONER

Rear door lining (4D) 10

#	OEM	部品名
8	73862-672-003	Clip - DOOR WEATHERSTRIP
16	76826-SA6-000	Seal a - R. RR. DOOR PANEL HOLE
21	76836-SA6-000	Seal a - L. RR. DOOR PANEL HOLE
24	76851-SA6-000	Weatherstrip - R. RR. DOOR INNER
25	76856-SA6-000	Weatherstrip - L. RR. DOOR INNER
26	76880-SA6-911	Weatherstrip - R. RR. DOOR
27	76885-SA6-911	Weatherstrip - L. RR. DOOR
28	90663-671-003	Clip - LINING
29	90664-671-003	Clip - CANOE
30	90666-SA5-003	Grommet - SCREW, 6MM

Rear door lock 26

#	OEM	部品名
3	75411-SA1-003	Cover - R. DOOR LOCK
4	75411-634-000	Joint
5	75412-SA0-000	Fastener
6	75415-SA0-300	Eliminator - R. NOISE
7	75451-SA1-003	Cover - L. DOOR LOCK
8	75455-SA0-300	Eliminator - L. NOISE
11	75551-693-003	Holder - DOOR LOCK ROD
12	75555-692-003	Striker - DOOR LOCK
13	75556-605-010	Bolt - LOCK STRIKER
15	75610-SA5-013	Handle assy - R. OUTSIDE
15	75610-SA5-023	Handle assy - R. OUTSIDE
16	75620-SA5-013	Handle assy - L. OUTSIDE
16	75620-SA5-023	Handle assy - L. OUTSIDE
17	76410-SA6-921	Lock assy - R. RR. DOOR
18	76422-SA6-003	Rod - R. RR. DOOR LOCK
19	76423-SA6-003	Rod - RR. LOCK KNOB
20	76430-SA6-003	Crank assy - RR. DOOR LOCK
21	76450-SA6-921	Lock assy - L. RR. DOOR
22	76462-SA6-003	Rod - L. RR. DOOR LOCK
23	76510-SA6-003	Handle assy - R. RR. INSIDE
24	76525-SA6-003	Rod - R. RR. DOOR INSIDE
25	76530-SA6-003	Handle assy - L. RR. INSIDE
26	76565-SA6-003	Rod - L. RR. DOOR INSIDE
27	76613-SA6-000	Cover - RR. OUTSIDE HANDLE
28	90103-693-000	Screw - FLANGE TAPPING, 4X12
29	90668-SA5-003	Grommet - SCREW, 6MM

Rear door panel 6

#	OEM	部品名
1	75760-SA5-003	Pin - DOOR CHECKER
2	75891-673-000	Stopper - DOOR
13	76750-SA6-003	Checker - RR. DOOR
14	76800-SA6-000	Molding assy. - R. RR. DOOR
15	76805-SA6-000	Molding assy. - L. RR. DOOR
16	90640-SA5-000	Clip - DOOR MOLDING

Rear door window/ regulator 14

#	OEM	部品名
4	75342-679-000	Pin - WINDOW REGULATOR HANDLE
5	75343-657-010	Escutcheon - REGULATOR HANDLE
6	76218-SA6-000	Sash - R. RR. DOOR CENTER
7	76219-672-020	Cap - R. QUARTER SASH
8	76228-SA6-000	Sash - L. RR. DOOR CENTER
9	76229-672-020	Cap - L. QUARTER SASH
10	76231-SA6-013	Channel - RR. DOOR RUN
11	76255-SA6-000	Glass - R. RR. DOOR QUARTER
12	76275-SA6-000	Glass - L. RR. DOOR QUARTER
13	76281-SA6-000	Seal - RR. DOOR QUARTER
14	76310-SA6-003	Regulator - R. RR. DOOR
16	76320-SA6-003	Regulator - L. RR. DOOR
20	76350-SA6-000	Glass assy - R. RR. DOOR
21	76360-SA6-000	Glass assy - L. RR. DOOR

Rear lower arm/radius rod 14

#	OEM	部品名
1	51393-SA5-003	Bush - LOWER ARM
11	52350-SA6-010	Arm comp - R. RR. LOWER
12	52360-SA6-010	Arm comp - L. RR. LOWER
13	52361-634-941	Bush a - RR. LOWER ARM
14	52364-634-020	Washer - LOWER ARM
15	52366-SA5-000	Bolt - HUB CARRIER
16	52370-SA5-010	Rod assy - RR. RADIUS
17	52384-671-010	Bush - RR. RADIUS ROD
18	52385-671-020	Bolt - RADIUS ROD ADJUSTING
19	52388-671-010	Plate a - CAM
21	90118-SA5-004	Bolt - RR. LOWER ARM, 10X75 (OHASHI)
22	90124-SA5-014	Bolt - RADIUS ROD, 12X80
23	90215-SA5-003	Nut - SELF-LOCK, 12MM
24	90350-671-003	Nut - RR. RADIUS ROD, 10MM

Rear seat/seatbelt (4D) 1

#	OEM	部品名
6	78113-693-003	Rubber - RR. SEAT SETTING

Rear shock absorber 17

#	OEM	部品名
2	51722-692-006	Rubber - FR. BUMP STOPPER (M.T.P. KASEI)
2	51722-692-005	Rubber - FR. BUMP STOPPER (NOK)
3	52441-SA6-004	Spring - RR.
4	52610-SA6-683	Absorber assy - RR. SHOCK
5	52611-SA5-003	Absorber unit - RR. SHOCK
5	52611-SA5-013	Absorber unit - RR. SHOCK
6	52621-634-000	Washer - RR. SHOCK ABSORBER MOUNTING
7	52631-692-004	Rubber - RR. SHOCK ABSORBER MOUNTING (HOKUSHIN)
7	52631-672-004	Rubber - RR. SHOCK ABSORBER LOWER MOUNTING (SHOWA)
8	52675-SA5-003	Base - RR. SHOCK ABSORBER MOUNTING
9	52686-SA5-003	Rubber - SPRING MOUNT (SHOWA)
10	52687-SA5-003	Cover comp. - RR. SLEEVE DUST (SHOWA)
11	52688-SA5-003	Cover - RR. BELLOWS DUST (SHOWA)
12	52728-692-004	Collar - SHOCK ABSORBER MOUNTING (SHOWA)
13	52932-SA5-000	Cap - RR. SHOCK ABSORBER MOUNTING
14	52941-SA5-000	Seal - RR. SHOCK ABSORBER MOUNTING
15	90213-693-003	Nut - SELF-LOCK, 12MM

Rear tray/trunk side tray 11

#	OEM	部品名
2	74822-SA6-000	Insulator - RR. BULKHEAD COVER
3	74842-659-003	Clip - INSULATOR COVER
5	83823-SA6-020	Garnish - R. TRUNK SIDE
6	83824-SA6-000	Tray - R. TRUNK SIDE
8	83827-SA6-000	Cover - RR. PANEL KEY
10	83833-SA6-020	Garnish - L. TRUNK SIDE
11	83834-SA6-000	Tray - L. TRUNK SIDE
12	85861-SA6-003	Seal - TRUNK LID
13	90662-693-003	Grommet - SCREW, 4MM (BLUE)
14	90666-SA6-000	Clip - TRIM, 10MM
17	90103-693-000	Screw - FLANGE TAPPING, 4X12

Select lever (HMT) 19

#	OEM	部品名
1	30158-700-010	E-clip - 3MM
2	35505-692-003	Bulb - 14V 1.4W
3	37700-SA5-981	Lamp assy. - INDICATOR (AT)
4	54110-SA5-981	Stopper comp - SELECTOR LEVER
5	54113-692-980	Collar - LOCK PIN
6	54115-SA5-981	Bolt - SELECTOR STOPPER
7	54116-SA5-980	Collar - STOPPER
8	54117-692-980	Spring - LOCK PIN
9	54120-SA5-980	Spring - SELECT STOPPER
10	54119-689-981	Pin - LOCK
11	54123-SA0-980	Collar - SELECT LEVER
13	54132-SA5-982	Knob - PUSH
14	54133-SA5-981	Spring - PUSH KNOB
15	54135-SA5-980	Lever - SELECT
16	54136-SA5-981	Rod comp - LOCK PIN
17	54210-SA5-982	Indicator assy.
18	54222-689-980	Cover - SELECT LEVER
19	54710-SA5-981	Escutcheon comp. - CONSOLE
19	54710-SA5-980	Escutcheon comp. - CONSOLE

Select lever control (HMT) 14

#	OEM	部品名
1	54201-SA5-980	Bracket - SELECT LEVER
2	54202-SA5-980	Bracket - CONTROL
3	54315-SA5-981	Wire - CONTROL
4	54317-SA5-980	Holder - CONTROL WIRE
5	54318-SA5-980	Seal - CONTROL
6	54319-SA5-980	Seal - CONTROL WIRE BRACKET
7	54321-671-000	Collar - CONTROL BRACKET
8	54347-SA0-980	Pin a - CONTROL ROD
9	54351-SA5-980	Bracket - CONTROL WIRE
10	54352-SA5-981	Cover - CONTROL WIRE
10	54352-SA5-980	Cover - CONTROL WIRE
11	54353-SA5-980	Bracket - CONTROL WIRE
12	54360-689-981	Adjuster assy - CONTROL WIRE
13	54363-689-981	Pin - CONTROL WIRE ADJUSTER

Shift arm 22

#	OEM	部品名
1	24310-PB6-030	Rod - GEARSHIFT
2	24316-679-000	Boot
3	24351-PC8-000	Shaft - SHIFT PIECE
4	24411-PB6-010	Piece - CHANGE
5	24421-PB6-962	Arm comp - SELECT
6	24426-PB6-962	Holder comp - GEARSHIFT ARM
7	24432-PB6-010	Interlock comp.
8	24436-689-000	Shim b - SELECT ARM, 10.1X16X1.0
8	24438-689-000	Shim d - SELECT ARM, 10.1X16X1.4
8	24435-689-000	Shim a - SELECT ARM, 10.1X16X0.8
8	24437-689-000	Shim c - SELECT ARM, 10.1X16X1.2
8	24439-689-000	Shim e - SELECT ARM, 10.1X16X1.6
9	24440-PB6-010	Piece comp. - GEARSHIFT
10	24454-PB6-000	Spring b - BALL SETTING
11	24457-PB6-020	Spring - SELECT RETURN
12	24461-PB6-000	Collar - SPRING
13	90028-PB6-010	Bolt - SPECIAL, 6X22.5
14	90029-611-000	Bolt - HEX., 8X24
14	90029-611-010	Bolt - HEX., 8X24
15	90401-689-010	Washer - 10MM
16	90403-689-000	Collar - LOCK
17	90412-679-000	Washer - CONICAL SPRING, 8MM

Shift fork 6

#	OEM	部品名
1	24201-PB6-910	Fork - FIFTH GEARSHIFT
2	24211-PB6-920	Fork - TOP GEARSHIFT
3	24221-PB6-920	Fork - LOW GEARSHIFT
4	24271-PB6-930	Shaft - FIFTH & REVERSE SHIFT
5	24452-PB6-020	Spring a - BALL SETTING
6	24519-PB6-000	Screw - BALL SPRING SETTING

Shift lever (5MT) 25

#	OEM	部品名
1	18260-659-000	Rubber - EX. PIPE MOUNTING
2	18262-659-000	Stopper - EXTENSION MOUNTING
3	54101-SA5-000	Lever - CHANGE
5	54104-692-000	Dust seal a
6	54105-692-010	Washer - THRUST
7	54106-692-010	Holder - CHANGE BOOT
8	54107-SA0-010	Bush, RR. JOINT
9	54108-692-000	Boot - CHANGE LEVER
10	54110-692-020	Seat - CHANGE LEVER BALL
11	54114-SA0-000	Collar - PIPE MOUNTING
12	54114-692-020	Dust seal b - CHANGE
13	54117-692-000	Collar - RR. JOINT
14	54119-692-010	Stopper - CHANGE LEVER BALL
15	54201-SA5-010	Rod comp - CHANGE
16	54225-SA0-300	Bush - JOINT A
17	54226-SA0-300	Bush - JOINT A OUTER
18	54301-SA5-010	Extension - CHANGE
19	54303-SA5-000	Rubber - EXTENSION END
20	54304-689-000	Washer a - EXTENSION END
21	54305-SA0-000	Washer b - EXTENSION END
22	54318-SA0-000	Seal - SHIFT LEVER MOUNTING
23	90110-692-000	Bolt-washer - 8X60
24	91301-671-671	O-ring - 1.9X11
24	91303-HA0-004	O-ring, 11x1.9 (nok)
25	91351-689-000	O-ring - 35X3

Shift lever shaft 23

#	OEM	部品名
1	24111-PA9-010	Fork - REVERSE SHIFT
2	24282-634-000	Bolt - SHAFT FORK SETTING
3	24411-PA9-900	Shaft - CONTROL
4	24412-PC9-000	Lever - CONTROL
5	24414-PA9-010	Pin - CONTROL
6	24415-PA9-000	Roller - CONTROL LEVER
7	24421-PA9-300	Lever - MANUAL VALVE
8	24423-PA9-000	Pin - MANUAL VALVE
9	24425-639-000	Roller - MANUAL VALVE
10	24532-689-900	Lever - PARKING BRAKE
11	24535-PA9-010	Spring - PARKING BRAKE
12	24537-PA9-003	Stopper - PARKING BRAKE (1)
12	24539-PA9-003	Stopper - PARKING BRAKE (3)
12	24538-PA9-003	Stopper - PARKING BRAKE (2)
13	24552-PA9-000	Spring - PARKING BRAKE PAWL
14	24553-612-000	Roller - PARKING BRAKE
15	24555-PA9-000	Pin - ROLLER, 6MM
16	24561-PA9-030	Pawl - PARKING BRAKE
17	24562-PA9-000	Shaft - PARKING BRAKE
18	24901-PA9-000	Holder - CONTROL WIRE
19	90001-PA9-000	Bolt - HEX., 6MM
20	90433-639-000	Washer - LOCK, 6MM
21	90701-639-000	Dowel pin - 8X55

Side protector 16

#	OEM	部品名
1	75807-671-000	Nut - SIDE PROTECTOR (BLACK)
3	75810-SA6-004	Protector assy - R. SIDE
4	75811-SA5-003	Protector - R. FR. FENDER
6	75812-SA6-004	Protector - R. FR. DOOR
8	75813-SA6-004	Protector - R. RR. DOOR
10	75815-SA6-004	Protector assy - L. SIDE
11	75816-SA5-003	Protector - L. FR. FENDER
13	75817-SA6-004	Protector - L. FR. DOOR
15	75818-SA6-004	Protector - L. RR. DOOR
20	75834-SA6-921	Molding - R. FR. SASH UPPER
21	75838-SA6-921	Molding - CENTER SASH
22	75844-SA6-921	Molding - L. FR. SASH UPPER
23	76824-SA6-921	Molding - R. RR. SASH UPPER
24	76825-SA6-921	Molding - R. RR. SASH
25	76834-SA6-921	Molding - L. RR. SASH UPPER
26	76835-SA6-921	Molding - L. RR. SASH

Side wire harness (4D) 10

#	OEM	部品名
1	32107-SA6-653	Harness - SIDE WIRE
2	32108-SA6-030	Harness - RR. WIRE
3	32155-SA6-010	Cord - INTERIOR
5	32157-SA6-603	Harness - HEATER WIRE
7	32170-SA5-010	Cord - FUEL UNIT
9	32202-SA6-000	Cord - DEFROSTER EARTH
13	32754-SA6-684	Harness - L. FR. DOOR WIRE
13	32754-SA6-683	Harness - L. FR. DOOR WIRE
14	32874-693-000	Protector - SIDE WIRE HARNESS
15	74203-671-921	Holder - WIRE HARNESS

Speedometer 4

#	OEM	部品名
2	37230-SA5-602	Cable assy - SPEEDOMETER
3	37233-SA5-601	Cable - INNER
5	39700-SA5-954	Clock assy - DIGITAL (JECO)
5	39700-SA5-953	Clock assy - DIGITAL (SANKYO)

Speedometer component 52

#	OEM	部品名
1	35505-SA5-003	Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK)
1	35505-692-003	Bulb - 14V 1.4W
1	35505-SA5-004	Bulb & socket - 14V 1.4W) (DENSO) (BASE:BLACK
2	35506-SA5-004	Bulb - 14V 1.4W) (DENSO
2	35506-SA5-003	Bulb - 14V 1.4W
3	35509-SA5-003	Bulb & socket - 8V 1.2W) (NS
5	35511-SA5-003	Bulb - 8V 1.2W) (NS
7	37102-SA5-003	Socket assy - BULB (14V 3.4W) (NS) (BASE:BLACK)
7	37102-SA5-004	Socket assy - BULB (14V 3.4W) (DENSO)
8	37102-567-009	Bulb - 12V 3W
8	37237-SA5-003	Bulb - 14V 3.4W) (NS
9	37103-SA5-003	Bulb & socket - 3W) (NS
9	37103-SA5-004	Case - ILLUMINATION (DENSO)
10	37106-SA5-003	Knob - TRIP (WHITE) (NS)
10	37106-SA5-004	Knob - TRIP (WHITE) (DENSO)
11	37107-567-019	Socket comp. - BULB
12	37108-SA5-004	Panel - PRINT (DENSO)
12	37108-SA5-003	Panel - PRINT (NS)
12	37108-SA5-982	Panel - PRINT (DENSO)
13	37109-SA5-612	Panel - WARNING PRINT (DENSO)
13	37109-SA5-611	Panel - UPPER PRINT (NS)
14	37110-SA5-013	Case assy - NS
14	37110-SA5-014	Case assy - DENSO
15	37111-SA5-004	Visor assy - METER (DENSO)
16	37112-SA5-004	Visor - METER (DENSO)
16	37112-SA5-982	Visor - METER (DENSO)
17	37112-SA5-611	Visor assy - METER (NS)
17	37112-SA5-711	Visor assy - METER (NS)
18	37114-SA5-004	Grommet - DENSO
18	37114-SA5-003	Rubber - NS
19	37115-SA5-004	Panel - ILLUMINATION PRINT (DENSO)
21	37139-SA5-003	Holder - PANEL (NS)
21	37139-SA5-004	Holder - PANEL
22	37160-SA5-004	Meter assy - FUEL (DENSO)
22	37160-SA5-003	Meter assy - FUEL (NS)
23	37170-SA5-004	Meter assy - TEMPERATURE (DENSO)
23	37170-SA5-003	Meter assy - TEMPERATURE (NS)
24	37180-SA5-003	Lever assy. - METER COUNTER RESET (NS)
25	37181-SA5-004	Knob - RESET (DENSO)
26	37182-SA5-004	Knob - RESET (DENSO)
27	37183-SA5-004	Spring - RESET KNOB (DENSO)
28	37200-SA5-601	Speedometer assy - NS
28	37200-SA5-602	Speedometer assy - DENSO
28	37200-SA5-702	Speedometer assy - DENSO
28	37200-SA5-701	Speedometer assy - NS
29	37237-SA5-004	Bulb - 14V 3.4W) (DENSO
30	37250-SA5-003	Tachometer assy - NS
30	37250-SA5-004	Tachometer assy - DENSO
31	37500-SA6-003	Display - FAILURE
32	37553-671-921	Bulb & socket - 14V 1.12W
33	37570-SA5-703	Indicator assy. - AUTOMATIC (NS)
33	37570-SA5-704	Indicator assy. - AUTOMATIC (DENSO)

Speedometer gear 7

#	OEM	部品名
1	23811-PC1-000	Holder comp - SPEEDOMETER GEAR
2	23813-689-000	Plate - SPEEDOMETER GEAR HOLDER
3	23814-689-000	Seal - GEAR HOLDER
4	23820-PC1-960	Gear - SPEEDOMETER DRIVEN
5	90637-689-000	Clip - SPEEDOMETER CABLE
6	90638-689-000	Clip - SPEEDOMETER GEAR
7	91313-611-000	O-ring - 23.5X2

Stabilizer spring/ front lower arm 27

#	OEM	部品名
1	51225-671-003	Boot - SUSPENSION BALL
2	51298-SA5-000	Bush a - FR. STABILIZER ARM
4	51300-SA5-010	Spring - FR. STABILIZER
5	51303-SA5-005	Bush - FR. STABILIZER END (YAMASHITA)
5	51303-SA5-023	Bush - FR. STABILIZER END (NOK)
5	51303-SA5-014	Bush - FR. STABILIZER END (ARAI)
6	51305-SA5-000	Bracket - R. FR. STABILIZER END
7	51306-SA5-000	Bracket - L. FR. STABILIZER END
8	51308-SA5-000	Holder - FR. STABILIZER ARM
9	51309-SA5-000	Arm - FR. STABILIZER
10	51316-SA5-010	Bush b - FR. STABILIZER ARM
11	51321-SA5-000	Washer - FR. STABILIZER ARM UPPER
12	51322-SA5-000	Washer - FR. STABILIZER ARM LOWER
13	51350-SA5-013	Arm comp - R. FR. LOWER
14	51352-SA5-000	Rod - FR. RADIUS
15	51360-SA5-013	Arm - L. FR. LOWER
16	51393-SA5-003	Bush - LOWER ARM
17	51395-SA5-003	Bush - FR. SUSPENSION RADIUS ROD
18	51398-SA5-000	Collar - RADIUS ROD
19	53548-611-003	Circlip - CHUO HATSUJO
20	90110-SA5-003	Nut - SELF-LOCK, 10MM
21	90110-679-003	Nut - SELF-LOCK, 8MM
22	90118-693-003	Bolt - RR. LOWER ARM, 10X75 (JYUJI)
23	90119-671-000	Bolt - FR. RADIUS ROD
24	90212-671-005	Nut - SELF-LOCK, 10MM
25	90213-SA5-003	Nut - SELF-LOCK, 10MM
26	90501-692-000	Washer - FR. RADIUS ROD

Starter motor component (DENSO; 1) 22

#	OEM	部品名
1	31200-PC1-004	Motor assy. - STARTER (DENSO) (DFDE6)
2	31201-590-004	Ring - SNAP
3	31202-590-004	Collar - CLUTCH STOP
4	31203-PA5-911	Lever - PINION DRIVE
5	31204-PC1-024	Switch assy - MAGNETIC (###)
6	31206-PA0-006	Armature comp.
7	31207-PA0-006	Pinion
8	31208-PC1-004	Case - GEAR
9	31209-590-004	BEARING A - STARTER MOTOR
10	31210-PA0-006	Bearing b - STARTER MOTOR
11	31212-PA0-006	Spring - BRUSH
12	31214-PA0-006	Bolt - THROUGH
13	31215-657-006	Plate - LOCK
14	31218-PB1-006	Yoke comp.
15	31219-PC1-004	Frame comp - COMMUTATOR END
16	31223-PA0-006	Nut - HEX.
17	31224-657-006	Rubber a - SEAL
18	31231-PA0-006	Holder comp - BRUSH (###)
19	31232-PA0-006	Cap - END FRAME
20	31233-PB1-931	Cover - SHAFT
21	31239-PA5-911	Cover - MAGNETIC SWITCH
22	91411-PA0-006	Clip - CORD

Starter motor component (HITACHI) 22

#	OEM	部品名
1	31200-PC1-015	Motor assy. - STARTER (HITACHI)
2	31201-634-005	Clip - PINION STOPPER (HITACHI)
3	31202-634-005	Stopper - PINION (HITACHI)
4	31203-671-005	Lever - PINION DRIVE
5	31204-PC1-015	Switch assy - MAGNETIC
6	31205-PA0-005	Coil - FIELD
7	31206-PA0-005	Armature comp.
8	31207-671-015	Pinion
9	31208-PB1-005	Case - GEAR
10	31212-634-005	Spring - BRUSH
11	31214-679-005	Bolt - THROUGH (HITACHI)
12	31215-679-005	Brush - POSITIVE
13	31231-PA0-005	Holder comp - BRUSH
14	31232-634-005	Cover d - DUST
15	31236-634-005	Cover c - DUST
16	31237-634-005	Screw - POLE CORE SETTING
17	31238-671-005	Cover comp. - RR.
18	31265-671-005	Spring - TORSION
19	31271-634-005	Washer kit - THRUST (HITACHI)
20	31281-634-005	Cover set - DUST
21	91411-PA0-006	Clip - CORD
21	91411-679-000	Clip

Steering column 27

#	OEM	部品名
1	53210-SA5-010	Column - STEERING
2	53211-SA5-000	Bracket - COLUMN UPPER
3	53212-671-000	Plate comp - BENDING
4	53213-657-000	Band - RUBBER
5	53216-SA5-000	Holder b - STEERING COLUMN
6	53217-SA5-000	Collar - STEERING RETAINER
8	53221-SA0-003	Bush - STEERING COLUMN
9	53224-SA5-003	Ring - COLUMN THRUST
10	53231-SA5-010	Label - IGNITION INFORMATION
13	53235-SA5-000	Ring - COLUMN COVER
14	53244-SA5-010	Label - TURN SIGNAL
15	53271-692-003	Cam - TURN SIGNAL SWITCH CANCEL (TEC) (WHITE)
16	53275-671-000	Ring - HORN EARTH
17	53300-SA5-000	Joint assy. - STEERING
18	53310-SA5-003	Shaft comp. - STEERING
19	53311-692-000	Washer - STEERING SHAFT
20	53312-SA0-660	Washer a - STEERING SHAFT
21	53313-SA0-660	Washer b - STEERING SHAFT
22	53320-SA5-000	Cover - STEERING JOINT
24	53322-SA5-000	Insulator - JOINT HOLE
25	53335-SA5-003	Bush - COLUMN HANGER
26	73839-594-000	Hook - SIDE LINING
26	90654-SA5-003	Clip - JOINT COVER
27	90107-SA4-000	Screw - TAPPING, 4X16
28	90135-579-010	Bolt - STEERING YOKE, 8X22
29	90505-SA5-000	Washer - PLAIN, 20MM
30	90686-671-003	Band - JOINT PROTECTOR

Steering gear box 20

#	OEM	部品名
1	53040-SA5-003	Box assy - STEERING GEAR
2	53413-679-013	Spring - RACK GUIDE PRESSURE
3	53414-679-013	Screw - RACK GUIDE
4	53416-692-003	Guide - STEERING RACK
5	53418-SC2-003	Washer - DISK
5	53418-679-003	Washer - WAVE
6	53422-SA5-003	Pinion - STEERING
7	53426-671-004	Dust seal - STEERING PINION (NOK)
7	53426-671-003	Dust seal - STEERING PINION (ARAI)
8	53427-SA5-003	Rack - STEERING
9	53430-SA0-003	Bush - RACK END
10	53435-SA5-000	Cushion a - GEAR BOX MOUNTING
11	53436-SA5-000	Cushion b - GEAR BOX MOUNTING
12	53437-SA5-000	Bracket a - STEERING GEAR BOX
12	53437-SA5-010	Bracket a - STEERING GEAR BOX
13	53438-SA5-000	Bracket b - STEERING GEAR BOX
13	53438-SA5-010	Bracket b - STEERING GEAR BOX
14	53458-634-010	Nut - RACK SCREW LOCK
15	53501-SA5-000	Grommet a - STEERING
16	53502-SA5-000	Grommet b - STEERING

Steering wheel 6

#	OEM	部品名
4	53122-SA5-946	Emblem - STEERING WHEEL (TS TECH)
4	53122-SA5-945	Emblem - STEERING WHEEL (NIPPON PURASUTO)
5	53124-SA5-003	Ring - SLIP (NIPPON PURASUTO)
5	53124-SA5-004	Ring - SLIP (TS TECH)
14	90101-SA4-000	Screw - TAPPING, 4X12
15	90380-693-013	Nut-washer - 12MM (FUSE RASHI)

Switch (1) 24

#	OEM	部品名
1	17950-SA5-602	Wire comp - CHOKE
2	17951-SA0-000	Knob - CHOKE CABLE
3	17957-659-003	Nut - 14MM
4	35151-SA5-013	Controller assy - ILLUMINATION
5	35152-538-013	Screw - PAN, 2.6X6
7	35440-SA5-013	Switch - BULB CHECK
7	35440-SA5-023	Switch - BULB CHECK
9	35500-SA5-013	Switch assy - RR. DEFOGGER
10	35501-SA5-003	Knob
11	35502-SA5-003	Nut
12	35503-SA5-003	Washer
14	35850-SA5-023	Switch assy - RECIRCULAR
16	37553-SA0-003	Bulb & socket - 14V 1.4W
18	39397-SA5-003	Bulb - NEO WEDGE (14V 100MA)
20	39621-689-003	Bulb - 14V 1.4W
21	66829-SA5-010	Lens - RECIRCULATION SWITCH
22	66830-SA5-010	Panel - RECIRCULATION SWITCH
23	66831-SA5-010	Panel assy. - RECIRCULATION SWITCH
24	66871-611-000	Nut - CENTER PANEL
25	90101-SA4-000	Screw - TAPPING, 4X12
26	90301-SA0-671	Nut
30	39620-693-305	Socket assy - CIGARETTE LIGHTER
31	39600-SW3-305	Lighter unit - CIGARETTE
31	39600-SW3-505	LIGHTER ASSYCIGA

Switch (2) 15

#	OEM	部品名
1	35010-SA5-684	Cylinder set - KEY
1	35010-SA5-650	Cylinder set - KEY
3	35100-SA5-682	Lock assy - STEERING
4	35111-SA5-922	Key - BLANK (MAIN)
5	35112-SA5-771	Key - BLANK (SUB)
6	35130-SA5-013	Switch comp - STEERING
7	35250-SA6-653	Switch assy - COMBINATION
8	35255-SA5-911	Switch assy - DIMMER
10	35350-689-671	Switch assy - STOP (TR)
10	35350-SA5-003	Switch assy - STOP (TEC)
11	35400-692-023	Switch assy - DOOR
12	35410-692-003	Cover - DOOR SWITCH
13	35450-SA6-003	Switch assy - WIPER
14	35700-SA5-983	Switch assy - INHIBITOR & BACK UP LIGHT
18	35409-692-003	Screw - FLANGE, 4X12

Taillight 21

#	OEM	部品名
3	33500-SA6-601	Taillight assy. - R.
4	33501-SA6-601	Lens & housing comp. - R. TAILLIGHT
5	33502-SA6-003	Packing - R. BASE
7	33504-SA6-901	Cover - R. TAILLIGHT
9	33550-SA6-601	Taillight assy. - L.
10	33551-SA6-601	Lens & housing comp. - L. TAILLIGHT
11	33552-SA6-003	Packing - L. BASE
12	33554-SA6-901	Cover - L. TAILLIGHT
16	34100-SA6-003	Light assy - R. SIDE LICENSE
19	34102-SA6-003	Lens - R.
21	34103-SA6-003	Packing - LENS
24	34104-SA6-003	Packing - R. BASE
28	34108-SA6-010	Guard - L. LICENSE LIGHT
30	34150-SA6-003	Light assy - L. SIDE LICENSE
31	34152-SA6-003	Lens - L.
33	34154-SA6-003	Packing - L. BASE
37	34908-634-611	Bulb - 12V 21W) (ECE) (STANLEY
38	34909-505-003	Bulb - 12V8W
38	34904-634-611	BULB (12V 5W) (ECE) - (12V, 5W) ECE
39	34911-634-611	Bulb - 12V 21/5W) (ECE) (STANLEY
40	37540-689-672	Sensor - STOP LAMP FAILURE

Tie rod 14

#	OEM	部品名
2	53434-SA0-000	Clip - BOOT
4	53449-579-000	Band - BELLOWS
6	53521-SA0-003	End comp - RACK
7	53537-SA5-000	Dust seal - TIE ROD
8	53535-SA0-000	Washer - TIE ROD STOPPER
9	53536-SA0-000	Washer - TIE ROD LOCK
11	53540-679-004	End comp - TIE ROD (TOKAI)
11	53540-SC2-004	End,r tie rod
11	53540-SA0-003	End comp - TIE ROD (MUSASHI)
12	53546-SA0-003	Boot - TIE ROD END (MUSASHI)
12	53546-679-004	Seal - BALL JOINT (TOKAI)
13	53548-SA0-003	Circlip - MUSASHI
13	53548-611-003	Circlip - CHUO HATSUJO
14	90320-601-000	Nut - CASTLE, 10MM

Tire/wheel disk 22

#	OEM	部品名
1	42700-SA5-013	Disk - WHEEL (13X5J) (KANAI/ALUMINIUM TONE SILVER)
1	42700-SA5-014	Disk - WHEEL (13X5J) (TOPY/ALUMINIUM TONE SILVER)
1	42700-SA5-015	Disk - WHEEL (13X5J) (YUNO/ALUMINIUM TONE SILVER)
4	42751-SA5-685	Tire - 165SR13) (DUNLOP
4	42751-SA5-684	Tire - 165SR13) (YOKOHAMA
4	42751-SA5-681	Tire - 165SR13) (BRIDGESTONE
5	42752-SA5-683	Tube - SUMITOMO
5	42752-689-812	Tube - YOKOHAMA
5	42752-689-811	Tube - BRIDGESTONE
8	44729-693-000	Weight - BALANCE (35G)
8	44722-693-000	Weight - BALANCE (20G)
8	44730-693-000	Weight - BALANCE (45G)
8	44721-693-000	Weight - BALANCE (10G)
8	44726-693-000	Weight - BALANCE (5G)
8	44725-693-000	Weight - BALANCE (50G)
8	44727-693-000	Weight - BALANCE (15G)
8	44724-693-000	Weight - BALANCE (40G)
8	44728-693-000	Weight - BALANCE (25G)
8	44723-693-000	Weight - BALANCE (30G)
10	44732-SA0-943	Cap - WHEEL CENTER
13	83853-SA5-000	Bolt - ANCHOR (99MM)
14	90304-SA5-013	Nut - WHEEL (CHROME PLATED) (FUSE RASHI)

Tools/jack 9

#	OEM	部品名
2	89000-692-000	Tool set
3	89101-692-000	Bag - TOOL (SUNROOF)
4	89211-692-000	Wrench - WHEEL NUT
5	89216-642-810	Wrench - SPARK PLUG
6	89218-611-003	Shaft - WRENCH (RIKEN)
6	89218-611-004	Shaft - WRENCH (KOWA)
7	89310-SA0-003	Jack assy - PANTOGRAPH
8	89320-SA5-003	Bar - JACK
9	90663-SA0-003	Clamp - JACK BAR

Torque converter 20

#	OEM	部品名
1	26210-PA9-020	Pump - TORQUE CONVERTER
2	26220-PA9-003	Turbine comp. - TORQUE CONVERTER (22 FANS)
2	26220-PA9-010	Turbine comp. - TORQUE CONVERTER (23 FANS)
3	26230-PA9-900	Stator Comp
4	26232-657-900	Ring - STATOR
5	26233-657-901	Cam - TORQUE CONVERTER STATOR
6	26234-689-901	Plate - STATOR SIDE
7	26237-657-901	Spring - STATOR ROLLER
8	26240-PA9-901	Cover - TORQUE CONVERTER
9	26251-PC3-900	Plate - DRIVE
10	31112-PA9-000	Gear - RING
11	90023-PA9-000	Bolt - SPECIAL
12	90026-PA9-900	Bolt - FLANGE, 6X52.5
13	90405-PA9-003	Washer - TORQUE CONVERTER COVER
14	90429-PB2-900	Washer - 38X82X2
15	90623-689-900	Ring - SNAP, 66MM
16	90701-657-900	Roller - 5X20.8
17	91302-639-000	O-ring - 32X1.9
18	91306-PA9-003	O-ring - 227X2.5 (ARAI)
18	91306-PA9-004	O-ring - 227X2.5 (NOK)

Torque converter housing 13

#	OEM	部品名
1	21111-PA9-904	Case - TORQUE CONVERTER
2	21351-PC2-900	Cover - TORQUE CONVERTER
3	21811-PA9-020	Gasket - TORQUE CONVERTER CASE
4	23225-PA9-000	Plate - OIL GUIDE
5	90024-612-000	Bolt - SEALING, 8MM
6	90471-580-000	Packing - 8MM
7	91001-591-004	Bearing - BALL, 16008 (KOYO)
7	91001-PX4-004	Bearing - BALL, 40X68X9 (KOYO)
8	91101-689-008	Bearing - NEEDLE, 33X55X17 (TOYO)
9	91206-639-005	Oil seal - 35X68X9
10	91207-639-015	Oil seal - 44X68X8 (NOK)
11	91209-612-003	Oil seal - 12X22X7 (ARAI)
12	91404-657-000	Clamp - CORD

Torque rod/front beam 31

#	OEM	部品名
1	50100-SA5-050	Beam - CENTER
2	50200-SA5-601	Beam - RR.
2	50200-SA5-602	Beam - RR.
3	50210-SA5-000	Grommet - BEAM END
4	50230-SA5-000	Insulator a - SUB FRAME MOUNTING
5	50231-SA5-000	Insulator b - SUB FRAME MOUNTING
6	50232-SA5-000	Washer - SUB FRAME
7	50235-SA5-003	Insulator - SUB FRAME MOUNTING
8	50250-SA5-020	Beam - FR.
9	50255-SA5-010	Damper - FR. BEAM
10	50834-SA0-010	Insulator a - TORQUE ROD
11	50835-SA5-010	Rod - TORQUE
12	50836-SA5-000	Insulator b - TORQUE ROD
12	50836-SA5-980	Insulator b - TORQUE ROD
12	50836-SA0-981	Insulator b - TORQUE ROD
13	50837-692-010	Washer - TORQUE ROD
14	50839-692-000	Nut - YOKE, 12MM
15	50841-SA5-020	Bracket - L. TORQUE ROD
16	50842-SA5-040	Bracket - R. TORQUE ROD
17	60602-538-000	Grommet b - CONTROL CABLE
18	60872-SA5-000	Guard - ALTERNATOR SPLASH
20	60873-SA5-670	Hanger - FR. LOWER
21	82874-538-000	Plug - FLOOR HOLE
22	90121-SA5-003	Bolt - FLANGE, 12X111
23	90122-SA5-003	Bolt-washer - 8X20
24	90123-SA5-003	Bolt - HEX., 10X86
25	90127-692-000	Bolt - FLANGE, 10X60
26	90128-693-000	Bolt-washer - 6X20
27	90129-692-000	Bolt - FLANGE, 10X44
28	90131-SA5-000	Bolt - TORQUE ROD, 12X66 (NTN)
29	90131-692-000	Bolt - TORQUE ROD, 12X76

Transmission housing 35

#	OEM	部品名
1	21200-PB6-010	Housing - TRANSMISSION
1	21211-PA9-902	Housing - TRANSMISSION
2	21310-689-961	Cover comp. - TRANSMISSION
2	21215-PA9-000	Holder - REVERSE IDLE SHAFT
3	21321-689-000	Plug - BREATHER TUBE
3	21232-PA9-020	Plate - HANGER
4	21395-689-000	Gasket - TRANSMISSION CASE
4	21240-PA9-010	Cover - R. TRANSMISSION SIDE
5	21398-PB6-000	Clamp a - BREATHER TUBE
5	21396-611-010	Cap - BREATHER
6	21399-PB6-000	Clamp b - BREATHER TUBE
6	21812-PA9-000	Gasket - R. OUTER COVER
7	90081-PB6-000	Bolt - PLUG, 14MM
7	22712-PA9-000	Pipe a - FEED
8	91206-689-005	Oil seal - 35X76X9 (NOK)
8	91206-689-003	Oil seal - 35X76X9 (ARAI)
8	22721-PA9-003	Flange - FEED PIPE
9	22722-PA9-010	Pipe b - FEED
10	27496-PA9-900	Stay - EARTH CABLE
11	90014-PA9-000	Bolt - FLANGE, 10X55
12	90015-PA9-000	Bolt - FLANGE, 10X75
13	90016-PA9-000	Bolt - FLANGE, 10X90
14	90024-612-000	Bolt - SEALING, 8MM
15	90081-PA0-000	Bolt - PLUG, 14MM
16	90471-580-000	Packing - 8MM
17	90507-PA9-000	Collar - 8X11
18	90701-639-000	Dowel pin - 8X55
19	90703-PA9-003	Roller - 2X19.8
20	90705-PA9-000	Dowel pin - 14X25
21	91205-639-005	Oil seal - 35X56X9
22	91301-300-000	O-ring - 6X2.3
23	91308-PA9-003	O-ring - 19.8X1.9 (ARAI)
23	91308-PA9-004	O-ring - 19.8X1.9 (NOK)
24	91311-PA9-004	O-ring - 7.7X1.9 (NOK)
24	91311-PA9-003	O-ring - 7.7X1.9 (ARAI)

Trunk lid 20

#	OEM	部品名
3	75891-673-000	Stopper - DOOR
4	80717-672-000	Holder - TRUNK OPEN SPRING
6	83112-692-000	Grommet - TRUNK LID
7	83300-SA6-003	Lock - TRUNK
8	83301-SA6-003	Rod - TRUNK LOCK
9	83303-SA5-003	Cylinder - TAILGATE
10	83305-SA6-003	Striker - TRUNK
13	83415-672-000	Shim - TRUNK HINGE
14	83417-SA6-000	Spring - R. TRUNK OPENING
15	83419-SA6-000	Rubber - TRUNK STOPPER
16	83427-SA6-000	Spring - L. TRUNK OPENING
17	85268-SA5-003	Stopper - TAILGATE (BLACK)
18	85510-SA6-751	Control assy. - TRUNK REMOTE
23	85525-SA6-003	Cable - TAILGATE OPENER
25	87300-SA6-000	Molding - TRUNK
26	88110-SA6-000	Molding - R. RR. CORNER
27	88115-SA6-000	Molding - L. RR. CORNER
28	90182-SA8-003	Screw - TAPPING, 4MM
29	90670-SA6-000	Clip - CORNER MOULDING
30	90682-SA8-003	Grommet - SCREW, 4MM

Valve body 34

#	OEM	部品名
1	22741-PA9-000	Pipe - LOW CLUTCH
2	22743-PA9-000	Pipe - THIRD CLUTCH
3	24272-PA9-903	Shaft b - SHIFT FORK
3	24273-PA9-903	Shaft c - SHIFT FORK
3	24271-PA9-903	Shaft a - SHIFT FORK
4	24461-PA9-000	Spring - ROLLER
4	24461-PA9-010	Spring - ROLLER
5	24471-612-000	Roller - 6X16
6	25145-PA9-010	Shaft - OIL PUMP GEAR
7	27100-PA9-904	Body assy - MAIN VALVE
8	27105-PA9-901	Body sub assy. - MAIN VALVE
9	27112-PA9-901	Plate - MAIN SEPARATING
10	27200-PA9-020	Regulator assy
11	27211-PA9-010	Body - REGULATOR VALVE
12	27221-PA9-010	Valve - REGULATOR
13	27231-639-000	Spring a - REGULATOR VALVE
14	27232-PA9-000	Spring b - REGULATOR VALVE
15	27233-PA9-000	Spring - REACTION STATOR
16	27246-PA9-000	Cap - REGULATOR SPRING
17	27247-PA9-000	Seat - REACTION SPRING
18	27255-639-010	Spring - CHECK VALVE
19	27256-PA9-000	Valve - RELIEF
20	27256-639-000	Valve - TORQUE CONVERTER CHECK
21	27257-PA9-000	Spring - RELIEF VALVE
22	27258-680-900	Seat - RELIEF VALVE SPRING
23	27400-PA9-904	Body set - SERVO
24	27408-PA9-901	Body comp. a - SERVO
24	27410-PA9-902	Body comp. c - SERVO
24	27409-PA9-901	Body comp. b - SERVO
25	27421-PA9-902	Valve - MANUAL
26	27861-PA9-010	Spring - SERVO RETURN
27	90007-PA9-000	Bolt - FLANGE, 6X30
28	90089-591-020	Bolt - STOPPER, 6MM
29	91344-580-000	O-ring - 31X2.7 (ARAI)

Valve/rocker arm 22

#	OEM	部品名
1	14621-PC1-010	Arm a - VALVE ROCKER
2	14622-PC1-010	Arm b - VALVE ROCKER
3	14622-PC2-010	Arm b - VALVE ROCKER
4	14631-PC1-000	Shaft a - VALVE ROCKER ARM
5	14642-657-000	Spring - EX. VALVE ROCKER ARM
6	14711-PC1-000	Valve - IN.
7	14721-PC3-600	Valve - EX.
8	14745-657-000	Screw - TAPPET ADJUSTING
10	14751-657-013	Spring - VALVE INNER (NIPPON HATSUJO)
10	14751-657-014	Spring - VALVE INNER (CHUO HATSUJO)
11	14761-PC3-602	Spring - VALVE OUTER (CHUO SPRING)
11	14761-PC3-601	Spring - VALVE OUTER (NHK SPRING)
11	14761-PC3-603	Spring - VALVE OUTER (NHK SPRING)
11	14761-PC3-604	Spring - VALVE OUTER (CHUO SPRING)
12	14761-673-013	Spring - VALVE OUTER (NIPPON HATSUJO)
12	14761-673-014	Spring - VALVE OUTER (CHUO SPRING)
13	14765-PC3-600	Retainer - VALVE SPRING
14	14765-689-000	Retainer - VALVE SPRING
15	14768-689-000	Cotter - VALVE
16	14775-689-000	Seat - VALVE SPRING
17	90206-657-000	Nut - TAPPET ADJUSTING
18	90703-634-000	Pin - STRAIGHT, 4X24MM

Water pump 24

#	OEM	部品名
1	19200-PC1-000	Pump comp - WATER
2	19222-634-000	Gasket - WATER PUMP
3	19224-PA6-020	Pulley - WATER PUMP
4	19300-PB2-812	Thermostat unit - 88) (FUJI SEIKO
4	19300-PB2-004	Thermostat unit - 82) (FUJI SEIKO
4	19300-PB2-023	Thermostat unit - 82) (NIPPON THERMOSTAT
4	19300-PB2-003	Thermostat unit - 82) (NIPPON THERMOSTAT
4	19300-PB2-813	Thermostat unit - 88) (FUJI SEIKO
4	19300-PB2-014	Thermostat unit - 82) (FUJI SEIKO
4	19300-PB2-024	Thermostat unit - 82) (FUJI SEIKO
4	19300-PB2-811	Thermostat unit - 88) (NIPPON THERMOSTAT
5	19305-PA0-000	Rubber - THERMOSTAT MOUNTING
6	19311-PA6-000	Cover - THERMOSTAT
7	19312-657-010	Gasket - DISTRIBUTOR HOLDER
8	19504-PC1-010	Hose - BYPASS IN.
9	19505-PC1-000	Pipe - CONNECTING
10	19508-PC3-600	Hose - BYPASS OUTLET
11	19516-PC1-000	Bolt - BREATHING WATER
12	19517-PC1-000	Joint - TUBE
13	39223-671-000	Clamp - WATER HOSE
14	90004-PA0-000	Bolt - HEX., 6X14
15	91302-317-700	O-ring - 54X2
15	91307-MB0-003	O-ring (54x2)
16	91314-634-000	O-ring
