ANM15

Toyota ISIS · 2004 · 5,623 parts · 216 categories

5,623 items

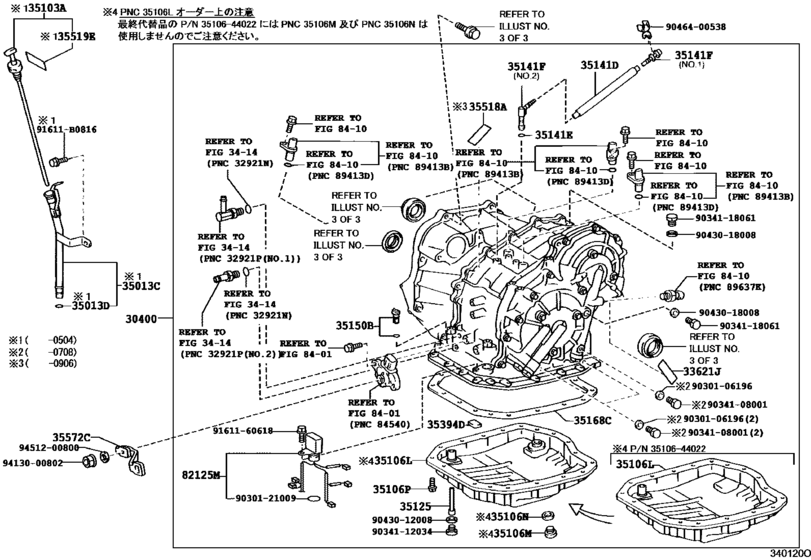

Transaxle Assy(Cvt) ([09.2004 - 09.2009] K111,K111F (0409-0909)ANM1#) 44

#	OEM	Part name
30400	30400-44020	Transaxle Assy, Continuously Variable
30400	30400-44021	Transaxle Assy, Continuously Variable
30400	90311-49002	Seal, Type T Oil, No.1(For Cvt)
30400	90311-45025	Seal, Type T Oil(For Cvt Oil Pump)
30400	90311-45027	Seal, Type T Oil(For Cvt Oil Pump)
33621	33621-12150	Label, Transaxle Oil Information
35013	35013-28200	Tube Sub-Assy, Transmission Oil Filler
35013	90301-09173	Ring, O(For Transmission Oil Filler Tube)
35103	35103-28230	Gage Sub-Assy, Transmission Oil Level
35106	35106-44020	Pan Sub-Assy, Transaxle Oil(Cvt)
35106	35106-44024	Pan Sub-Assy, Transaxle Oil(Cvt)
35106	35168-20010	Gasket, Transaxle Oil Pan(Cvt)
35106	35125-44071	Tube, Transmission Oil Filler, No.1
35106	35106-44021	Pan Sub-Assy, Transaxle Oil(Cvt)
35106	90341-18016	Plug, W/head Straight Screw(For Transaxle Housing & Case)
35106	90430-18008	Gasket
35106	90430-T0021	Gasket(For Manual Transmission Filler Plug)
35106	90119-06173	Bolt, Stud (For Automatic Transmission Oil Pan Setting)
35125	35125-44070	Tube, Transmission Oil Filler, No.1
35141	35121-63010	Hose(For Breather Plug)
35141	90301-06005	Ring, O (For Breather Plug)
35141	90930-03149	Plug Sub-Assy, Breather(For Transmission)
35141	90930-03164	Plug, Breather(For Transaxle)
35150	35150-44010	Plug(For Transmission Case)
35168	35168-63010	Gasket, Transaxle Oil Pan
35394	35394-30011	Magnet, Oil Cleaner (For Transmission)
35518	35518-63010	Label, Automatic Transaxle Information, No.2
35519	35519-63010	Label, Automatic Trans Information
35572	35572-63010	Lever, Transmission Control Shaft
82125	82125-44020	Wire, Transmission
91611	91611-B0816	Bolt
9011912168	90119-12168	Bolt(For Transaxle & Engine Setting)
9030106196	90301-06196	O Ring, Transaxle Case, No.1
9030121009	90301-21009	Ring, O(For Transmission Wire)
9034108001	90341-08001	Plug, Transaxle Case, No.1
9034112034	90341-12034	Plug Sub-Assy, Drain (Atm)
9034118061	90341-18061	Plug, Hole (CVT TC)
9043012008	90430-12008	Gasket (For Shift Inter Lock Plate)
9046400538	90464-00538	New Genuine Part
9151261065	91512-61065	Bolt(For Transaxle & Engine Setting)
9161160618	91611-60618	Bolt(For Oil Receiver Pipe)
9413000802	94130-00802	Nut, No.1 (For Center Support Bearing)
9413000802	90170-A0001	New Genuine Part
9451200800	94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)

OEM	Part name	Category
30400-44020	Transaxle Assy, Continuously Variable	Transaxle Assy(Cvt) ([09.2004 - 09.2009] K111,K111F (0409-0909)ANM1#)
30400-44021	Transaxle Assy, Continuously Variable	Transaxle Assy(Cvt) ([09.2004 - 09.2009] K111,K111F (0409-0909)ANM1#)
33621-12150	Label, Transaxle Oil Information	Transaxle Assy(Cvt) ([09.2004 - 09.2009] K111,K111F (0409-0909)ANM1#)
35013-28200	Tube Sub-Assy, Transmission Oil Filler	Transaxle Assy(Cvt) ([09.2004 - 09.2009] K111,K111F (0409-0909)ANM1#)
35103-28230	Gage Sub-Assy, Transmission Oil Level	Transaxle Assy(Cvt) ([09.2004 - 09.2009] K111,K111F (0409-0909)ANM1#)
35106-44020	Pan Sub-Assy, Transaxle Oil(Cvt)	Transaxle Assy(Cvt) ([09.2004 - 09.2009] K111,K111F (0409-0909)ANM1#)
35106-44021	Pan Sub-Assy, Transaxle Oil(Cvt)	Transaxle Assy(Cvt) ([09.2004 - 09.2009] K111,K111F (0409-0909)ANM1#)
35106-44024	Pan Sub-Assy, Transaxle Oil(Cvt)	Transaxle Assy(Cvt) ([09.2004 - 09.2009] K111,K111F (0409-0909)ANM1#)
35121-63010	Hose(For Breather Plug)	Transaxle Assy(Cvt) ([09.2004 - 09.2009] K111,K111F (0409-0909)ANM1#)
35125-44070	Tube, Transmission Oil Filler, No.1	Transaxle Assy(Cvt) ([09.2004 - 09.2009] K111,K111F (0409-0909)ANM1#)
35125-44071	Tube, Transmission Oil Filler, No.1	Transaxle Assy(Cvt) ([09.2004 - 09.2009] K111,K111F (0409-0909)ANM1#)
35150-44010	Plug(For Transmission Case)	Transaxle Assy(Cvt) ([09.2004 - 09.2009] K111,K111F (0409-0909)ANM1#)
35168-20010	Gasket, Transaxle Oil Pan(Cvt)	Transaxle Assy(Cvt) ([09.2004 - 09.2009] K111,K111F (0409-0909)ANM1#)
35168-63010	Gasket, Transaxle Oil Pan	Transaxle Assy(Cvt) ([09.2004 - 09.2009] K111,K111F (0409-0909)ANM1#)
35394-30011	Magnet, Oil Cleaner (For Transmission)	Transaxle Assy(Cvt) ([09.2004 - 09.2009] K111,K111F (0409-0909)ANM1#)
35518-63010	Label, Automatic Transaxle Information, No.2	Transaxle Assy(Cvt) ([09.2004 - 09.2009] K111,K111F (0409-0909)ANM1#)
35519-63010	Label, Automatic Trans Information	Transaxle Assy(Cvt) ([09.2004 - 09.2009] K111,K111F (0409-0909)ANM1#)
35572-63010	Lever, Transmission Control Shaft	Transaxle Assy(Cvt) ([09.2004 - 09.2009] K111,K111F (0409-0909)ANM1#)
82125-44020	Wire, Transmission	Transaxle Assy(Cvt) ([09.2004 - 09.2009] K111,K111F (0409-0909)ANM1#)
90119-06173	Bolt, Stud (For Automatic Transmission Oil Pan Setting)	Transaxle Assy(Cvt) ([09.2004 - 09.2009] K111,K111F (0409-0909)ANM1#)
90119-12168	Bolt(For Transaxle & Engine Setting)	Transaxle Assy(Cvt) ([09.2004 - 09.2009] K111,K111F (0409-0909)ANM1#)
90170-A0001	New Genuine Part	Transaxle Assy(Cvt) ([09.2004 - 09.2009] K111,K111F (0409-0909)ANM1#)
90301-06005	Ring, O (For Breather Plug)	Transaxle Assy(Cvt) ([09.2004 - 09.2009] K111,K111F (0409-0909)ANM1#)
90301-06196	O Ring, Transaxle Case, No.1	Transaxle Assy(Cvt) ([09.2004 - 09.2009] K111,K111F (0409-0909)ANM1#)
90301-09173	Ring, O(For Transmission Oil Filler Tube)	Transaxle Assy(Cvt) ([09.2004 - 09.2009] K111,K111F (0409-0909)ANM1#)
90301-21009	Ring, O(For Transmission Wire)	Transaxle Assy(Cvt) ([09.2004 - 09.2009] K111,K111F (0409-0909)ANM1#)
90311-45025	Seal, Type T Oil(For Cvt Oil Pump)	Transaxle Assy(Cvt) ([09.2004 - 09.2009] K111,K111F (0409-0909)ANM1#)
90311-45027	Seal, Type T Oil(For Cvt Oil Pump)	Transaxle Assy(Cvt) ([09.2004 - 09.2009] K111,K111F (0409-0909)ANM1#)
90311-49002	Seal, Type T Oil, No.1(For Cvt)	Transaxle Assy(Cvt) ([09.2004 - 09.2009] K111,K111F (0409-0909)ANM1#)
90341-08001	Plug, Transaxle Case, No.1	Transaxle Assy(Cvt) ([09.2004 - 09.2009] K111,K111F (0409-0909)ANM1#)
90341-12034	Plug Sub-Assy, Drain (Atm)	Transaxle Assy(Cvt) ([09.2004 - 09.2009] K111,K111F (0409-0909)ANM1#)
90341-18016	Plug, W/head Straight Screw(For Transaxle Housing & Case)	Transaxle Assy(Cvt) ([09.2004 - 09.2009] K111,K111F (0409-0909)ANM1#)
90341-18061	Plug, Hole (CVT TC)	Transaxle Assy(Cvt) ([09.2004 - 09.2009] K111,K111F (0409-0909)ANM1#)
90430-12008	Gasket (For Shift Inter Lock Plate)	Transaxle Assy(Cvt) ([09.2004 - 09.2009] K111,K111F (0409-0909)ANM1#)
90430-18008	Gasket	Transaxle Assy(Cvt) ([09.2004 - 09.2009] K111,K111F (0409-0909)ANM1#)
90430-T0021	Gasket(For Manual Transmission Filler Plug)	Transaxle Assy(Cvt) ([09.2004 - 09.2009] K111,K111F (0409-0909)ANM1#)
90464-00538	New Genuine Part	Transaxle Assy(Cvt) ([09.2004 - 09.2009] K111,K111F (0409-0909)ANM1#)
90930-03149	Plug Sub-Assy, Breather(For Transmission)	Transaxle Assy(Cvt) ([09.2004 - 09.2009] K111,K111F (0409-0909)ANM1#)
90930-03164	Plug, Breather(For Transaxle)	Transaxle Assy(Cvt) ([09.2004 - 09.2009] K111,K111F (0409-0909)ANM1#)
91512-61065	Bolt(For Transaxle & Engine Setting)	Transaxle Assy(Cvt) ([09.2004 - 09.2009] K111,K111F (0409-0909)ANM1#)
91611-60618	Bolt(For Oil Receiver Pipe)	Transaxle Assy(Cvt) ([09.2004 - 09.2009] K111,K111F (0409-0909)ANM1#)
91611-B0816	Bolt	Transaxle Assy(Cvt) ([09.2004 - 09.2009] K111,K111F (0409-0909)ANM1#)
94130-00802	Nut, No.1 (For Center Support Bearing)	Transaxle Assy(Cvt) ([09.2004 - 09.2009] K111,K111F (0409-0909)ANM1#)
94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)	Transaxle Assy(Cvt) ([09.2004 - 09.2009] K111,K111F (0409-0909)ANM1#)
