ANM15

Toyota ISIS · 2004 · 5,623 parts · 216 categories

5,623 items

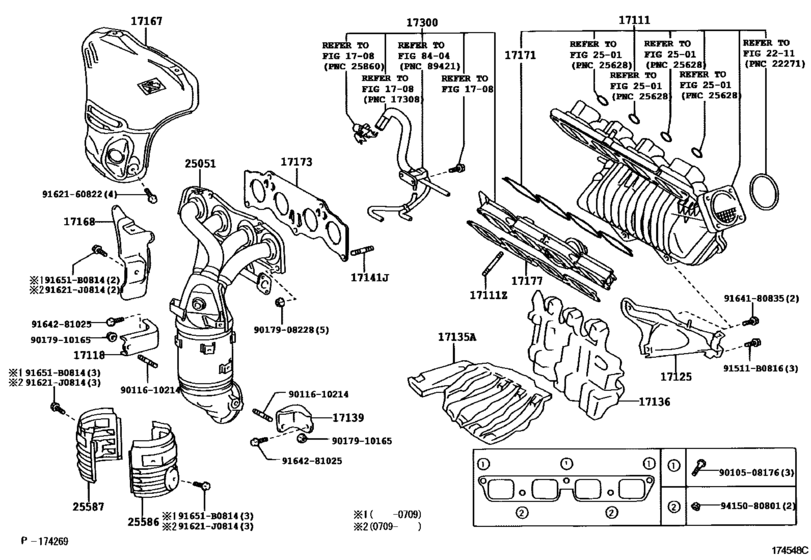

Manifold ([12.2005 - ] (0512- )1AZFSE) 37

#	OEM	Part name
17111	17101-28031	Manifold, Intake
17111	90126-08021	Bolt, Stud(For Intake Manifold To Cylinder Head)
17118	17118-28030	Stay, Manifold
17125	17125-28010	Stay, Surge Tank, No.1
17135	17135-28020	Insulator, Intake Manifold, No.1
17136	17136-28010	Insulator, Intake Manifold, No.2
17139	17139-28020	Stay, Manifold, No.2
17141	90126-08037	Bolt, Stud(For Oil Strainer)
17167	17167-28031	Insulator, Exhaust Manifold Heat, No.1
17167	17167-28070	Insulator, Exhaust Manifold Heat, No.1
17168	17168-28011	Insulator, Exhaust Manifold Heat, No.2
17168	17168-28021	Insulator, Exhaust Manifold Heat, No.2
17171	17171-28010	Gasket, Intake To Exhaust Manifold
17173	17173-28010	Gasket, Exhaust Manifold To Head
17177	17177-28020	Gasket, Intake Manifold To Head, No.1
17300	17300-28040	Valve Assy, Intake Air Control
25051	25051-28200	Converter Sub-Assy, Exhaust Manifold
25051	25051-28203	Converter Sub-Assy, Exhaust Manifold
25051	91621-J0814	Bolt (For Transmission Control Cable Bracket)
25051	25051-28201	Converter Sub-Assy, Exhaust Manifold
25051	25051-28380	Converter Sub-Assy, Exhaust Manifold
25051	25051-28382	Converter Sub-Assy, Exhaust Manifold
25051	25051-28381	Converter Sub-Assy, Exhaust Manifold
25586	25586-28031	Insulator, Manifold Converter, No.1
25587	25587-28041	Insulator, Manifold Converter, No.2
91511	91511-B0816	BOLT
91511	90080-10159	New Genuine Part
91651	91651-B0814	Bolt with washer
91651	90119-A0109	New Genuine Part
9010508176	90105-08176	BOLT
9011610214	90116-10214	BOLT STUD
9017908228	90179-08228	NUT
9017910165	90179-10165	NUT
9162160822	91621-60822	Bolt, W/washer(For Repair Actuator Set)
9164180835	91641-80835	Bolt, Compressor, No.1
9164281025	91642-81025	BOLT WWASHER
9415080801	94150-80801	Nut

OEM	Part name	Category
17101-28031	Manifold, Intake	Manifold ([12.2005 - ] (0512- )1AZFSE)
17118-28030	Stay, Manifold	Manifold ([12.2005 - ] (0512- )1AZFSE)
17125-28010	Stay, Surge Tank, No.1	Manifold ([12.2005 - ] (0512- )1AZFSE)
17135-28020	Insulator, Intake Manifold, No.1	Manifold ([12.2005 - ] (0512- )1AZFSE)
17136-28010	Insulator, Intake Manifold, No.2	Manifold ([12.2005 - ] (0512- )1AZFSE)
17139-28020	Stay, Manifold, No.2	Manifold ([12.2005 - ] (0512- )1AZFSE)
17167-28031	Insulator, Exhaust Manifold Heat, No.1	Manifold ([12.2005 - ] (0512- )1AZFSE)
17167-28070	Insulator, Exhaust Manifold Heat, No.1	Manifold ([12.2005 - ] (0512- )1AZFSE)
17168-28011	Insulator, Exhaust Manifold Heat, No.2	Manifold ([12.2005 - ] (0512- )1AZFSE)
17168-28021	Insulator, Exhaust Manifold Heat, No.2	Manifold ([12.2005 - ] (0512- )1AZFSE)
17171-28010	Gasket, Intake To Exhaust Manifold	Manifold ([12.2005 - ] (0512- )1AZFSE)
17173-28010	Gasket, Exhaust Manifold To Head	Manifold ([12.2005 - ] (0512- )1AZFSE)
17177-28020	Gasket, Intake Manifold To Head, No.1	Manifold ([12.2005 - ] (0512- )1AZFSE)
17300-28040	Valve Assy, Intake Air Control	Manifold ([12.2005 - ] (0512- )1AZFSE)
25051-28200	Converter Sub-Assy, Exhaust Manifold	Manifold ([12.2005 - ] (0512- )1AZFSE)
25051-28201	Converter Sub-Assy, Exhaust Manifold	Manifold ([12.2005 - ] (0512- )1AZFSE)
25051-28203	Converter Sub-Assy, Exhaust Manifold	Manifold ([12.2005 - ] (0512- )1AZFSE)
25051-28380	Converter Sub-Assy, Exhaust Manifold	Manifold ([12.2005 - ] (0512- )1AZFSE)
25051-28381	Converter Sub-Assy, Exhaust Manifold	Manifold ([12.2005 - ] (0512- )1AZFSE)
25051-28382	Converter Sub-Assy, Exhaust Manifold	Manifold ([12.2005 - ] (0512- )1AZFSE)
25586-28031	Insulator, Manifold Converter, No.1	Manifold ([12.2005 - ] (0512- )1AZFSE)
25587-28041	Insulator, Manifold Converter, No.2	Manifold ([12.2005 - ] (0512- )1AZFSE)
90080-10159	New Genuine Part	Manifold ([12.2005 - ] (0512- )1AZFSE)
90105-08176	BOLT	Manifold ([12.2005 - ] (0512- )1AZFSE)
90116-10214	BOLT STUD	Manifold ([12.2005 - ] (0512- )1AZFSE)
90119-A0109	New Genuine Part	Manifold ([12.2005 - ] (0512- )1AZFSE)
90126-08021	Bolt, Stud(For Intake Manifold To Cylinder Head)	Manifold ([12.2005 - ] (0512- )1AZFSE)
90126-08037	Bolt, Stud(For Oil Strainer)	Manifold ([12.2005 - ] (0512- )1AZFSE)
90179-08228	NUT	Manifold ([12.2005 - ] (0512- )1AZFSE)
90179-10165	NUT	Manifold ([12.2005 - ] (0512- )1AZFSE)
91511-B0816	BOLT	Manifold ([12.2005 - ] (0512- )1AZFSE)
91621-60822	Bolt, W/washer(For Repair Actuator Set)	Manifold ([12.2005 - ] (0512- )1AZFSE)
91621-J0814	Bolt (For Transmission Control Cable Bracket)	Manifold ([12.2005 - ] (0512- )1AZFSE)
91641-80835	Bolt, Compressor, No.1	Manifold ([12.2005 - ] (0512- )1AZFSE)
91642-81025	BOLT WWASHER	Manifold ([12.2005 - ] (0512- )1AZFSE)
91651-B0814	Bolt with washer	Manifold ([12.2005 - ] (0512- )1AZFSE)
94150-80801	Nut	Manifold ([12.2005 - ] (0512- )1AZFSE)
