ANM15

Toyota ISIS · 2004 · 5,623 parts · 216 categories
ANM15 ×

← Back to categories

5,623 items

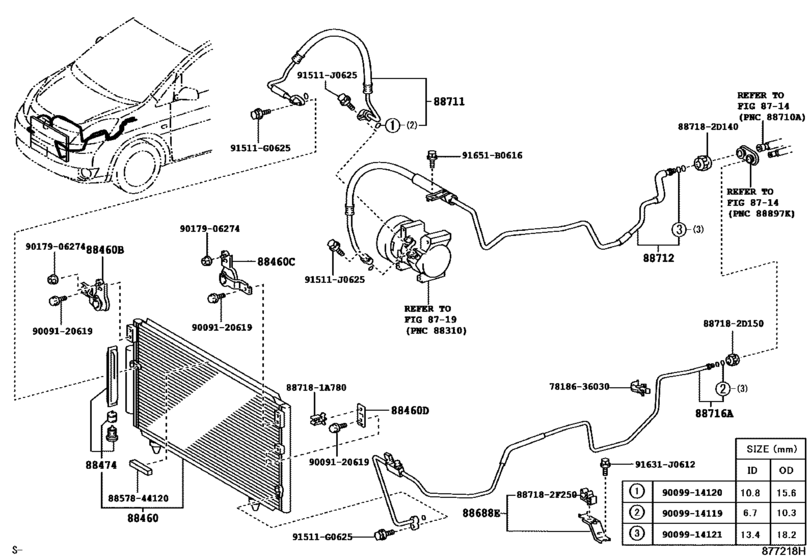

Heating & Air Conditioning - Cooler Piping ([09.2004 - 09.2009] ﾌﾛﾝﾄ (0409-0909)ANM1#) 30
#OEMPart name
88460 88460-44570 Condenser Assy, Cooler
88460 88409-44010 Bracket, Cooler Condenser, No.1
88460 88409-44020 Bracket, Cooler Condenser, No.2
88460 88688-44260 Bracket, Cooler Condenser, No.3
88460 88460-44560 Condenser Assy, Cooler
88474 88474-12030 Dryer, Cooler
88474 88474-17010 Dryer, Cooler
88688 88688-44270 Bracket, Cooler Refrigerant Hose, No.1
88711 88703-44400 Hose, Cooler Refrigerant Discharge, No.1
88711 88703-44380 Hose, Cooler Refrigerant Discharge, No.1
88712 88704-44500 Hose, Cooler Refrigerant Suction, No.1
88712 88704-44430 Hose, Cooler Refrigerant Suction, No.1
88716 88710-44780 Pipe, Cooler Refrigerant Liquid, A
88716 88710-44650 Pipe, Cooler Refrigerant Liquid, A
91511 91511-G0625 BOLT FLANGE
91511 91511-J0625 Bolt(For Cylinder Head Cover)
91631 91631-J0612 BRACKET
91651 91651-B0616 BOLT WWASHER
887181 88718-1A780 Pipe, Cooler Refrigerant Suction, No.2
887182 88718-2D140 Clamp(For Cooler Refrigerant Pipe), No.1
887182 88718-2D150 Clamp(For Cooler Refrigerant Pipe), No.1
887182 88718-2F250 Pipe, Cooler Refrigerant Suction, No.2
7818636030 78186-36030 Clamp, Accelerator Control Cable, No.3
8857844120 88578-44120 Paking, Cooler Air Duct
9009120619 90091-20619 BOLT
9009914119 90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe)
9009914119 90099-14119-TH O RING
9009914120 90099-14120 O-Ring, Cooler Evaporator No.1(Discharge)
9009914121 90099-14121 O-Ring, Cooler Evaporator No.1(Suction)
9017906274 90179-06274 Nut
