検索 › 型式 › ANM15

ANM15

Toyota アイシス · 2004 · 5,623 部品 · 216 カテゴリ

5,623 件

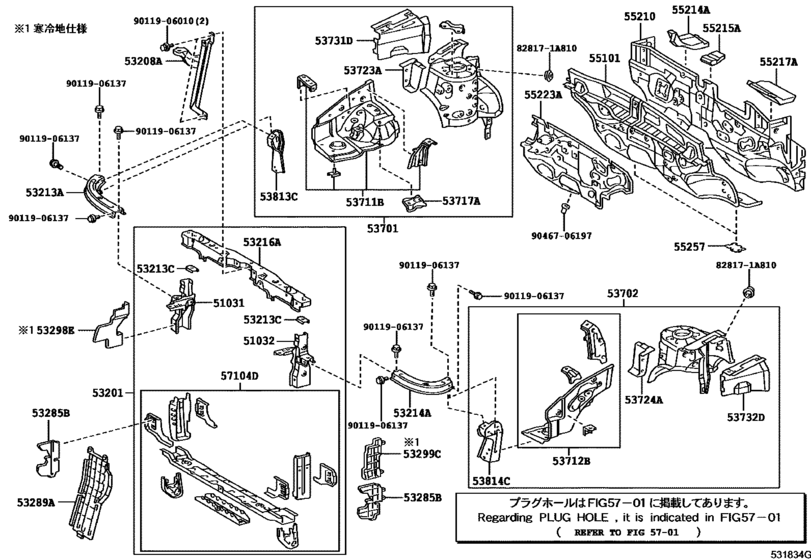

Front Fender Apron & Dash Panel ([09.2004 - ] (0409- )) 42

#	OEM	部品名
51031	51031-44010	Gusset Sub-Assy, Front Crossmember, Rh
51032	51032-44010	Gusset Sub-Assy, Front Crossmember, Lh
53201	53201-44130	Support Sub-Assy, Radiator
53201	53201-44131	Support Sub-Assy, Radiator
53208	53208-44030	Support Sub-Assy, Hood Lock
53208	53208-44031	Support Sub-Assy, Hood Lock
53213	53213-44020	Support, Radiator, Upper Rh
53213	53213-12110	Support, Radiator, Upper Front
53214	53214-44020	Support, Radiator, Upper Lh
53216	53216-44040	Support, Radiator, Upper
53285	53285-44030	Seal, Radiator Side Air, No.1
53289	53289-44010	Cover, Radiator Support Opening
53298	53298-44040	Seal, Radiator Side, Rh
53299	53299-44020	Seal, Radiator Side, Lh
53701	53701-44060	Apron Sub-Assy, Front Fender, Rh
53702	53702-44060	Apron Sub-Assy, Front Fender, Lh
53711	53711-44902	Apron, Front Fender, Front Rh
53712	53712-44901	Apron, Front Fender, Front Lh
53717	53717-12060	Plate, Fender Apron
53723	53723-12080	Reinforcement, Front Spring Support, Rh
53724	53724-12070	Reinforcement, Front Spring Support, Lh
53731	53731-12160	Member, Front Apron To Cowl Side, Upper Rh
53732	53732-12140	Member, Front Apron To Cowl Side, Upper Lh
53813	53813-44030	Extension, Front Fender, Rh
53814	53814-44030	Extension, Front Fender, Lh
55101	55101-44400	Panel Sub-Assy, Dash
55210	55210-44080	Insulator Assy, Dash Panel
55210	55210-44082	Insulator Assy, Dash Panel
55210	55210-44081	Insulator Assy, Dash Panel
55214	55214-44010	Pad, Dash Panel Insulator, No.2
55215	55215-44020	Pad, Dash Panel Insulator, No.3
55215	55215-44021	Pad, Dash Panel Insulator, No.3
55217	55217-44010	Retainer, Dash Panel Silencer
55223	55223-44060	Insulator, Dash Panel, Outer
55223	55223-44061	Insulator, Dash Panel, Outer
55257	55257-13010	Cover, Dash Panel Opening
57104	57104-44050	Member Sub-Assy, Front Cross
57104	57104-44051	Member Sub-Assy, Front Cross
828171	82817-1A810	Grommet(For Front Fender Apron)
9011906010	90119-06010	BOLT WWASHER
9011906137	90119-06137	BOLT
9046706197	90467-06197	Clip

OEM	部品名	カテゴリ
51031-44010	Gusset Sub-Assy, Front Crossmember, Rh	Front Fender Apron & Dash Panel ([09.2004 - ] (0409- ))
51032-44010	Gusset Sub-Assy, Front Crossmember, Lh	Front Fender Apron & Dash Panel ([09.2004 - ] (0409- ))
53201-44130	Support Sub-Assy, Radiator	Front Fender Apron & Dash Panel ([09.2004 - ] (0409- ))
53201-44131	Support Sub-Assy, Radiator	Front Fender Apron & Dash Panel ([09.2004 - ] (0409- ))
53208-44030	Support Sub-Assy, Hood Lock	Front Fender Apron & Dash Panel ([09.2004 - ] (0409- ))
53208-44031	Support Sub-Assy, Hood Lock	Front Fender Apron & Dash Panel ([09.2004 - ] (0409- ))
53213-12110	Support, Radiator, Upper Front	Front Fender Apron & Dash Panel ([09.2004 - ] (0409- ))
53213-44020	Support, Radiator, Upper Rh	Front Fender Apron & Dash Panel ([09.2004 - ] (0409- ))
53214-44020	Support, Radiator, Upper Lh	Front Fender Apron & Dash Panel ([09.2004 - ] (0409- ))
53216-44040	Support, Radiator, Upper	Front Fender Apron & Dash Panel ([09.2004 - ] (0409- ))
53285-44030	Seal, Radiator Side Air, No.1	Front Fender Apron & Dash Panel ([09.2004 - ] (0409- ))
53289-44010	Cover, Radiator Support Opening	Front Fender Apron & Dash Panel ([09.2004 - ] (0409- ))
53298-44040	Seal, Radiator Side, Rh	Front Fender Apron & Dash Panel ([09.2004 - ] (0409- ))
53299-44020	Seal, Radiator Side, Lh	Front Fender Apron & Dash Panel ([09.2004 - ] (0409- ))
53701-44060	Apron Sub-Assy, Front Fender, Rh	Front Fender Apron & Dash Panel ([09.2004 - ] (0409- ))
53702-44060	Apron Sub-Assy, Front Fender, Lh	Front Fender Apron & Dash Panel ([09.2004 - ] (0409- ))
53711-44902	Apron, Front Fender, Front Rh	Front Fender Apron & Dash Panel ([09.2004 - ] (0409- ))
53712-44901	Apron, Front Fender, Front Lh	Front Fender Apron & Dash Panel ([09.2004 - ] (0409- ))
53717-12060	Plate, Fender Apron	Front Fender Apron & Dash Panel ([09.2004 - ] (0409- ))
53723-12080	Reinforcement, Front Spring Support, Rh	Front Fender Apron & Dash Panel ([09.2004 - ] (0409- ))
53724-12070	Reinforcement, Front Spring Support, Lh	Front Fender Apron & Dash Panel ([09.2004 - ] (0409- ))
53731-12160	Member, Front Apron To Cowl Side, Upper Rh	Front Fender Apron & Dash Panel ([09.2004 - ] (0409- ))
53732-12140	Member, Front Apron To Cowl Side, Upper Lh	Front Fender Apron & Dash Panel ([09.2004 - ] (0409- ))
53813-44030	Extension, Front Fender, Rh	Front Fender Apron & Dash Panel ([09.2004 - ] (0409- ))
53814-44030	Extension, Front Fender, Lh	Front Fender Apron & Dash Panel ([09.2004 - ] (0409- ))
55101-44400	Panel Sub-Assy, Dash	Front Fender Apron & Dash Panel ([09.2004 - ] (0409- ))
55210-44080	Insulator Assy, Dash Panel	Front Fender Apron & Dash Panel ([09.2004 - ] (0409- ))
55210-44081	Insulator Assy, Dash Panel	Front Fender Apron & Dash Panel ([09.2004 - ] (0409- ))
55210-44082	Insulator Assy, Dash Panel	Front Fender Apron & Dash Panel ([09.2004 - ] (0409- ))
55214-44010	Pad, Dash Panel Insulator, No.2	Front Fender Apron & Dash Panel ([09.2004 - ] (0409- ))
55215-44020	Pad, Dash Panel Insulator, No.3	Front Fender Apron & Dash Panel ([09.2004 - ] (0409- ))
55215-44021	Pad, Dash Panel Insulator, No.3	Front Fender Apron & Dash Panel ([09.2004 - ] (0409- ))
55217-44010	Retainer, Dash Panel Silencer	Front Fender Apron & Dash Panel ([09.2004 - ] (0409- ))
55223-44060	Insulator, Dash Panel, Outer	Front Fender Apron & Dash Panel ([09.2004 - ] (0409- ))
55223-44061	Insulator, Dash Panel, Outer	Front Fender Apron & Dash Panel ([09.2004 - ] (0409- ))
55257-13010	Cover, Dash Panel Opening	Front Fender Apron & Dash Panel ([09.2004 - ] (0409- ))
57104-44050	Member Sub-Assy, Front Cross	Front Fender Apron & Dash Panel ([09.2004 - ] (0409- ))
57104-44051	Member Sub-Assy, Front Cross	Front Fender Apron & Dash Panel ([09.2004 - ] (0409- ))
82817-1A810	Grommet(For Front Fender Apron)	Front Fender Apron & Dash Panel ([09.2004 - ] (0409- ))
90119-06010	BOLT WWASHER	Front Fender Apron & Dash Panel ([09.2004 - ] (0409- ))
90119-06137	BOLT	Front Fender Apron & Dash Panel ([09.2004 - ] (0409- ))
90467-06197	Clip	Front Fender Apron & Dash Panel ([09.2004 - ] (0409- ))
