Search › Model › ACA36

ACA36

Toyota RAV4-VANGUARD · 2005 · 4,459 parts · 219 categories

4,459 items

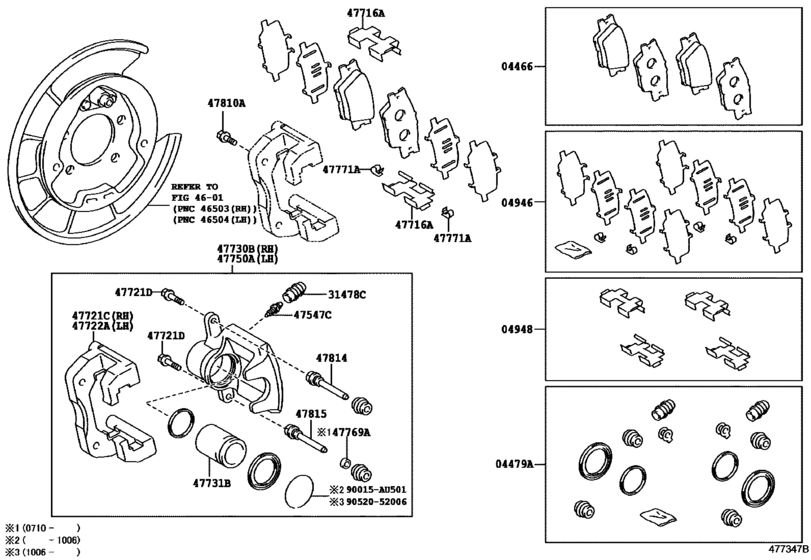

Rear Disc Brake Caliper & Dust Cover ([11.2005 - 06.2011] (0511-1106)) 46

#	OEM	Part name
4466	04466-42060	Pad Kit, Disc Brake, Rear
4479	04479-33240	Cylinder Kit, Disc Brake, Rear
4479	04479-33350	Cylinder Kit, Disc Brake, Rear
4479	04479-42070	Cylinder Kit, Disc Brake, Rear
4479	04479-42080	Cylinder Kit, Disc Brake, Rear
4946	04946-42030	Shim Kit, Anti Squeal(For Rear Disc Brake)
4948	04948-42020	Fitting Kit, Disc Brake, Rear
4948	04948-75010	Fitting Kit, Disc Brake, Rear
31478	31478-42010	Cap, Bleeder Plug(For Rear Disc Brake)
31478	31478-50020	Cap, Bleeder Plug(For Front Disc Brake)
47547	47547-20010	Plug, Bleeder(For Release Cylinder)
47547	47547-35020	Plug, Bleeder(For Front Disc Brake)
47716	47816-42060	Plate, Pad Support, No.1(For Rear Disc Brake)
47716	47816-75010	Plate, Pad Support, No.1(For Rear Disc Brake)
47721	47821-42060	Mounting, Rear Disc Brake Cylinder, Rh
47721	47814-33211	Pin, Cylinder Slide, No.1(For Rear Disc Brake)
47721	47821-42061	Mounting, Rear Disc Brake Cylinder, Rh
47721	47879-33211	Bush, Cylinder Slide, No.1(For Rear Disc Brake)
47721	47821-42062	Mounting, Rear Disc Brake Cylinder, Rh
47721	47821-42080	Mounting, Rear Disc Brake Cylinder, Rh
47721	90105-08164	Bolt(For Front Disc Brake Cylinder Slide)
47721	90105-08304	Bolt(For Front Disc Brake Cylinder Slide)
47722	47822-42060	Mounting, Rear Disc Brake Cylinder, Lh
47722	47822-42061	Mounting, Rear Disc Brake Cylinder, Lh
47722	47822-42062	Mounting, Rear Disc Brake Cylinder, Lh
47722	47822-42070	Mounting, Rear Disc Brake Cylinder, Lh
47730	47830-42060	Cylinder Assy, Rear Disc Brake, Rh
47730	47830-42061	Cylinder Assy, Rear Disc Brake, Rh
47730	47830-42062	Cylinder Assy, Rear Disc Brake, Rh
47730	47830-42080	Cylinder Assy, Rear Disc Brake, Rh
47731	47831-33210	Piston, Rear Disc Brake
47731	47831-42060	Piston, Rear Disc Brake
47750	47850-42060	Cylinder Assy, Disc Brake, Rear Lh
47750	47850-42061	Cylinder Assy, Disc Brake, Rear Lh
47750	47850-42062	Cylinder Assy, Disc Brake, Rear Lh
47750	47850-42070	Cylinder Assy, Disc Brake, Rear Lh
47769	47879-33240	Bush, Cylinder Slide, No.1(For Rear Disc Brake)
47771	47771-32030	Plate, Pad Wear Indicator(For Rear Disc Brake)
47810	90105-12314	Bolt, Hexagon(For Front Disc Brake Caliper)
47814	47814-33210	Pin, Cylinder Slide, No.1(For Rear Disc Brake)
47814	47814-33240	Pin, Cylinder Slide, No.1(For Rear Disc Brake)
47814	47815-42060	Pin, Cylinder Slide, No.1(For Rear Disc Brake)
47815	47814-42061	Pin, Rear Cylinder Slide, No.2(For Rear Disc Brake)
47815	47815-33240	Pin, Cylinder Slide, No.1(For Rear Disc Brake)
90015	90015-AU501	Ring, Set(For Front Disc Brake Piston)
90015	90520-52006	Ring, Set(For Disc Brake Piston)

OEM	Part name	Category
04466-42060	Pad Kit, Disc Brake, Rear	Rear Disc Brake Caliper & Dust Cover ([11.2005 - 06.2011] (0511-1106))
04479-33240	Cylinder Kit, Disc Brake, Rear	Rear Disc Brake Caliper & Dust Cover ([11.2005 - 06.2011] (0511-1106))
04479-33350	Cylinder Kit, Disc Brake, Rear	Rear Disc Brake Caliper & Dust Cover ([11.2005 - 06.2011] (0511-1106))
04479-42070	Cylinder Kit, Disc Brake, Rear	Rear Disc Brake Caliper & Dust Cover ([11.2005 - 06.2011] (0511-1106))
04479-42080	Cylinder Kit, Disc Brake, Rear	Rear Disc Brake Caliper & Dust Cover ([11.2005 - 06.2011] (0511-1106))
04946-42030	Shim Kit, Anti Squeal(For Rear Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([11.2005 - 06.2011] (0511-1106))
04948-42020	Fitting Kit, Disc Brake, Rear	Rear Disc Brake Caliper & Dust Cover ([11.2005 - 06.2011] (0511-1106))
04948-75010	Fitting Kit, Disc Brake, Rear	Rear Disc Brake Caliper & Dust Cover ([11.2005 - 06.2011] (0511-1106))
31478-42010	Cap, Bleeder Plug(For Rear Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([11.2005 - 06.2011] (0511-1106))
31478-50020	Cap, Bleeder Plug(For Front Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([11.2005 - 06.2011] (0511-1106))
47547-20010	Plug, Bleeder(For Release Cylinder)	Rear Disc Brake Caliper & Dust Cover ([11.2005 - 06.2011] (0511-1106))
47547-35020	Plug, Bleeder(For Front Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([11.2005 - 06.2011] (0511-1106))
47771-32030	Plate, Pad Wear Indicator(For Rear Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([11.2005 - 06.2011] (0511-1106))
47814-33210	Pin, Cylinder Slide, No.1(For Rear Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([11.2005 - 06.2011] (0511-1106))
47814-33211	Pin, Cylinder Slide, No.1(For Rear Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([11.2005 - 06.2011] (0511-1106))
47814-33240	Pin, Cylinder Slide, No.1(For Rear Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([11.2005 - 06.2011] (0511-1106))
47814-42061	Pin, Rear Cylinder Slide, No.2(For Rear Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([11.2005 - 06.2011] (0511-1106))
47815-33240	Pin, Cylinder Slide, No.1(For Rear Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([11.2005 - 06.2011] (0511-1106))
47815-42060	Pin, Cylinder Slide, No.1(For Rear Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([11.2005 - 06.2011] (0511-1106))
47816-42060	Plate, Pad Support, No.1(For Rear Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([11.2005 - 06.2011] (0511-1106))
47816-75010	Plate, Pad Support, No.1(For Rear Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([11.2005 - 06.2011] (0511-1106))
47821-42060	Mounting, Rear Disc Brake Cylinder, Rh	Rear Disc Brake Caliper & Dust Cover ([11.2005 - 06.2011] (0511-1106))
47821-42061	Mounting, Rear Disc Brake Cylinder, Rh	Rear Disc Brake Caliper & Dust Cover ([11.2005 - 06.2011] (0511-1106))
47821-42062	Mounting, Rear Disc Brake Cylinder, Rh	Rear Disc Brake Caliper & Dust Cover ([11.2005 - 06.2011] (0511-1106))
47821-42080	Mounting, Rear Disc Brake Cylinder, Rh	Rear Disc Brake Caliper & Dust Cover ([11.2005 - 06.2011] (0511-1106))
47822-42060	Mounting, Rear Disc Brake Cylinder, Lh	Rear Disc Brake Caliper & Dust Cover ([11.2005 - 06.2011] (0511-1106))
47822-42061	Mounting, Rear Disc Brake Cylinder, Lh	Rear Disc Brake Caliper & Dust Cover ([11.2005 - 06.2011] (0511-1106))
47822-42062	Mounting, Rear Disc Brake Cylinder, Lh	Rear Disc Brake Caliper & Dust Cover ([11.2005 - 06.2011] (0511-1106))
47822-42070	Mounting, Rear Disc Brake Cylinder, Lh	Rear Disc Brake Caliper & Dust Cover ([11.2005 - 06.2011] (0511-1106))
47830-42060	Cylinder Assy, Rear Disc Brake, Rh	Rear Disc Brake Caliper & Dust Cover ([11.2005 - 06.2011] (0511-1106))
47830-42061	Cylinder Assy, Rear Disc Brake, Rh	Rear Disc Brake Caliper & Dust Cover ([11.2005 - 06.2011] (0511-1106))
47830-42062	Cylinder Assy, Rear Disc Brake, Rh	Rear Disc Brake Caliper & Dust Cover ([11.2005 - 06.2011] (0511-1106))
47830-42080	Cylinder Assy, Rear Disc Brake, Rh	Rear Disc Brake Caliper & Dust Cover ([11.2005 - 06.2011] (0511-1106))
47831-33210	Piston, Rear Disc Brake	Rear Disc Brake Caliper & Dust Cover ([11.2005 - 06.2011] (0511-1106))
47831-42060	Piston, Rear Disc Brake	Rear Disc Brake Caliper & Dust Cover ([11.2005 - 06.2011] (0511-1106))
47850-42060	Cylinder Assy, Disc Brake, Rear Lh	Rear Disc Brake Caliper & Dust Cover ([11.2005 - 06.2011] (0511-1106))
47850-42061	Cylinder Assy, Disc Brake, Rear Lh	Rear Disc Brake Caliper & Dust Cover ([11.2005 - 06.2011] (0511-1106))
47850-42062	Cylinder Assy, Disc Brake, Rear Lh	Rear Disc Brake Caliper & Dust Cover ([11.2005 - 06.2011] (0511-1106))
47850-42070	Cylinder Assy, Disc Brake, Rear Lh	Rear Disc Brake Caliper & Dust Cover ([11.2005 - 06.2011] (0511-1106))
47879-33211	Bush, Cylinder Slide, No.1(For Rear Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([11.2005 - 06.2011] (0511-1106))
47879-33240	Bush, Cylinder Slide, No.1(For Rear Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([11.2005 - 06.2011] (0511-1106))
90015-AU501	Ring, Set(For Front Disc Brake Piston)	Rear Disc Brake Caliper & Dust Cover ([11.2005 - 06.2011] (0511-1106))
90105-08164	Bolt(For Front Disc Brake Cylinder Slide)	Rear Disc Brake Caliper & Dust Cover ([11.2005 - 06.2011] (0511-1106))
90105-08304	Bolt(For Front Disc Brake Cylinder Slide)	Rear Disc Brake Caliper & Dust Cover ([11.2005 - 06.2011] (0511-1106))
90105-12314	Bolt, Hexagon(For Front Disc Brake Caliper)	Rear Disc Brake Caliper & Dust Cover ([11.2005 - 06.2011] (0511-1106))
90520-52006	Ring, Set(For Disc Brake Piston)	Rear Disc Brake Caliper & Dust Cover ([11.2005 - 06.2011] (0511-1106))
