Search › Model › ACA36

ACA36

Toyota RAV4-VANGUARD · 2005 · 4,459 parts · 219 categories

4,459 items

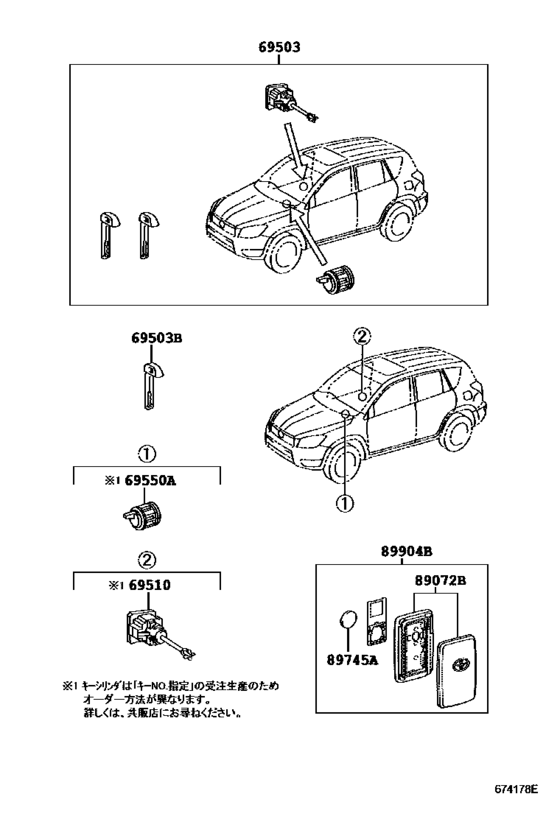

Lock Cylinder Set ([11.2005 - ] ｱﾘ(ｽﾏｰﾄｴﾝﾄﾘ) (0511- )) 21

#	OEM	Part name
69503	69005-42420	Cylinder Set, Lock
69503	69515-52110	Key, Cut - for blank key →
69503	69005-42410	Cylinder Set, Lock
69503	69005-42540	Cylinder Set, Lock
69503	69005-42541	Cylinder Set, Lock
69503	69005-42542	Cylinder Set, Lock
69503	69005-42543	Cylinder Set, Lock
69510	69510-52230	Cylinder Assy, Front Door Lock, Rh
69510	69510-52220	Cylinder Assy, Front Door Lock, Rh
69550	69550-30150	Cylinder Assy, Glove Compartment Door Lock
69550	69550-21030	Cylinder Assy, Glove Compartment Door Lock
89072	89072-12450	Housing Set, Door Control Transmitter (For Smart Key)
89072	89072-28550	Housing Set, Door Control Transmitter (For Smart Key)
89745	89745-52020	Battery, Transmitter
89745	89745-48030	Battery, Transmitter
89904	89904-12410	Transmitter Sub-Assy, Electrical Key
89904	89904-12080	Transmitter Sub-Assy, Electrical Key
89904	89904-12420	Transmitter Sub-Assy, Electrical Key
89904	89904-12160	Transmitter Sub-Assy, Electrical Key
89904	89904-42040	Transmitter Sub-Assy, Electrical Key
89904	89904-28530	Transmitter Sub-Assy, Electrical Key

OEM	Part name	Category
69005-42410	Cylinder Set, Lock	Lock Cylinder Set ([11.2005 - ] ｱﾘ(ｽﾏｰﾄｴﾝﾄﾘ) (0511- ))
69005-42420	Cylinder Set, Lock	Lock Cylinder Set ([11.2005 - ] ｱﾘ(ｽﾏｰﾄｴﾝﾄﾘ) (0511- ))
69005-42540	Cylinder Set, Lock	Lock Cylinder Set ([11.2005 - ] ｱﾘ(ｽﾏｰﾄｴﾝﾄﾘ) (0511- ))
69005-42541	Cylinder Set, Lock	Lock Cylinder Set ([11.2005 - ] ｱﾘ(ｽﾏｰﾄｴﾝﾄﾘ) (0511- ))
69005-42542	Cylinder Set, Lock	Lock Cylinder Set ([11.2005 - ] ｱﾘ(ｽﾏｰﾄｴﾝﾄﾘ) (0511- ))
69005-42543	Cylinder Set, Lock	Lock Cylinder Set ([11.2005 - ] ｱﾘ(ｽﾏｰﾄｴﾝﾄﾘ) (0511- ))
69510-52220	Cylinder Assy, Front Door Lock, Rh	Lock Cylinder Set ([11.2005 - ] ｱﾘ(ｽﾏｰﾄｴﾝﾄﾘ) (0511- ))
69510-52230	Cylinder Assy, Front Door Lock, Rh	Lock Cylinder Set ([11.2005 - ] ｱﾘ(ｽﾏｰﾄｴﾝﾄﾘ) (0511- ))
69515-52110	Key, Cut - for blank key →	Lock Cylinder Set ([11.2005 - ] ｱﾘ(ｽﾏｰﾄｴﾝﾄﾘ) (0511- ))
69550-21030	Cylinder Assy, Glove Compartment Door Lock	Lock Cylinder Set ([11.2005 - ] ｱﾘ(ｽﾏｰﾄｴﾝﾄﾘ) (0511- ))
69550-30150	Cylinder Assy, Glove Compartment Door Lock	Lock Cylinder Set ([11.2005 - ] ｱﾘ(ｽﾏｰﾄｴﾝﾄﾘ) (0511- ))
89072-12450	Housing Set, Door Control Transmitter (For Smart Key)	Lock Cylinder Set ([11.2005 - ] ｱﾘ(ｽﾏｰﾄｴﾝﾄﾘ) (0511- ))
89072-28550	Housing Set, Door Control Transmitter (For Smart Key)	Lock Cylinder Set ([11.2005 - ] ｱﾘ(ｽﾏｰﾄｴﾝﾄﾘ) (0511- ))
89745-48030	Battery, Transmitter	Lock Cylinder Set ([11.2005 - ] ｱﾘ(ｽﾏｰﾄｴﾝﾄﾘ) (0511- ))
89745-52020	Battery, Transmitter	Lock Cylinder Set ([11.2005 - ] ｱﾘ(ｽﾏｰﾄｴﾝﾄﾘ) (0511- ))
89904-12080	Transmitter Sub-Assy, Electrical Key	Lock Cylinder Set ([11.2005 - ] ｱﾘ(ｽﾏｰﾄｴﾝﾄﾘ) (0511- ))
89904-12160	Transmitter Sub-Assy, Electrical Key	Lock Cylinder Set ([11.2005 - ] ｱﾘ(ｽﾏｰﾄｴﾝﾄﾘ) (0511- ))
89904-12410	Transmitter Sub-Assy, Electrical Key	Lock Cylinder Set ([11.2005 - ] ｱﾘ(ｽﾏｰﾄｴﾝﾄﾘ) (0511- ))
89904-12420	Transmitter Sub-Assy, Electrical Key	Lock Cylinder Set ([11.2005 - ] ｱﾘ(ｽﾏｰﾄｴﾝﾄﾘ) (0511- ))
89904-28530	Transmitter Sub-Assy, Electrical Key	Lock Cylinder Set ([11.2005 - ] ｱﾘ(ｽﾏｰﾄｴﾝﾄﾘ) (0511- ))
89904-42040	Transmitter Sub-Assy, Electrical Key	Lock Cylinder Set ([11.2005 - ] ｱﾘ(ｽﾏｰﾄｴﾝﾄﾘ) (0511- ))
