ACA36

Toyota RAV4 / ヴァンガード · 2005 · 4,459 部品 · 219 カテゴリ

4,459 件

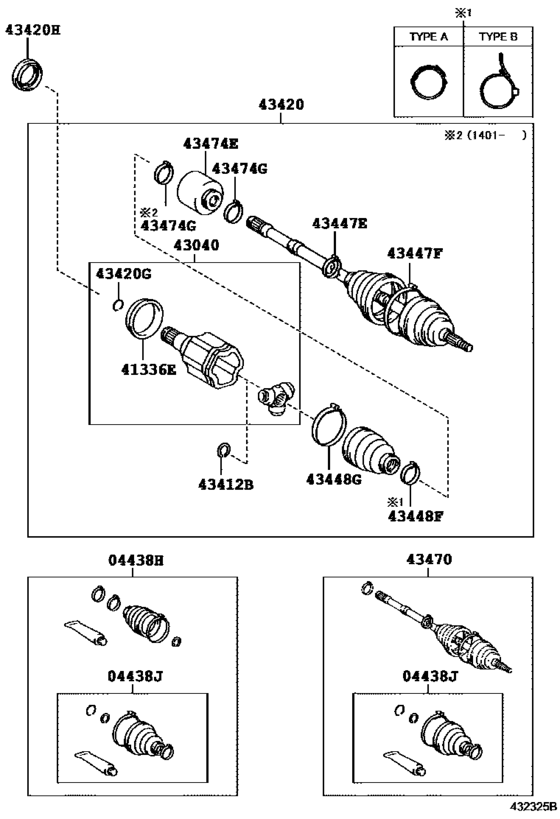

Front Drive Shaft ([11.2005 - ] ﾚﾌﾄ (0511- )) 21

#	OEM	部品名
4438	04428-42110	Boot Kit, Front Drive Shaft, In & Outboard, Lh
4438	04428-42113	Boot Kit, Front Drive Shaft, In & Outboard, Lh
4438	04428-42111	Boot Kit, Front Drive Shaft, In & Outboard, Lh
4438	04438-42180	Boot Kit, Front Drive Shaft Inboard Joint
41336	41336-28020	Cover, Front Drive Shaft Dust, Lh
43040	43040-28011	Joint Assy, Front Drive Inboard, Lh
43412	43425-28010	Ring, Shaft Snap (For Front Drive Inner Shaft Inner Rh)
43420	43420-42160	Shaft Assy, Front Drive, Lh
43420	90521-33002	Ring, Hole Snap (For Rear Differential Side Gear Shaft)
43420	90311-50050	Oil Seal, Front Drive Shaft, Lh
43420	90311-50026	Oil Seal, Front Drive Shaft, Lh
43447	42345-42100	Clamp (For Front Axle Outboard Joint Boot) - Small
43447	42345-42090	Clamp, No.2 (For Front Axle Outboard Joint Boot) - Big
43448	42345-42010	Clamp (For Axle Inboard Joint Boot) - Small
43448	90949-01559	Clamp, No.1 (For Axle Outboard Joint Boot Setting)
43448	42345-12160	Clamp, No.2 (For Drive Shaft Inboard Joint Boot) - Big
43470	43470-49645	Shaft Assy, Front Drive Outboard Joint, Rh
43470	43470-49646	Shaft Assy, Front Drive Outboard Joint, Lh
43474	43474-42020	Damper, Front Drive Shaft, Rh
43474	43474-42060	Damper, Front Drive Shaft, Rh
43474	42345-14010	Clamp, Rear Drive Shaft Boot

OEM	部品名	カテゴリ
04428-42110	Boot Kit, Front Drive Shaft, In & Outboard, Lh	Front Drive Shaft ([11.2005 - ] ﾚﾌﾄ (0511- ))
04428-42111	Boot Kit, Front Drive Shaft, In & Outboard, Lh	Front Drive Shaft ([11.2005 - ] ﾚﾌﾄ (0511- ))
04428-42113	Boot Kit, Front Drive Shaft, In & Outboard, Lh	Front Drive Shaft ([11.2005 - ] ﾚﾌﾄ (0511- ))
04438-42180	Boot Kit, Front Drive Shaft Inboard Joint	Front Drive Shaft ([11.2005 - ] ﾚﾌﾄ (0511- ))
41336-28020	Cover, Front Drive Shaft Dust, Lh	Front Drive Shaft ([11.2005 - ] ﾚﾌﾄ (0511- ))
42345-12160	Clamp, No.2 (For Drive Shaft Inboard Joint Boot) - Big	Front Drive Shaft ([11.2005 - ] ﾚﾌﾄ (0511- ))
42345-14010	Clamp, Rear Drive Shaft Boot	Front Drive Shaft ([11.2005 - ] ﾚﾌﾄ (0511- ))
42345-42010	Clamp (For Axle Inboard Joint Boot) - Small	Front Drive Shaft ([11.2005 - ] ﾚﾌﾄ (0511- ))
42345-42090	Clamp, No.2 (For Front Axle Outboard Joint Boot) - Big	Front Drive Shaft ([11.2005 - ] ﾚﾌﾄ (0511- ))
42345-42100	Clamp (For Front Axle Outboard Joint Boot) - Small	Front Drive Shaft ([11.2005 - ] ﾚﾌﾄ (0511- ))
43040-28011	Joint Assy, Front Drive Inboard, Lh	Front Drive Shaft ([11.2005 - ] ﾚﾌﾄ (0511- ))
43420-42160	Shaft Assy, Front Drive, Lh	Front Drive Shaft ([11.2005 - ] ﾚﾌﾄ (0511- ))
43425-28010	Ring, Shaft Snap (For Front Drive Inner Shaft Inner Rh)	Front Drive Shaft ([11.2005 - ] ﾚﾌﾄ (0511- ))
43470-49645	Shaft Assy, Front Drive Outboard Joint, Rh	Front Drive Shaft ([11.2005 - ] ﾚﾌﾄ (0511- ))
43470-49646	Shaft Assy, Front Drive Outboard Joint, Lh	Front Drive Shaft ([11.2005 - ] ﾚﾌﾄ (0511- ))
43474-42020	Damper, Front Drive Shaft, Rh	Front Drive Shaft ([11.2005 - ] ﾚﾌﾄ (0511- ))
43474-42060	Damper, Front Drive Shaft, Rh	Front Drive Shaft ([11.2005 - ] ﾚﾌﾄ (0511- ))
90311-50026	Oil Seal, Front Drive Shaft, Lh	Front Drive Shaft ([11.2005 - ] ﾚﾌﾄ (0511- ))
90311-50050	Oil Seal, Front Drive Shaft, Lh	Front Drive Shaft ([11.2005 - ] ﾚﾌﾄ (0511- ))
90521-33002	Ring, Hole Snap (For Rear Differential Side Gear Shaft)	Front Drive Shaft ([11.2005 - ] ﾚﾌﾄ (0511- ))
90949-01559	Clamp, No.1 (For Axle Outboard Joint Boot Setting)	Front Drive Shaft ([11.2005 - ] ﾚﾌﾄ (0511- ))
