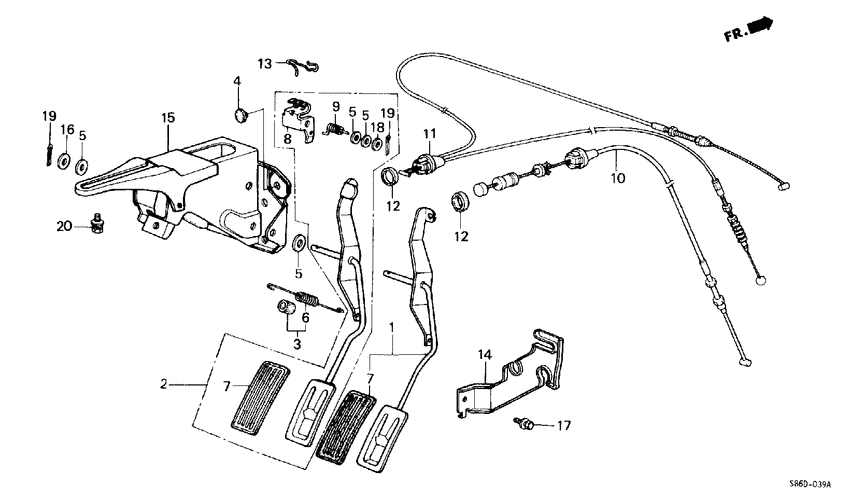

Accelerator pedal 16

#	OEM	部品名
1	17800-SB6-670	Pedal assy - ACCELERATOR
2	17800-SB6-711	Pedal assy - ACCELERATOR
3	17802-SB6-000	Spring assy - ACCELERATOR
4	17805-SB2-000	Pad - ACCELERATOR STOPPER
5	17812-SA7-010	Washer - ACCELERATOR PEDAL
6	17814-SB6-000	Spring - ACCELERATOR PEDAL
7	17816-692-000	Cover - ACCELERATOR PEDAL
8	17826-SB2-981	Hook - THROTTLE WIRE
9	17827-SB2-980	Spring - ACCELERATOR PLATE
10	17910-SB6-731	Wire - THROTTLE
11	17910-SB6-771	Wire - THROTTLE
12	17921-SA4-730	Seal - THROTTLE CABLE
14	17931-SB6-672	Stay - THROTTLE WIRE
15	46590-SB6-670	Bracket - PEDAL
15	46590-SB6-710	Bracket - PEDAL
16	90503-SA0-000	Washer - PLAIN, 9MM

Air cleaner 39

#	OEM	部品名
1	16238-PE0-661	Clamp - FUEL HOSE
2	17115-PE0-300	Label - AIR CLEANER (12-VALVE)
3	17150-PA6-004	Valve - CHECK
4	17210-PE3-603	Cover comp. - AIR CLEANER
5	17212-PC0-000	Washer - AIR CLEANER
6	17217-657-000	Clip b - WIRE (DACRO COATING)
7	17218-PE0-000	Clip A - WIRE
8	17220-PE3-601	Element - AIR CLEANER
9	17221-PD2-300	Packing - ELEMENT
10	17222-PE0-300	Seal - VALVE
11	17226-PE3-000	Grommet - AIR CLEANER CASE
13	17240-PE3-881	Case assy. - AIR CLEANER
14	17242-PE0-903	Pipe - AIR INTAKE
15	17244-PE0-010	Clamp - AIR INTAKE PIPE
16	17245-657-013	Diaphragm - CONTROL VALVE
17	17247-PA0-000	Insulator - SENSOR
18	17250-PE0-003	Sensor comp - AIR IN.
19	17251-PE0-300	Valve - AIR CONTROL
20	17253-689-300	Plug - CONTROL VALVE
21	17255-PE0-010	Stay - CLEANER CASE
22	17257-PE3-730	Pin - PLUG LOCK
23	17258-PE0-300	Packing - AIR CLEANER COVER
24	17261-PE0-660	Clamp comp - CABLE (A)
24	17261-PE0-900	Clamp comp - CABLE (A)
25	17266-PE3-000	Insulator - CLEANER CASE
26	17271-PE3-880	Case - BREATHER ELEMENT
27	17272-PE0-000	Packing - BREATHER
29	17274-PE3-880	Element - BREATHER
30	17275-PE0-000	Supporter - BREATHER ELEMENT
31	17318-PE3-881	Protector - BREATHER ELEMENT
32	17415-PE0-000	Plate - RECTIFY
33	17436-PE0-000	Clamp - CORD
34	17436-PG6-900	Clamp - CENTER CORD
38	60581-SB6-000	Duct - AIR CLEANER
39	90070-PC1-000	Screw - TAPPING, 6X16
40	90163-SA5-000	Screw-washer - 4X16
41	90203-PB2-000	Nut - AIR CLEANER COVER (DACRO COATING)
42	91405-PE0-003	Clamp - TUBE (D20)
42	91417-SZ3-003	Clamp - FUEL TUBE (D20) (CHUO HATSUJO)

Air conditioner (CARBURETOR COMPONENTS) 14

#	OEM	部品名
1	38787-PE3-601	Clip - SPECIAL
2	17205-PC6-000	Clamp - TUBE, 7.5X2
3	17363-PE2-013	Clamp - TUBE, 7.5X2
4	36138-PA0-004	Filter assy - SOLENOID VALVE
5	38771-PE0-004	Valve assy. - AIR CONDITIONER SOLENOID
6	38773-PE0-013	Clip - WIRE HARNESS
7	38774-PE3-600	Stay - TUBE CLAMP
8	38775-PE3-600	Stay - SOLENOID VALVE
9	38776-671-000	Cap - AIR FILTER
10	38781-PE3-601	Diaphragm assy.
11	38788-PE3-600	Stay - WIRE
12	38789-PE3-601	Plate - SETTING
13	38791-PE2-003	Clamp - TUBE, 3.5
14	90092-657-000	Screw-washer - 5X8

Air conditioner (COMPRESSOR) 30

#	OEM	部品名
1	38000-SB3-805	Conditioner kit - AIR
2	38011-PE0-020	Clutch set - COMPRESSOR
3	38800-PE0-063	Compressor assy - CN150L
4	38860-PE0-010	Plate - COMPRESSOR HEAT BAFFLE
5	38871-PC0-005	Seal set - SHAFT
6	38920-PE0-014	Belt - COMPRESSOR (MITSUBOSHI)
6	38920-PE0-013	Belt - COMPRESSOR (BANDO)
7	38924-PE0-000	Solenoid comp.
8	38930-PE0-030	Bracket comp. - COMPRESSOR
9	38933-PE0-003	Bolt - COMPRESSOR
10	38934-PE0-000	Rubber comp - STOPPER
11	38940-PB8-610	Shim - CLUTCH (1.25)
11	38944-PB8-000	Shim - CLUTCH (1.5)
11	38942-PB8-000	Shim - CLUTCH (2.0)
11	38939-PB8-000	Shim - CLUTCH (0.1)
11	38943-PB8-000	Shim - CLUTCH (1.75)
11	38941-PB8-610	Shim - CLUTCH (1.0)
12	38942-PG6-010	Pulley comp - IDLE
13	38944-PE0-000	Collar - IDLE PULLEY
14	38945-PE0-010	Cover - BEARING
15	38946-PE0-010	Bolt - IDLE PULLEY
16	47539-SA5-003	Washer
17	90001-PC0-005	Bolt - SPECIAL, 6X17
18	90017-PE0-000	Washer - 10MM
19	90021-PE0-020	Bolt - FLANGE, 8X90
20	90057-PE0-000	Bolt - COMPRESSOR, 10X115
21	90086-444-000	Bolt - FLANGE, 10X45
22	90201-PB8-000	Nut - COMPRESSOR FLANGE, 12MM
23	90601-PC0-005	Circlip - EXTERNAL, 40MM
24	90741-PB8-610	Key - SPECIAL

Air conditioner (CONDENSER) 21

#	OEM	部品名
1	38600-SB2-053	Condenser assy
2	38602-SB2-020	Bracket - CONDENSER
3	38607-SA5-000	Washer - SPECIAL, 26MM
4	38608-SA5-000	Rubber - MOUNTING
5	38609-SA5-000	Collar - DISTANCE
7	38611-SB2-013	Fan comp - COOLING
8	38612-SB2-033	Motor - COOLING FAN
9	38613-SB2-000	Rubber - MOTOR MOUNT
10	38613-692-000	Collar - MOTOR MOUNTING
11	38614-SB2-000	Cover - SHROUD
12	38615-SB2-040	Shroud comp.
13	60513-SB2-010	Cover - FR. UNDER CENTER
16	62523-SB6-000	Plate - FR. BUMPER SIDE BAFFLE
17	62522-SB6-660	Plate - FR. BUMPER UPPER BAFFLE
18	75522-611-000	Grommet - SCREW, 4MM
19	90107-SA7-003	Screw - TAPPING, 4X10
19	90130-693-000	Screw - TAPPING, 4X10
20	90111-SA5-000	Bolt-washer - 6X30
22	90675-SA5-003	Nut - CLIP, 6MM
28	90041-PD2-004	Nut - SPECIAL, 5MM (MITSUBA)
28	90311-MB6-003	Nut toothed 5mm

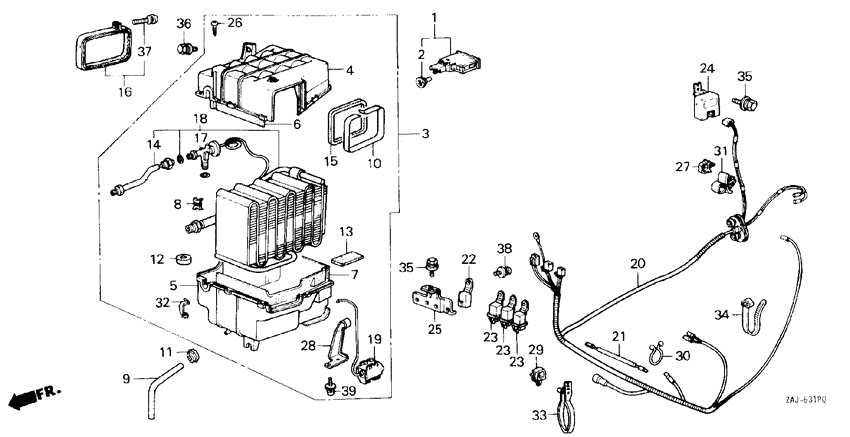

Air conditioner (COOLER UNIT; D,P,Y) 39

#	OEM	部品名
1	35850-SB3-013	Switch assy - AIR CONDITIONER
2	37553-SA0-003	Bulb & socket - 14V 1.4W
3	38620-SB2-672	Cooling unit
4	38621-SB2-660	Case - EVAPORATOR UPPER
5	38622-SB2-661	Case - EVAPORATOR LOWER
6	38623-SB2-660	Insulator - EVAPORATOR UPPER
7	38624-SB2-661	Insulator - EVAPORATOR LOWER
8	38625-SB2-000	Holder - EVAPORATOR PIPE
9	38626-SB2-010	Hose - DRAIN
10	38627-SB2-000	Face - DOUBLE
11	38627-692-000	Grommet - DRAIN HOSE
12	38628-SB2-000	Seal - CAP
13	38629-SB2-000	Pad - EVAPORATOR WATER
14	38632-SB2-661	Pipe - LIQUID
14	38632-SB2-671	Pipe - LIQUID (SHOWA)
15	38638-SB2-000	Seal - EVAPORATOR
16	38639-SB2-000	Band b - AIR CONDITIONER
17	38650-SB2-661	Valve assy. - EXPANSION
17	38650-SA7-003	Valve - EXPANSION (FUJI KOKI)
18	38655-SB2-662	Evaporator sub assy.
18	38655-SB2-672	Evaporator sub assy. - SHOWA
19	38660-SB2-661	Thermostat - AIR CONDITIONER
19	38660-SB2-003	Thermostat - AIR CONDITIONER (SHOWA)
20	38710-SB2-781	Harness - AIR CONDITIONER WIRE
21	38711-SB6-000	Cord comp - MAGNET CLUTCH
22	38725-SA5-003	Diode assy.
23	39795-SB2-003	Relay assy - POWER (4P) (MITSUBA) (RC-2201)
24	39400-SB2-013	Control assy. - DELAY (MITSUBA)
25	39402-SB2-010	Bracket - AIR CONDITIONER RELAY
26	90102-SA4-000	Screw - TAPPING, 4X16
27	90650-SB2-003	Clip - WIRE HARNESS, 10MM
28	90650-SB2-670	Holder - WIRE HARNESS
29	90651-SB2-003	Clip - WIRE HARNESS, 13MM (GRAY)
30	90653-SA7-003	Purse - LOCK, 11MM
30	90630-751-000	Clip, purse lock
31	90654-SA4-003	Clip - WIRE HARNESS, 6MM (WHITE)
32	90659-692-000	Clamp - CASE
33	90669-671-003	Strap b - CABLE, 125MM (BLUE)
34	90674-WA8-003	Band - CABLE, 120MM (BLACK)

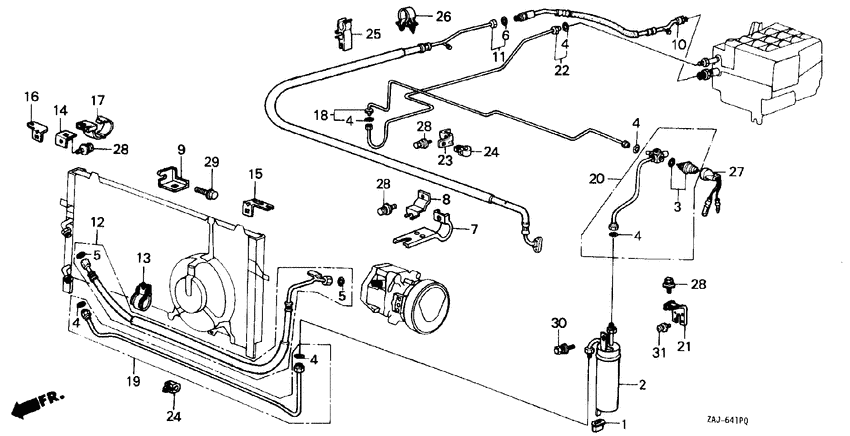

Air conditioner (HOSES/PIPES; D,P,Y) 30

#	OEM	部品名
1	38601-SA7-000	Rubber - CONDENSER MOUNTING
2	38640-SB2-661	Receiver assy
2	38640-SB2-003	Receiver assy - SHOWA
3	38645-680-961	Switch - PRESSURE
4	38646-692-660	O-ring - 3/8"
4	80874-SL0-900	O-ring - 3/8"
5	38647-692-660	O-ring - 1/2"
6	38648-692-660	O-ring - 5/8"
7	38666-SB2-770	Bracket - SUCTION HOSE
8	38667-SB2-770	Clamp - SUCTION HOSE
9	38668-SB2-770	Stay - SUCTION HOSE
10	38669-SB2-771	Hose comp. b - SUCTION (NICHIRIN)
11	38670-SB2-665	Hose comp. - SUCTION (NICHIRIN)
11	38670-SB2-673	Hose comp. - SUCTION
12	38671-SB2-033	Hose comp. - DISCHARGE (NICHIRIN)
12	38671-SB2-010	Hose comp. - DISCHARGE
12	38671-SB2-601	Hose comp. - DISCHARGE (NICHIRIN)
13	38674-SB2-010	Clamp - DISCHARGE HOSE
18	38681-SB2-673	Pipe a - RECEIVER (SHOWA)
19	38682-SB2-013	Pipe - CONDENSER (SHOWA)
20	38683-SB2-675	Glass assy - SIGHT
20	38683-SB2-676	Glass assy - SIGHT
21	38684-SB2-020	Bracket - SIGHT GLASS
21	38684-SB2-670	Bracket - SIGHT GLASS
22	38685-SB2-674	Pipe b - RECEIVER (SHOWA)
23	38686-SB2-670	Bracket - RECEIVER PIPE
24	38687-SB2-003	Clip - RECEIVER PIPE
25	38687-SB2-671	Clip - RECEIVER PIPE
26	38687-SB2-920	Clip - SUCTION PIPE
27	38711-692-010	Protector - PRESSURE SWITCH

Alternator components 25

#	OEM	部品名
1	31101-PE0-023	Rotor assy.
2	31105-PD1-024	Holder assy. - ALTERNATOR BRUSH
3	31109-PE1-662	Frame assy - DRIVE END
4	31111-PD1-014	Bearing - RR. GENERATOR
5	31114-PD1-034	Bearing - FR. GENERATOR
6	31116-PE0-013	Plate - RETAINER
7	31118-PD1-004	Bush - INSULATION
8	31119-PH1-004	Bush - INSULATION
9	31121-PE0-003	Frame - RR. END
10	31127-PD1-004	Rectifier assy.
11	31129-PD1-014	Spring - BRUSH (###)
12	31135-PD1-004	Cover - RR. END
13	31138-PD1-004	Cover - BEARING
14	31141-PH7-004	Pulley - ALTERNATOR
15	31142-PD1-004	Nut - PULLEY LOCK
16	31144-PD1-004	Brush
16	31144-P01-003	Brush
17	31145-PD1-004	Bolt - STUD, 6X68
18	31146-PD1-004	Screw-washer - 4X19
19	31148-PD1-004	Screw-washer - 4X25
20	31149-PD1-004	Screw-washer - 4X8 (###)
21	31150-PE0-003	Regulator assy
22	90231-PD1-004	Nut-washer - 5MM
22	90231-PD1-014	Nut-washer - 5MM
23	91415-PE0-003	Clip - CORD

Auto radio 21

#	OEM	部品名
1	39100-SE3-W01	Tuner assy - AUTO RADIO (AM/FM) (NATIONAL)
2	39100-SE3-E41	Tuner assy - AUTO RADIO (MW/SW+CASSETTE) (NATIONAL)
2	39100-SE3-Q41	Tuner assy - AUTO RADIO (AM/FM+CASSETTE) (PIONEER)
3	39103-SC5-601	Knob - OUTER (NATIONAL) (30MM)
4	39103-SC5-701	Knob - OUTER (NATIONAL) (22MM)
5	39104-SC5-601	Knob - INNER (NATIONAL) (26MM)
6	39104-SC5-701	Knob - INNER (NATIONAL) (23MM)
6	39104-693-671	Knob - VOLUME & TUNING CONTROL (PIONEER)
7	39107-SC5-601	Panel
8	39107-SC5-701	Panel - PANASONIC
9	39108-693-004	Bolt-washer - 5X8
9	39108-SE3-601	Bolt-washer - 5X8
10	39110-647-771	Fuse - 1A) (PANASONIC
12	39117-SA5-000	Rubber - RADIO MOUNTING
13	39120-SB2-003	Speaker assy. (120mm - MAX.6.3W) (PANASONIC)
14	39150-SB6-731	Antenna assy - AUTO RADIO (PANASONIC)
15	39152-594-004	Cap - ROOF SEAL
16	39153-SB6-000	Washer - SEAL CAP
17	90105-SB6-003	Screw - PAN, 4X12
18	90502-SA0-003	Washer - WATER PROOF
19	90686-671-003	Band - JOINT PROTECTOR

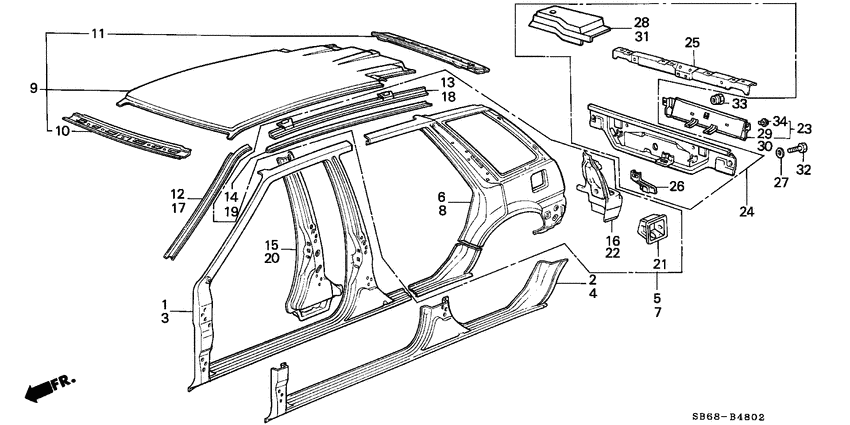

Body structure components (1) 3

#	OEM	部品名
30	60871-SB2-000	Plate - TIE DOWN
41	90127-SB2-000	Bolt-washer - 6X12
42	90675-SA5-003	Nut - CLIP, 6MM

Body structure components (3) 2

#	OEM	部品名
32	90108-SB3-000	Bolt - 6X12 (GREEN)
33	90304-SB0-000	Nut - FIXED TORQUE

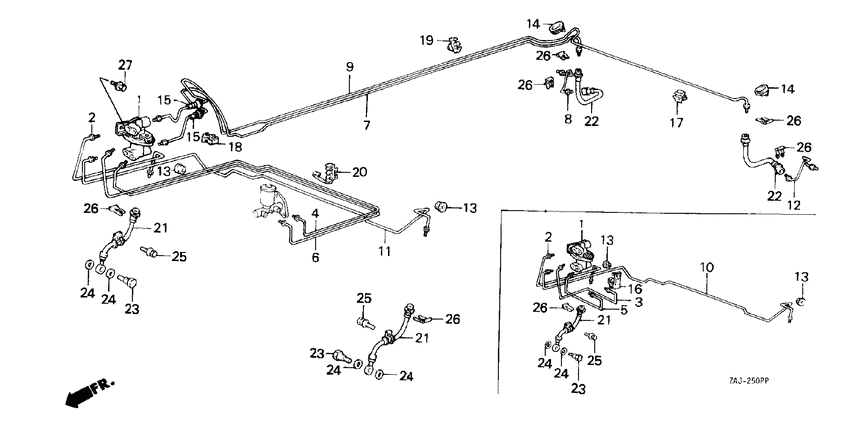

Brake hose/brake pipe 26

#	OEM	部品名
1	46210-SB0-672	Valve assy. - PROPORTIONING
2	46310-SB2-671	Pipe comp. a - BRAKE
4	46320-SB2-674	Pipe comp. b - BRAKE
6	46321-SB2-674	Pipe comp. h - BRAKE
7	46330-SB6-020	Pipe comp. c - BRAKE
8	46331-SB6-010	Pipe comp. e - R. BRAKE
9	46340-SB6-020	Pipe comp. d - BRAKE
11	46360-SB3-683	Pipe comp. f - BRAKE
12	46361-SB6-010	Pipe comp. e - L. BRAKE
13	46380-594-300	Grommet a - BRAKE PIPE
14	46381-692-300	Grommet b - BRAKE PIPE
15	46382-SA0-300	Grommet a - BRAKE PIPE
17	46391-692-003	Clip s - BRAKE PIPE
18	46392-SB2-014	Clip b - BRAKE PIPE
19	46392-692-003	Clip d - BRAKE PIPE (WHITE)
20	46393-SB2-673	Clip c - BRAKE PIPE
21	46410-SB2-025	Hose - FR. BRAKE (TOYODA)
21	46410-SB2-044	Hose - FR. BRAKE (MEIJI)
21	46410-SB2-023	Hose - FR. BRAKE (NICHIRIN)
22	46430-SB3-024	Hose - RR. BRAKE (MEIJI)
22	46430-SB3-005	Hose - RR. BRAKE (TOYODA)
22	46430-SB3-003	Hose - RR. BRAKE (NICHIRIN)
23	46462-663-670	Bolt - OIL
24	46472-568-000	Packing - OIL BOLT
25	90105-SB0-003	Bolt-washer - 8X16
26	90651-538-000	Clip - BRAKE HOSE

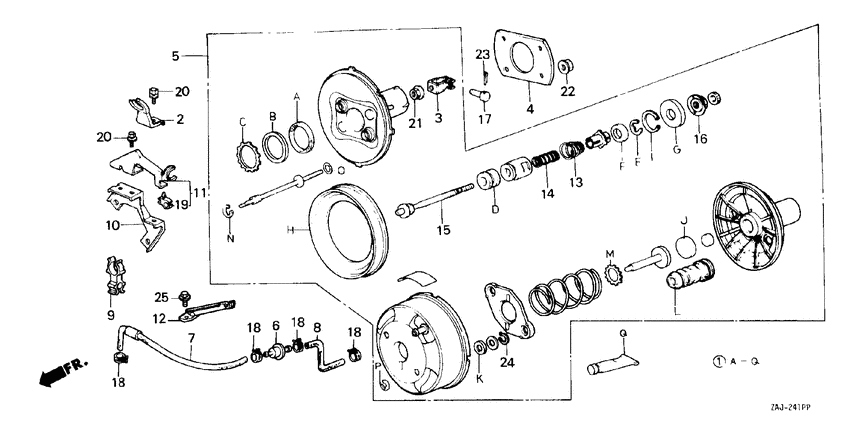

Brake master cylinder 17

#	OEM	部品名
1	31185-PE0-660	Guard comp - ALTERNATOR
2	46100-SA5-023	Cylinder assy. - MASTER
3	46120-SF4-003	Piston assy. - PRIMARY
3	46120-SA5-003	Piston assy. - PRIMARY
4	46122-SA5-013	Piston assy. - SECONDARY
5	46126-SA5-013	Cup - SECONDARY
6	46138-568-671	Packing
7	46139-632-000	Bolt - STOPPER
9	46181-SA5-013	Plate - RETURN STOPPER
10	46182-SA5-013	Circlip
11	46183-SA5-013	Bush
12	46185-SA5-003	Seal - VACUUM
13	46660-SC2-003	Tank - RESERVE
14	46662-692-023	Cap comp. - RESERVE TANK
15	46665-671-651	Band - RESERVE TANK
16	46666-692-013	Filter - MASTER CYLINDER
17	46669-692-003	Seal - RESERVE TANK

Brake pedal/clutch pedal 15

#	OEM	部品名
1	22910-SB6-671	Wire comp - CLUTCH
2	22916-SA0-000	Cap c - CUSHION
3	22917-634-000	Seal - CLUTCH WIRE
4	46500-SB6-670	Pedal assy - BRAKE
5	46500-SB6-710	Pedal assy - BRAKE
6	46504-679-300	Bush - PEDAL
7	46505-SA5-000	Pad - PEDAL STOPPER
8	46530-SA5-000	Spring assy - PEDAL RETURN
9	46530-SB0-000	Spring assy - PEDAL RETURN
10	46535-692-000	Collar - PEDAL
11	46545-SA5-000	Cover, Pedal
12	46545-SA5-980	Cover - BRAKE PEDAL
13	46900-SB6-670	Pedal assy - CLUTCH
14	46935-SB2-000	Collar - PEDAL
15	46936-SB6-000	Spacer - CLUTCH PEDAL

Bumper 28

#	OEM	部品名
7	62511-SB6-000	Bumper - FR.
8	62512-SB6-010	Bracket - R. FR. BUMPER
9	62515-SB6-661	Stiffener - FR. BUMPER
10	62521-SB2-000	Nut - LICENSE PLATE
11	62522-SB6-010	Bracket - L. FR. BUMPER
12	62523-SB2-000	Stopper - BUMPER MOUNTING
13	62525-SB6-730	Beam - FR. BUMPER UPPER
14	62535-SB6-660	Bracket - R. FR. BUMPER MOUNTING
15	62545-SB6-660	Bracket - L. FR. BUMPER MOUNTING
18	84110-SB6-660	Frame comp - RR. BUMPER
19	84111-SB6-661	Bumper - RR.
23	84118-SB6-660	Seal - RR. BUMPER FRAME
26	84134-SB6-660	Support - LICENSE PLATE
27	84135-SB6-000	Bracket - LICENSE LIGHT
28	90696-SB0-000	Bolt-washer - 8X100
29	90130-SB0-000	Bolt assy - BUMPER
30	90140-SB6-000	Bolt - BUMPER
33	90141-SB6-000	Bolt assy - BUMPER
35	90164-SA5-000	Screw-washer - 4X20
36	90540-SA7-000	Washer - BUMPER
37	90540-SB6-000	Washer
39	90609-SA6-000	Clip A - PILLAR GARNISH
40	90671-SB2-000	Bolt - FR. FENDER (DACRO COATING)
42	90676-SA7-003	Grommet - SCREW, 5MM (BLACK)
43	90679-SD9-003	Clip - BUMPER CORNER
52	90105-634-000	Bolt-washer (8x20)
54	90141-SB0-000	Bolt - BUMPER CORNER
55	90681-SB2-980	Bolt assy - FR. FENDER (GREEN)

Camshaft/timing belt 14

#	OEM	部品名
1	14110-PE4-000	Camshaft comp.
2	14210-PE0-004	Pulley - TIMING BELT DRIVEN
3	14400-PE3-004	Belt - TIMING (UNITTA)
4	14510-PE0-005	Tensioner comp - TIMING BELT (NIPPON SEIKO)
4	14510-PE0-003	Tensioner comp - TIMING BELT (KOYO SEIKO)
5	14513-PE0-015	Bolt - TENSIONER (M6)
6	14516-PE0-010	Spring - TIMING BELT ADJUSTER
7	14517-PG6-000	Bolt a - TENSIONER
8	90011-PE0-000	Bolt - TIMING BELT ADJUSTER SPRING
9	90031-PC6-000	Bolt - FLANGE, 8X22
10	90435-611-000	Washer - SPECIAL, 28X8.5X4.0
11	90741-657-000	Key - 25.4X13
12	91213-PE1-721	Oil seal - 29X45X8 (NOK)
12	91213-P2F-A01	Oil seal - 29X45X8 (ARAI)

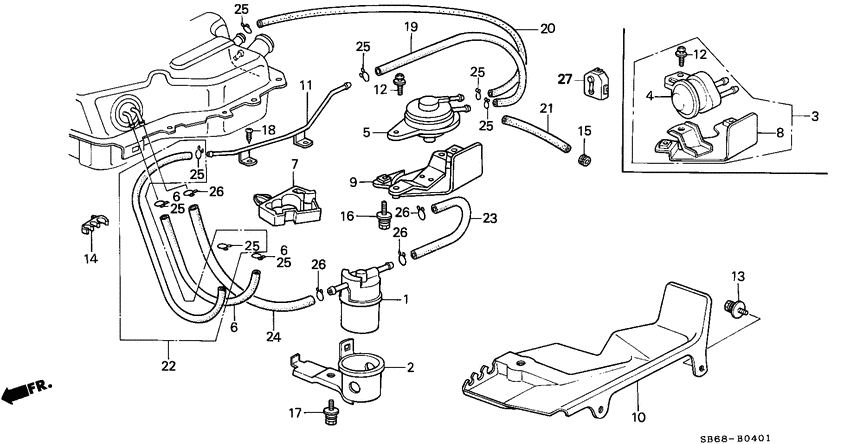

Canister 12

#	OEM	部品名
1	16704-PE0-662	Valve - ONE WAY
2	17267-PE0-661	Clamp - CANISTER HOSE
3	17300-SA5-711	Canister assy
4	17700-SB6-030	Pipe comp - FUEL FEED
5	17711-SA7-930	Grommet - FUEL PIPE
6	17712-SA0-000	Grommet - FUEL PIPE
9	17720-SB6-673	Pipe comp. a - VENT
11	17740-SB6-040	Pipe comp - FUEL RETURN
14	90664-SB2-003	Clamp - FUEL PIPE
15	90664-SB6-003	Clip - FUEL PIPE
18	90781-SB2-000	Holder - FUEL HOSE
19	90780-SB2-003	Clip - FUEL PIPE

Carburetor 33

#	OEM	部品名
1	16010-PC3-602	Gasket set
2	16011-PC3-601	Valve set - FLOAT
3	16013-PA1-641	Float set
4	16016-PE4-751	Screw set a
5	16019-PC3-781	Rod set - PUMP
6	16020-PE4-851	Diaphragm assy.
7	16021-PE8-601	Diaphragm set - PUMP
8	16028-PC3-601	Screw set b
9	16032-PE4-771	Rod set - THROTTLE
10	16037-PD3-601	Plate set
11	16041-PE4-772	Economizer set
12	16043-PE4-811	Opener set - THROTTLE
14	16071-PC3-601	Plug
15	16080-PE4-731	Screw-washer
16	16081-PC3-601	Bolt
17	16100-PE4-875	Carburetor assy - DE31A F
17	16100-PE4-885	Carburetor assy - DE31B F
18	16109-PB9-005	Collar - SETTING
19	16134-PC3-601	Clamp
20	16164-PD3-821	Tube - EMULSION SECONDARY
21	16166-PE3-851	Tube - EMULSION PRIMARY
22	16168-634-671	Tube - PRIMARY SLOW EMULSION
24	16181-PC3-781	Pin - SPLIT, 1.2
25	16182-PC3-781	Pin - SPLIT, 1.0
26	16183-PC3-781	Pin - SPLIT, 1.2
27	16199-PC3-601	Tube
28	16230-PE4-732	Valve - FUEL MAGNETIC
29	22415-551-000	Washer - 6.5MM
30	90085-PE3-300	Bolt - STUD, 6X70
37	99103-PC3-0500	Jet - SLOW, #50
38	99105-663-0700	Jet - AIR, #70
39	99105-663-0900	Jet - AIR, #90
40	99107-663-1550	Jet - SLOW AIR, #155

Center console 9

#	OEM	部品名
9	77705-SB6-000	Bracket - SEAT SUPPORT
11	77707-SB2-000	Plate - BOOT SETTING
13	77711-SA7-930	Spring - CONSOLE LID
14	77712-SA7-930	Spring - CONSOLE POCKET
17	77714-SB6-930	Stopper - LID
18	77718-SB6-930	Shaft - LID
20	77723-SD9-961	Bracket - CONSOLE POCKET
21	77724-SB6-810	Stay - FR. CONSOLE
22	90662-SA0-000	Grommet - SCREW

Clutch 52

#	OEM	部品名
1	21350-PE0-020	Cover - CLUTCH CASE
1	22500-PF0-902	Clutch assy. - LOW
2	22000-PE1-000	Clutch assy.
2	22510-PF0-000	Guide comp - LOW CLUTCH
3	22100-PE0-000	Flywheel comp.
3	22530-PA9-030	Piston comp - CLUTCH
4	22200-PJ7-000	Disk comp - FRICTION
4	22200-PE0-020	Disk - FRICTION
4	22530-PC9-010	Piston comp - CLUTCH
5	22300-PE1-040	Disk comp - PRESSURE
5	22541-PC9-000	Spring - CLUTCH RETURN
6	90011-PB2-000	Bolt - HEX., 12MM
6	22542-PA9-000	Seat - CLUTCH SPRING
7	90034-689-000	Bolt - TWELVE POINT, 8MM (TOKAI TRW)
7	22543-PA9-000	Plate - CLUTCH (106MM)
8	22543-PC9-000	Plate - CLUTCH (110MM)
9	22544-PA9-020	Disk - CLUTCH
10	22544-PC9-010	Disk - CLUTCH
11	22562-PA9-010	Plate - CLUTCH END (12) (2.45MM)
11	22554-PA9-010	Plate - CLUTCH END (4) (3.2MM)
11	22564-PA9-010	Plate - CLUTCH END (14) (3.05MM)
11	22555-PA9-010	Plate - CLUTCH END (5) (3.5MM)
11	22566-PA9-010	Plate - CLUTCH END (16) (3.65MM)
11	22561-PA9-010	Plate - CLUTCH END (11) (2.15MM)
11	22551-PA9-010	Plate - CLUTCH END (1) (2.3MM)
11	22563-PA9-010	Plate - CLUTCH END (13) (2.75MM)
11	22552-PA9-010	Plate - CLUTCH END (2) (2.6MM)
11	22565-PA9-010	Plate - CLUTCH END (15) (3.35MM)
11	22553-PA9-010	Plate - CLUTCH END (3) (2.9MM)
12	22557-PC9-000	Plate - CLUTCH END (7) (3.0MM)
12	22551-PC9-000	Plate - CLUTCH END (1) (2.4MM)
12	22559-PC9-000	Plate - CLUTCH END (9) (3.2MM)
12	22552-PC9-000	Plate - CLUTCH END (2) (2.5MM)
12	22556-PC9-000	Plate - CLUTCH END (6) (2.9MM)
12	22553-PC9-000	Plate - CLUTCH END (3) (2.6MM)
12	22558-PC9-000	Plate - CLUTCH END (8) (3.1MM)
12	22554-PC9-000	Plate - CLUTCH END (4) (2.7MM)
12	22560-PC9-000	Plate - CLUTCH END (10) (3.3MM)
12	22555-PC9-000	Plate - CLUTCH END (5) (2.8MM)
13	22600-PA9-060	Clutch assy. - SECOND
14	22611-PA9-000	Guide - SECOND CLUTCH
15	22650-PC9-020	Clutch assy. - THIRD
16	22661-PC9-000	Guide comp - THIRD CLUTCH
17	90603-PA9-000	Circlip - EXTERNAL, 40MM
18	90605-PA9-000	Ring - SNAP, 114X1.8
19	90605-PC9-000	Ring - SNAP, 119MM
20	91302-PA9-003	O-ring, 39.8X2.2 (ARAI)
20	91302-PA9-004	O-ring - 39.8X2.2 (NOK)
21	91303-PA9-004	O-ring - 100X2.2 (NOK)
21	91303-PA9-003	O-ring - 100X2.2(ARAI)
22	91303-PC9-004	O-ring - 104X2.2 (NOK)
22	91303-PC9-003	O-ring - 104X2.2 (ARAI)

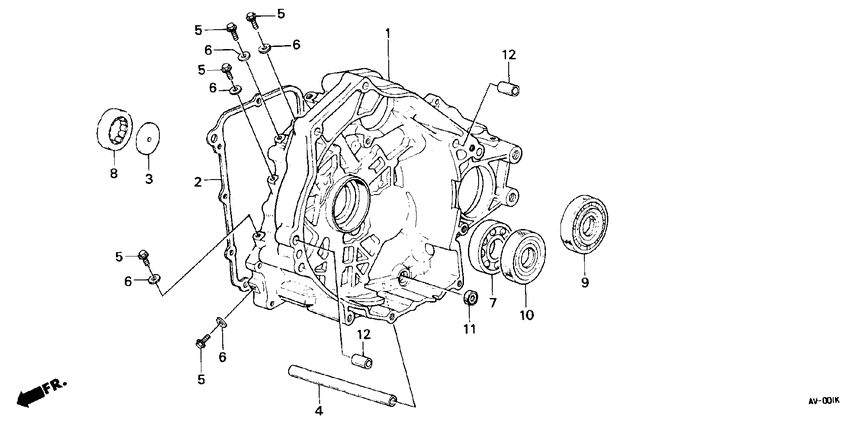

Clutch housing 18

#	OEM	部品名
1	21000-PE6-040	Case comp. - CLUTCH
2	21101-634-000	Plate - NEEDLE BEARING RETAINING
3	21103-PA0-000	Plate - OIL GUIDE
4	21105-PE6-000	Plate - BREATHER
5	21120-PG2-003	Magnet - TRANSMISSION
8	91002-PL0-008	Bearing - BALL, 62/22C (NTN)
8	91002-PL0-018	Bearing (62/22)
8	91005-657-003	Bearing - BALL, 62/22 (FUJIKOSHI)
8	91005-657-004	Bearing - BALL, 62/22 (KOYO)
8	91005-657-008	Bearing - BALL, 62/22(NTN)
9	91101-PE6-008	Bearing - NEEDLE, 30X47X19
10	91206-PE6-003	Oil seal - 35X56X8 (ARAI)
10	91206-PE6-004	Oil seal - 35X56X8 (NOK)
11	91208-PB6-003	Dust seal - 16X21X4 (ARAI)
11	91208-PB6-005	Dust seal - 16X21X4 (NOK)
12	91215-689-013	Oil seal - 14X25X16
13	91216-PA0-005	Oil seal - 22X35X7 (NOK)
13	91216-PA0-003	Oil seal - 22X35X7 (ARAI)

Clutch release 10

#	OEM	部品名
1	22810-PE6-003	Bearing - CLUTCH RELEASE (FUJIKOSHI)
1	22810-PE6-921	Bearing - CLUTCH RELEASE (NSK)
2	22821-PL0-010	Fork - CLUTCH RELEASE
2	22821-PE6-000	Fork - CLUTCH RELEASE
3	22830-PE6-000	Shaft comp. - CLUTCH RELEASE
4	22851-PE6-000	Spring - RELEASE ARM
5	22871-PE6-010	Stay - CLUTCH WIRE
6	90029-PB6-910	Bolt - SPECIAL, 8X24
7	90081-PB7-000	Screw - SOCKET, 8X20
8	90412-679-000	Washer - CONICAL SPRING, 8MM

Countershaft 45

#	OEM	部品名
1	23220-PA9-671	Countershaft
2	23421-PF0-900	Gear - COUNTERSHAFT LOW
3	23422-PA9-901	Gear - PARKING
4	23441-PF0-910	Gear - COUNTERSHAFT SECOND
5	23451-PF0-910	Gear - COUNTERSHAFT THIRD
6	23531-PA9-000	Gear - COUNTERSHAFT REVERSE
7	23541-PA9-010	Gear - REVERSE IDLE
9	23542-PH0-010	Shaft - REVERSE IDLE GEAR
10	23543-PH0-000	Spring a - IDLE GEAR SHAFT
11	23565-PC9-010	Selector - REVERSE GEAR
11	23565-PC9-000	Selector - REVERSE GEAR
12	23566-PA9-000	Hub - REVERSE SELECTOR
13	90201-689-900	Nut - HEX., 20MM
14	90406-PF0-000	Washer - THRUST, 28X42X2.55
14	90407-PF0-000	Washer - THRUST, 28X42X2.60
14	90401-PF0-000	Washer - THRUST, 28X42X2.30
14	90405-PF0-000	Washer - THRUST, 28X42X2.50
14	90402-PF0-000	Washer - THRUST, 28X42X2.35
14	90403-PF0-000	Washer - THRUST, 28X42X2.40
14	90404-PF0-000	Washer - THRUST, 28X42X2.45
15	90418-PA9-000	Washer - SPLINE, 35X50X3.25
15	90411-PA9-010	Washer - SPLINE, 35X50X3.00
15	90420-PA9-000	Washer - SPLINE, 35X50X3.35
15	90413-PA9-010	Washer - SPLINE, 35X50X3.10
15	90415-PA9-010	Washer - SPLINE, 35X50X3.20
15	90419-PA9-000	Washer - SPLINE, 35X50X3.30
15	90412-PA9-010	Washer - SPLINE, 35X50X3.05
15	90421-PA9-000	Washer - SPLINE, 35X50X3.40
15	90414-PA9-010	Washer - SPLINE, 35X50X3.15
16	90501-PA9-000	Collar - REVERSE GEAR
17	90503-PA9-000	Collar - DISTANCE, 28MM
18	90603-PB6-000	Ring - SNAP, 62MM
19	91004-PA9-003	Bearing - BALL, 6305 (NTN)
20	91011-PA9-004	Bearing - NEEDLE, 32X38X20 (KOYO)
20	91011-PG4-003	Bearing - NEEDLE, 32X38X20 (NTN)
21	91014-PA9-003	Bearing - THRUST NEEDLE, 35X52X2 (NTN)
21	91014-PTD-901	Bearing - THRUST NEEDLE, 35X52X2
22	91016-PA9-004	Bearing - NEEDLE, 28X33X20 (KOYO)
22	91016-PA9-003	Bearing - NEEDLE, 28X33X20 (NTN)
22	91016-PG4-003	Bearing - NEEDLE, 28X33X20 (NTN)
23	91024-PA9-003	Bearing - NEEDLE, 30X36X14 (NTN)
24	91025-PJ2-003	Bearing - NEEDLE, 14X18X15 (NTN)
24	91025-639-004	Bearing - NEEDLE, 14X18X15 (KOYO)
25	91307-PA9-004	O-ring - 31.2X1.9 (NOK)
25	91307-PA9-003	O-ring 31.2X1.9 (ARAI)

Countershaft/ speedometer gear (4AT) 27

#	OEM	部品名
1	23220-PE6-E00	Countershaft comp.
2	23421-PB7-920	Gear - COUNTERSHAFT LOW
3	23431-PE6-G00	Gear - COUNTERSHAFT SECOND
4	23441-PE6-J00	Gear - COUNTERSHAFT THIRD
5	23451-PE6-J00	Gear - COUNTERSHAFT FOURTH
6	23461-PE6-J00	Gear - COUNTERSHAFT FIFTH
7	23521-PE6-305	Sleeve set - SYNCHRONIZER (1-2)
8	23623-PE6-315	Sleeve set - SYNCHRONIZER (3-4)
9	23912-PE6-000	Collar a - DISTANCE, 25X32X31.8
9	23914-PE6-000	Collar c - DISTANCE, 25X32X31.8
9	23913-PE6-000	Collar b - DISTANCE, 25X32X31.8
9	23915-PE6-000	Collar d - DISTANCE, 25X32X31.8
10	23913-634-008	Spacer - 28MM (+0.04/+0.07)
10	23912-634-000	Spacer - 28MM (+0.07/+0.10)
10	23915-PA0-008	Spacer - 28MM (+0.01/+0.04)
11	23925-634-000	Washer c - THRUST, 32MM (-0.08/-0.11)
11	23921-634-000	Washer a - THRUST, 32MM (-0.02/-0.05)
11	23924-634-000	Washer b - THRUST, 32MM (-0.05/-0.08)
12	23923-671-000	Washer - THRUST, 26MM
13	23926-PB6-000	Washer - SPRING, 22MM
13	23926-PB6-010	Washer - SPRING, 22MM
14	90202-680-000	Nut - HEX., 22MM
15	90603-PE6-000	Ring - SNAP, 65MM
16	91004-PE6-008	Bearing - SPECIAL BALL (NTN)
17	91104-634-004	Bearing - NEEDLE, 32X37X27 (KOYO)
17	91104-634-008	Bearing - NEEDLE, 32X37X27 (NTN)
17	91104-634-006	Bearing - NEEDLE, 32X37X27 (THOMPSON)

Crankshaft 24

#	OEM	部品名
1	13310-PE2-010	Crankshaft
2	13327-634-004	Bearing g - MAIN (RED) (TAIHO)
2	13325-634-003	Bearing e - MAIN (YELLOW) (DAIDO)
2	13322-634-004	Bearing b - MAIN (BLACK) (TAIHO)
2	13326-634-003	Bearing f - MAIN (PINK) (DAIDO)
2	13323-634-004	Bearing c - MAIN (BROWN) (TAIHO)
2	13321-634-003	BEARING A - MAIN (BLUE) (DAIDO)
2	13327-634-003	Bearing g - MAIN (RED) (DAIDO)
2	13324-634-004	Bearing d - MAIN (GREEN) (TAIHO)
2	13322-634-003	Bearing b - MAIN (BLACK) (DAIDO)
2	13325-634-004	Bearing e - MAIN (YELLOW) (TAIHO)
2	13323-634-003	Bearing c - MAIN (BROWN) (DAIDO)
2	13326-634-004	Bearing f - MAIN (PINK) (TAIHO)
2	13324-634-003	Bearing d - MAIN (GREEN) (DAIDO)
2	13321-634-004	BEARING A - MAIN (BLUE) (TAIHO)
3	13331-PD1-004	Washer - THRUST (TAIHO)
3	13331-PD1-003	Washer - THRUST (DAIDO)
4	13621-PE0-003	Pulley - TIMING BELT DRIVE
5	13622-PE0-000	Plate - TIMING BELT GUIDE
6	38921-PE0-670	Pulley - CRANKSHAFT
7	90017-PB2-004	Bolt - SPECIAL, 12MM (SAGA)
7	90017-PB2-003	Bolt - SPECIAL, 12MM (SATO)
8	90402-PB2-000	Washer - 12X30X4.5
9	90704-634-000	Key - 4.5X11.0

Cylinder block/oil pan 32

#	OEM	部品名
1	11000-PE0-040	Block assy - CYLINDER
2	11111-PE0-300	Pipe - OIL LEVEL
3	11200-PE0-020	Pan comp - OIL
4	11251-PE0-004	Gasket - OIL PAN (OTSUKA)
4	11251-P01-004	Packing - OIL PAN (OTSUKA)
4	11251-PE0-003	Gasket - OIL PAN (KOKOKU)
5	11301-PE0-030	Cover - R. SIDE
5	11301-P00-T00	Cover - R. SIDE
6	11810-PE0-020	Cover comp. a - TIMING BELT
7	11812-PE0-300	Grommet - TIMING BELT COVER HOLE
8	11820-PE0-000	Cover comp. b - TIMING BELT
9	11831-PE0-000	Seal a - RUBBER
10	11832-PE0-000	Seal b - RUBBER
11	11840-PE0-000	Cover comp. c - TIMING BELT
12	11910-PE0-030	Bracket - ENGINE MOUNTING
13	15140-PE0-000	Orifice - OIL
14	15142-PE0-000	O-ring - 4.8X1.9
15	90007-PE0-004	Bolt - FLANGE, 10X112 (TOKAI TRW)
15	90008-PE0-003	Bolt-washer - 10X112
15	90007-PE0-003	Bolt - FLANGE, 10X112 (SAGA)
16	90009-PC6-000	Bolt - DRAIN PLUG, 14MM
16	90009-PH1-000	Bolt - DRAIN PLUG, 14MM
17	90030-PE0-000	Bolt - STUD, 10X40
18	90031-PE0-000	Bolt - STUD, 10X24,5
19	90041-PA5-000	Bolt - STUD, 6X28
20	90041-PE0-020	Bolt - STUD, 12X30
21	90437-634-000	Washer - SPECIAL, 21X11X2.3
22	90702-PE0-000	Dowel pin - 12X18
23	90703-PE0-000	Dowel pin - 18X22
24	91214-PH1-004	Oil seal - 80X100X10 (ARAI)
24	91214-PLE-003	Oil seal
24	91214-PH1-013	Oil seal - 80X100X10 (NOK)

Cylinder head 18

#	OEM	部品名
1	12100-PE3-020	Head assy - CYLINDER
2	12204-PC6-305	Guide - IN. VALVE
3	12205-PE0-315	Guide - EX. VALVE
4	12210-PD2-004	Seal a - VALVE STEM (NOK)
4	12210-PD2-003	Seal a - VALVE STEM (ARAI)
5	12211-PE0-004	Seal b - VALVE STEM (NOK)
5	12211-PE0-003	Seal b - VALVE STEM (ARAI)
6	12251-PE0-023	Gasket - CYLINDER HEAD (ISHINO GASKET)
6	12251-PE3-014	Gasket - CYLINDER HEAD
7	14631-PE0-000	Shaft a - VALVE ROCKER ARM
8	14632-PE0-000	Shaft b - VALVE ROCKER ARM
9	90002-PE0-000	Bolt - FLANGE, 8X62
10	90006-PE0-003	Bolt - FLANGE, 10X133
11	90025-PE0-000	Bolt - STUD, 8X35
12	90026-PE0-000	Bolt - STUD, 8X37
12	90026-PT0-000	Bolt - STUD, 8X38
13	90028-PE0-003	Bolt - STUD, 10X132
14	90214-PE0-000	Nut - FLANGE, 10MM

Cylinder head cover 8

#	OEM	部品名
1	12310-PE0-010	Cover comp. - CYLINDER HEAD
3	12341-PE0-000	Gasket - CYLINDER HEAD COVER
4	12345-PE0-300	Emblem - CYLINDER HEAD COVER (H/HONDA MOTOR CO.)
5	15610-PC1-000	Cap assy. - OIL FILLER
6	16239-PE0-000	Clamp - FUEL HOSE
7	90013-PE0-000	Bolt - HEAD COVER
8	90207-PD1-000	Nut - HEAD COVER
9	90441-PD1-000	Washer - HEAD COVER

Differential gear 37

#	OEM	部品名
1	41221-PC8-912	Gear - DRIVE PINION
2	41233-PE6-E00	Gear - FINAL DRIVEN
2	41233-PA9-670	Gear - FINAL DRIVEN
3	41310-PE6-900	Case - DIFFERENTIAL
3	41311-PF0-010	Case - DIFFERENTIAL
3	41311-PF0-020	Case - DIFFERENTIAL
4	41321-PE6-020	Shaft - PINION
4	41312-PA9-000	Gear - SPEEDOMETER DRIVE
4	41312-PA9-010	Gear - SPEEDOMETER DRIVE
5	41341-PC9-000	Gear - DIFFERENTIAL PINION
5	41341-PC9-010	Gear - DIFFERENTIAL PINION
5	41321-PC9-000	Shaft - PINION
6	41355-PC8-000	Washer e - DIFFERENTIAL PINION (0.75MM)
6	41357-PC8-000	Washer g - DIFFERENTIAL PINION (0.95MM)
6	41352-689-000	Washer b - DIFFERENTIAL PINION (0.8MM)
6	41354-689-000	Washer d - DIFFERENTIAL PINION (1.0MM)
6	41356-PC8-000	Washer f - DIFFERENTIAL PINION (0.85MM)
6	41351-689-000	Washer a - DIFFERENTIAL PINION (0.7MM)
6	41353-689-000	Washer c - DIFFERENTIAL PINION (0.9MM)
7	90015-634-010	Bolt - FLANGE, 10MM
8	90418-PE6-000	Set ring - 72MM (5) (2.85)
8	90419-PE6-000	Set ring - 72MM (6) (2.95)
8	90414-PE6-000	Set ring - 72MM (1) (2.45)
8	90415-PE6-000	Set ring - 72MM (2) (2.55)
8	90416-PE6-000	Set ring - 72MM (3) (2.65)
8	90417-PE6-000	Set ring - 72MM (4) (2.75)
8	90003-PA9-003	Bolt - FLANGE, 10MM
9	90425-PF0-000	Washer - THRUST, 26.3X50X1.5
9	90415-634-000	Ring - SNAP, 72MM (2.55MM)
9	90417-634-000	Ring - SNAP, 72MM (2.75MM)
9	90419-634-000	Ring - SNAP, 72MM (2.95MM)
9	90414-634-000	Ring - SNAP, 72MM (2.45MM)
9	90416-634-000	Ring - SNAP, 72MM (2.65MM)
9	90418-634-000	Ring - SNAP, 72MM (2.85MM)
11	91005-PE6-014	Bearing - BALL, 6207 C (KOYO)
11	91005-PE6-008	Bearing - BALL, 6207 C (NTN)
11	90608-PA9-000	Circlip - EXTERNAL, 90MM

Distributor components (TEC) 15

#	OEM	部品名
1	30101-PD2-006	Plate assy. - BREAKER
2	30102-PD2-016	Cap assy - TEC
3	30103-PA1-732	Head - ROTOR
4	30104-PE3-016	Control assy. - VACUUM
5	30107-PE1-006	Cover - LEAK
6	30110-PE1-006	O-ring - DISTRIBUTOR (TEC)
7	30111-PA1-733	E-ring - 3.2MM
8	30113-PE1-006	Coupling set - TEC
9	30120-PJ7-003	Igniter unit - OKI
9	30120-PA6-921	Igniter unit - NEC
10	30126-PD2-006	Rotor set - PICK UP
11	30131-PE1-016	Harness assy - DISTRIBUTOR WIRE
12	30132-PA6-921	Gasket - DISTRIBUTOR
13	30161-PB1-016	Case - IGNITER UNIT
14	30148-PA6-921	Screw-washer - 4X11

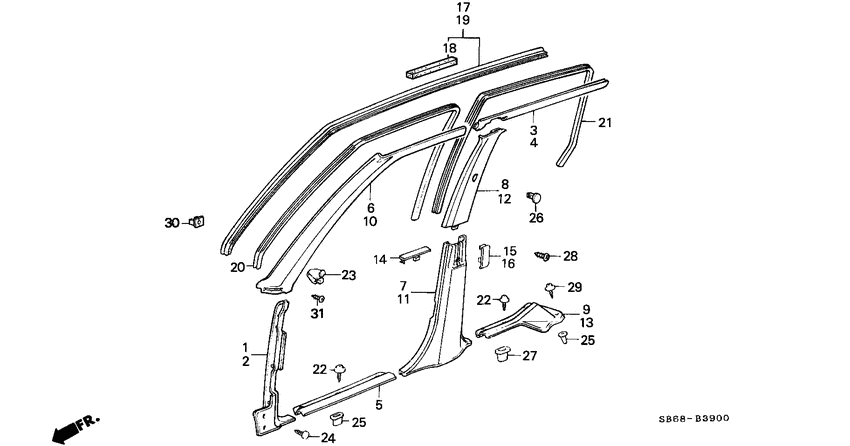

Door trim 7

#	OEM	部品名
17	73864-SB6-030	Seal - R. DRIP
19	73869-SB6-020	Seal - L. DRIP
22	90137-SD2-003	Screw - TAPPING, 4X12(SUS)
23	90609-SB6-003	Clip - PILLAR GARNISH
25	90674-SB0-000	Grommet - TAPPING SCREW
27	90681-693-000	Grommet - SCREW, 4MM
30	90866-SA0-000	Grommet - SCREW, 4MM

Driveshaft 19

#	OEM	部品名
1	44010-SB2-962	Driveshaft set - R.
2	44011-SB2-962	Driveshaft set - L.
3	44305-SB2-961	Driveshaft assy. - R.
4	44306-SB2-961	Driveshaft assy. - L.
5	44310-SA5-300	Joint comp - INBOARD
6	44315-SA2-300	Boot b
7	44315-SB2-961	Boot - INBOARD (NOK)
7	44315-SB2-962	Boot - INBOARD (OTSUKA)
8	44316-SA2-310	Band a - BOOT
9	44317-SA2-300	Band b - BOOT
10	44318-SA5-300	Band c - BOOT
11	44318-SA2-300	Band c - BOOT
12	44319-SA2-000	Set ring - 26X1.8
13	44333-SA2-310	Boot a - OTSUKA
14	44333-SB2-961	Boot - OUTBOARD (NOK)
14	44333-SB2-962	Boot - OUTBOARD (OTSUKA)
15	44338-SA2-300	Circlip - 24MM
16	44347-SB2-003	Ring - OUTBOARD
17	90305-692-010	Nut

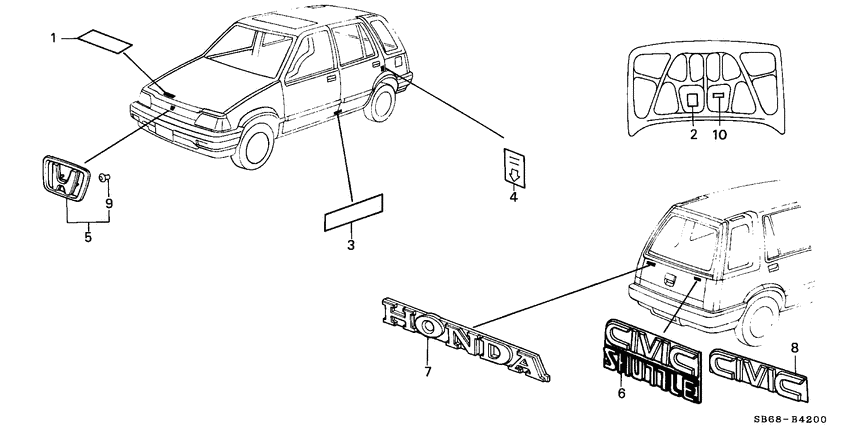

Emblem 9

#	OEM	部品名
1	19018-PE0-000	Label - FAN CAUTION
2	19043-PH7-750	Mark - RADIATOR CAUTION (130X90)
2	19043-PD3-600	Label - RADIATOR CAUTION (150X115)
3	42760-SB6-770	Placard - TIRE PRESSURE SPECIFICATION
4	76501-SA1-600	Plate, RR. DOOR LOCK CAUTION
5	87301-SB3-980	Emblem - FR. CENTER (H)
6	87301-SB6-000	Emblem - RR. (CIVIC SHUTTLE)
7	87301-671-030	Emblem - RR. (HONDA)
9	87351-SB3-003	Clip - TUBULAR

Engine electrical (1) 14

#	OEM	部品名
1	30100-PE3-026	Distributor assy - TD-10I) (TEC
2	32722-PE3-600	Cord assy - HIGH TENSION
3	32723-PE0-040	Cord comp - IGNITION CENTER
5	32762-PE1-000	Clamp a - HIGH TENSION CORD
6	32763-PE0-000	Clamp b - HIGH TENSION CORD
7	32764-PE0-000	Clamp c - HIGH TENSION CORD
8	32768-PJ7-000	Clamp - CENTER CORD
8	32765-PA6-000	Clamp - HIGH TENSION CORD
9	32765-PE0-000	Clamp d - HIGH TENSION CORD
10	32777-PE0-000	Clamp - HIGH TENSION CORD
11	90001-PH1-640	Bolt - DISTRIBUTOR (6X20)
11	90001-PD1-000	Bolt - DISTRIBUTOR
12	90482-567-000	Washer - SPECIAL, 6MM
12	90581-831-650	Washer (18mm)

Engine electrical (2) 28

#	OEM	部品名
1	16704-PE0-000	Clamp - TUBE
1	16706-PE0-000	Clamp - TUBE
2	31100-PE3-762	Alternator assy - CHA33) (DENSO
3	31110-PE0-004	Belt - ALTERNATOR (MITSUBOSHI)
3	31110-PE0-003	Belt - ALTERNATOR (BANDO)
4	31112-PE0-010	Bracket comp. - ALTERNATOR
4	31112-PG6-000	Bracket comp. - ALTERNATOR
5	31113-PE0-000	Stay - ALTERNATOR
6	31117-PE3-730	Plate - CAUTION
7	31200-PE0-661	Motor assy. - STARTER (DRDFE) (DENSO)
7	31200-PE0-665	Motor assy. - STARTER (MITSUBA) (SM-302-07)
8	32110-PE3-753	Sub cord - ENGINE
8	32110-PE3-763	Sub cord - ENGINE
9	32741-PE0-000	Clamp - ENGINE WIRE HARNESS (A)
10	32744-PE0-000	Clamp c - ENGINE WIRE HARNESS
11	32745-PC0-000	Clamp e - ENGINE WIRE HARNESS
12	32745-PE0-000	Clamp - BACK LIGHT HARNESS
13	35600-PE0-013	Switch assy - BACK UP LIGHT (TEC)
14	37240-PD2-004	Switch - OIL PRESSURE (TEC)
14	37240-PD2-003	Switch - OIL PRESSURE (DENSO)
15	37750-PC1-004	Thermo unit - DENSO
17	90016-PE0-000	Bolt - FLANGE, 10X45
18	90050-PE0-000	Bolt - FLANGE, 12X60
19	90051-PE0-000	Bolt - FLANGE, 12X70
20	90057-PG7-003	Bolt - ALTERNATOR
21	90084-657-000	Bolt - SEALING, 16X9.5
22	90430-657-000	Washer - 23X8.3X3.2
23	90443-PA5-000	Washer - SEALING, 16MM

Engine mounts 28

#	OEM	部品名
1	11950-PG6-010	Stiffener - ENGINE
2	50200-SB2-730	Beam comp - RR.
3	50210-SB0-000	Grommet - BEAM END
4	50805-SB2-020	Rubber - ENGINE MOUNTING (MT)
4	50805-SB2-982	Rubber - ENGINE MOUNTING (AT)
5	50810-SB2-030	Rubber - ENGINE RR. MOUNTING (MT)
5	50810-SB2-983	Rubber - ENGINE RR. MOUNTING (AT)
6	50811-SB2-000	Bracket - RR. ENGINE MOUNTING STOPPER
7	50820-SB2-934	Rubber assy. - ENGINE SIDE MOUNTING
8	50825-SB2-010	Bracket - ENGINE MOUNTING (MT)
8	50825-SB2-981	Bracket - ENGINE MOUNTING (AT)
9	50827-SB2-010	Bracket - ENGINE RR. MOUNTING
10	90121-SB6-010	Bolt - HEX., 12X100
11	90122-SB6-000	Bolt - HEX., 12X71
12	90123-SB2-000	Bolt - FLANGE, 10X78
13	90124-SB6-003	Bolt - HEX., 10X50 (SPECIAL)
14	90125-SB6-010	Bolt - HEX., 12X60
15	90128-SB2-020	Bolt - FLANGE, 10X53
16	90129-SB2-020	Bolt - FLANGE, 10X41
17	90131-SB2-010	Bolt - HEX., 12X60
18	90217-SB2-003	Nut - SELF-LOCK, 12MM
19	90350-SB2-000	Nut - TRANSMISSION MOUNTING, 12MM
20	90351-SB2-003	Nut - FLANGE, 8MM
21	90551-SB2-000	Washer - PLAIN, 10MM
22	90504-SB0-000	Washer - PLAIN, 12MM
23	90504-SB2-000	Washer - TRANSMISSION MOUNTING
24	90505-SB2-000	Washer - SIDE MOUNTING
32	50823-SB2-000	Plate - NUT HOLDER

Exhaust manifold (1) 13

#	OEM	部品名
1	11941-PE4-000	Stay - R. EX. MANIFOLD
2	11942-PE4-000	Stay - L. EX. MANIFOLD
3	17302-PE1-003	Pipe - HOT AIR
4	18100-PE4-010	Manifold - EX.
5	18110-PE0-010	Gasket a - EX. MANIFOLD
6	18120-PE1-751	Cover - EX. MANIFOLD
7	18782-PB1-000	Clip - AIR SUCTION TUBE
8	90010-657-010	Bolt - SPECIAL, 8X20
9	90022-PE0-000	Bolt - FLANGE, 8X10
10	90065-PC0-000	Bolt - STUD, 10X35.5
11	90212-PD2-003	Nut - SELF-LOCK, 8MM
11	90212-RCA-A01	Nut - SELF-LOCK, 8MM
12	90451-657-000	Washer - SPECIAL, 9X24X4

Exhaust pipe 26

#	OEM	部品名
4	18210-SB3-602	Pipe a - EX. (FUTABA)
4	18210-SB3-603	Pipe a - EX. (SANKEI)
7	18212-SA5-004	Gasket - EX. PIPE (NIPPON LEAKLESS)
7	18212-671-003	Gasket - EX. PIPE(ISHINO) (59.5MM-60.5MM)
8	18213-SB2-000	Stay - EX. PIPE
10	18214-SB2-020	Bracket - EX. MOUNTING
11	18215-SB6-960	Rubber - EX. PIPE MOUNTING
12	18215-SB2-961	Rubber - EX. PIPE MOUNTING
13	18215-SB6-000	Rubber - SILENCER MOUNTING
14	18220-SB6-652	Pipe b - EX.
15	18229-SB2-003	Gasket - EX. FLEXIBLE (45MM-59MM)
16	18230-SA0-930	Spring - FLEXIBLE JOINT
17	18231-SB2-000	Bolt - FLEXIBLE JOINT
18	18303-689-000	Gasket - SILENCER
19	18307-SB6-023	Silencer comp - EX.
20	18328-SB6-010	Bracket - SILENCER MOUNTING
21	18351-SB6-000	Collar - SILENCER MOUNTING
23	70259-SB6-000	Bracket a - SILENCER MOUNTING
26	72205-SB6-000	Plate - SILENCER BAFFLE
27	72206-SB6-000	Plate - FUEL TANK BAFFLE
28	72207-SB6-010	Bracket - BAFFLE PLATE
29	90115-SB2-003	Nut - SELF-LOCK, 8MM
30	90115-659-003	Nut - SELF-LOCK, 8MM (CLINCH)
31	90117-SB2-000	Nut - SELF-LOCK, 8MM
32	90162-SB0-003	Screw-washer - 4X12
33	90212-SA5-003	Nut - SELF-LOCK, 10MM

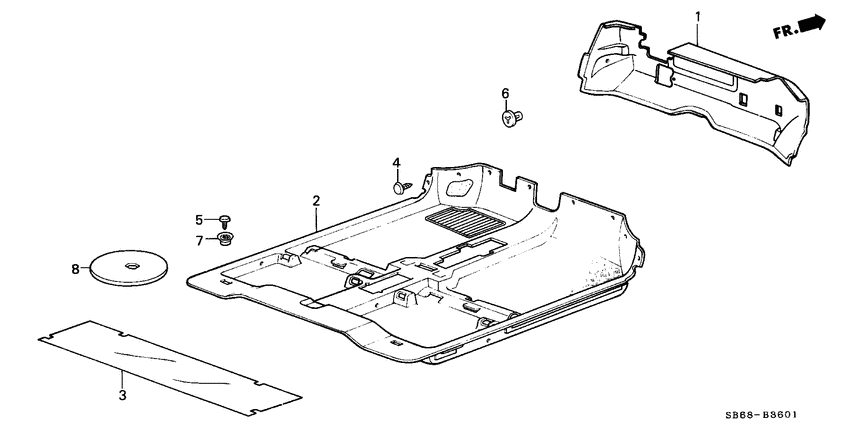

Floor mat/insulator 5

#	OEM	部品名
1	65841-SB6-660	Insulator - DASHBOARD
3	78105-SB6-960	Cover - MIDDLE FLOOR
6	90670-SB2-003	Cap - SCREW, 5MM
7	90676-SB2-003	Clip - DASHBOARD INSULATOR
8	83810-SD2-000	Insulator - SPARE TIRE

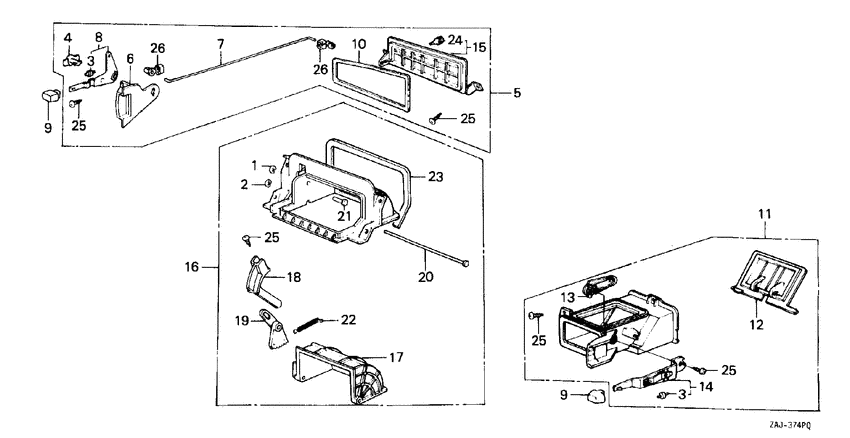

Fresh air vents (D,P,Y) 26

#	OEM	部品名
1	30158-700-010	E-clip - 3MM
2	38689-680-960	E-ring - 4MM
3	39379-693-010	Roller - LEVER
4	39386-693-000	Shaft - FRESH RECIRCULAR LEVER
5	64420-SB6-671	Valve assy. - DRIVER VENTILATION
6	64424-SB6-670	Plate - DRIVER VENTILATION LEVER
7	64426-SB6-000	Rod - DRIVER VENTILATION VALVE
8	64427-SB6-670	Lever - DRIVER VENTILATION
9	64431-SB3-730	Knob - VENT
10	64433-SB6-010	Seal - DRIVER VENTILATION
11	64440-SB6-671	Valve assy. - ASSISTANT VENTILATION
12	64443-SB6-670	Valve - ASSISTANT VENTILATION
13	64445-SB6-670	Link - ASSISTANT VENTILATION VALVE
14	64447-SB6-670	Lever - ASSISTANT VENTILATION
15	64450-SB6-671	Valve assy. - DRIVER VENTILATION
16	64480-SB6-003	Ventilation assy. - WIDE
17	64482-SB6-003	Damper - WIDE VENTILATION
18	64483-SB6-003	Link - HOP UP
19	64485-SB6-013	Plate b - GEAR
20	64486-SB6-003	Shaft - WIDE VENTILATION
21	64487-SB6-003	Pin b - GEAR PLATE
22	64492-SB6-013	Spring - WIDE VENTILATION
23	64494-SB6-003	Seal - WIDE VENTILATION CASE
24	66418-688-000	Stopper - GLOVE BOX LID
25	90101-SA4-000	Screw - TAPPING, 4X12
26	90601-SB3-003	Linkage - BUSHING

Front brake 20

#	OEM	部品名
1	43352-692-003	Screw - BLEEDER
1	45224-663-671	Valve - BLEEDER
2	43353-SA0-003	Cap - BLEEDER SCREW
2	43353-SD5-003	Cap - BLEEDER SCREW
3	45022-SB2-672	Pad set - FR.
4	45210-SB2-676	Caliper assy - R. (15CL-13VN) (NISSIN)
5	45214-692-013	Cover - DUST
6	45215-692-013	Clip - BOOT
7	45216-SA0-013	Piston
8	45217-SA0-003	Seal - PISTON
9	45227-692-931	Spring - PAD
10	45228-SA5-013	Shim - BRAKE PAD
11	45230-SB2-676	Caliper assy - L. (15CL-13VN) (NISSIN)
12	45234-692-013	Cover - DUST
13	45235-SA0-003	Pin a
14	45236-SA0-003	Pin b
15	45237-692-931	Retainer - PAD
16	45240-692-003	Bolt - HEX., 8X24
17	90107-663-670	Bolt - CALIPER MOUNTING
18	90116-422-006	Bolt - SOCKET, 8X23

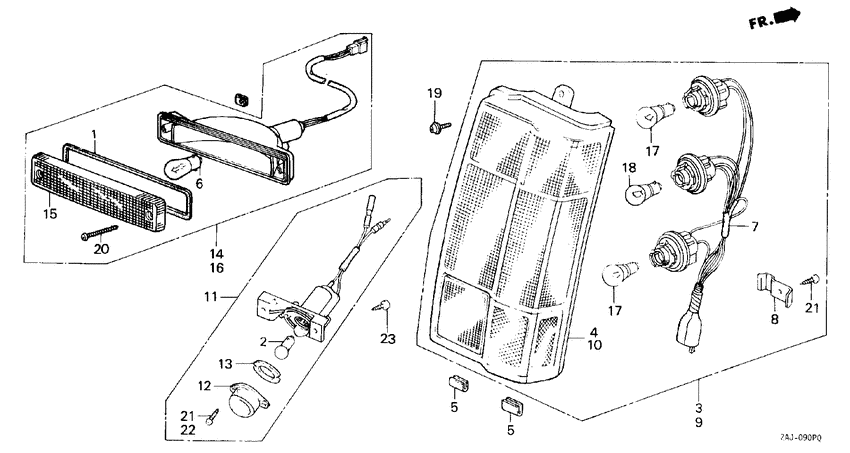

Front combination light 18

#	OEM	部品名
1	33300-SB2-743	Light assy - R. FR. TURN SIGNAL
2	33301-SB2-003	Lens - R.
3	33303-SB2-003	Packing - STANLEY
4	33350-SB2-743	Light assy - L. FR. TURN SIGNAL
4	33350-SB6-743	Light assy - L. FR. TURN SIGNAL
5	33351-SB2-003	Lens - L.
7	34300-SB6-033	Light assy - R. FR. POSITION
11	34302-SB6-003	Screw - TAPPING, 4X30
13	34305-SB6-013	Socket & cord comp.
15	34350-SB6-033	Light assy - L. FR. POSITION
18	34908-SB6-003	Bulb - 12V 5W
18	34351-657-921	Bulb - 12V/5W) (STANLEY
20	33503-506-600	Bulb - 12V 21W) (STANLEY
20	34905-KV7-671	Bulb,winker (12v
20	34908-634-611	Bulb - 12V 21W) (ECE) (STANLEY
21	75522-611-000	Grommet - SCREW, 4MM
22	90140-SA0-003	Screw - TAPPING, 4X38
23	90303-SA5-003	Nut - FR. COMBINATION LIGHT

Front door lining 21

#	OEM	部品名
1	73862-672-003	Clip - DOOR WEATHERSTRIP
4	75824-SB6-000	Seal - R. SIDE DEFROSTER
5	75826-SB6-670	Seal - R. FR. DOOR HOLE
5	75826-SB6-000	Seal - R. FR. DOOR HOLE (DOOR MIRROR)
6	75826-605-300	Seal - DOOR HOLE, 30MM (CIRCLE) (BLACK)
7	75850-SB4-000	Tape - FR. DOOR HOLE SEAL
8	75828-SB6-000	Tape b - DOOR HOLE SEAL
13	75834-SB6-000	Seal - L. SIDE DEFROSTER
14	75836-SB6-670	Seal - L. FR. DOOR HOLE
14	75836-SB6-000	Seal - L. FR. DOOR HOLE
16	75851-SB6-660	Weatherstrip - R. FR. DOOR INNER (DOOR MIRROR)
17	75856-SB6-660	Weatherstrip - L. FR. DOOR INNER
18	75864-SA0-003	Clip - WEATHERSTRIP DOOR (TOWA)
19	75874-SB6-000	Grommet - DOOR LOCK KNOB
20	75880-SB6-013	Weatherstrip - R. FR. DOOR
21	75885-SB6-013	Weatherstrip - L. FR. DOOR
22	90301-SA5-003	Nut a - SPIRE
24	90662-SB6-000	Grommet - SCREW, 4MM
25	90663-671-003	Clip - LINING
26	90664-671-003	Clip - CANOE
27	90665-SB3-003	Grommet - SCREW, 6MM

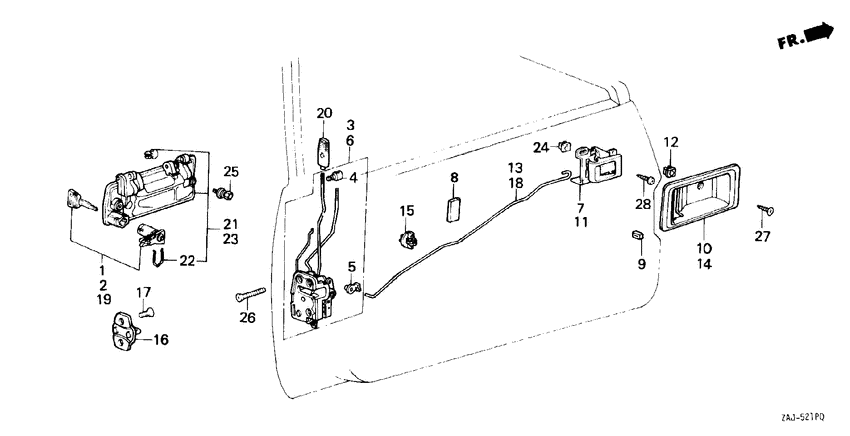

Front door locks 20

#	OEM	部品名
1	72145-SE0-023	Cylinder - R. DOOR
2	72146-SE0-013	Cylinder - L. DOOR
3	75410-SB6-662	Lock assy - R. FR. DOOR
4	75411-634-000	Joint
5	75412-SA0-000	Fastener
6	75450-SB6-662	Lock assy - L. FR. DOOR
8	75513-SA5-000	Cushion - LOCK ROD
12	75522-634-000	Grommet - SCREW, 4MM
12	90866-SA0-000	Grommet - SCREW, 4MM
13	75525-SB6-003	Rod - R. FR. INSIDE
15	75551-692-003	Holder - DOOR LOCK ROD
16	75555-SB2-003	Striker - DOOR LOCK
17	75556-605-010	Bolt - LOCK STRIKER
18	75565-SB6-003	Rod - L. FR. INSIDE
20	75592-SA1-960	Knob - INSIDE LOCK
21	75610-SB6-023	Handle assy - R. FR. DOOR OUTSIDE
22	75611-SB3-003	Ring - OUTSIDE HANDLE (MITSUI)
23	75620-SB6-023	Handle assy - L. FR. DOOR OUTSIDE
24	90662-SB2-000	Grommet - SCREW, 5MM
27	90111-SA0-000	Screw - TAPPING, 4X8

Front door panels 11

#	OEM	部品名
11	75750-SB6-003	Checker comp. - FR. DOOR
12	75760-SA5-003	Pin - DOOR CHECKER
12	75760-SB2-003	Pin - DOOR CHECKER
13	75800-SB6-661	Molding assy. - R. FR. DOOR
14	75805-SB6-661	Molding assy. - L. FR. DOOR
15	75864-SB6-010	Clip - DOOR MOLDING
16	75891-SA7-000	Stopper - DOOR
19	90852-SB6-000	Plug - FR. DOOR HOLE
23	90001-SD2-000	Bolt - FLANGE, 8X22
24	90157-SA0-000	Bolt-washer - 8X25
25	90755-SB2-000	E-ring - 6MM

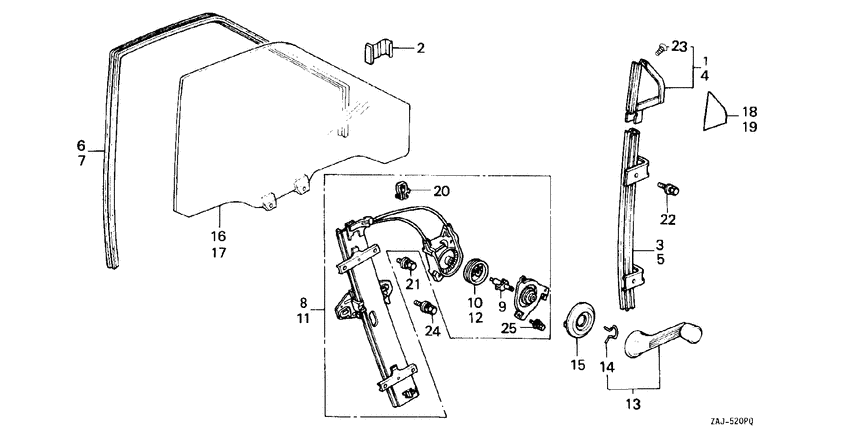

Front door windows/ regulators 32

#	OEM	部品名
1	75213-SB6-660	Holder - R. FR. SASH (DOOR MIRROR)
3	75216-SB6-660	Sash - R. FR. DOOR LOWER (DOOR MIRROR)
4	75223-SB6-660	Holder - L. FR. SASH (DOOR MIRROR)
5	75226-SB6-660	Sash - L. FR. DOOR LOWER (DOOR MIRROR)
6	75231-SB6-660	Channel - R. FR. DOOR RUN
7	75236-SB6-660	Channel - L. FR. DOOR RUN
7	76218-SB6-000	Sash - R. RR. DOOR CENTER
8	75310-SB6-013	Regulator - R. FR. DOOR
8	76219-SB4-000	Cap - R. CENTER SASH
9	75312-SB6-003	Shaft
9	76228-SB6-000	Sash - L. RR. DOOR CENTER
10	75313-SB6-003	Drum a - R. CABLE
10	76229-SB4-000	Cap - L. CENTER SASH
11	75320-SB6-013	Regulator - L. FR. DOOR
11	76231-SB6-010	Channel - R. RR. DOOR RUN
12	75323-SB6-003	Drum a - L. CABLE
12	76236-SB6-010	Channel - L. RR. DOOR RUN
13	76251-SB6-000	Glass - R. RR. DOOR QUARTER (BLUE)
14	75342-679-000	Pin - WINDOW REGULATOR HANDLE
14	76271-SB6-000	Glass - L. RR. DOOR QUARTER (BLUE)
15	76281-SB6-000	Seal - R. RR. DOOR QUARTER
16	75350-SB6-662	Glass assy - R. FR. DOOR (BLUE)(DOOR MIRROR)
16	76286-SB6-000	Seal - L. RR. DOOR QUARTER
17	75360-SB6-662	Glass assy - L. FR. DOOR (BLUE)(DOOR MIRROR)
17	76310-SB6-013	Regulator - R. RR. DOOR
18	75827-SB6-670	Seal - R. DOOR MIRROR HOLDER
18	76320-SB6-013	Regulator - L. RR. DOOR
19	75837-SB6-670	Seal - L. DOOR MIRROR HOLDER
19	76350-SB6-010	Glass assy - R. RR. DOOR (BLUE)
20	90617-SB6-003	Clamp - CABLE (BLACK)
20	76360-SB6-010	Glass assy - L. RR. DOOR (BLUE)
25	90112-SB4-000	Bolt - FLANGE, 6X14

Front fenders 17

#	OEM	部品名
1	60512-SB2-010	Cover - R. FR. UNDER
3	60515-SB4-010	Cover - R. FR. BUMPER UNDER
4	60522-SB2-020	Cover - L. FR. UNDER
5	60525-SB4-010	Cover - L. FR. BUMPER UNDER
8	61140-SB6-000	Fender - R. FR. INNER
9	61150-SB6-000	Fender - L. FR. INNER
11	61810-SB6-761	Mudguard - R. FR.
12	61820-SB6-761	Mudguard - L. FR.
14	90107-SA0-000	Screw-washer - 5X20
14	90114-SZ3-000	Screw-washer - 5X20
16	90344-692-003	Nut - CLIP, 6MM
17	90675-SB3-003	Clip - FR. COWL
18	90682-SB0-003	Grommet - SCREW, 5MM
19	90850-SA7-000	Plug - FUSE LID
20	90774-SB2-980	Bolt-washer - 6X16(GREEN)
21	90106-SE1-000	Bolt-washer - 6X15
26	90127-SA0-010	Bolt-washer - 6X16

Front grille/front mask 7

#	OEM	部品名
1	60821-SB6-010	Shelter - WATER
3	62301-SB6-000	Grille - FR.
4	90181-SB6-000	Bolt-washer - 6X16
5	90182-SB6-000	Bolt-washer - 6X16
6	90651-689-003	Clip - FR. GRILLE
7	90666-692-003	Clip - TRIM
8	90676-SA7-003	Grommet - SCREW, 5MM (BLACK)

Front seat components 13

#	OEM	部品名
3	73840-SB6-000	Bracket - R. SEAT SIDE GARNISH
5	73845-SB6-000	Bracket - L. SEAT SIDE GARNISH
14	77510-SB6-661	Adjuster - R. OUTER SLIDE
15	77512-SB2-672	Cap - SLIDE RAIL END
18	77530-SB6-601	Adjuster - L. INNER SLIDE
20	77540-SB6-661	Adjuster - L. OUTER SLIDE
21	77571-SB6-970	Tray - SEAT UNDER
22	77572-SB4-970	Guide - R. SEAT TRAY
23	77573-SB4-970	Guide - L. SEAT TRAY
25	90110-SB3-003	Bolt - PIVOT, 8X17
26	90111-SB3-003	Bush - NYLON
26	90662-SB3-003	Bush - NYLON
27	90112-SB3-003	Washer - NYLON

Front seat/seatbelts 2

#	OEM	部品名
21	77690-SB6-660	Bag - FR. PROTECTOR
24	90161-SB4-003	Screw - FLAT, 4X16

Front shock absorber 12

#	OEM	部品名
1	51601-SB6-024	Absorber assy - R. FR. SHOCK
2	51602-SB6-024	Absorber assy - L. FR. SHOCK
3	51605-SB6-014	Absorber unit - R. FR. SHOCK (SHOWA)
4	51606-SB6-014	Absorber unit - L. FR. SHOCK (SHOWA)
5	51687-SB2-024	Cover - FR. DUST (SHOWA)
6	51722-692-006	Rubber - FR. BUMP STOPPER (M.T.P. KASEI)
6	51722-692-005	Rubber - FR. BUMP STOPPER (NOK)
7	51920-SB2-931	Mount comp - SHOCK ABSORBER (TOKICO)
7	51920-SB2-932	Mount comp - SHOCK ABSORBER (SHOWA)
8	51923-SB2-004	Washer - SHOCK ABSORBER MOUNTING (SHOWA)
10	90213-SB2-004	Nut - SELF-LOCK, 12MM (SHOWA)
11	90304-SB2-003	Nut - SELF-LOCK, 10MM

Front windshield wiper 25

#	OEM	部品名
1	38400-SB6-675	Wiper assy. - WINDSHIELD
2	38401-SB6-672	Motor comp - FR. WIPER
3	38402-SB6-671	Link comp - FR. WIPER
4	38403-SB2-003	Rubber - MOUNTING
5	38407-SB6-671	Link a
6	38408-SB6-671	Link b
7	38409-SB6-003	Link c
9	38411-SB2-003	Collar
10	38412-SB2-003	Cap - PIVOT
11	38413-SB6-023	Seal
12	38413-671-003	Seal - DUST
13	38414-SB6-671	Rod unit a
14	38415-SB6-003	Rod unit b
15	38416-SB6-003	Cap - PIVOT
16	38417-SB6-003	Cover - MOTOR
17	38418-SA5-003	Clip - MOTOR COVER
18	38441-SB6-003	Sleeve
19	38442-693-003	Washer
20	38443-SB0-003	Ring c - STOPPER
21	38460-SB6-673	Arm - WINDSHIELD WIPER
22	38461-SB0-671	Nut - WIPER ARM CAP, 8MM
24	38470-SB2-672	Blade - WINDSHIELD WIPER (DRIVER SIDE)
25	38472-SB2-003	Rubber - BLADE (450MM)
25	76632-S5H-T01	Rubber - BLADE (450MM)
26	38480-SB2-672	Blade - WINDSHIELD WIPER (PASSENGER SIDE)

Front windshield/ rear windshield 20

#	OEM	部品名
1	67201-SB6-770	Glass - FR. WINDSHIELD
2	67205-SB6-000	Rubber - FR. WINDSHIELD DAM
3	67206-SB6-000	Rubber - WINDSHIELD LOWER DAM
4	67210-SB6-000	Bracket - FR. WINDSHIELD
5	67801-SB6-010	Molding - FR. WINDSHIELD
6	67811-SB6-000	Molding comp. - R. FR. SIDE
7	67812-SB3-013	End - R. SIDE MOLDING
8	67816-SB6-000	Molding comp. - L. FR. SIDE
9	67817-SB3-013	End - L. SIDE MOLDING
10	74201-SB6-020	Glass - RR. WINDSHIELD (BLUE)
10	74201-SB6-790	Glass - RR. WINDSHIELD
11	74202-SB6-960	Rubber - TAILGATE WIND DAM
13	74206-SB6-000	Trim - RR. WINDSHIELD
14	74801-SB6-003	Molding assy. - RR. WINDSHIELD LOWER
15	74802-SB6-010	Molding - RR. WINDSHIELD
16	74805-SB6-003	Holder - RR. GLASS LOWER
17	74806-SB6-003	Clip - RR. WINDSHIELD LOWER MOLDING
18	90116-SB6-003	Clip - FR. SIDE MOLDING
19	90854-SB6-010	Screw-washer - 3X7
20	90001-SB6-000	Screw - TORUS, 6X16

Fuel Pump 12

#	OEM	部品名
1	16700-PE0-023	Pump assy. - FUEL
2	16701-PE0-000	Insulator comp. - FUEL PUMP
3	16702-PE0-900	Stay - FUEL PUMP COVER
4	16703-PE0-010	Cover - FUEL PUMP
5	16874-PE3-010	Hose comp. - FUEL
6	17262-PE0-660	Clamp comp. b - CABLE
6	17262-PE0-030	Clamp comp. b - CABLE
7	17303-PE1-670	Clamp - HOT AIR PIPE
7	17303-PE0-670	Clamp - HOT AIR PIPE
8	30151-PE0-010	Holder - DISTRIBUTOR
9	90023-PE0-000	Bolt - FLANGE, 6X10
10	91304-PE0-000	O-ring - 60X2.4

Fuel strainer 13

#	OEM	部品名
1	16900-SA5-003	Strainer comp. - FUEL (TOKYO ROKI)
1	16900-SA5-004	Strainer comp. - FUEL (TOYO ROKI)
2	16902-SB6-000	Bracket - FUEL STRAINER
5	17371-SA5-003	Valve - TWO WAY
6	17706-SB6-010	Tube - FUEL RETURN
7	17717-SB3-003	Clamp b - FUEL TANK
9	17727-SB6-671	Stay comp - TWO WAY VALVE
10	17729-SB6-000	Protector - FUEL TUBE
11	17731-SB6-000	Pipe comp. b - VENT
12	90051-SB6-000	Screw-washer - 5X12
13	90671-SB2-000	Bolt - FR. FENDER (DACRO COATING)
14	90781-SB6-000	Clip - FUEL TUBE
22	17707-SB6-000	Tube - FUEL VENT

Fuel tank 36

#	OEM	部品名
1	17500-SB6-040	Tank comp. - FUEL
1	17500-SB6-050	Tank comp. - FUEL
2	17517-SB2-003	Filter comp - FUEL PIPE
3	17521-SB6-000	Band - R. FUEL TANK MOUNTING
4	17522-SB6-000	Band - L. FUEL TANK MOUNTING
5	17525-SB6-000	Bolt - R. FUEL TANK MOUNTING
6	17526-SB6-000	Bolt - L. FUEL TANK MOUNTING
7	17651-SB6-000	Tube - FILLER NECK CONNECTING
8	17652-SA0-000	Clip - FILLER TUBE
9	17653-SB6-000	Tube b - FILLER NECK
10	17655-SB6-000	Pipe b - FUEL FILLER
11	17658-SB6-010	Tube assy - BREATHER
12	17660-SB6-030	Pipe - FUEL FILLER
12	17660-SB6-040	Pipe - FUEL FILLER
13	17662-SB2-010	Packing - FUEL FILLER
14	17663-SB6-670	Protector - FUEL PIPE
15	17664-SB2-670	Plate - FUEL FILLER SETTING
16	17667-SB6-010	Grommet - FUEL FILLER PIPE
17	17668-SB6-010	Holder - FUEL FILLER GROMMET
19	17670-SA5-013	Cap comp. - FUEL FILLER
20	17682-679-013	Packing - FUEL FILLER CAP
21	17709-SB6-010	Pipe unit - FUEL
22	37800-SB6-013	Meter unit - FUEL (NS)
22	37800-SB6-014	Meter unit - FUEL (DENSO)
23	37801-689-000	Packing - BASE
24	37802-689-000	Retainer - FUEL UNIT
24	37802-SD2-000	Retainer - FUEL UNIT
26	70496-SB6-000	Cushion - FUEL FILLER LID
28	73215-693-003	Striker - FUEL FILLER
29	73220-SB2-003	Lock - FILLER LID
29	73220-SB2-013	Lock - FILLER LID
30	75581-SB6-010	Spring - LOCK KEY SETTING
30	75581-SB6-000	Spring - LOCK KEY SETTING
31	90103-SB0-000	Nut - FLANGE, 5MM
32	90700-SB0-003	Clip - AIR BLEED TUBE
39	17661-SB6-670	Tube - BREATHER

Fuel tubing (1) 6

#	OEM	部品名
1	16233-PE4-712	Hose assy - PURGE
5	17321-PE3-730	Joint - FOUR WAY
6	17336-PE3-730	Clip - TUBE
7	36061-PB1-000	Clamp b - TUBE (BLACK)
9	36135-PB1-004	Valve - DASHPOT CHECK
10	90634-PA0-000	Cap - SEALING

Gasket kit/ transmission assy. 3

#	OEM	部品名
4	10002-PE4-752	Engine assy - BLOCK (EW2)
5	10003-PE4-731	General assy. - CYLINDER HEAD
6	20011-PE6-G40	Transmission assy - GW-020

Glove box 12

#	OEM	部品名
1	66260-SB6-670	Tray assy - UNDER
2	66261-SB6-000	Lid - UNDER TRAY
3	66264-SB6-000	Cap - UNDER TRAY
4	66401-SB6-013	Box - GLOVE
6	66418-SA5-000	Stopper - GLOVE BOX LID
7	66430-SB6-020	Striker - GLOVE BOX
8	66450-SB2-023	Lock assy - GLOVE BOX
9	66871-611-000	Nut - CENTER PANEL
10	90101-SA4-000	Screw - TAPPING, 4X12
11	90102-SA4-000	Screw - TAPPING, 4X16
12	90305-SA0-000	Nut - FLOATING, 4MM
13	90651-692-731	Nut - NYLON, 3MM

Governor 32

#	OEM	部品名
1	27122-PC9-000	Cover - SHIFT VALVE
2	27300-PF0-902	Governor assy.
2	27300-PF0-904	Governor assy.
2	27300-PF0-903	Governor assy.
3	27310-680-901	Holder comp - GOVERNOR
4	27312-PA9-000	Pipe - 5X65
5	27313-PF4-000	Filter - GOVERNOR
5	27313-PC9-003	Filter - GOVERNOR
6	27314-PC9-000	Plate - GOVERNOR
7	27315-PC9-020	Body assy - GOVERNOR
7	27315-PC9-010	Body assy - GOVERNOR
8	27341-PF0-020	Shaft - GOVERNOR
8	27341-PF0-010	Shaft - GOVERNOR
9	27342-PA9-670	Gear - GOVERNOR
10	27413-PF0-000	Cover - THROTTLE VALVE
11	27414-PF0-900	Plate - THROTTLE SEPARATING
12	27600-PF0-902	Body assy - LOCK UP VALVE
13	27611-PF0-840	Body - LOCK UP VALVE
14	27612-PF0-840	Plate - LOCK UP SEPARATING
15	27621-PF0-020	Valve - LOCK UP SHIFT
16	27623-PF0-902	Spring - LOCK UP SHIFT VALVE
17	27648-PF0-000	Pipe - 6X119
18	90003-PC9-000	Bolt - FLANGE, 6X96
19	90007-PA9-000	Bolt - FLANGE, 6X30
20	90011-PF0-000	Bolt - FLANGE, 6X108
21	90024-612-000	Bolt - SEALING, 8MM
22	90433-639-000	Washer - LOCK, 6MM
23	90451-PC9-000	Washer - THRUST, 14MM
24	90471-580-000	Packing - 8MM
25	90741-PA9-000	Key - WOODRUFF, 3MM
32	27370-PF4-000	Filter assy - EX.
33	90433-PF4-000	Washer - LOCK, 6MM

Grommet 29

#	OEM	部品名
1	32170-647-000	Grommet - WINDOW DEFROSTER
4	60654-SB6-000	Seal - WINDSHIELD LOWER CIRCLE
5	60656-SB6-010	Plug - WINDSHIELD LOWER
7	61109-623-670	Grommet - FR. FENDER
8	70226-611-000	Plug - SETTING HOLE
9	70527-SB6-000	Insulator b - FR. INNER
10	70566-SB6-000	Insulator b - CENTER PILLAR INNER
11	70576-688-000	Grommet a - SIDE PANEL, 23MM
12	72206-SA5-000	Cap - FLOOR HOLE, 53MM
13	72209-SA5-000	Cap comp. - FLOOR HOLE
14	75826-634-300	Seal - INSIDE PANEL, 15MM
15	82871-671-000	Grommet - DRAIN HOLE, 25MM
16	85235-SB6-000	Plug - HOLE, 10X15
17	90682-693-000	Plug - HOLE, 12.5MM
18	90694-SA5-000	Grommet - WASHER TUBE HOLE
20	90851-SA6-000	Plug - HOLE
21	90851-SB2-000	Plug - AIR CONDITIONER HOLE
22	90852-SA0-000	Plug - LOCATE HOLE
23	90852-SA5-000	Plug - HOLE, 10MM
25	90852-671-003	Plug - HOLE
26	90853-680-000	Plug - LOCATE HOLE
27	90684-SB2-000	Plug - HOLE, 40X90
28	90856-SA0-000	Plug - COATING HOLE, 25MM
29	90862-SA0-980	Plug - CLUTCH CABLE HOLE
30	90871-SB6-000	Plug - RR. DRAIN
31	91613-SA5-000	Grommet b - CONTROL WIRE
32	91614-SA5-000	Grommet - HEATER LEVER HOLE (20MM)
33	91617-SB6-000	Grommet - WASHER HOSE, 32MM
34	72207-SB2-000	Cap - FLOOR HOLE, 24MM

Headlight 18

#	OEM	部品名
1	33100-SB6-793	Headlight assy - R.
2	33101-SB6-791	Lens & housing comp. - R.
3	33102-SB6-961	Bracket a - R.
4	33103-SB6-961	Bracket b - R.
5	33104-SB6-961	Bracket c - R. (KOITO)
6	33105-SB6-961	Cover - RUBBER (KOITO)
7	33106-SB6-962	Cover - R. GARNISH (KOITO)
8	33108-SB6-961	Screw - TAPPING
9	33109-SB6-962	Screw - TAPPING, 4X14
10	33111-SB6-961	Screw - TAPPING
11	33115-SB6-611	Bulb - HEADLIGHT
12	33121-SB6-961	Clip - LENS HOLDER
13	33150-SB6-793	Headlight assy - L.
14	33151-SB6-791	Lens & housing comp. - L.
15	33152-SB6-961	Bracket a - L.
16	33153-SB6-961	Bracket b - L.
17	33154-SB6-961	Bracket c - L. (KOITO)
18	33156-SB6-962	Cover - L. GARNISH

Headliner trim 1

#	OEM	部品名
4	90672-671-003	Clip - TRIM

Heater blower 8

#	OEM	部品名
2	39242-671-000	Fan - HEATER
3	39410-SB3-676	Blower assy
4	39430-SA5-003	Motor assy.
5	39432-SA5-003	Packing
6	39473-SB2-043	Resistor - BLOWER (4P)
7	39480-SB2-671	Duct - HEATER
8	90307-SA0-003	Nut - FLANGE, 5MM
9	90501-671-003	Washer - SPECIAL

Heater duct 4

#	OEM	部品名
2	64434-SB6-672	Duct assy - DRIVER INNER
3	64435-SB6-672	Duct assy - ASSISTANT INNER
4	70395-SB6-000	Duct - R. RR. OUTLET
5	70495-SB6-000	Duct - L. RR. OUTLET

Heater lever 27

#	OEM	部品名
1	35650-SB6-013	Switch assy - HEATER FAN
2	35651-SB6-010	Knob - FAN SWITCH
3	39330-SB6-672	Control assy. - HEATER
4	39349-SB6-000	Lever - CONTROL SLIDE
5	39350-SB6-000	Lever - TEMPERATURE CONTROL
6	39351-SB6-000	Lever - MODE CONTROL
7	39356-SB6-000	Spring - HEATER CONTROL
8	39360-SB6-000	Lever - FRESH & RECIRCULAR
9	39371-SB6-670	Cable - TEMPERATURE CONTROL
10	39372-SB6-670	Cable - MODE CONTROL
11	39373-SB6-670	Cable - FRESH RECIRCULAR
12	39374-SB6-000	Plate a - SLIDER
13	39375-SB6-000	Plate b - SLIDER
14	39376-SB6-000	Slider - LEVER
15	39377-SA5-000	Spring - SLIDER
16	39378-SB6-000	Collar - SLIDER
17	39379-SB6-000	Pin - CLICK
18	39381-SB2-010	Knob - HEATER CONTROL
19	39383-SA5-000	Clamp - CONTROL CABLE
20	39384-SB6-000	Shaft - MODE LEVER
21	39385-SA5-000	Stopper - CONTROL LEVER
22	39386-SB6-000	Shaft - FRESH RECIRCULAR LEVER
23	39387-693-000	Band - HEATER CONTROL
24	39390-SB6-602	Illumination assy. - HEATER
25	39392-SB6-013	Lid - AIR CONDITIONER
26	39397-SA5-003	Bulb - NEO WEDGE (14V 100MA)
27	90130-693-000	Screw - TAPPING, 4X10

Heater unit 7

#	OEM	部品名
1	39210-SB6-675	Heater unit
2	39233-692-003	Nut - INSTRUMENT PANEL
3	39245-SB2-003	Core comp - HEATER
4	39246-671-003	Clamp - CASE HOLD
5	39248-692-003	Packing - HEATER
6	39282-SB6-003	Bolt - HEATER SETTING
7	39297-SB3-003	Cover - HEATER CORE

Hood 20

#	OEM	部品名
1	60649-SB6-661	Garnish - AIRSCOOP
2	60655-SB6-003	Rubber - RR. HOOD SEAL
3	60657-SB6-010	Shelter a - AIRSCOOP UNDER
4	60659-SB6-661	Shelter c - AIRSCOOP UNDER
8	63433-SB6-000	Stopper - HOOD HINGE
9	63441-SB6-000	Stay - HOOD OPENER
11	63449-SB6-003	Clip b - HOOD WIRE
12	63450-SB6-661	Wire comp - HOOD
13	63451-SB6-003	Opener assy - HOOD
14	63455-SA0-000	Grommet - HOOD WIRE
15	63510-SB3-013	Lock assy - HOOD
16	63511-SA5-003	Cushion - HOOD
17	90102-SA4-000	Screw - TAPPING, 4X16
18	90127-SA0-010	Bolt-washer - 6X16
20	90655-SB2-003	Pin - GARNISH DRIVE
21	90656-SB2-003	Bush - GARNISH
23	90670-SA0-000	Grommet - HOOD STAY
24	90671-SA0-003	Holder - ROD
27	90109-SB6-000	Screw - TRUSS, 5X16
29	90697-SB2-003	Clip - HOOD WIRE

Hop-up air outlet 15

#	OEM	部品名
1	64469-SB6-003	Cap - SHAFT
5	64474-SB6-003	Lock - HOP UP
6	64475-SB6-003	Bracket - HOP UP LOCK
7	64477-SB6-003	Bracket - HOP UP HINGE
8	64478-SB6-003	Shaft - HOP UP CASE
9	64479-SB6-003	Spring - HOP UP CASE
10	64484-SB6-010	Spring - HOP UP KNOB
11	64488-SB6-003	Clip - HOP UP GARNISH
12	64489-SB6-000	Stopper - HOP UP
14	64495-SB6-003	Separator - HOP UP
15	66418-SB0-010	Stopper - GLOVE BOX LID
16	90101-SA4-000	Screw - TAPPING, 4X12
17	90102-SA4-000	Screw - TAPPING, 4X16
18	90200-SB6-003	Damper assy. - AIR
19	90454-GB2-000	Circlip - 6MM

Ignition coil/battery 11

#	OEM	部品名
1	30500-PE0-006	Coil assy - IGNITION (TEC)
3	30501-PE0-000	Bracket - IGNITION COIL
4	30510-SB2-683	Condenser comp. - SHOWA
4	30510-SB2-682	Condenser comp. - PANASONIC
6	31500-507-671	Battery - 32C 24R) (YUASA
7	31511-689-670	Label - BATTERY CAUTION
8	31512-SB2-010	Plate - BATTERY SETTING
9	31513-SB2-000	Bolt - BATTERY SETTING
10	31521-SB2-010	Box assy - BATTERY
10	31521-SR3-000	Box assy - BATTERY
11	31542-SA0-612	Plug - VENT (YUASA)

Instrument panel/garnish (D,P,Y) 21

#	OEM	部品名
1	60643-SB6-660	Beam comp - STEERING HANGER
6	64506-SB6-003	Clip A - ASSISTANT OUTLET
7	64507-SB6-003	Clip b - ASSISTANT OUTLET
8	66111-SB6-671	Panel - INSTRUMENT BACK
9	66113-SB6-000	Frame - INSTRUMENT CENTER
10	66114-SB6-670	Frame - INSTRUMENT SIDE
13	66165-SB6-000	Label - POCKET
14	66166-SB6-000	Spring - DRIVER POCKET
15	66171-SB6-750	Panel - CHOKE
16	66188-SB6-000	Label - FUSE
18	66217-SB6-000	Protector - CIGARETTE LIGHTER
20	66418-SB0-010	Stopper - GLOVE BOX LID
21	66418-579-000	Stopper - GLOVE BOX LID
26	66843-SA5-670	Clip - RADIO PANEL
27	66842-SB0-670	Panel - RADIO
28	66844-SA7-000	Cap - INSTRUMENT PANEL STAY
30	66871-693-000	Nut - SPEAKER FRAME
31	90101-SB6-000	Spring - LOWER COVER
33	90128-SA7-000	Bolt-washer - 6X25
34	90350-SB0-000	Nut - CLIP, 6MM
35	90658-SB2-000	Clip - FITTING

Intake manifold (1) 10

#	OEM	部品名
1	16105-PC3-601	Gasket - CARBURETOR INSULATOR
2	16211-PE3-000	Insulator comp. - CARBURETOR
3	16232-PE3-731	Stay - WIRE HARNESS CLIP
4	16237-PE0-010	Clamp - FUEL HOSE
5	17100-PE3-730	Manifold comp - INTAKE
6	17105-PE7-660	Gasket - INTAKE MANIFOLD
7	17132-PE3-000	Stay - INTAKE MANIFOLD
8	17406-PE4-730	Clamp - CANISTER HOSE
9	90023-PE0-000	Bolt - FLANGE, 6X10
10	90067-PE3-300	Bolt - STUD, 6X41.5

Interior light 6

#	OEM	部品名
2	34252-SB2-003	Lens - DAIICHI
3	34260-SA0-013	Light assy - TRUNK ROOM
4	34262-SA0-003	Lens
5	34295-538-003	Bulb - 12V 5W) (DAIICHI
5	34295-SD4-003	Bulb - 12V 5W.K
6	34295-SA5-003	Bulb - 12V 3.4W) (DAIICHI

Knuckle 16

#	OEM	部品名
1	44300-SB2-963	Bearing assy - FR. HUB (KOYO SEIKO)
1	44300-SX8-004	Bearing assy - HUB
1	44300-SB2-965	Bearing assy - FR. HUB (TOYO SEIKO)
1	44300-SB2-966	Bearing assy - FR. HUB (TOYO SEIKO)
1	44300-SB2-962	Bearing assy - FR. HUB (FUJIKOSHI)
1	44300-SB2-964	Bearing assy - FR. HUB (NSK)
2	44610-SB2-960	Hub - FR.
3	45251-SB2-750	Disk - FR. BRAKE
4	45255-SA7-980	Guard - SPLASH
5	51211-SB2-930	Knuckle - R.
6	51216-SB2-930	Knuckle - L.
7	90113-SA0-015	Bolt - WHEEL (NAGOYA RASHI)
7	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)
7	90113-SA0-023	Bolt - WHEEL (TOKAI TRW)
8	90120-SB2-003	Bolt - SHOCK ABSORBER LOCK
9	91055-SB2-960	Circlip - INTERNAL, 72MM

Main fuse/horn (1) 19

#	OEM	部品名
1	38100-SA5-003	Horn assy - LOW
5	38200-SB3-673	Box assy - FUSE (SUMITOMO)
5	38200-SB3-674	Box assy - FUSE (FURUKAWA)
6	38205-SB6-651	Label - FUSE
7	38235-SA5-003	Puller - FUSE (SUMITOMO)
7	38235-SB0-003	Puller - FUSE (FURUKAWA)
8	38250-SB2-901	Box assy - MAIN FUSE
9	38251-SB2-000	Bracket - FUSE BOX
10	38290-SA5-003	Relay assy - INTERMITTENT WIPER (MITSUBA) (IS-2206)
11	38300-SE3-003	Relay assy - TURN SIGNAL & HAZARD (FR-3309) (MITSUBA)
11	38300-SE3-004	Relay assy - TURN SIGNAL & HAZARD (166500-0060) (DENSO)
12	38375-SB6-661	Bracket - FUSE BOX
13	38965-SB2-681	Alarm assy - BELT & KEY (DENSHI GIKEN)
14	39797-SE0-004	Relay assy - POWER (4P) (MITSUBA) (RC-2201)
14	39797-SE0-003	Relay assy - POWER (4P) (DENSO) (056700-7330)
16	90153-SB2-003	Screw-washer - 5X10
23	38230-SA5-003	Fuse b - 10A) (FURUKAWA
24	38232-SA5-003	Fuse b - 20A) (FURUKAWA
25	38231-SA5-003	Fuse b - 15A) (FURUKAWA

Main valve body/regulator 37

#	OEM	部品名
1	22741-PF0-000	Pipe - LOW CLUTCH
2	24461-PA9-000	Spring - ROLLER
2	24461-PA9-010	Spring - ROLLER
3	24471-612-000	Roller - 6X16
4	25145-PA9-010	Shaft - OIL PUMP GEAR
5	27000-PF0-900	Body assy - MAIN VALVE
6	27105-PF0-910	Body sub assy. - MAIN VALVE
7	27112-PF0-901	Plate - MAIN SEPARATING
8	27122-PC9-000	Cover - SHIFT VALVE
9	27122-PF0-900	Cover - TIMING VALVE
10	27200-PF0-010	Regulator assy
11	27211-PF0-840	Body - REGULATOR VALVE
12	27221-PC9-000	Valve - REGULATOR
13	27231-PC9-911	Spring a - REGULATOR VALVE
14	27232-PF4-000	Spring b - REGULATOR VALVE
15	27233-PA9-000	Spring - REACTION STATOR
16	27246-PA9-000	Cap - REGULATOR SPRING
17	27247-PA9-000	Seat - REACTION SPRING
18	27255-PC9-710	Spring - TORQUE CONVERTER CHECK VALVE
19	27256-PA9-000	Valve - RELIEF
20	27256-639-000	Valve - TORQUE CONVERTER CHECK
21	27257-PA9-000	Spring - RELIEF VALVE
22	27258-680-900	Seat - RELIEF VALVE SPRING
23	27419-PC9-010	SEAT, VALVE SPRING
24	27421-PF0-901	Valve - MANUAL
25	27521-PF0-900	Valve - REVERSE SHIFT
26	27522-PF0-900	Spring - REVERSE SHIFT
27	27631-PC9-810	Valve - LOCK UP TIMING
28	27631-PF0-900	Valve - LOCK UP TIMING
29	27632-PF0-810	Spring - GOVERNOR CUT
30	27633-PF0-900	Spring - LOCK UP TIMING VALVE
31	27634-PF0-000	Valve - CONTROL
32	27635-PF0-000	Spring - CONTROL VALVE
33	27637-PF0-000	Cover - CONTROL VALVE
34	27644-PF0-900	Spring - LOCK UP CUT VALVE
35	90007-PA9-000	Bolt - FLANGE, 6X30
36	90089-PC9-000	Bolt - STOPPER, 6MM

Mainshaft 36

#	OEM	部品名
1	22814-PA9-023	Ring - SEALING, 32MM
2	23210-PF0-910	Mainshaft comp.
3	23411-PF0-900	Gear - MAINSHAFT LOW
4	23431-PF0-910	Gear - MAINSHAFT THIRD
5	90201-PA9-000	Nut - FLANGE, 19MM
6	90411-PA9-010	Washer - SPLINE, 35X50X3.00
6	90419-PA9-000	Washer - SPLINE, 35X50X3.30
6	90413-PA9-010	Washer - SPLINE, 35X50X3.10
6	90421-PA9-000	Washer - SPLINE, 35X50X3.40
6	90415-PA9-010	Washer - SPLINE, 35X50X3.20
6	90418-PA9-000	Washer - SPLINE, 35X50X3.25
6	90412-PA9-010	Washer - SPLINE, 35X50X3.05
6	90420-PA9-000	Washer - SPLINE, 35X50X3.35
6	90414-PA9-010	Washer - SPLINE, 35X50X3.15
7	90417-PA9-000	Washer - 26 X 45 X 4
8	90422-PA9-000	Washer - THRUST, 26MM
9	90506-PC9-000	Collar - DISTANCE, 20MM
10	90508-PA9-000	Collar - 26MM
11	90603-689-900	Circlip - EXTERNAL, 20MM
12	90609-PA9-000	Ring - SNAP, 68MM
13	90613-PA9-000	Ring - SNAP, 26MM
14	91002-PA9-003	Bearing - BALL, 63/26 (NTN)
15	91011-PA9-004	Bearing - NEEDLE, 32X38X20 (KOYO)
15	91011-PG4-003	Bearing - NEEDLE, 32X38X20 (NTN)
16	91011-428-008	Bearing - NEEDLE, 20X26X20
16	91011-P48-008	Bearing - NEEDLE, 20X26X20
17	91012-PA9-003	Bearing - NEEDLE, 31X36X18.5
18	91014-PA9-003	Bearing - THRUST NEEDLE, 35X52X2 (NTN)
18	91014-PTD-901	Bearing - THRUST NEEDLE, 35X52X2
19	91018-PA9-003	Bearing - THRUST NEEDLE, 32X44X2 (NTN)
19	91018-P56-003	Bearing - THRUST NEEDLE, 32X44X2 (NTN)
20	91019-PA9-013	Bearing - THRUST NEEDLE, 31X47X2
21	91307-PA9-003	O-ring 31.2X1.9 (ARAI)
21	91307-PA9-004	O-ring - 31.2X1.9 (NOK)
22	91308-PA9-003	O-ring - 19.8X1.9 (ARAI)
22	91308-PA9-004	O-ring - 19.8X1.9 (NOK)

Mainshaft/mainshaft gears 31

#	OEM	部品名
1	23211-PE6-G00	Mainshaft
2	23261-PB7-000	Shaft - REVERSE IDLE GEAR
3	23540-PE6-000	Gear - REVERSE IDLE
4	23581-PE6-J00	Gear - MAINSHAFT FIFTH
5	23626-PE6-900	Sleeve set - SYNCHRONIZER (5)
7	23936-PE6-000	Shim f - 1.3
7	23948-PE6-000	Shim r - 1.425
7	23943-PE6-000	Shim m - 1.175
7	23938-PE6-000	Shim h - 1.4
7	23933-PE6-000	Shim c - 1.15
7	23950-PE6-000	Shim t - 1.525
7	23945-PE6-000	Shim o - 1.275
7	23940-PE6-000	Shim j - 1.5
7	23935-PE6-000	Shim e - 1.25
7	23931-PE6-000	Shim a - 0.5
7	23947-PE6-000	Shim q - 1.375
7	23942-PE6-000	Shim l - 1.125
7	23937-PE6-000	Shim g - 1.35
7	23932-PE6-000	Shim b - 1.1
7	23949-PE6-000	Shim s - 1.475
7	23944-PE6-000	Shim n - 1.225
7	23939-PE6-000	Shim i - 1.45
7	23934-PE6-000	Shim d - 1.2
7	23951-PE6-000	Shim u - 1.575
7	23946-PE6-000	Shim p - 1.325
7	23941-PE6-000	Shim k - 1.55
8	23931-634-960	Plate - THRUST, 25MM
9	90602-PE6-000	Ring - SNAP, 45MM
10	91003-PE6-018	Bearing - RADIAL BALL, 6304
11	91102-PE6-008	Bearing - NEEDLE, 28X45X20
12	91108-PE6-008	Bearing - NEEDLE, 25X30X23

Master power (A.L.B.) 14

#	OEM	部品名
1	06464-SB2-000	Power set - MASTER (7")
3	46151-SB2-003	Yoke - PUSH ROD (NISSIN)
4	46191-634-000	Gasket - MASTER CYLINDER BRACKET
5	46400-SB2-003	Power assy. - MASTER (7") (NISSIN)
6	46401-SA5-013	Valve assy. - CHECK
7	46404-SB6-730	Tube a - MASTER POWER
8	46405-SB2-662	Tube b - MASTER POWER
9	46407-SB2-670	Clamp - MASTER POWER TUBE
13	46431-692-003	Spring - VALVE
14	46432-SA0-003	Spring - POPPET
15	46433-SB2-003	Rod comp - PUSH
16	46443-692-003	Adjuster - PUSH ROD
17	46512-SB2-000	Pin - PEDAL
18	53729-671-003	Clamp d - 15.5MM

Mirror/sunvisor 18

#	OEM	部品名
11	88010-SB6-000	Body set - FR. ASHTRAY
12	88011-SB6-010	Holder set - FR. ASHTRAY
14	88141-SB2-000	Holder - RR. VIEW MIRROR
16	88145-SB2-953	Base - STAY (MURAKAMI)
18	88147-SB2-952	Plate - SPRING (MURAKAMI)
19	88148-SB2-952	Bolt - LOCK, 6X7 (MURAKAMI)
20	88150-SB6-744	Mirror assy - R. DOOR
21	88153-SB6-743	Mirror - R. (MURAKAMI)
22	88154-SA7-004	Knob - DOOR MIRROR (MURAKAMI)
23	88155-SB6-744	Mirror assy - L. DOOR
24	88158-SB6-743	Mirror - L. (MURAKAMI)
25	88159-SA7-004	Cap - DOOR MIRROR KNOB (MURAKAMI)
26	88171-SB6-670	Garnish - R. DOOR MIRROR
28	88176-SB6-670	Garnish - L. DOOR MIRROR
33	90110-SA7-004	Screw-washer - 3X16 (MURAKAMI)
34	90133-SA5-000	Screw - PAN, 5X20
35	90135-SA5-010	Screw-washer - 5X28
36	90686-SB6-000	Cap - MIRROR GARNISH

Oil filter/ oil level gauge 13

#	OEM	部品名
1	11311-PG6-000	Cover - BREATHING PORT
2	11850-PG6-000	Chamber - BREATHER
3	11855-PC6-000	Grommet - PCV VALVE
4	11856-PE3-010	Tube comp - PCV
5	15220-PE0-010	Strainer comp. - OIL
6	15221-PE0-010	Packing - OIL STRAINER
7	15400-PA6-004	Filter - OIL (TOYO ROKI)
7	15400-PA6-003	Filter - OIL (TOKYO ROKI)
7	15400-PA6-506	OILFILTER CARTRID
8	15650-PE0-030	Gauge comp. - OIL LEVEL
9	17130-PE0-003	Valve assy. - PCV
10	90015-689-000	Holder - OIL FILTER
11	91324-PC6-000	O-ring - 20.6X2.6

Oil pump 14

#	OEM	部品名
1	15100-PE1-730	Pump assy. - OIL
2	15110-PE0-030	Body - OIL PUMP
3	15112-PE0-010	Cover - OIL PUMP
4	15131-PE0-013	Rotor - PUMP INNER (SUMITOMO)
5	15132-PE0-003	Rotor - PUMP OUTER (SUMITOMO)
6	15231-PE0-000	Valve - RELIEF
7	15232-PB2-000	Spring - RELIEF VALVE
8	15233-634-000	Seat - RELIEF VALVE SPRING
9	15301-PE0-300	Bolt - SEALING, 14MM
10	15302-PE0-300	Washer - SEALING, 14MM
11	90020-PE0-000	Bolt - STUD, 8X28
12	90041-PA5-000	Bolt - STUD, 6X28
13	91212-PE0-662	Oil seal - 31X46X8
14	91307-PE0-010	O-ring - 25X2.4

Oil strainer/ speedometer gear 18

#	OEM	部品名
1	23811-689-020	Holder comp - SPEEDOMETER GEAR
2	23813-689-000	Plate - SPEEDOMETER GEAR HOLDER
3	23814-689-000	Seal - GEAR HOLDER
4	23820-PF0-920	Gear - SPEEDOMETER DRIVEN
5	25155-PF0-010	Shaft assy - STATOR
6	25420-PA9-000	Strainer - TRANSMISSION
7	25610-PF0-850	Gauge comp. - ATF
8	25910-639-000	Joint a - OIL HOSE
9	25951-639-000	Bolt - JOINT
10	25960-PA9-020	Joint - OIL HOSE
11	54315-SB6-982	Wire - CONTROL (KOKOKU)
12	54341-SA0-980	Boot - CONTROL WIRE
13	90637-689-000	Clip - SPEEDOMETER CABLE
14	90638-689-000	Clip - SPEEDOMETER GEAR
15	91301-250-000	O-ring - 21.5MM
15	91307-425-003	O-ring - 21.5X3.2
16	91313-611-010	O-ring - 23.5X2
17	91316-612-000	O-ring - 27.5X1.7

Parking brake 11

#	OEM	部品名
1	47105-SB3-000	Lever assy. - PARKING BRAKE
2	47142-659-310	Knob - PARKING BRAKE PUSH ROD
3	47143-671-310	Spring - PUSH ROD
4	47342-SA5-013	Switch - PARKING BRAKE
5	47360-SB2-000	Equalizer
6	47365-538-000	Pin - EQUALIZER
7	47510-SB6-033	Wire - R. PARKING BRAKE
8	47522-594-000	Nut - PARKING BRAKE ADJUSTING
9	47537-671-670	Spring - PARKING BRAKE ROD
10	47560-SB6-033	Wire - L. PARKING BRAKE
11	47570-SB6-000	Guide - BRAKE WIRE

Piston/connecting rod 23

#	OEM	部品名
1	13011-PE3-004	Ring set - PISTON (STD.)
1	13021-PE3-004	Ring set - PISTON (OS 0.25)
2	13101-PE4-000	Piston - STD
2	13102-PE4-000	Piston - OS 0.25
3	13112-PE0-000	Pin - PISTON
4	13204-PE1-003	Bolt
5	13205-689-004	Nut - CONNECTING ROD (NAGOYA RASHI)
5	13205-634-010	Nut
6	13210-PE1-000	Rod assy - CONNECTING
7	13213-PE1-003	Bearing c - CONNECTING ROD (BROWN) (DAIDO)
7	13216-PE1-004	Bearing f - CONNECTING ROD (PINK) (TAIHO)
7	13214-PE1-003	Bearing d - CONNECTING ROD (GREEN) (DAIDO)
7	13211-PE1-004	BEARING A - CONNECTING ROD (BLUE) (TAIHO)
7	13217-PE1-004	Bearing g - CONNECTING ROD (RED) (TAIHO)
7	13217-PE1-003	Bearing g - CONNECTING ROD (RED) (DAIDO)
7	13215-PE1-003	Bearing e - CONNECTING ROD (YELLOW) (DAIDO)
7	13212-PE1-004	Bearing b - CONNECTING ROD (BLACK) (TAIHO)
7	13216-PE1-003	Bearing f - CONNECTING ROD (PINK) (DAIDO)
7	13213-PE1-004	Bearing c - CONNECTING ROD (BROWN) (TAIHO)
7	13211-PE1-003	BEARING A - CONNECTING ROD (BLUE) (DAIDO)
7	13214-PE1-004	Bearing d - CONNECTING ROD (GREEN) (TAIHO)
7	13212-PE1-003	Bearing b - CONNECTING ROD (BLACK) (DAIDO)
7	13215-PE1-004	Bearing e - CONNECTING ROD (YELLOW) (TAIHO)

Quarter window 22

#	OEM	部品名
1	67807-692-000	Spacer - WINDSHIELD UPPER
2	73110-SB6-305	Glass assy - R. QUARTER (BLUE)
3	73210-SB6-305	Glass assy - L. QUARTER (BLUE)
4	73802-SB6-000	Garnish assy - R. FR.
5	73803-SB6-000	Garnish - R. QUARTER LOWER
6	73804-SB6-960	Rubber a - QUARTER WINDOW DAMPER
7	73805-SB6-000	Molding - QUARTER WINDOW UPPER
8	73807-SB6-000	Garnish assy - L. FR.
9	73808-SB6-000	Garnish - L. QUARTER LOWER
10	73809-SB6-000	Plug - FR. QUARTER GARNISH
11	73810-SB6-960	Rubber b - QUARTER WINDOW DAMPER
12	73811-SB6-003	Holder - R. QUARTER GLASS
13	73812-SB6-960	Rubber c - QUARTER WINDOW DAM
14	73816-SB6-003	Holder - L. QUARTER GLASS
15	90104-SB6-000	Screw - TAPPING, 4X8.5
16	90106-SB6-000	Screw - TAPPING, 4X12
17	90105-SB6-000	Screw - TAPPING, 5X12
18	90656-SB6-003	Clip - RR. PILLAR MOLDING
19	90669-SB6-003	Grommet - SCREW ADJUSTER
20	90668-688-003	Grommet - SCREW, 4MM
21	90712-SB6-003	Clip - R. RR. QUARTER MOLDING
22	90717-SB6-003	Clip - L. RR. QUARTER MOLDING

Radiator 58

#	OEM	部品名
1	17724-102-700	Clip - SUB TANK HOSE
2	19010-PE1-665	Radiator comp - DENSO
2	19010-PE1-666	Radiator comp - TOYO
2	19010-PE1-676	Radiator comp - TOYO
2	19010-PE1-675	Radiator comp - DENSO
3	19011-PA0-004	Cock - DRAIN (TOYO)
3	19011-PA0-003	Cock - DRAIN (DENSO)
4	19012-PA0-003	Packing - DRAIN (DENSO)
4	19012-ZB5-003	Packing, drain
4	19012-PA0-004	Packing - DRAIN (TOYO)
5	19015-PE0-023	Shroud comp - DENSO
5	19015-PE0-024	Shroud comp - TOYO
6	19020-PE0-004	Fan comp - COOLING (MITSUBA)
6	19020-PE0-003	Fan - COOLING (DENSO)
7	19021-PE0-010	Rubber - RADIATOR MOUNTING
8	19025-PE0-010	Bush - RADIATOR MOUNTING
9	19028-PE0-000	Plate - RUBBER SETTING
10	19030-PE0-024	Motor - COOLING FAN (MITSUBA)
10	19030-PE0-023	Motor - COOLING FAN (DENSO)
11	19045-692-003	Cap comp. - RADIATOR (DENSO)
11	19045-PA0-014	Cap comp. - RADIATOR (TOYO)
12	19101-PE2-010	Tank comp. - RESERVE
13	19102-692-010	Cap - RESERVE TANK
14	19103-PA0-660	Hose - RESERVE TANK
14	19103-671-000	Hose - RESERVE TANK
15	19104-PE2-000	Tube - RESERVE TANK
16	19105-PE2-010	Mark - RESERVE TANK
17	19106-689-000	Joint - RESERVE TANK
18	19107-PA0-000	Clip - RESERVE TANK JOINT
19	19108-PE2-000	Filler - COOLANT
20	19109-PE2-000	Cap - FILLER
21	19110-PE2-000	Stay - FILLER
22	19111-PE2-900	Tube - FILLER
23	19114-PE0-003	Clamp - RESERVE TANK TUBE
24	19501-PE0-010	Hose - WATER UPPER
25	19502-PE0-020	Hose - LOWER WATER
25	19502-PE0-900	Hose - LOWER WATER
26	19511-PA6-003	Clip - WATER HOSE(CHUO SPRING)
27	25213-PE0-900	Hose - OIL COOLER, 750
28	25213-639-902	Hose - OIL COOLER, 400MM (YAMASHITA)
28	25213-639-900	Hose - OIL COOLER, 400MM (MEIJI)
30	32175-647-920	Clip - WIRE HARNESS
30	30701-883-000	Clip, high tension cord (8mm)
31	37760-PB2-003	Switch assy - THERMOSTAT (A-90) (NIPPON THERMOSTAT)
32	39228-PA0-901	Band - HOSE, 220MM
33	60785-SB2-000	Cushion a - RADIATOR MOUNTING
34	90041-PE0-003	Screw-washer - 4X10 (DENSO)
34	90041-PA6-004	Screw-washer - 4X18 (TOYO)
35	90041-PD2-004	Nut - SPECIAL, 5MM (MITSUBA)
35	90311-MB6-003	Nut toothed 5mm
36	90042-PE0-004	Bolt-washer - 6X12 (TOYO)
36	90042-PA6-003	Bolt-washer - 6X10 (DENSO)
37	90043-PD2-003	Nut - HEX., 5MM (DENSO)
38	90403-PA0-004	Washer - PLAIN, 7MM (MITSUBA)
39	90635-671-000	Clip - OIL HOSE
40	91307-611-000	O-ring (13.5X1.4)
40	91307-PH7-660	O-ring (13.5X1.4)
41	90003-PG7-660	Bolt-washer - 6X16 (DACRO COATING)

Rear brake drum 22

#	OEM	部品名
1	42200-SB2-018	Bearing assy - HUB UNIT (TOYO SEIKO)
1	42200-SB2-015	Bearing assy - HUB UNIT (FUJIKOSHI)
2	42324-SB2-020	Washer - HUB UNIT
3	42326-SB2-000	Cap - HUB UNIT
3	42326-SFA-000	Cap - HUB UNIT
4	42400-SB2-015	Housing unit - SWING BEARING (FUJIKOSHI)
4	42400-SB2-018	Housing unit - SWING BEARING (TOYO SEIKO)
5	42411-SB2-000	Ring - HOUSING UNIT
6	42610-SD9-010	Drum - RR. BRAKE
7	52210-SB2-020	Spindle assy - R. RR. WHEEL
8	52211-SB2-020	Spindle assy - L. RR. WHEEL
9	90113-SA0-023	Bolt - WHEEL (TOKAI TRW)
9	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)
9	90113-SA0-015	Bolt - WHEEL (NAGOYA RASHI)
10	90116-SB2-003	Bolt - HOUSING UNIT, 11X27
11	90210-SB2-003	Bolt - AXLE BEAM, 11X66
12	90214-SB2-023	Bolt - AXLE BEAM, 11X33
13	90215-SB2-004	Nut - SELF-LOCK (FUSE RASHI)
14	90305-692-010	Nut
14	90402-SB2-000	Nut - HUB
15	91252-SB2-014	Seal - HUB UNIT (ARAI)
15	91252-SB2-013	Seal - HUB UNIT (NOK)

Rear brake shoe 35

#	OEM	部品名
1	43110-SB6-033	Plate comp - R. RR. BRAKE BACKING
2	43120-SB6-033	Plate comp - L. RR. BRAKE BACKING
3	43153-SD9-671	Shoe comp - RR. BRAKE
4	43171-SA5-003	Spring a - BRAKE SHOE RETURN
5	43172-SA5-003	Spring b - BRAKE SHOE RETURN
6	43300-SB2-003	Cylinder assy. - R. RR. WHEEL
7	43301-SB2-003	Cylinder assy. - L. RR. WHEEL
8	43315-671-631	Cover - DUST
8	43315-SN4-003	Cover - DUST
9	43321-SA3-681	Piston - WHEEL CYLINDER
10	43322-663-003	Cup - PISTON
11	43323-663-003	Spring - RR. WHEEL CYLINDER
12	43345-SA5-013	Plug - ADJUSTER
13	43352-568-003	SCREW, BLEEDER (NISSIN)
13	43352-567-000	Screw - BLEEDER
14	43353-548-003	Cap - BLEEDER SCREW
15	43361-SA5-013	Lever - R. BRAKE
16	43362-SA5-003	Rod a - R. CONNECTING
17	43363-SA5-003	Bolt - R. ADJUSTER
18	43364-SA5-003	Rod b - CONNECTING
18	43364-S5A-003	Rod b - CONNECTING
19	43365-SA5-003	Pin - PARKING BRAKE LEVER
20	43366-SC2-013	Lever comp - R. ADJUSTER
21	43367-SB6-003	Spring - R. ADJUSTER
22	43371-SA5-013	Lever - L. BRAKE
23	43372-SA5-003	Rod a - L. CONNECTING
24	43373-SA5-003	Bolt - L. ADJUSTER
25	43375-SA0-003	U-clip
26	43376-SC2-013	Lever comp - L. ADJUSTER
27	43377-SB6-003	Spring - L. ADJUSTER
28	43379-SA5-003	Washer - WAVE
29	45172-SA0-003	Spring - SHOE CLAMP
29	45172-S04-003	Spring - SHOE CLAMP
30	45175-SA0-003	Pin - TENSIONER
31	90215-SB2-004	Nut - SELF-LOCK (FUSE RASHI)

Rear door lining 15

#	OEM	部品名
1	73862-672-003	Clip - DOOR WEATHERSTRIP
2	75826-605-300	Seal - DOOR HOLE, 30MM (CIRCLE) (BLACK)
3	75864-SA0-003	Clip - WEATHERSTRIP DOOR (TOWA)
4	75874-SB6-000	Grommet - DOOR LOCK KNOB
7	76826-SB6-670	Seal - R. RR. DOOR HOLE
10	76836-SB6-670	Seal - L. RR. DOOR HOLE
11	76851-SB6-000	Weatherstrip - R. RR. DOOR INNER
12	76852-SB6-000	Weatherstrip - RR. DOOR INNER
13	76856-SB6-000	Weatherstrip - L. RR. DOOR INNER
14	76880-SB6-003	Weatherstrip - R. RR. DOOR
15	76885-SB6-003	Weatherstrip - L. RR. DOOR
17	90301-SA5-003	Nut a - SPIRE
18	90663-671-003	Clip - LINING
19	90664-671-003	Clip - CANOE
20	90665-SB3-003	Grommet - SCREW, 6MM

Rear door lock 23

#	OEM	部品名
1	75411-634-000	Joint
2	75412-SA0-000	Fastener
6	75522-634-000	Grommet - SCREW, 4MM
6	90866-SA0-000	Grommet - SCREW, 4MM
8	75551-692-003	Holder - DOOR LOCK ROD
9	75555-SB2-003	Striker - DOOR LOCK
10	75556-605-010	Bolt - LOCK STRIKER
11	75592-SA1-960	Knob - INSIDE LOCK
12	76410-SB6-023	Lock assy - R. RR. DOOR
13	76422-SB6-000	Rod - R. RR. DOOR LOCK
14	76423-SB6-000	Rod - RR. LOCK KNOB
15	76430-SA6-003	Crank assy - RR. DOOR LOCK
16	76450-SB6-023	Lock assy - L. RR. DOOR
17	76462-SB6-000	Rod - L. RR. DOOR LOCK
18	76512-SB6-670	Cover - R. INSIDE HANDLE
19	76522-SB6-670	Cover - L. INSIDE HANDLE
20	76525-SB6-000	Rod - R. RR. DOOR INSIDE
21	76565-SB6-000	Rod - L. RR. DOOR INSIDE
22	76610-SB6-023	Handle assy - R. RR. DOOR OUTSIDE
23	76620-SB6-023	Handle assy - L. RR. DOOR OUTSIDE
24	90662-SB2-000	Grommet - SCREW, 5MM
27	90111-SA0-000	Screw - TAPPING, 4X8
29	91615-SE7-003	Grommet - SCREW, 4MM

Rear door panel 10

#	OEM	部品名
1	75760-SB2-003	Pin - DOOR CHECKER
1	75760-SA5-003	Pin - DOOR CHECKER
2	75864-SB6-010	Clip - DOOR MOLDING
3	75891-SA7-000	Stopper - DOOR
16	76750-SB6-013	Checker comp. - RR. DOOR
17	76800-SB6-003	Molding assy. - R. RR. DOOR
18	76805-SB6-003	Molding assy. - L. RR. DOOR
24	90001-SD2-000	Bolt - FLANGE, 8X22
25	90110-SB6-000	Bolt-washer - 8X21
26	90755-SB2-000	E-ring - 6MM

Rear lower arm/radius rod 19

#	OEM	部品名
1	42100-SB5-010	Beam assy - RR. AXLE
3	42120-SB2-000	Cap - BEAM, 58MM
8	52313-692-000	Washer a
10	52350-SB2-010	Rod comp - PANHARD
11	52357-SB2-010	Bush b - INNER PIPE
12	52361-SB2-007	Bush a - PANHARD ROD
13	52362-SB2-007	Bush b - PANHARD ROD
14	52364-SB2-000	Washer - PANHARD ROD
15	52371-SB6-040	Arm comp - R. RR. TRAILING
16	52372-SB6-040	Arm comp - L. RR. TRAILING
17	52384-SB2-033	Bush comp - TRAILING ARM
19	90020-SB2-023	Bolt - SELF-LOCK, 12X87
20	90021-SB2-003	Bolt - SELF-LOCK, 10X68
22	90210-SB2-003	Bolt - AXLE BEAM, 11X66
23	90211-SB2-003	Bolt - AXLE BEAM, 11X37
25	90302-SB6-000	Nut - FLANGE, 12MM
27	90345-SB2-003	Nut - SELF-LOCK, 12MM (CAP)
28	90438-SB2-000	Washer - 23X11X2.3
30	90439-SB2-010	Washer - SPECIAL, 24X12X2.3

Rear seat/seatbelt 26

#	OEM	部品名
1	70236-SB6-960	Pivot - RR. SEAT
2	75412-SA0-000	Fastener
15	78115-SB6-961	Link comp - R.
18	78118-SB6-961	Rod
19	78119-SB6-960	Rubber - RR. SEAT CUSHION
24	78125-SB6-961	Link comp - L.
25	78131-SB6-961	Base - R. RR. SEAT CENTER HINGE
26	78132-SB6-961	Hinge assy - R. RR. SEAT CENTER
28	78136-SB6-962	Base a - RR. SEAT SIDE HINGE
29	78137-SB6-961	Hinge assy - R. RR. SEAT SIDE
31	78139-SB6-961	Plate - RR. SEAT HINGE
32	78142-SB6-961	Hinge assy - L. RR. SEAT CENTER
33	78146-SB6-962	Base b - RR. SEAT SIDE HINGE
34	78147-SB6-961	Hinge assy - L. SEAT SIDE
42	78173-SB6-003	Lock assy - R. RR. SEAT
43	78175-SB6-961	Striker - R. RR. SEAT
44	78178-SB6-003	Bush - PIVOT PIN
48	78183-SB6-003	Lock assy - L. RR. SEAT
49	78185-SB6-961	Striker - L. RR. SEAT
50	78189-SB6-961	Pivot - RR. SEAT
51	78190-SB6-000	Insulator - R. TRUNK FLOOR
54	78195-SB6-000	Insulator - L. TRUNK FLOOR
62	78660-SB6-000	Plate - RR. BELT ANCHOR SUPPORT
72	90667-SB6-901	Clip - MAT, 7MM
74	90668-688-003	Grommet - SCREW, 4MM
86	90103-693-000	Screw - FLANGE TAPPING, 4X12

Rear shock absorber 15

#	OEM	部品名
1	42107-SB6-010	Protector - RR. SHOCK ABSORBER
2	52441-SB6-651	Spring - RR.
3	52610-SB6-982	Absorber assy - RR. SHOCK
4	52611-SB6-982	Absorber unit - RR. SHOCK
5	52621-SB3-000	Washer - RR. SHOCK ABSORBER MOUNTING
6	52622-SB2-004	Bush - RR. SHOCK ABSORBER LOWER (HOKUSHIN)
7	52687-SB6-004	Cover comp. - RR. SHOCK ABSORBER DUST
8	52691-SB2-007	Rubber - RR. SPRING SEAT UPPER
9	52722-SB6-006	Rubber - RR. BUMP STOPPER (POLYURETHAN KASEI)
9	52722-SB6-005	Rubber - RR. BUMP STOPPER (NOK)
10	52725-SB2-013	Rubber - RR. SHOCK ABSORBER MOUNTING (YAMASHITA)
10	52725-SB2-016	Rubber - RR. SHOCK ABSORBER MOUNTING (INOUE)
11	52728-SB2-004	Collar - RR. SHOCK ABSORBER MOUNTING(SHOWA)
12	72208-SB2-000	Cap - RR. SHOCK ABSORBER MOUNTING
13	90213-SB0-004	Nut - SELF-LOCK, 10MM (SHOWA)

Rear side lining 11

#	OEM	部品名
5	83824-SB6-000	Pocket - RR. SIDE
6	83825-SB6-000	Cover - R. RR. SIDE LINING
7	83826-SB6-000	Bracket - R. RR. SIDE LINING
12	83835-SB6-000	Cover - L. RR. SIDE LINING
13	83836-SB6-000	Bracket - L. RR. SIDE LINING
14	83863-671-000	Cap - RR. LINING
15	90609-SB6-003	Clip - PILLAR GARNISH
16	90668-SB6-003	Clip - LINING
17	90672-671-811	Grommet - SCREW, 4MM
18	90674-SB0-000	Grommet - TAPPING SCREW
19	90681-693-000	Grommet - SCREW, 4MM

Select lever bracket (AT) 11

#	OEM	部品名
1	54201-SA0-980	Bracket - SELECT LEVER
2	54202-SB2-980	Bracket - CONTROL
3	54205-SB2-980	Clamp - WIRE HARNESS
4	54317-SB2-980	Holder - CONTROL WIRE
5	54318-SB2-980	Seal - CONTROL
6	54319-SB2-980	Seal - CONTROL WIRE BRACKET
7	54347-SA0-980	Pin a - CONTROL ROD
8	54351-SB2-980	Bracket - CONTROL WIRE
9	54360-SB2-980	Adjuster assy - CONTROL WIRE
10	54363-689-981	Pin - CONTROL WIRE ADJUSTER
11	90308-SA0-981	Nut - SELF-LOCK, 6MM

Selector lever (AT) 20

#	OEM	部品名
1	30158-700-010	E-clip - 3MM
2	35505-692-003	Bulb - 14V 1.4W
3	37700-SB2-772	Lamp assy. - INDICATOR (AT)
4	54110-SB2-980	Stopper comp - SELECT LEVER
5	54113-692-980	Collar - LOCK PIN
6	54115-SB2-980	Bolt - SELECTOR STOPPER
7	54117-692-980	Spring - LOCK PIN
8	54119-689-981	Pin - LOCK
9	54120-SB2-980	Spring - SELECT STOPPER
10	54123-SA0-980	Collar - SELECT LEVER
12	54132-SA5-982	Knob - PUSH
13	54133-SA5-981	Spring - PUSH KNOB
14	54135-SB6-980	Lever - SELECT
15	54136-SA5-981	Rod comp - LOCK PIN
16	54142-SA5-980	Bush - GUIDE
17	54204-SB2-980	Guide - WIRE HARNESS
18	54211-SA0-713	Case - INDICATOR LAMP
19	54222-689-980	Cover - SELECT LEVER
20	54710-SB3-720	Escutcheon comp. - CONSOLE
21	90114-SA0-000	Nut - SELF-LOCK, 6MM

Servo body 16

#	OEM	部品名
1	22743-PF0-000	Pipe - THIRD CLUTCH
2	24273-PF0-900	Shaft c - SHIFT FORK
2	24272-PF0-010	Shaft b - SHIFT FORK
2	24271-PF0-900	Shaft a - SHIFT FORK
2	24273-PF0-010	Shaft c - SHIFT FORK
2	24272-PF0-900	Shaft b - SHIFT FORK
2	24271-PF0-010	Shaft a - SHIFT FORK
3	25422-PC9-000	Magnet - TRANSMISSION
4	25423-PC9-010	Spring - MAGNET HOLDER
5	27405-PF0-911	Body set - SERVO
5	27405-PF0-912	Body set - SERVO
6	27412-PF0-900	Plate - SERVO SEPARATING
7	27861-PF0-000	Spring - SERVO RETURN
8	90005-PC9-000	Bolt - FLANGE, 6X75
9	90007-PA9-000	Bolt - FLANGE, 6X30
10	91344-580-000	O-ring - 31X2.7 (ARAI)

Shift arm/shift rod 24

#	OEM	部品名
1	24231-PB7-961	Fork - REVERSE SHIFT
2	24311-PE6-000	Rod - GEARSHIFT
3	24316-679-000	Boot
4	24342-PB7-960	Shaft b - SHIFT ARM
5	24411-PB7-000	Arm - GEARSHIFT
6	24420-PB7-961	Arm comp. b - GEARSHIFT
7	24425-PB7-960	Holder comp - ARM B
8	24428-PA0-960	Plate - ARM B HOLDER
9	24429-634-000	Bar - INTERLOCK
10	24431-PA0-000	Retainer - SELECT SPRING
11	24432-PA0-000	Retainer - REVERSE SELECT
12	24453-PB7-000	Spring - REVERSE STOPPER
13	24454-PB6-000	Spring b - BALL SETTING
14	24454-PB7-000	Spring - REVERSE SELECT
15	24455-PB7-010	Spring b - REVERSE STOPPER
16	24461-PB6-000	Collar - SPRING
17	24461-679-000	Collar - SPRING
18	24621-PB7-000	Spring - SHIFT SELECT
19	90028-PB6-010	Bolt - SPECIAL, 6X22.5
20	90029-611-000	Bolt - HEX., 8X24
20	90029-611-010	Bolt - HEX., 8X24
21	90406-611-000	Washer - LOCK, 8MM
21	90406-PS1-000	Washer - LOCK
22	90435-634-000	Washer - 8MM

Shift fork/fork shaft 15

#	OEM	部品名
1	24201-PB7-940	Fork - FIFTH GEARSHIFT
2	24211-PB7-000	Fork - TOP GEARSHIFT
3	24221-PE6-600	Fork - LOW GEARSHIFT
4	24242-PB7-000	Piece - TOP SHIFT
5	24243-PE6-910	Piece - REVERSE SHIFT
6	24251-PE6-600	Shaft - TOP FORK
7	24261-PE6-600	Shaft - LOW FORK
8	24271-PE6-610	Shaft - FIFTH & REVERSE FORK SHIFT
9	24282-634-000	Bolt - SHAFT FORK SETTING
10	24452-PB6-020	Spring a - BALL SETTING
11	24519-PB6-000	Screw - BALL SPRING SETTING
12	90432-634-020	Plate - LOCK, 6MM
13	90439-634-010	Plate - LOCK, 6MM
13	90439-PH8-000	Washer - LOCK, 6MM
13	90439-634-000	Plate - LOCK, 6MM

Shift lever (MT) 24

#	OEM	部品名
1	54101-SB6-000	Lever - CHANGE
2	54102-SB3-913	Knob comp. - CHANGE LEVER (5MT)
3	54104-SB2-000	Dust seal a - CHANGE
4	54105-692-010	Washer - THRUST
5	54107-SA0-010	Bush, RR. JOINT
6	54108-SB2-000	Boot - CHANGE LEVER
7	54110-692-020	Seat - CHANGE LEVER BALL
8	54113-611-000	Clip - CHANGE JOINT PIN
8	54113-611-010	Clip - SHIFT JOINT PIN
9	54114-SB2-000	Collar - PIPE MOUNTING
10	54114-692-020	Dust seal b - CHANGE
11	54117-692-000	Collar - RR. JOINT
12	54119-692-010	Stopper - CHANGE LEVER BALL
13	54201-SB6-600	Rod comp - CHANGE
14	54301-SB6-600	Extension - CHANGE
15	54303-SB2-010	Rubber, EXTENSION END
16	54304-689-000	Washer a - EXTENSION END
17	54305-SA0-000	Washer b - EXTENSION END
18	54306-SB2-000	Rubber - EXTENSION MOUNTING
19	54307-SB2-000	Stopper - EXTENSION MOUNTING
20	90115-659-003	Nut - SELF-LOCK, 8MM (CLINCH)
21	91301-671-671	O-ring - 1.9X11
21	91303-HA0-004	O-ring, 11x1.9 (nok)
22	91351-689-000	O-ring - 35X3

Shift lever shaft 27

#	OEM	部品名
1	24111-PA9-010	Fork - REVERSE SHIFT
2	24282-634-000	Bolt - SHAFT FORK SETTING
3	24411-PA9-900	Shaft - CONTROL
4	24412-PC9-000	Lever - CONTROL
5	24414-PA9-010	Pin - CONTROL
6	24415-PA9-000	Roller - CONTROL LEVER
7	24421-PA9-300	Lever - MANUAL VALVE
8	24423-PA9-000	Pin - MANUAL VALVE
9	24425-639-000	Roller - MANUAL VALVE
10	24532-689-900	Lever - PARKING BRAKE
11	24535-PA9-010	Spring - PARKING BRAKE
12	24537-PA9-003	Stopper - PARKING BRAKE (1)
13	24552-PA9-000	Spring - PARKING BRAKE PAWL
14	24553-612-000	Roller - PARKING BRAKE
15	24555-PA9-000	Pin - ROLLER, 6MM
16	24561-PA9-030	Pawl - PARKING BRAKE
17	24562-PA9-000	Shaft - PARKING BRAKE
18	24901-PA9-000	Holder - CONTROL WIRE
19	27490-PC9-000	Shaft - THROTTLE VALVE
20	27494-PF0-000	Lever - THROTTLE CONTROL
21	27495-PA9-000	Spring - THROTTLE LEVER
22	90001-PA9-000	Bolt - HEX., 6MM
23	90010-PA9-000	Bolt - SPECIAL, 5X12
24	90433-639-000	Washer - LOCK, 6MM
25	90436-PA9-000	Washer - LOCK, 5MM
26	90607-081-000	Circlip - 7MM
27	90701-639-000	Dowel pin - 8X55

Side protector 21

#	OEM	部品名
1	75802-SB6-000	Molding - R. FR. DOOR CORNER
2	75807-SB6-000	Molding - L. FR. DOOR CORNER
3	75807-671-000	Nut - SIDE PROTECTOR (BLACK)
4	75810-SB6-962	Protector assy - R. SIDE
5	75811-SB6-961	Protector - R. FR. FENDER
6	75812-SB6-962	Protector - R. FR. DOOR
7	75813-SB6-962	Protector - R. RR. DOOR
8	75814-SB6-961	Protector - R. RR. FENDER
9	75815-SB6-962	Protector assy - L. SIDE
10	75816-SB6-961	Protector - L. FR. FENDER
11	75817-SB6-962	Protector - L. FR. DOOR
12	75818-SB6-962	Protector - L. RR. DOOR
13	75819-SB6-961	Protector - L. RR. FENDER
17	75865-SB6-000	Molding - R. FR. DOOR SASH UPPER
18	75871-SB6-000	Molding - FR. DOOR SASH CENTER
19	75875-SB6-000	Molding - L. FR. DOOR SASH UPPER
20	76865-SB6-000	Molding - R. RR. SASH UPPER
21	76871-SB6-000	Molding - RR. DOOR SASH CENTER
22	76875-SB6-000	Molding - L. RR. DOOR SASH UPPER
23	90661-SB6-961	Clip A - MOLDING
24	90666-SB6-961	Clip b - MOLDING

Speedometer 6

#	OEM	部品名
2	37230-SB6-671	Cable assy - SPEEDOMETER
2	37230-SB6-622	Cable assy - SPEEDOMETER
3	37233-SB6-621	Cable - INNER
4	37236-SB2-600	Clamp - SPEEDOMETER CABLE
5	39700-SB4-003	Clock assy - DIGITAL (JECO)
5	39700-SB4-005	Clock assy - DIGITAL (CITIZEN)

Speedometer component (DENSO) 28

#	OEM	部品名
1	35505-SA5-004	Bulb & socket - 14V 1.4W) (DENSO) (BASE:BLACK
2	35506-SA5-004	Bulb - 14V 1.4W) (DENSO
2	35506-SA5-003	Bulb - 14V 1.4W
3	37102-SA5-004	Socket assy - BULB (14V 3.4W) (DENSO)
4	37193-SB6-004	Case - ILLUMINATION (DENSO)
5	37106-SB2-004	Knob - TRIP (DENSO)
6	37109-SB6-662	Panel - COMBINATION PRINT (DENSO)
7	37110-SB6-922	Case - METER (DENSO)
8	37112-SB6-004	Visor assy - METER (DENSO)
9	37114-SA5-004	Grommet - DENSO
10	37114-SB6-004	Panel - ILLUMINATION PRINT (DENSO)
11	37114-671-005	Grommet - TRIP KNOB (NS)
12	37120-SB3-004	Buzzer - SPEED ALARM (DENSO)
13	37121-SB6-912	Case assy. - AUTOMATIC (DENSO)
15	37160-SB6-674	Meter assy - FUEL (DENSO)
16	37170-SB6-714	Meter assy - TEMPERATURE (DENSO)
17	37191-SB6-004	Lens - ILLUMINATION (DENSO)
18	37195-SB6-014	Lens - SMOKE (DENSO)
18	37195-SB6-954	Lens - SMOKE (DENSO)
19	37200-SB6-664	Speedometer assy - DENSO
21	37220-SB6-664	Amplifier assy - DENSO
22	37237-SA5-004	Bulb - 14V 3.4W) (DENSO
22	37237-SA5-003	Bulb - 14V 3.4W) (NS
23	37250-SB6-604	Tachometer assy - DENSO
24	37255-SB3-004	Bulb & socket - 14V 3.4W) (GREEN
26	37570-SB3-914	Indicator assy. - AUTOMATIC (DENSO)
27	90101-SB2-004	Screw - TAPPING, 3X15
28	90102-SB2-004	Screw - TAPPING, 4X14 (DENSO)

Speedometer component (NS) 24

#	OEM	部品名
1	35505-SA5-003	Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK)
2	35506-SA5-003	Bulb - 14V 1.4W
3	35509-SA5-003	Bulb & socket - 8V 1.2W) (NS
4	35511-SA5-003	Bulb - 8V 1.2W) (NS
5	37102-SA5-003	Socket assy - BULB (14V 3.4W) (NS) (BASE:BLACK)
6	37103-SB6-921	Illumination assy.
7	37106-SB2-003	Knob - TRIP (NS)
8	37109-SB6-661	Panel - PRINT (NS)
9	37110-SB6-641	Case assy - NS
10	37112-SB6-003	Visor assy - METER (NS)
11	37114-SA5-003	Rubber - NS
12	37114-671-005	Grommet - TRIP KNOB (NS)
13	37120-SC5-003	Buzzer - SPEED ALARM (NS)
14	37121-SB6-743	Indicator assy. - AUTOMATIC (NS)
16	37160-SB6-673	Meter assy - FUEL (NS)
17	37170-SB6-713	Meter assy - TEMPERATURE (NS)
18	37195-SB6-013	Lens - SMOKE (NS)
18	37195-SB6-953	Lens - SMOKE (NS)
19	37200-SB6-663	Speedometer assy - NS
21	37220-SB6-663	Amplifier assy - NS
23	37237-SA5-003	Bulb - 14V 3.4W) (NS
24	37250-SB6-603	Tachometer assy - NS
26	90102-SB2-003	Screw - TAPPING, 4X14
29	90103-SB6-003	Screw-washer - 3X13

Speedometer gear 7

#	OEM	部品名
1	23811-PC1-000	Holder comp - SPEEDOMETER GEAR
2	23813-689-000	Plate - SPEEDOMETER GEAR HOLDER
3	23814-689-000	Seal - GEAR HOLDER
4	23820-PE4-700	Gear - SPEEDOMETER DRIVEN
5	90637-689-000	Clip - SPEEDOMETER CABLE
6	90638-689-000	Clip - SPEEDOMETER GEAR
7	91313-611-010	O-ring - 23.5X2

Stabilizer spring/front lower arm 51

#	OEM	部品名
1	51225-671-003	Boot - SUSPENSION BALL
2	51300-SB3-934	Spring - FR. STABILIZER
2	51300-SB3-933	Spring - FR. STABILIZER
3	51301-SB6-009	Arm comp - FR. LOWER (MITSUBISHI SEIKO)
3	51301-SB6-005	Arm comp - FR. LOWER (NHK SPRING)
4	51310-SB2-000	Bracket - FR. STABILIZER
5	51311-SB2-000	Rubber a - STABILIZER END
6	51312-SB2-000	Rubber b - STABILIZER END
7	51315-SB3-931	Bush - FR. STABILIZER
8	51316-SB2-010	Collar - FR. STABILIZER
9	51351-SB6-931	Arm comp - R. FR. RADIUS
10	51361-SB6-931	Arm comp - L. FR. RADIUS
11	51393-SB2-003	Bush - FR. LOWER ARM
12	51396-SB2-003	Bush - RADIUS ARM
13	51401-SB6-035	Spring - R. TORSION BAR (NIPPON HATSUJO)
13	51401-SB6-049	Spring - R. TORSION BAR (MITSUBISHI SEIKO)
13	51401-SB6-025	Spring - R. TORSION BAR (NIPPON HATSUJO)
13	51401-SB6-029	Spring - R. TORSION BAR (MITSUBISHI SEIKO)
13	51401-SB6-015	Spring - R. TORSION BAR (NIPPON HATSUJO)
13	51401-SB6-039	Spring - R. TORSION BAR (MITSUBISHI SEIKO)
14	51402-SB6-035	Spring - L. TORSION BAR (NIPPON HATSUJO)
14	51402-SB6-049	Spring - L. TORSION BAR (MITSUBISHI SEIKO)
14	51402-SB6-025	Spring - L. TORSION BAR (NIPPON HATSUJO)
14	51402-SB6-029	Spring - L. TORSION BAR (MITSUBISHI SEIKO)
14	51402-SB6-015	Spring - L. TORSION BAR (NIPPON HATSUJO)
14	51402-SB6-039	Spring - L. TORSION BAR (MITSUBISHI SEIKO)
15	51406-SB2-000	Clip - TORSION BAR
16	51407-SB2-010	Cap - TORSION BAR
17	51415-SB6-019	Tube comp - R. TORQUE (MITSUBISHI SEIKO)
17	51415-SB6-025	Tube comp - R. TORQUE (NIPPON HATSUJO)
17	51415-SB6-015	Tube comp - R. TORQUE (NIPPON HATSUJO)
17	51415-SB6-029	Tube comp - R. TORQUE (MITSUBISHI SEIKO)
18	51416-SB6-025	Tube comp - L. TORQUE (NIPPON HATSUJO)
18	51416-SB6-029	Tube comp - L. TORQUE (MITSUBISHI SEIKO)
18	51416-SB6-019	Tube comp - L. TORQUE (MITSUBISHI SEIKO)
18	51416-SB6-015	Tube comp - L. TORQUE (NIPPON HATSUJO)
19	51423-SB2-020	Seal - TORQUE TUBE
20	51424-SB2-003	Washer - HEIGHT ADJUSTER
21	51425-SB2-010	Holder - TORQUE TUBE
22	51426-SB2-000	Cap - TORQUE TUBE
23	53548-611-003	Circlip - CHUO HATSUJO
24	90109-SB2-000	Bolt a - LOWER ARM
25	90110-SB2-000	Bolt b - LOWER ARM
26	90111-SB2-003	Bolt - HEIGHT ADJUSTING
27	90112-SB2-010	Bolt - FR. STABILIZER
28	90114-SB2-000	Bolt-washer - 8X16
29	90303-SB2-003	Nut - SELF-LOCK, 16MM
30	90312-SB2-000	Nut - SELF-LOCK, 8MM
31	90306-SB2-013	Nut - SELF-LOCK, 10MM (CLINCH)
32	90307-SB2-003	Nut - CASTLE, 12MM
33	90311-SB2-013	Nut - HEIGHT ADJUSTER

Starter motor component (DENSO) 15

#	OEM	部品名
1	31201-657-671	Screw - DENSO) (###
2	31202-657-671	Bolt - THROUGH (###)
3	31203-PE0-661	Housing - DRIVE SIDE (###)
4	31204-657-671	Clutch comp. - OVERRUNNING(###)
5	31205-657-671	Ball - STEEL (DENSO)
6	31206-PE0-662	Yoke comp - DENSO) (###
7	31207-657-671	Armature comp - DENSO
8	31208-657-671	Plate comp - BRUSH HOLDER (DENSO)(###)
9	31209-PD1-004	Frame - STARTER END (DENSO) (###)
10	31210-PE0-662	Switch assy - MAGNETIC (DENSO) (###)
12	31222-657-671	Gear - IDLE (DENSO)(###)
13	31225-PB2-006	Roller - BEARING (DENSO)
14	31226-PB2-006	Retainer - BEARING (DENSO)(###)
15	31235-PE0-662	Cover - TERMINAL (DENSO)
16	31291-PE0-661	Stay - ENGINE WIRE HARNESS

Starter motor component (MITSUBA) 16

#	OEM	部品名
1	31202-PC2-006	Bolt - THROUGH (MITSUBA)
2	31203-PE0-664	Cover - GEAR
3	31204-PD1-013	Gear assy. - PINION
5	31207-PC2-006	Armature comp - MITSUBA
7	31209-PG6-006	Cover - RR. (MITSUBA)(###)
8	31210-PC2-026	Switch assy - MAGNETIC
9	31211-PC2-006	Ring - SQUARE (MITSUBA)
10	31215-PC2-006	Washer - THRUST, 1.2 (MITSUBA)
11	31216-PC2-006	Washer - THRUST, 0.2 (MITSUBA)
12	31217-PC2-006	Screw-washer - 4X28 (MITSUBA)
13	31251-PD2-016	Tube - LABYRINTH
14	31219-PC2-006	Rubber - BUSH
15	31229-PC2-016	Case comp. - FR.
16	31235-PC2-006	Cover - TERMINAL
17	31291-PE0-663	Stay - ENGINE WIRE HARNESS
19	31260-PC2-006	Stator set

Steering column 26

#	OEM	部品名
1	53210-SB6-003	Column - STEERING
2	53211-SB2-020	Holder - STEERING COLUMN
3	53212-SA7-000	Plate comp - BENDING
4	53213-657-000	Band - RUBBER
5	53214-SB2-000	Cover - STEERING COLUMN HOLDER
6	53216-SB2-670	Holder b - STEERING COLUMN
7	53217-SB2-000	Collar - STEERING RETAINER
9	53221-SA0-003	Bush - STEERING COLUMN
10	53224-SA5-003	Ring - COLUMN THRUST
11	53231-SB2-000	Label - IGNITION SWITCH
14	53235-SA5-000	Ring - COLUMN COVER
15	53239-SB2-000	Clip - COLUMN COVER
16	53271-692-003	Cam - TURN SIGNAL SWITCH CANCEL (TEC) (WHITE)
16	53271-SA5-004	Cam - TURN SIGNAL SWITCH CANCEL (TR) (BLACK)
17	53275-SB2-013	Contact assy. - HORN
18	53310-SB6-731	Shaft comp. - STEERING
19	53311-692-000	Washer - STEERING SHAFT
20	53312-SA0-660	Washer a - STEERING SHAFT
21	53313-SA7-003	Washer b - STEERING SHAFT
22	53320-SB6-731	Cover - STEERING JOINT
24	53322-SB2-672	Insulator - JOINT HOLE
25	53323-SB2-000	Joint b - STEERING COLUMN
26	53326-SB0-000	Clip b - JOINT COVER
27	90135-579-010	Bolt - STEERING YOKE, 8X22
28	90136-SA0-660	Bolt-washer - 8X32
29	90505-SA0-660	Washer - PLAIN, 20MM

Steering gear box 21

#	OEM	部品名
1	53040-SB2-738	Box comp - STEERING GEAR (YAMADA)
2	53413-SA0-670	Spring - RACK GUIDE PRESSURE
3	53414-679-013	Screw - RACK GUIDE
4	53416-SB2-013	Guide - STEERING RACK
5	53422-SB2-732	Pinion - STEERING
6	53426-671-004	Dust seal - STEERING PINION (NOK)
6	53426-671-003	Dust seal - STEERING PINION (ARAI)
7	53427-SB2-735	Rack - STEERING
8	53430-SA0-003	Bush - RACK END
9	53435-SB2-000	Cushion a - STEERING GEAR BOX
9	53435-SD2-000	Cushion a - STEERING GEAR BOX
10	53436-SA5-000	Cushion b - GEAR BOX MOUNTING
11	53437-SB2-000	Bracket a - STEERING GEAR BOX
12	53438-SB2-000	Bracket b - STEERING GEAR BOX
13	53458-SE0-003	Nut - RACK SCREW LOCK
13	53458-S01-A51	Nut - LOCK
14	53501-SB2-000	Grommet a - STEERING GEAR BOX
15	53502-SB2-000	Grommet b - STEERING GEAR BOX
16	53503-SB2-010	Grommet c - STEERING GEAR BOX
17	53504-SB2-010	Spacer - JOINT HOLE
18	91021-148-004	Bearing - NEEDLE, 1010(NTN)

Steering wheel (3) 4

#	OEM	部品名
8	53155-SB2-003	Spring - HORN (NIPPON PURASUTO)
9	53162-692-003	Bolt - CONTACT (NIPPON PURASUTO)
10	53164-SB3-951	Cord - HORN (NIPPON PURASUTO)
11	90380-SB2-003	Nut - SELF-LOCK (OHASHI)

Steering wheel (4) 7

#	OEM	部品名
5	53154-SB3-004	Screw - SLIDE (TS TECH)
6	53155-SB3-004	Spring - COIL (TS TECH)
7	53156-SB3-004	Bush - TS TECH
8	53158-SB3-004	Plate - HORN (TS TECH)
9	53164-SB3-004	Cord - HORN (TS TECH)
10	90380-SB2-003	Nut - SELF-LOCK (OHASHI)
12	53154-SB3-952	Screw - SLIDE (TS TECH)

Switch (1) 7

#	OEM	部品名
2	17950-SB6-625	Wire comp - CHOKE
3	17951-SB6-000	Knob - CHOKE WIRE
4	17957-659-003	Nut - 14MM
8	35500-SB6-003	Switch assy - RR. DEFOGGER
9	35800-SB6-003	Switch assy - TAILGATE OPENER
11	37553-SA0-003	Bulb & socket - 14V 1.4W
13	90130-SA0-003	Screw - PAN, 2.6X6

Switch (2) 15

#	OEM	部品名
1	35010-SB6-611	Cylinder set - KEY
1	35010-SB6-612	Cylinder set - KEY
2	35100-SB6-711	Lock assy - STEERING
3	35102-SA5-003	Bolt - BREAK HEAD
3	35102-SV4-003	Bolt - BREAK HEAD
4	35103-SA5-003	Screw - RECESSED, 3X8
5	35111-SA5-922	Key - BLANK (MAIN)
6	35130-SB2-003	Switch comp - STEERING (HONDA LOCK)
7	35131-SA5-671	Cylinder comp - STEERING
8	35250-SB6-793	Switch assy - COMBINATION
9	35350-SE0-003	Switch assy - STOP (TEC)
10	35400-692-033	Switch assy - DOOR
11	35409-692-013	Screw - FLANGE, 4X12
12	35410-692-003	Cover - DOOR SWITCH
13	35700-SB2-982	Switch assy - INHIBITOR & BACK UP LIGHT (TEC)

Tailgate lining 4

#	OEM	部品名
5	85833-SB6-000	Seal - TAILGATE
6	85861-SB6-003	Weatherstrip - TAILGATE
7	90866-SA0-000	Grommet - SCREW, 4MM
9	90681-693-000	Grommet - SCREW, 4MM

Tailgate panel 32

#	OEM	部品名
1	38330-SA3-013	Solenoid assy. - TAILGATE OPENER
5	74808-SB6-000	Holder - RR. GLASS UPPER
6	74809-SB6-000	Rubber - TAILGATE GARNISH
7	75556-605-010	Bolt - LOCK STRIKER
8	75581-SB6-000	Spring - LOCK KEY SETTING
9	85585-SB6-003	Cylinder - TAILGATE
9	85585-SB6-013	Cylinder - TAILGATE
10	83300-SB6-963	Lock assy - TAILGATE
11	83305-SB6-013	Striker - TAILGATE
13	83307-SB6-013	Handle assy - TAILGATE
14	83310-SB6-962	Link - TAILGATE REMOTE CONTROL
18	85237-SB6-000	Cushion - TAILGATE
18	85237-SB5-000	Cushion - TAILGATE
20	85254-SB6-000	Seal - TAILGATE HINGE
21	85255-SB6-000	Shim - TAILGATE HINGE
23	85259-SB6-003	Clip A - HINGE COVER
29	85265-SB6-003	Clip b - R. HINGE COVER
30	85266-SB6-003	Clip b - L. HINGE COVER
32	85268-SA7-003	Stopper - TAILGATE
33	85269-SA0-013	Stud - BALL (SHOWA)
33	85269-SH3-003	Stud - BALL
34	85270-SB6-902	Stay assy - R. TAILGATE OPEN
35	85272-SB6-000	Seal - R. HINGE COVER
36	85273-SB6-000	Seal - HINGE COVER SIDE
37	85277-SB6-000	Seal - L. HINGE COVER
38	85279-SA0-003	Clip - BALL JOINT (SHOWA)
42	90115-SB6-003	Screw-washer - 6X20
42	90115-SB5-000	Screw-washer - 6X20
44	90145-SB6-003	Screw-washer - 6X12
46	90108-SB3-000	Bolt - 6X12 (GREEN)
49	90106-SA0-000	Screw-washer - 5X12
51	90501-SB6-000	Packing - SEAT

Taillight 19

#	OEM	部品名
2	33310-594-601	Bulb - 12V5W
2	34910-504-003	Bulb (12v5w)
3	33500-SB6-733	Taillight assy. - R.
4	33501-SB6-731	Lens & housing comp. - R. TAILLIGHT
5	33502-SB6-000	Rubber - TAILLIGHT
6	33503-506-600	Bulb - 12V 21W) (STANLEY
6	34905-KV7-671	Bulb,winker (12v
6	34908-634-611	Bulb - 12V 21W) (ECE) (STANLEY
7	33505-SB6-732	Cord comp
8	33507-SB6-013	Stay
9	33550-SB6-733	Taillight assy. - L.
10	33551-SB6-731	Lens & housing comp. - L. TAILLIGHT
11	34100-SB2-741	Light assy - LICENSE
12	34101-SB2-003	Lens - STANLEY
13	34103-SB2-003	Packing - LENS
17	34903-SB6-741	Bulb - 12V 21W
18	34906-SB6-741	Bulb - 12V 21/5W
19	90115-SB6-003	Screw-washer - 6X20
23	90108-SB2-000	Screw - TAPPING, 5X12

Tie rod 11

#	OEM	部品名
2	53434-SA0-000	Clip - BOOT
4	53449-579-000	Band - BELLOWS
5	53521-SB2-013	End comp - RACK
8	53535-SB3-000	Washer - TIE ROD STOPPER
9	53536-SB2-000	Washer - TIE ROD LOCK
10	53537-SA5-000	Dust seal - TIE ROD
11	53537-SB2-020	Dust seal - TIE ROD
13	53540-SB2-003	End comp - TIE ROD (MUSASHI)
14	53546-SA0-003	Boot - TIE ROD END (MUSASHI)
15	53548-SA0-003	Circlip - MUSASHI
16	90320-601-000	Nut - CASTLE, 10MM

Tire/wheel disk 22

#	OEM	部品名
1	42700-SB6-950	Disk - WHEEL (13X5J) (ALUMINIUM TONE SILVER)
3	42750-SA5-986	Tire assy - 165SR13) (YOKOHAMA) (TUBELESS
3	42750-SA5-621	Tire assy - 165SR13) (TUBELESS) (BRIDGESTONE
3	42750-SA5-625	Tire assy - 165SR13) (DUNLOP) (TUBELESS
7	42753-634-006	Valve - RIM (YOKOHAMA)
7	42753-SB8-661	Valve - RIM (SCHRADER)
7	42753-671-962	Valve - RIM (DUNLOP)
7	42753-634-003	Valve - RIM (BRIDGESTONE)
9	44721-SB2-003	Weight - BALANCE (10G) (YAMATE)
9	44730-SB2-013	Weight - BALANCE (45G) (YAMATE)
9	44725-SB2-003	Weight - BALANCE (50G) (YAMATE)
9	44729-SB2-003	Weight - BALANCE (35G) (YAMATE)
9	44724-SB2-003	Weight - BALANCE (40G) (YAMATE)
9	44728-SB2-003	Weight - BALANCE (25G) (YAMATE)
9	44723-SB2-003	Weight - BALANCE (30G) (YAMATE)
9	44727-SB2-003	Weight - BALANCE (15G) (YAMATE)
9	44722-SB2-003	Weight - BALANCE (20G) (YAMATE)
9	44726-SB2-003	Weight - BALANCE (5G) (YAMATE)
10	44732-SB2-000	Cap - WHEEL CENTER (56MM) (BLACK)
12	83803-SB6-600	Spacer - SPARE TIRE
13	83853-SB6-010	Bolt - ANCHOR
14	90304-SA5-013	Nut - WHEEL (CHROME PLATED) (FUSE RASHI)

Tools/jack 14

#	OEM	部品名
2	89000-SB2-601	Tool set
4	89101-SB2-600	Bag - TOOL
4	89101-SB2-601	Bag - TOOL
5	89211-673-010	Wrench - WHEEL NUT
6	89216-642-810	Wrench - SPARK PLUG
7	89218-611-003	Shaft - WRENCH (RIKEN)
7	89218-611-004	Shaft - WRENCH (KOWA)
8	89310-SB0-013	Jack assy - PANTOGRAPH
9	89320-SA0-003	Bar comp - JACK
10	90663-SA0-003	Clamp - JACK BAR
10	90663-688-000	Clamp - JACK BAR
18	89600-SE3-Y01	Extinguisher - FIRE
19	89610-SE3-Y00	Bracket - FIRE EXTINGUISHER
20	90156-SE3-003	Blind - FASTENER

Torque converter 6

#	OEM	部品名
1	21351-PE0-900	Cover - TORQUE CONVERTER CASE
2	26000-PF0-934	Converter assy - TORQUE
3	26251-PE1-900	Plate - DRIVE
4	90023-PA9-000	Bolt - SPECIAL
5	90429-PE0-000	Washer - 40X85X2
6	91302-639-000	O-ring - 32X1.9

Torque converter housing 13

#	OEM	部品名
1	21110-PF0-010	Case comp. - TORQUE CONVERTER
2	21811-PC9-000	Gasket - TORQUE CONVERTER CASE
3	23225-PA9-000	Plate - OIL GUIDE
4	25425-PF0-000	Pipe - SUCTION
5	90024-612-000	Bolt - SEALING, 8MM
6	90471-580-000	Packing - 8MM
7	91001-591-004	Bearing - BALL, 16008 (KOYO)
7	91001-PX4-004	Bearing - BALL, 40X68X9 (KOYO)
8	91101-PB6-008	Bearing - NEEDLE, 33X55X17
9	91206-639-005	Oil seal - 35X68X9
10	91207-639-015	Oil seal - 44X68X8 (NOK)
11	91209-612-000	Oil seal - 12X22X7
11	91209-612-003	Oil seal - 12X22X7 (ARAI)

Transmission housing 36

#	OEM	部品名
1	21104-PE6-000	Plate - OIL GUIDE
1	21211-PF0-010	Case - TRANSMISSION
2	21200-PE6-900	Case - TRANSMISSION
2	21215-PF4-000	Holder - REVERSE IDLE SHAFT
3	21310-PE6-901	Cover comp. - TRANSMISSION
3	21232-PC9-950	Hanger - TRANSMISSION
4	21321-689-000	Plug - BREATHER TUBE
4	21240-PF0-010	Cover comp. - R. SIDE
5	21398-PE6-010	Clamp - BREATHER TUBE
5	21396-611-010	Cap - BREATHER
6	90081-PB6-000	Bolt - PLUG, 14MM
6	21812-PF0-000	Gasket - R. SIDE COVER
7	91205-PE6-004	Oil seal - 35X68X9 (NOK)
7	91205-PE6-003	Oil seal - 35X68X9 (ARAI)
7	22712-PA9-000	Pipe a - FEED
8	22721-PA9-003	Flange - FEED PIPE
9	22722-PA9-010	Pipe b - FEED
11	23544-PC9-810	Spring b - IDLE GEAR SHAFT
12	27496-PC9-000	Stay - THROTTLE CABLE
13	90007-PC9-810	Bolt - REVERSE HOLDER
14	90024-612-000	Bolt - SEALING, 8MM
16	90437-PA9-000	Washer - TONGUED, 6MM
17	90471-580-000	Packing - 8MM
18	90507-PA9-000	Collar - 8X11
19	90701-639-000	Dowel pin - 8X55
20	90703-PA9-003	Roller - 2X19.8
21	90705-PA9-000	Dowel pin - 14X25
22	91201-PA9-003	Oil seal - 9X18X7 (NOK)
22	91201-PA9-004	Oil seal - 9X18X7 (ARAI)
23	91205-639-005	Oil seal - 35X56X9
24	91301-PC9-004	O-ring - 7.7X2.3 (NOK)
24	91301-PC9-003	O-ring - 7.7X2.3 (ARAI)
25	91308-PA9-003	O-ring - 19.8X1.9 (ARAI)
25	91308-PA9-004	O-ring - 19.8X1.9 (NOK)
26	91311-PA9-003	O-ring - 7.7X1.9 (ARAI)
26	91311-PA9-004	O-ring - 7.7X1.9 (NOK)

Trunk lid 3

#	OEM	部品名
5	72879-SB6-013	Stopper - LOCK
15	90662-693-003	Grommet - SCREW, 4MM (BLUE)
16	90820-SB6-000	Rubber - STOPPER

Valve/rocker arm 14

#	OEM	部品名
1	14621-PE2-000	Arm a - VALVE ROCKER
2	14622-PE2-000	Arm b - VALVE ROCKER
3	14645-PE0-000	Spring a - VALVE ROCKER ARM
4	14651-PE0-000	Collar - VALVE ROCKER ARM
5	14711-PE0-000	Valve - IN.
6	14721-PE0-000	Valve - EX.
7	14745-657-000	Screw - TAPPET ADJUSTING
9	14761-PE1-004	Spring - VALVE (CHUO HATSUJO)
9	14761-PE1-003	Spring - VALVE (NIPPON HATSUJO)
10	14765-PE0-000	Retainer - VALVE SPRING
11	14775-PE0-000	Seat - VALVE SPRING
12	14781-MB9-000	Cotter - VALVE
12	14781-PE0-003	Valve Cotter - (FUJI VALVE)
13	90206-657-000	Nut - TAPPET ADJUSTING

Water hose 9

#	OEM	部品名
1	39214-SB2-000	Grommet - HEATER PIPE
2	39223-SB2-003	Clamp - WATER HOSE, 24MM
3	39270-SB2-003	Valve assy. - WATER
5	39272-SB2-003	Clamp - HEATER HOSE
6	39273-SB2-000	Cable - WATER VALVE
7	39274-SB2-000	Grommet - WATER VALVE CABLE
8	39311-SD9-000	Hose a - WATER IN.
9	39312-SB6-000	Hose - WATER OUTLET
10	39313-SB2-000	Hose b - WATER IN.

Water pump/thermostat 16

#	OEM	部品名
1	19200-PE0-660	Pump comp - WATER
2	19222-PE0-000	Gasket - WATER PUMP
3	19300-PE0-024	Thermostat unit - 78) (NIPPON THERMOSTAT
3	19300-PE0-013	Thermostat unit - 78) (FUJI SEIKO
4	19305-PC6-000	Rubber - THERMOSTAT MOUNTING
5	19311-PE0-000	Cover - THERMOSTAT
6	19315-PE0-010	Cover - WATER OUTLET
7	19320-PE0-660	Case comp. - THERMOSTAT
8	19500-PE0-000	Joint, Tube
9	19504-PE3-000	Hose - IN. BYPASS
10	19505-PE0-000	Pipe - CONNECTING
11	19508-PE3-000	Hose - BYPASS OUTLET
12	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
13	19516-PC1-000	Bolt - BREATHING WATER
14	90007-PA9-000	Bolt - FLANGE, 6X30
15	91314-634-000	O-ring

Windshield washer 10

#	OEM	部品名
3	38510-SB2-673	Washer comp - FR. WINDSHIELD
5	38512-SB0-921	Motor - WASHER
6	38513-SD7-003	Cap - WASHER MOUTH (BLUE)
7	38516-SA0-671	Packing - PARALLEL TYPE) (MITSUBA
9	38519-SB0-003	Bush - WASHER TANK (MITSUBA)
10	38540-SB3-003	Nozzle - WINDSHIELD WASHER (PASSENGER SIDE)
11	38550-SB3-003	Nozzle - WINDSHIELD WASHER (DRIVER SIDE)
14	38562-663-920	Joint b - WASHER TUBE (MITSUBA)
17	38581-SB2-003	Joint y - TUBE (MITSUBA)
20	90652-SB2-023	Clip - TUBE, 7MM

Wire harness/ battery cable 49

#	OEM	部品名
1	32100-SB6-798	Harness - CABIN WIRE
1	32101-SB6-798	Harness - CABIN WIRE
1	32100-SB6-848	Harness - CABIN WIRE
1	32101-SB6-848	Harness - CABIN WIRE
2	32108-SB6-793	Harness - RR. WIRE
3	32109-SB6-782	Cord - TAILGATE
3	32109-SB6-793	Cord - TAILGATE
3	32109-SB6-792	Cord - TAILGATE
3	32109-SB6-783	Cord - TAILGATE
4	32113-230-003	Case - FUSE CONNECTOR(SUMITOMO)
4	32113-230-004	Case, fuse connector (furukawa)
5	32117-SB6-792	Harness - INSTRUMENT WIRE
5	32117-SB6-842	Harness - INSTRUMENT WIRE
6	32119-SB6-000	Holder - RR. DEFROSTER HARNESS
7	32120-SB6-020	Sub cord - SPEAKER
8	32155-SB6-020	Cord assy - INTERIOR
10	32169-647-010	Grommet - WASHER TUBE (18MM)
11	32170-SB2-010	Cord - FUEL UNIT
13	32180-SB6-010	Cord - LICENSE LIGHT
15	32332-SB6-671	Cover - PEDAL
16	32410-SB2-687	Cable assy - STARTER (SUMITOMO)
17	32600-SA0-681	Cable assy - EARTH (SUMITOMO)
17	32600-SA0-682	Cable assy - EARTH (FURUKAWA)
18	32601-SA5-004	Bolt - BATTERY TERMINAL (FURUKAWA)
18	32601-SA5-003	Bolt - BATTERY TERMINAL (SUMITOMO)
19	32602-SA5-004	Nut - BATTERY TERMINAL (FURUKAWA)
19	32602-SA5-003	Nut - BATTERY TERMINAL (SUMITOMO)
20	32610-SA7-000	Cable - SUB EARTH
21	38210-SB2-683	Fuser - HAZARD (RED)
22	90602-SB2-003	Clip - PROTECTOR
23	90610-SB6-000	Clip - INTERIOR & ROOF
24	90612-SB3-013	Clip - WIRE HARNESS
25	90617-SB6-003	Clamp - CABLE (BLACK)
26	90622-SA0-003	Clip - WIRE HARNESS (BLACK)
27	90627-SA5-003	Clip - WIRE HARNESS(BLUE) (HARNESS TAPING)(50MM)
28	90650-SB2-003	Clip - WIRE HARNESS, 10MM
30	90651-SB2-003	Clip - WIRE HARNESS, 13MM (GRAY)
32	90672-SB2-003	Strap - CABLE, 105MM (BLACK)
34	90683-SA0-003	Clip - WIRE HARNESS, 25MM
35	90683-SA3-000	Band - FUEL TUBE, 20MM
36	90686-SB3-003	Clip - WIRE HARNESS (7MM X 2)
37	90690-SA0-003	Strap - WIRE HARNESS, 25MM (BLACK)
38	90691-SA0-003	Clip - WIRE HARNESS (WHITE)
39	90695-SB2-003	Band - WIRE HARNESS
40	91475-SB6-000	Clip - WIRE HARNESS (6.3MM)
41	91476-SB6-003	Clip - ROOF ARCH(NATURAL) (HARNESS TAPING)(60MM)
42	91504-SB6-000	Clip - WIRE HARNESS
44	91508-SA4-003	Clip - WIRE HARNESS (BLACK)
47	32332-SD9-670	Holder - WIRE HARNESS
