Search › Compare › JZZ30 × JZZ31
JZZ30
Toyota SOARER — 16 of 7,874 shared
JZZ31
Toyota SOARER — 16 of 6,253 shared

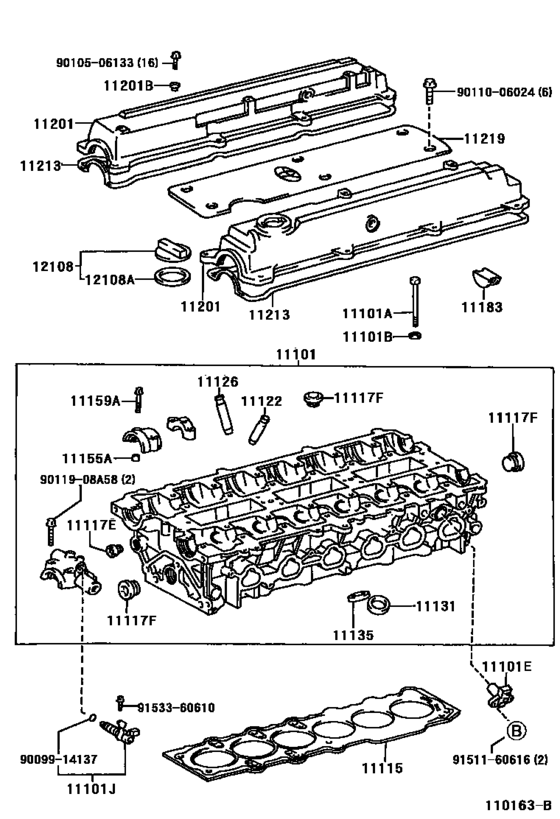

Cylinder Head ([08.1996 - ] (9608- )1JZGTE) 16 / 45
| # | OEM | JZZ30 | JZZ31 |
|---|---|---|---|
| 11101 | 90910-02102 | Bolt(For Cylinder Head Set) | Bolt(For Cylinder Head Set) |
| 11101 | 90201-11018 | Washer, Plate(For Cylinder Head Set) | Washer, Plate(For Cylinder Head Set) |
| 11101 | 90201-11034 | Washer, Plate(For Cylinder Head Set) | Washer, Plate(For Cylinder Head Set) |
| 11101 | 90919-05007 | Sensor, Cam Position | Sensor, Cam Position |
| 11101 | 15330-46010 | Valve Assy, Camshaft Timing Oil Control | Valve Assy, Camshaft Timing Oil Control |
| 11101 | 15330-46011 | Valve Assy, Camshaft Timing Oil Control | Valve Assy, Camshaft Timing Oil Control |
| 11155 | 90253-11021 | Pin, Ring | Pin, Ring |
| 11159 | 90119-08890 | Bolt(For Head To Camshaft Bearing Cap) | Bolt(For Head To Camshaft Bearing Cap) |
| 11201 | 90210-07001 | Washer, Seal(For Cylinder Head Cover) | Washer, Seal(For Cylinder Head Cover) |
| 12108 | 12180-20030 | Cap Sub-Assy, Oil Filler | Cap Sub-Assy, Oil Filler |
| 12108 | 12180-46010 | Cap Sub-Assy, Oil Filler | Cap Sub-Assy, Oil Filler |
| 12108 | 12195-20020 | Gasket(For Oil Filler Cap) | Gasket(For Oil Filler Cap) |
| 12108 | 12195-46011 | Gasket(For Oil Filler Cap) | Gasket(For Oil Filler Cap) |
| 9011908 | 90119-08A58 | Bolt(For Camshaft Bearing Cap To Housing Rh, No.2) | Bolt(For Camshaft Bearing Cap To Housing Rh, No.2) |
| 9009914137 | 90099-14137 | Ring, O(For Cam Timing Oil Control Valve) | Ring, O(For Cam Timing Oil Control Valve) |
| 9151160616 | 91511-B0616 | BOLT, FLANGE | BOLT, FLANGE |
| # | OEM | JZZ30 | JZZ31 |
|---|---|---|---|
| 12108 | 12180-20030 | Cap Sub-Assy, Oil Filler | Cap Sub-Assy, Oil Filler |
| 12108 | 12180-46010 | Cap Sub-Assy, Oil Filler | Cap Sub-Assy, Oil Filler |
| 12108 | 12195-20020 | Gasket(For Oil Filler Cap) | Gasket(For Oil Filler Cap) |
| 12108 | 12195-46011 | Gasket(For Oil Filler Cap) | Gasket(For Oil Filler Cap) |
| 11101 | 15330-46010 | Valve Assy, Camshaft Timing Oil Control | Valve Assy, Camshaft Timing Oil Control |
| 11101 | 15330-46011 | Valve Assy, Camshaft Timing Oil Control | Valve Assy, Camshaft Timing Oil Control |
| 9009914137 | 90099-14137 | Ring, O(For Cam Timing Oil Control Valve) | Ring, O(For Cam Timing Oil Control Valve) |
| 11159 | 90119-08890 | Bolt(For Head To Camshaft Bearing Cap) | Bolt(For Head To Camshaft Bearing Cap) |
| 9011908 | 90119-08A58 | Bolt(For Camshaft Bearing Cap To Housing Rh, No.2) | Bolt(For Camshaft Bearing Cap To Housing Rh, No.2) |
| 11101 | 90201-11018 | Washer, Plate(For Cylinder Head Set) | Washer, Plate(For Cylinder Head Set) |
| 11101 | 90201-11034 | Washer, Plate(For Cylinder Head Set) | Washer, Plate(For Cylinder Head Set) |
| 11201 | 90210-07001 | Washer, Seal(For Cylinder Head Cover) | Washer, Seal(For Cylinder Head Cover) |
| 11155 | 90253-11021 | Pin, Ring | Pin, Ring |
| 11101 | 90910-02102 | Bolt(For Cylinder Head Set) | Bolt(For Cylinder Head Set) |
| 11101 | 90919-05007 | Sensor, Cam Position | Sensor, Cam Position |
| 9151160616 | 91511-B0616 | BOLT, FLANGE | BOLT, FLANGE |
