Search › Compare › JZX90 × JZZ30
JZX90
Toyota CHASER — 16 of 6,704 shared
JZZ30
Toyota SOARER — 16 of 7,874 shared

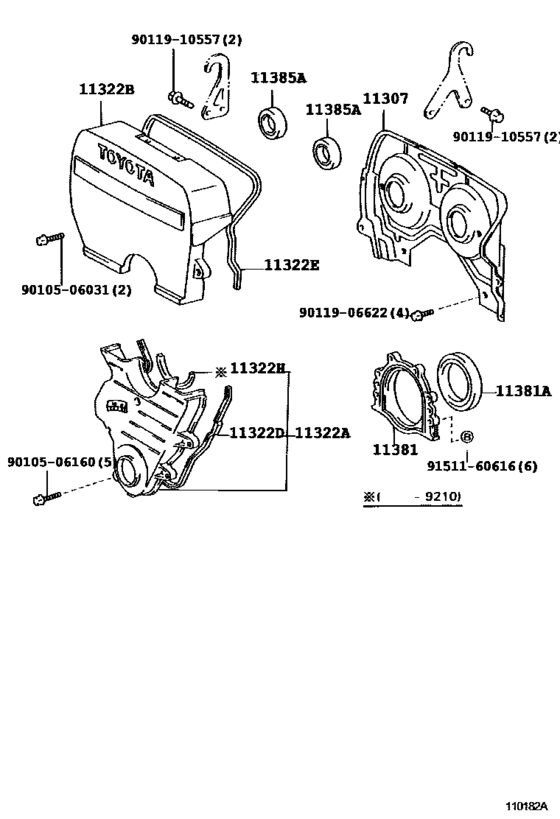

Timing Gear Cover & Rear End Plate ([10.1992 - ] (9210- )1JZGTE) 16 / 16
| # | OEM | JZX90 | JZZ30 |
|---|---|---|---|
| 11307 | 11304-88400 | Cover, Sub-Assy, Timing Belt, No.3 | Cover, Sub-Assy, Timing Belt, No.3 |
| 11322 | 11302-46021 | Cover, Timing Belt, No.1 | Cover, Timing Belt, No.1 |
| 11322 | 11322-88400 | Cover, Timing Belt, No.2 | Cover, Timing Belt, No.2 |
| 11322 | 11322-88401 | Cover, Timing Belt, No.2 | Cover, Timing Belt, No.2 |
| 11322 | 11328-46021 | Gasket, Timing Belt Cover, No.1 | Gasket, Timing Belt Cover, No.1 |
| 11322 | 11329-88400 | Gasket, Timing Belt Cover, No.2 | Gasket, Timing Belt Cover, No.2 |
| 11381 | 11381-46010 | Retainer, Engine Rear Oil Seal | Retainer, Engine Rear Oil Seal |
| 11381 | 90311-90006 | Seal, Engine Rear Oil | Seal, Engine Rear Oil |
| 11385 | 90311-38041 | Seal, Oil(For Camshaft Setting) | Seal, Oil(For Camshaft Setting) |
| 9010506031 | 90105-06031 | New Genuine Part | New Genuine Part |
| 9010506160 | 90105-06160 | Bolt | Bolt |
| 9010506160 | 91511-G0620 | BOLT, FLANGE | BOLT, FLANGE |
| 9011906622 | 90119-06622 | New Genuine Part | New Genuine Part |
| 9011910557 | 90119-10557 | New Genuine Part | New Genuine Part |
| 9151160616 | 91511-60616 | BOLTFLANGE | BOLTFLANGE |
| 9151160616 | 91511-B0616 | BOLT, FLANGE | BOLT, FLANGE |
| # | OEM | JZX90 | JZZ30 |
|---|---|---|---|
| 11322 | 11302-46021 | Cover, Timing Belt, No.1 | Cover, Timing Belt, No.1 |
| 11307 | 11304-88400 | Cover, Sub-Assy, Timing Belt, No.3 | Cover, Sub-Assy, Timing Belt, No.3 |
| 11322 | 11322-88400 | Cover, Timing Belt, No.2 | Cover, Timing Belt, No.2 |
| 11322 | 11322-88401 | Cover, Timing Belt, No.2 | Cover, Timing Belt, No.2 |
| 11322 | 11328-46021 | Gasket, Timing Belt Cover, No.1 | Gasket, Timing Belt Cover, No.1 |
| 11322 | 11329-88400 | Gasket, Timing Belt Cover, No.2 | Gasket, Timing Belt Cover, No.2 |
| 11381 | 11381-46010 | Retainer, Engine Rear Oil Seal | Retainer, Engine Rear Oil Seal |
| 9010506031 | 90105-06031 | New Genuine Part | New Genuine Part |
| 9010506160 | 90105-06160 | Bolt | Bolt |
| 9011906622 | 90119-06622 | New Genuine Part | New Genuine Part |
| 9011910557 | 90119-10557 | New Genuine Part | New Genuine Part |
| 11385 | 90311-38041 | Seal, Oil(For Camshaft Setting) | Seal, Oil(For Camshaft Setting) |
| 11381 | 90311-90006 | Seal, Engine Rear Oil | Seal, Engine Rear Oil |
| 9151160616 | 91511-60616 | BOLTFLANGE | BOLTFLANGE |
| 9151160616 | 91511-B0616 | BOLT, FLANGE | BOLT, FLANGE |
| 9010506160 | 91511-G0620 | BOLT, FLANGE | BOLT, FLANGE |
