JZS155 × JZZ31

Shared 53 / Total 10,704 · Jaccard 16.7%
JZS155 Toyota CROWN-MAJESTA — 53 of 6,242 shared
JZZ31 Toyota SOARER — 53 of 6,253 shared

← Back to categories

53 items

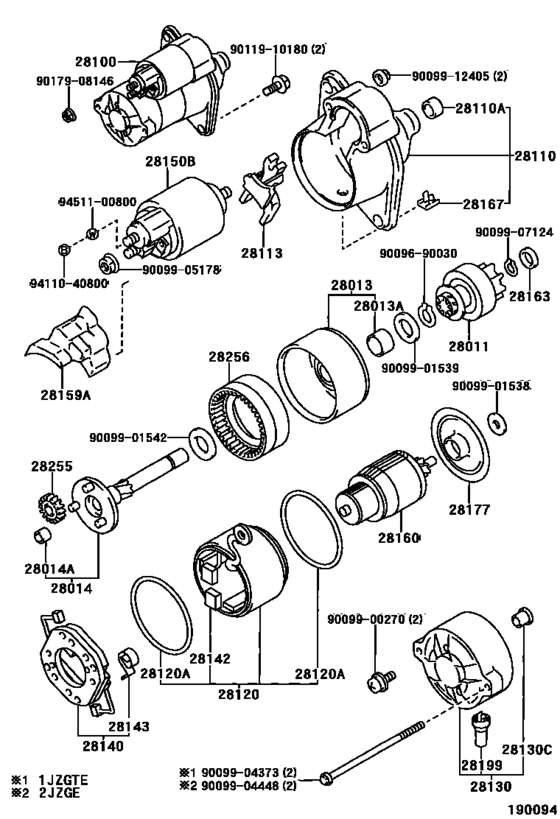

Starter ([07.1997 - ] 12V 1.0KW (9707- )2JZGE) 53 / 56
JZS155 Starter ([07.1997 - ] 12V 1.0KW (9707- )2JZGE)
JZZ31 Starter ([09.1997 - ] 12V 0.8KW,12V 1.0KW (9105- )1JZGTE ; (9709- )2JZGE)
# OEM JZS155 JZZ31
28011 28011-70020 Clutch Sub-Assy, Starter Clutch Sub-Assy, Starter
28011 28011-76070 Clutch Sub-Assy, Starter Clutch Sub-Assy, Starter
28013 28013-70020 Bearing, Starter Center & Shock Absorber, No.1 Bearing, Starter Center & Shock Absorber, No.1
28013 28013-70030 Bearing, Starter Center & Shock Absorber, No.1 Bearing, Starter Center & Shock Absorber, No.1
28013 90099-10181 Bearing, Starter Center & Shock Absorber, No.2 Bearing, Starter Center & Shock Absorber, No.2
28014 28014-70020 Shaft Sub-Assy, Planet Carrier Shaft Sub-Assy, Planet Carrier
28014 90099-10180 Bush Or Bearing, Planet Carrier Shaft Bush Or Bearing, Planet Carrier Shaft
28100 28100-46200 Starter Assy Starter Assy
28110 28110-46130 Housing Assy, Starter Drive Housing Assy, Starter Drive
28110 90099-10171 Bearing(For Starter Housing) Bearing(For Starter Housing)
28110 28110-46090 Housing Assy, Starter Drive Housing Assy, Starter Drive
28113 28113-70020 Lever, Starter Pinion Drive Lever, Starter Pinion Drive
28120 28120-70050 Yoke Assy, Starter Yoke Assy, Starter
28120 90099-14092 Ring, O(For Starter Yoke) Ring, O(For Starter Yoke)
28120 28120-66040 Yoke Assy, Starter Yoke Assy, Starter
28120 28120-74070 Yoke Assy, Starter Yoke Assy, Starter
28120 28120-76061 Yoke Assy, Starter Yoke Assy, Starter
28120 90099-14064 Rubber(For Starter Yoke) Rubber(For Starter Yoke)
28130 28130-15190 Frame Assy, Starter Commutator End Frame Assy, Starter Commutator End
28130 90099-10183 Bearing, Starter Flange Bearing, Starter Flange
28130 28130-46090 Frame Assy, Starter Commutator End Frame Assy, Starter Commutator End
28130 28130-46120 Frame Assy, Starter Commutator End Frame Assy, Starter Commutator End
28140 28140-70020 Holder Assy, Starter Brush Holder Assy, Starter Brush
28140 28140-76060 Holder Assy, Starter Brush Holder Assy, Starter Brush
28140 28140-76070 Holder Assy, Starter Brush Holder Assy, Starter Brush
28142 28142-70020 Brush, Starter Brush, Starter
28143 28143-70020 Spring, Starter Brush Spring, Starter Brush
28143 28143-76060 Spring, Starter Brush Spring, Starter Brush
28143 90099-17112 Spring, Starter Brush Spring, Starter Brush
28150 28150-70030 Switch Assy, Magnet Starter Switch Assy, Magnet Starter
28150 28150-22100 Switch Assy, Magnet Starter Switch Assy, Magnet Starter
28150 28150-46140 Switch Assy, Magnet Starter Switch Assy, Magnet Starter
28150 28150-46150 Switch Assy, Magnet Starter Switch Assy, Magnet Starter
28160 28160-70050 Armature Assy, Starter Armature Assy, Starter
28160 28160-74070 Armature Assy, Starter Armature Assy, Starter
28160 28160-76060 Armature Assy, Starter Armature Assy, Starter
28163 28163-70020 Nut Or Collar, Pinion Stop, Starter Nut Or Collar, Pinion Stop, Starter
28177 28177-70020 Plate(For Starter Armature) Plate(For Starter Armature)
28199 28199-46080 Cover, Starter End Frame Cover, Starter End Frame
28199 28199-74110 Cover, Starter End Frame Cover, Starter End Frame
28255 28255-70020 Gear, Planet Gear, Planet
28256 28256-70020 Gear, Starter Internal Gear, Starter Internal
9009690030 90096-90030 Ring, Snap, Starter Clutch Housing Disc Ring, Snap, Starter Clutch Housing Disc
9009900270 90099-00270 Screw, Starter Screw, Starter
9009901538 90099-01538 New Genuine Part New Genuine Part
9009901539 90099-01539 New Genuine Part New Genuine Part
9009901542 90099-01542 New Genuine Part New Genuine Part
9009904373 90099-04373 BOLTTHROUGH BOLTTHROUGH
9009905178 90099-05178 New Genuine Part New Genuine Part
9009907124 90099-07124 Bearing(For Starter Housing) Bearing(For Starter Housing)
9009912405 90099-12405 New Genuine Part New Genuine Part
9017908146 90179-08146 Nut Nut
9017908146 90179-08204 Nut Nut
