Search › Compare › JZS147 × JZS149
JZS147
Toyota ARISTO — 26 of 7,357 shared
JZS149
Toyota CROWN-MAJESTA — 26 of 6,405 shared

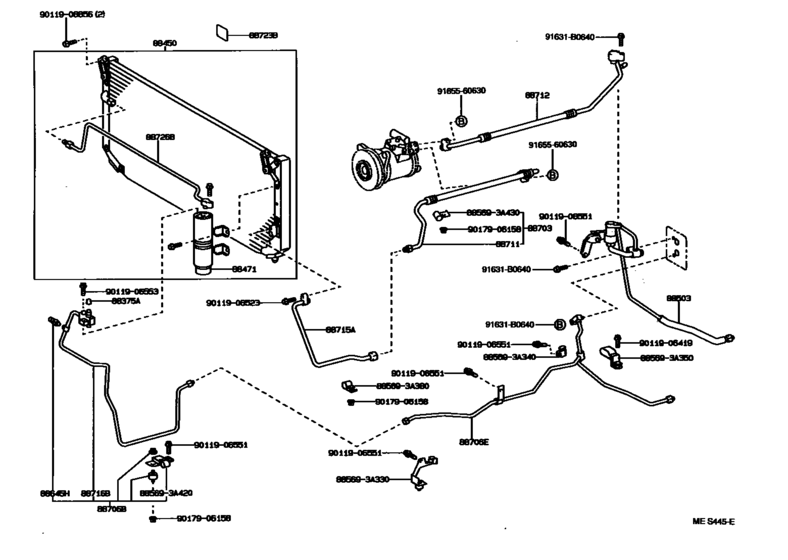

Heating & Air Conditioning - Cooler Piping ([10.1991 - 08.1997] (9110-9708)JZS147) 26 / 39
| # | OEM | JZS147 | JZS149 |
|---|---|---|---|
| 88375 | 88375-30280 | Cap, Service Valve (For Cooler Pipe) | Cap, Service Valve (For Cooler Pipe) |
| 88450 | 88450-30250 | Condenser Assy, W/receiver | Condenser Assy, W/receiver |
| 88471 | 88471-30370 | Tank, Receiver Air Conditioner | Tank, Receiver Air Conditioner |
| 88645 | 88645-30340 | Switch, Pressure No.1 | Switch, Pressure No.1 |
| 88703 | 88703-30420 | Hose Sub-Assy, Discharge | Hose Sub-Assy, Discharge |
| 88703 | 88569-3A430 | Clamp (for Cooler Relay) | Clamp (for Cooler Relay) |
| 88703 | 88711-30790 | Hose, Cooler Refrigerant Discharge, No.1 | Hose, Cooler Refrigerant Discharge, No.1 |
| 88706 | 88706-30490 | Tube Sub-Assy, Liquid, B | Tube Sub-Assy, Liquid, B |
| 88712 | 88712-3A570 | Hose, Cooler Refrigerant Suction, No.1 | Hose, Cooler Refrigerant Suction, No.1 |
| 88715 | 88715-30450 | Pipe, Cooler Refrigerant Discharge, A | Pipe, Cooler Refrigerant Discharge, A |
| 88716 | 88726-3A460 | Pipe, Cooler Refrigerant Liquid, B | Pipe, Cooler Refrigerant Liquid, B |
| 88716 | 88706-30610 | Tube Sub-Assy, Liquid, B | Tube Sub-Assy, Liquid, B |
| 88723 | 88723-20030 | Plate, Caution, No.1 | Plate, Caution, No.1 |
| 88723 | 88733-30040 | Label, Cooler Service Caution | Label, Cooler Service Caution |
| 88723 | 88723-50140 | Label, Cooler Service Caution | Label, Cooler Service Caution |
| 88726 | 88726-3A510 | Pipe, Cooler Refrigerant Liquid, A | Pipe, Cooler Refrigerant Liquid, A |
| 91631 | 91631-B0640 | New Genuine Part | New Genuine Part |
| 885693 | 88569-3A330 | Clamp (for Cooler Relay) | Clamp (for Cooler Relay) |
| 885693 | 88569-3A420 | Clamp (for Cooler Relay) | Clamp (for Cooler Relay) |
| 9011906523 | 90119-06523 | New Genuine Part | New Genuine Part |
| 9011906551 | 90119-06551 | New Genuine Part | New Genuine Part |
| 9011906553 | 90119-06553 | New Genuine Part | New Genuine Part |
| 9011906553 | 91651-F0625 | BOLT WWASHER | BOLT WWASHER |
| 9011908856 | 90119-08856 | BOLT W-WASHER | BOLT W-WASHER |
| 9017906158 | 90179-06158 | Nut, Rear Wiper Link Pivot, No.2 | Nut, Rear Wiper Link Pivot, No.2 |
| 9165160630 | 91652-60630 | New Genuine Part | New Genuine Part |
| # | OEM | JZS147 | JZS149 |
|---|---|---|---|
| 88375 | 88375-30280 | Cap, Service Valve (For Cooler Pipe) | Cap, Service Valve (For Cooler Pipe) |
| 88450 | 88450-30250 | Condenser Assy, W/receiver | Condenser Assy, W/receiver |
| 88471 | 88471-30370 | Tank, Receiver Air Conditioner | Tank, Receiver Air Conditioner |
| 885693 | 88569-3A330 | Clamp (for Cooler Relay) | Clamp (for Cooler Relay) |
| 885693 | 88569-3A420 | Clamp (for Cooler Relay) | Clamp (for Cooler Relay) |
| 88703 | 88569-3A430 | Clamp (for Cooler Relay) | Clamp (for Cooler Relay) |
| 88645 | 88645-30340 | Switch, Pressure No.1 | Switch, Pressure No.1 |
| 88703 | 88703-30420 | Hose Sub-Assy, Discharge | Hose Sub-Assy, Discharge |
| 88706 | 88706-30490 | Tube Sub-Assy, Liquid, B | Tube Sub-Assy, Liquid, B |
| 88716 | 88706-30610 | Tube Sub-Assy, Liquid, B | Tube Sub-Assy, Liquid, B |
| 88703 | 88711-30790 | Hose, Cooler Refrigerant Discharge, No.1 | Hose, Cooler Refrigerant Discharge, No.1 |
| 88712 | 88712-3A570 | Hose, Cooler Refrigerant Suction, No.1 | Hose, Cooler Refrigerant Suction, No.1 |
| 88715 | 88715-30450 | Pipe, Cooler Refrigerant Discharge, A | Pipe, Cooler Refrigerant Discharge, A |
| 88723 | 88723-20030 | Plate, Caution, No.1 | Plate, Caution, No.1 |
| 88723 | 88723-50140 | Label, Cooler Service Caution | Label, Cooler Service Caution |
| 88716 | 88726-3A460 | Pipe, Cooler Refrigerant Liquid, B | Pipe, Cooler Refrigerant Liquid, B |
| 88726 | 88726-3A510 | Pipe, Cooler Refrigerant Liquid, A | Pipe, Cooler Refrigerant Liquid, A |
| 88723 | 88733-30040 | Label, Cooler Service Caution | Label, Cooler Service Caution |
| 9011906523 | 90119-06523 | New Genuine Part | New Genuine Part |
| 9011906551 | 90119-06551 | New Genuine Part | New Genuine Part |
| 9011906553 | 90119-06553 | New Genuine Part | New Genuine Part |
| 9011908856 | 90119-08856 | BOLT W-WASHER | BOLT W-WASHER |
| 9017906158 | 90179-06158 | Nut, Rear Wiper Link Pivot, No.2 | Nut, Rear Wiper Link Pivot, No.2 |
| 91631 | 91631-B0640 | New Genuine Part | New Genuine Part |
| 9011906553 | 91651-F0625 | BOLT WWASHER | BOLT WWASHER |
| 9165160630 | 91652-60630 | New Genuine Part | New Genuine Part |
