Search › Compare › JZS147 × JZS149
JZS147
Toyota ARISTO — 16 of 7,357 shared
JZS149
Toyota CROWN-MAJESTA — 16 of 6,405 shared

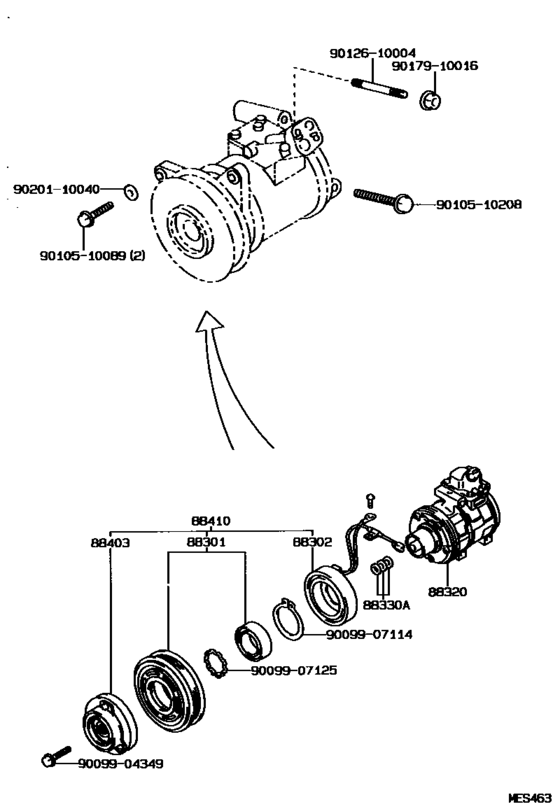

Heating & Air Conditioning - Compressor ([10.1991 - 08.1997] (9110-9708)) 16 / 21
| # | OEM | JZS147 | JZS149 |
|---|---|---|---|
| 88301 | 88412-30410 | Rotor Sub-Assy, Magnet Clutch | Rotor Sub-Assy, Magnet Clutch |
| 88302 | 88411-30540 | Stator Sub-Assy, Magnet Clutch | Stator Sub-Assy, Magnet Clutch |
| 88302 | 88411-3A010 | Stator Sub-Assy, Magnet Clutch | Stator Sub-Assy, Magnet Clutch |
| 88320 | 88320-30651 | Compressor Assy, Cooler | Compressor Assy, Cooler |
| 88330 | 88335-14020 | Washer | Washer |
| 88403 | 88403-30290 | Hub Sub-Assy, Magnet Clutch | Hub Sub-Assy, Magnet Clutch |
| 88410 | 88410-30710 | Clutch Assy, Magnet | Clutch Assy, Magnet |
| 9009904110 | 90099-04349 | Bolt, Magnet Clutch Setting | Bolt, Magnet Clutch Setting |
| 9009907114 | 90099-07114 | Ring, Snap (For Magnet Clutch) | Ring, Snap (For Magnet Clutch) |
| 9009907125 | 90099-07125 | Ring, Snap | Ring, Snap |
| 9010510089 | 90105-10089 | Bolt(For Alternator) | Bolt(For Alternator) |
| 9010510208 | 90105-10208 | New Genuine Part | New Genuine Part |
| 9012610004 | 90126-10004 | New Genuine Part | New Genuine Part |
| 9017910016 | 90179-10016 | Nut(For Counter Gear Shaft) | Nut(For Counter Gear Shaft) |
| 9017910016 | 90179-10132 | Nut | Nut |
| 9020110040 | 90201-10040 | Washer, No.2 (For Center Support Bearing) | Washer, No.2 (For Center Support Bearing) |
| # | OEM | JZS147 | JZS149 |
|---|---|---|---|
| 88320 | 88320-30651 | Compressor Assy, Cooler | Compressor Assy, Cooler |
| 88330 | 88335-14020 | Washer | Washer |
| 88403 | 88403-30290 | Hub Sub-Assy, Magnet Clutch | Hub Sub-Assy, Magnet Clutch |
| 88410 | 88410-30710 | Clutch Assy, Magnet | Clutch Assy, Magnet |
| 88302 | 88411-30540 | Stator Sub-Assy, Magnet Clutch | Stator Sub-Assy, Magnet Clutch |
| 88302 | 88411-3A010 | Stator Sub-Assy, Magnet Clutch | Stator Sub-Assy, Magnet Clutch |
| 88301 | 88412-30410 | Rotor Sub-Assy, Magnet Clutch | Rotor Sub-Assy, Magnet Clutch |
| 9009904110 | 90099-04349 | Bolt, Magnet Clutch Setting | Bolt, Magnet Clutch Setting |
| 9009907114 | 90099-07114 | Ring, Snap (For Magnet Clutch) | Ring, Snap (For Magnet Clutch) |
| 9009907125 | 90099-07125 | Ring, Snap | Ring, Snap |
| 9010510089 | 90105-10089 | Bolt(For Alternator) | Bolt(For Alternator) |
| 9010510208 | 90105-10208 | New Genuine Part | New Genuine Part |
| 9012610004 | 90126-10004 | New Genuine Part | New Genuine Part |
| 9017910016 | 90179-10016 | Nut(For Counter Gear Shaft) | Nut(For Counter Gear Shaft) |
| 9017910141 | 90179-10132 | Nut | Nut |
| 9020110040 | 90201-10040 | Washer, No.2 (For Center Support Bearing) | Washer, No.2 (For Center Support Bearing) |
