Search › Compare › JZS147 × JZS149
JZS147
Toyota ARISTO — 44 of 7,357 shared
JZS149
Toyota CROWN-MAJESTA — 44 of 6,405 shared

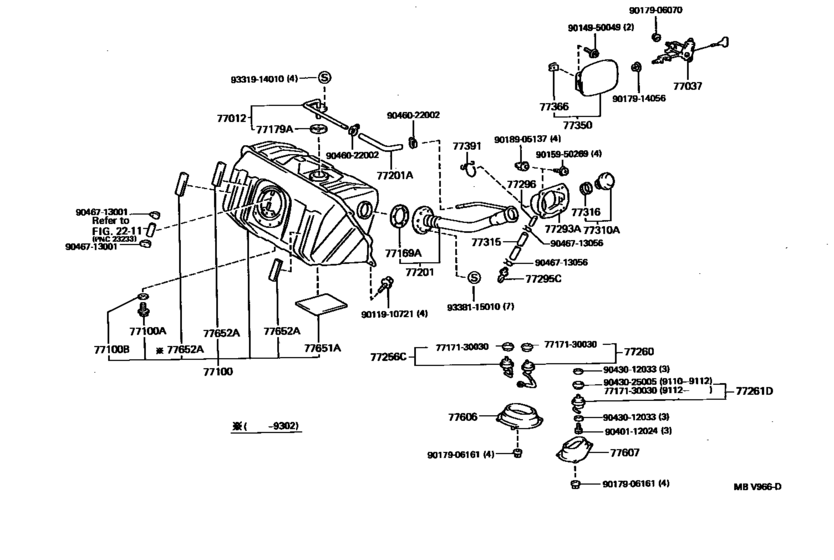

Fuel Tank & Tube ([10.1991 - ] (9110- )) 44 / 55
| # | OEM | JZS147 | JZS149 |
|---|---|---|---|
| 77012 | 77012-30080 | Tube Sub-Assy, Fuel Tank Breather | Tube Sub-Assy, Fuel Tank Breather |
| 77100 | 77001-30430 | Tank Assy, Fuel | Tank Assy, Fuel |
| 77100 | 90105-12116 | Plug(For Fuel Tank) | Plug(For Fuel Tank) |
| 77100 | 90430-12245 | Gasket(For Fuel Tank) | Gasket(For Fuel Tank) |
| 77169 | 77169-14010 | Gasket, Fuel Pump Bracket | Gasket, Fuel Pump Bracket |
| 77179 | 77179-20040 | Gasket, Fuel Tank Breather Tube | Gasket, Fuel Tank Breather Tube |
| 77201 | 95311-13026 | Hose, Fuel, No.1(For Fuel Tank Inlet Pipe) | Hose, Fuel, No.1(For Fuel Tank Inlet Pipe) |
| 77256 | 77208-24010 | Tube, Fuel Return, No.2 | Tube, Fuel Return, No.2 |
| 77256 | 77208-30040 | Tube, Fuel Return, No.2 | Tube, Fuel Return, No.2 |
| 77260 | 77260-24010 | Hose Assy, Fuel Main | Hose Assy, Fuel Main |
| 77260 | 77260-30010 | Hose Assy, Fuel Main | Hose Assy, Fuel Main |
| 77261 | 77028-30080 | Tube, Fuel Tank To Canister | Tube, Fuel Tank To Canister |
| 77261 | 77028-30081 | Tube Sub-Assy, Fuel Tank To Canister, Rear | Tube Sub-Assy, Fuel Tank To Canister, Rear |
| 77295 | 77295-50010 | Grommet, Fuel Tube | Grommet, Fuel Tube |
| 77296 | 77296-30030 | Plate, Fuel Tube Grommet Support | Plate, Fuel Tube Grommet Support |
| 77310 | 77310-16011 | Cap Assy, Fuel Tank | Cap Assy, Fuel Tank |
| 77310 | 77310-12140 | Cap Assy, Fuel Tank | Cap Assy, Fuel Tank |
| 77315 | 77217-30070 | Hose, Fuel Filler Opening | Hose, Fuel Filler Opening |
| 77315 | 90446-12028 | Hose, Fuel Filler Opening | Hose, Fuel Filler Opening |
| 77316 | 77316-16010 | Gasket (For Fuel Tank Cap) | Gasket (For Fuel Tank Cap) |
| 77366 | 77366-35010 | Spring, Fuel Filler Opening Lid Hinge | Spring, Fuel Filler Opening Lid Hinge |
| 77391 | 77391-30010 | Ring, Fuel Inlet Box | Ring, Fuel Inlet Box |
| 77606 | 77606-30150 | Protector Sub-Assy, Fuel Tank, No.1 | Protector Sub-Assy, Fuel Tank, No.1 |
| 77607 | 77607-30010 | Case Sub-Assy, Fuel Tank Cover Vent, Lh | Case Sub-Assy, Fuel Tank Cover Vent, Lh |
| 77651 | 77651-30080 | Cushion, Fuel Tank, No.1 | Cushion, Fuel Tank, No.1 |
| 9011910721 | 90119-10721 | New Genuine Part | New Genuine Part |
| 9011910721 | 90119-10090 | New Genuine Part | New Genuine Part |
| 9014950049 | 90149-50049 | New Genuine Part | New Genuine Part |
| 9015950269 | 90159-50269 | SCREW WWASHER | SCREW WWASHER |
| 9017906070 | 90179-06070 | Nut(For Steering Inter Shaft Dust Seal Cover) | Nut(For Steering Inter Shaft Dust Seal Cover) |
| 9017906070 | 90179-06159 | Nut, Rear Wiper Link Pivot, No.1 | Nut, Rear Wiper Link Pivot, No.1 |
| 9017906161 | 90179-06161 | Bolt, Union(For Clutch Accumulator) | Bolt, Union(For Clutch Accumulator) |
| 9017914056 | 90179-14056 | New Genuine Part | New Genuine Part |
| 9018905137 | 90189-05137 | GROMMET SCREW | GROMMET SCREW |
| 9040112024 | 90401-12024 | New Genuine Part | New Genuine Part |
| 9043012010 | 90430-12010 | Gasket(For Water Hole) | Gasket(For Water Hole) |
| 9043025004 | 77171-30030 | Gasket, Fuel Tank Tube, No.1 | Gasket, Fuel Tank Tube, No.1 |
| 9043025005 | 90430-25005 | New Genuine Part | New Genuine Part |
| 9046022002 | 90460-22002 | CLAMP | CLAMP |
| 9046022002 | 90460-22001 | CLAMP | CLAMP |
| 9046713001 | 90467-13001 | Clamp Or Clip, Hose(For Water By-Pass Hose) | Clamp Or Clip, Hose(For Water By-Pass Hose) |
| 9046713001 | 96135-51300 | Clamp, Hose | Clamp, Hose |
| 9331914010 | 93319-14010 | SCREW | SCREW |
| 9338115010 | 93381-15010 | SCREW | SCREW |
| # | OEM | JZS147 | JZS149 |
|---|---|---|---|
| 77100 | 77001-30430 | Tank Assy, Fuel | Tank Assy, Fuel |
| 77012 | 77012-30080 | Tube Sub-Assy, Fuel Tank Breather | Tube Sub-Assy, Fuel Tank Breather |
| 77261 | 77028-30080 | Tube, Fuel Tank To Canister | Tube, Fuel Tank To Canister |
| 77261 | 77028-30081 | Tube Sub-Assy, Fuel Tank To Canister, Rear | Tube Sub-Assy, Fuel Tank To Canister, Rear |
| 77169 | 77169-14010 | Gasket, Fuel Pump Bracket | Gasket, Fuel Pump Bracket |
| 9043025004 | 77171-30030 | Gasket, Fuel Tank Tube, No.1 | Gasket, Fuel Tank Tube, No.1 |
| 77179 | 77179-20040 | Gasket, Fuel Tank Breather Tube | Gasket, Fuel Tank Breather Tube |
| 77256 | 77208-24010 | Tube, Fuel Return, No.2 | Tube, Fuel Return, No.2 |
| 77256 | 77208-30040 | Tube, Fuel Return, No.2 | Tube, Fuel Return, No.2 |
| 77315 | 77217-30070 | Hose, Fuel Filler Opening | Hose, Fuel Filler Opening |
| 77260 | 77260-24010 | Hose Assy, Fuel Main | Hose Assy, Fuel Main |
| 77260 | 77260-30010 | Hose Assy, Fuel Main | Hose Assy, Fuel Main |
| 77295 | 77295-50010 | Grommet, Fuel Tube | Grommet, Fuel Tube |
| 77296 | 77296-30030 | Plate, Fuel Tube Grommet Support | Plate, Fuel Tube Grommet Support |
| 77310 | 77310-12140 | Cap Assy, Fuel Tank | Cap Assy, Fuel Tank |
| 77310 | 77310-16011 | Cap Assy, Fuel Tank | Cap Assy, Fuel Tank |
| 77316 | 77316-16010 | Gasket (For Fuel Tank Cap) | Gasket (For Fuel Tank Cap) |
| 77366 | 77366-35010 | Spring, Fuel Filler Opening Lid Hinge | Spring, Fuel Filler Opening Lid Hinge |
| 77391 | 77391-30010 | Ring, Fuel Inlet Box | Ring, Fuel Inlet Box |
| 77606 | 77606-30150 | Protector Sub-Assy, Fuel Tank, No.1 | Protector Sub-Assy, Fuel Tank, No.1 |
| 77607 | 77607-30010 | Case Sub-Assy, Fuel Tank Cover Vent, Lh | Case Sub-Assy, Fuel Tank Cover Vent, Lh |
| 77651 | 77651-30080 | Cushion, Fuel Tank, No.1 | Cushion, Fuel Tank, No.1 |
| 77100 | 90105-12116 | Plug(For Fuel Tank) | Plug(For Fuel Tank) |
| 9011910721 | 90119-10090 | New Genuine Part | New Genuine Part |
| 9011910721 | 90119-10721 | New Genuine Part | New Genuine Part |
| 9014950049 | 90149-50049 | New Genuine Part | New Genuine Part |
| 9015950269 | 90159-50269 | SCREW WWASHER | SCREW WWASHER |
| 9017906070 | 90179-06070 | Nut(For Steering Inter Shaft Dust Seal Cover) | Nut(For Steering Inter Shaft Dust Seal Cover) |
| 9017906070 | 90179-06159 | Nut, Rear Wiper Link Pivot, No.1 | Nut, Rear Wiper Link Pivot, No.1 |
| 9017906161 | 90179-06161 | Bolt, Union(For Clutch Accumulator) | Bolt, Union(For Clutch Accumulator) |
| 9017914056 | 90179-14056 | New Genuine Part | New Genuine Part |
| 9018905137 | 90189-05137 | GROMMET SCREW | GROMMET SCREW |
| 9040112024 | 90401-12024 | New Genuine Part | New Genuine Part |
| 9043012010 | 90430-12010 | Gasket(For Water Hole) | Gasket(For Water Hole) |
| 77100 | 90430-12245 | Gasket(For Fuel Tank) | Gasket(For Fuel Tank) |
| 9043025005 | 90430-25005 | New Genuine Part | New Genuine Part |
| 77315 | 90446-12028 | Hose, Fuel Filler Opening | Hose, Fuel Filler Opening |
| 9046022002 | 90460-22001 | CLAMP | CLAMP |
| 9046022002 | 90460-22002 | CLAMP | CLAMP |
| 9046713001 | 90467-13001 | Clamp Or Clip, Hose(For Water By-Pass Hose) | Clamp Or Clip, Hose(For Water By-Pass Hose) |
| 9331914010 | 93319-14010 | SCREW | SCREW |
| 9338115010 | 93381-15010 | SCREW | SCREW |
| 77201 | 95311-13026 | Hose, Fuel, No.1(For Fuel Tank Inlet Pipe) | Hose, Fuel, No.1(For Fuel Tank Inlet Pipe) |
| 23233 | 96135-51300 | Clamp, Hose | Clamp, Hose |
