Search › Compare › JZS147 × JZS149
JZS147
Toyota ARISTO — 28 of 7,357 shared
JZS149
Toyota CROWN-MAJESTA — 28 of 6,405 shared

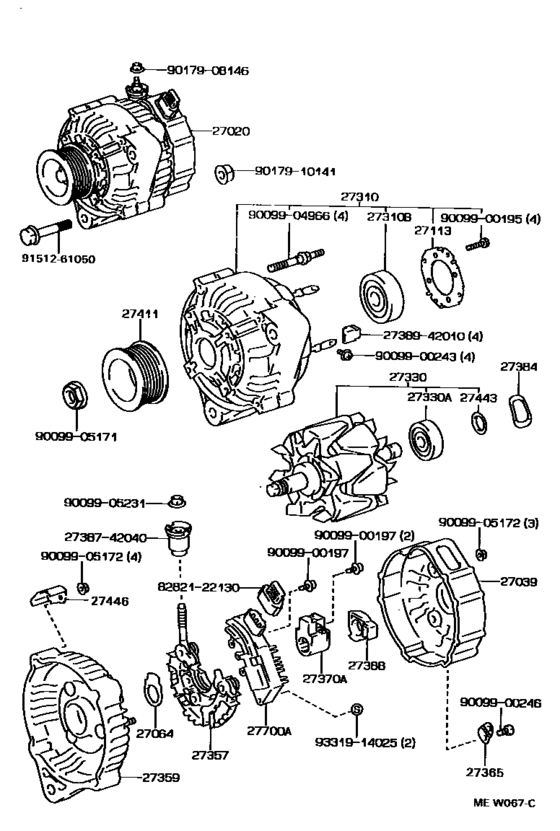

Alternator ([10.1991 - ] 12V 80A (9110- )2JZGTE) 28 / 39
| # | OEM | JZS147 | JZS149 |
|---|---|---|---|
| 27064 | 27064-42010 | Seal, Alternator Plate | Seal, Alternator Plate |
| 27113 | 27312-42010 | Plate, Bearing Retainer, Alternator | Plate, Bearing Retainer, Alternator |
| 27310 | 90099-10192 | Bearing(For Alternator Drive End Frame) | Bearing(For Alternator Drive End Frame) |
| 27330 | 90099-10194 | Bearing(For Alternator Rotor) | Bearing(For Alternator Rotor) |
| 27365 | 27365-55080 | Plate, Terminal | Plate, Terminal |
| 27370 | 27370-75060 | Holder Assy, Alternator Brush | Holder Assy, Alternator Brush |
| 27384 | 27384-50030 | Holder, Alternator Brush, A | Holder, Alternator Brush, A |
| 27388 | 27388-42010 | Cover, Alternator Brush | Cover, Alternator Brush |
| 27443 | 27443-63020 | Cover, Alternator Bearing | Cover, Alternator Bearing |
| 27446 | 27446-46130 | Clip, Alternator Cord | Clip, Alternator Cord |
| 27700 | 27700-46030 | Regulator Assy, Generator | Regulator Assy, Generator |
| 27700 | 27700-72090 | Regulator Assy, Generator | Regulator Assy, Generator |
| 2738742040 | 27387-42040 | Insulator, Terminal | Insulator, Terminal |
| 2738942010 | 27389-42010 | Insulator, Terminal | Insulator, Terminal |
| 9009900195 | 90099-00195 | New Genuine Part | New Genuine Part |
| 9009900197 | 90099-00197 | Screw | Screw |
| 9009900243 | 90099-00243 | SCREW WWASHER | SCREW WWASHER |
| 9009900246 | 90099-00246 | New Genuine Part | New Genuine Part |
| 9009904966 | 90099-04966 | Bearing(for Alternator Rotor) | Bearing(for Alternator Rotor) |
| 9009905171 | 90099-05171 | Nut(For Alternator Pulley) | Nut(For Alternator Pulley) |
| 9009905172 | 90099-05172 | New Genuine Part | New Genuine Part |
| 9009905231 | 90099-05231 | New Genuine Part | New Genuine Part |
| 9017908146 | 90179-08146 | Nut | Nut |
| 9017908146 | 90179-08204 | Nut | Nut |
| 9017910141 | 90179-10141 | Nut(For Counter Gear Shaft) | Nut(For Counter Gear Shaft) |
| 9017910141 | 90179-10132 | Nut | Nut |
| 9151261050 | 91512-61050 | Bolt(For Alternator) | Bolt(For Alternator) |
| 9331914025 | 93319-14025 | Screw W Washer | Screw W Washer |
| # | OEM | JZS147 | JZS149 |
|---|---|---|---|
| 27064 | 27064-42010 | Seal, Alternator Plate | Seal, Alternator Plate |
| 27113 | 27312-42010 | Plate, Bearing Retainer, Alternator | Plate, Bearing Retainer, Alternator |
| 27365 | 27365-55080 | Plate, Terminal | Plate, Terminal |
| 27370 | 27370-75060 | Holder Assy, Alternator Brush | Holder Assy, Alternator Brush |
| 27384 | 27384-50030 | Holder, Alternator Brush, A | Holder, Alternator Brush, A |
| 2738742040 | 27387-42040 | Insulator, Terminal | Insulator, Terminal |
| 27388 | 27388-42010 | Cover, Alternator Brush | Cover, Alternator Brush |
| 2738942010 | 27389-42010 | Insulator, Terminal | Insulator, Terminal |
| 27443 | 27443-63020 | Cover, Alternator Bearing | Cover, Alternator Bearing |
| 27446 | 27446-46130 | Clip, Alternator Cord | Clip, Alternator Cord |
| 27700 | 27700-46030 | Regulator Assy, Generator | Regulator Assy, Generator |
| 27700 | 27700-72090 | Regulator Assy, Generator | Regulator Assy, Generator |
| 9009900195 | 90099-00195 | New Genuine Part | New Genuine Part |
| 9009900197 | 90099-00197 | Screw | Screw |
| 9009900243 | 90099-00243 | SCREW WWASHER | SCREW WWASHER |
| 9009900246 | 90099-00246 | New Genuine Part | New Genuine Part |
| 9009904966 | 90099-04966 | Bearing(for Alternator Rotor) | Bearing(for Alternator Rotor) |
| 9009905171 | 90099-05171 | Nut(For Alternator Pulley) | Nut(For Alternator Pulley) |
| 9009905172 | 90099-05172 | New Genuine Part | New Genuine Part |
| 9009905231 | 90099-05231 | New Genuine Part | New Genuine Part |
| 27310 | 90099-10192 | Bearing(For Alternator Drive End Frame) | Bearing(For Alternator Drive End Frame) |
| 27330 | 90099-10194 | Bearing(For Alternator Rotor) | Bearing(For Alternator Rotor) |
| 9017908146 | 90179-08146 | Nut | Nut |
| 9017908146 | 90179-08204 | Nut | Nut |
| 9017910141 | 90179-10132 | Nut | Nut |
| 9017910141 | 90179-10141 | Nut(For Counter Gear Shaft) | Nut(For Counter Gear Shaft) |
| 9151261050 | 91512-61050 | Bolt(For Alternator) | Bolt(For Alternator) |
| 9331914025 | 93319-14025 | Screw W Washer | Screw W Washer |
