JB416X × JB424X

Shared 12 / Total 4,714 · Jaccard 100%
JB416X Suzuki GRAND-VITARA — 12 of 4,714 shared
JB424X Suzuki GRAND-VITARA — 12 of 4,714 shared

← Back to categories

12 items

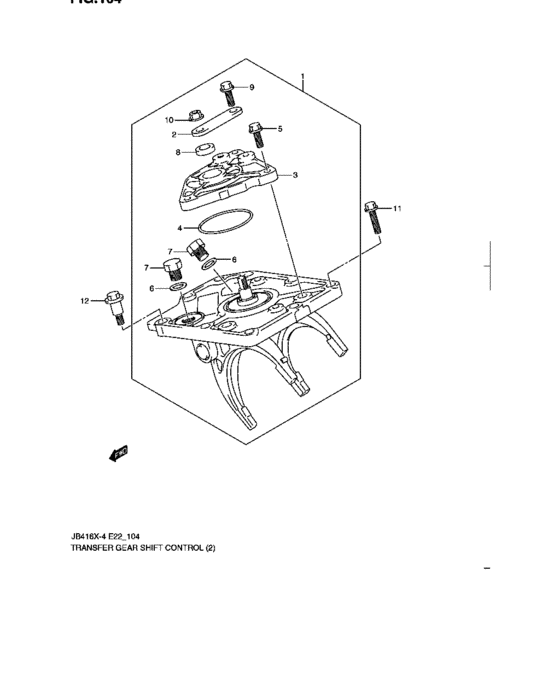

Transfer gear shift control (S MODE) 12 / 12
JB416X Transfer gear shift control (S MODE)
JB424X Transfer gear shift control (S MODE)
# OEM JB416X JB424X
1 29750-66J00-000 CASE ASSY,DIFF LOCK SHF LEVER CASE ASSY,DIFF LOCK SHF LEVER
2 29735-66J00-000 LEVER,DIFF LOCK SHF OUTER LEVER,DIFF LOCK SHF OUTER
3 29753-66J00-000 COVER,DIFF LOCK SHF LEVER COVER,DIFF LOCK SHF LEVER
4 09280-54002-000 O RING(D:2.4,ID:53.6) - O ring (d:2.4,id:53.6) O RING(D:2.4,ID:53.6) - O ring (d:2.4,id:53.6)
5 09103-08266-000 BOLT(8X20) - Bolt, lower BOLT(8X20) - Bolt, lower
6 09168-14011-000 GASKET(14X20X1.5) GASKET(14X20X1.5)
7 09247-14029-000 PLUG PLUG
8 09283-14006-000 SEAL,OIL(14X22X6) SEAL,OIL(14X22X6)
9 01550-0820A-000 Bolt - Bolt, funnel bracket Bolt - Bolt, funnel bracket
10 08316-1008A-000 NUT - Nut, idle gear shaft NUT - Nut, idle gear shaft
11 09103-08153-000 BOLT(8X30) - Bolt (8x30) BOLT(8X30) - Bolt (8x30)
12 09103-08193-000 BOLT(8X30.3) BOLT(8X30.3)
