Search › Compare › JB416X × JB424X
JB416X
Suzuki GRAND-VITARA — 17 of 4,714 shared
JB424X
Suzuki GRAND-VITARA — 17 of 4,714 shared

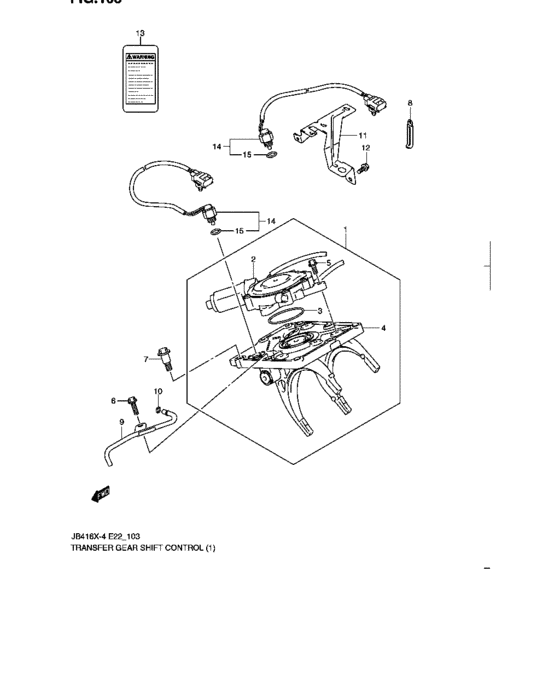

Transfer gear shift control (4 MODE) 17 / 17
| # | OEM | JB416X | JB424X |
|---|---|---|---|
| 1 | 29300-80K00-000 | ACTUATOR ASSY,T/F MOTOR SHIFT | ACTUATOR ASSY,T/F MOTOR SHIFT |
| 2 | 29311-80K00-000 | ACTUATOR,MOTOR SHIFT | ACTUATOR,MOTOR SHIFT |
| 3 | 29316-66J00-000 | O-RING,ACTUATOR | O-RING,ACTUATOR |
| 4 | 29330-80K00-000 | FORK ASSY,MOTOR SHIFT | FORK ASSY,MOTOR SHIFT |
| 5 | 29391-66J00-000 | Bolt | Bolt |
| 6 | 09103-08153-000 | BOLT(8X30) - Bolt (8x30) | BOLT(8X30) - Bolt (8x30) |
| 7 | 09103-08193-000 | BOLT(8X30.3) | BOLT(8X30.3) |
| 8 | 09404-08419-000 | CLAMP(L:80) | CLAMP(L:80) |
| 8 | 09404-08422-000 | Clamp,wiring Harness | Clamp,wiring Harness |
| 9 | 24822-66J00-000 | PIPE,T/F ACTUATOR BREATHER | PIPE,T/F ACTUATOR BREATHER |
| 10 | 09280-06005-000 | O RING(D:1.9,ID:5.7) | O RING(D:1.9,ID:5.7) |
| 11 | 29726-66J00-000 | BRACKET,T/F HARNESS | BRACKET,T/F HARNESS |
| 12 | 01550-0616A-000 | Bolt | Bolt |
| 13 | 28381-66J10-000 | EMBLEM,T/F GEAR SHIFT | EMBLEM,T/F GEAR SHIFT |
| 13 | 28381-66J30-000 | EMBLEM,T/F GEAR SHIFT | EMBLEM,T/F GEAR SHIFT |
| 14 | 37680-65J00-000 | SWITCH ASSY,4WD | SWITCH ASSY,4WD |
| 15 | 09280-11002-000 | O RING(D:1.9,ID:11.4) | O RING(D:1.9,ID:11.4) |
| # | OEM | JB416X | JB424X |
|---|---|---|---|
| 16 | 01550-0616A-000 | Bolt | Bolt |
| 11 | 09103-08153-000 | BOLT(8X30) - Bolt (8x30) | BOLT(8X30) - Bolt (8x30) |
| 7 | 09103-08193-000 | BOLT(8X30.3) | BOLT(8X30.3) |
| 10 | 09280-06005-000 | O RING(D:1.9,ID:5.7) | O RING(D:1.9,ID:5.7) |
| 27 | 09280-11002-000 | O RING(D:1.9,ID:11.4) | O RING(D:1.9,ID:11.4) |
| 8 | 09404-08419-000 | CLAMP(L:80) | CLAMP(L:80) |
| 8 | 09404-08422-000 | Clamp,wiring Harness | Clamp,wiring Harness |
| 9 | 24822-66J00-000 | PIPE,T/F ACTUATOR BREATHER | PIPE,T/F ACTUATOR BREATHER |
| 13 | 28381-66J10-000 | EMBLEM,T/F GEAR SHIFT | EMBLEM,T/F GEAR SHIFT |
| 13 | 28381-66J30-000 | EMBLEM,T/F GEAR SHIFT | EMBLEM,T/F GEAR SHIFT |
| 1 | 29300-80K00-000 | ACTUATOR ASSY,T/F MOTOR SHIFT | ACTUATOR ASSY,T/F MOTOR SHIFT |
| 2 | 29311-80K00-000 | ACTUATOR,MOTOR SHIFT | ACTUATOR,MOTOR SHIFT |
| 3 | 29316-66J00-000 | O-RING,ACTUATOR | O-RING,ACTUATOR |
| 4 | 29330-80K00-000 | FORK ASSY,MOTOR SHIFT | FORK ASSY,MOTOR SHIFT |
| 5 | 29391-66J00-000 | Bolt | Bolt |
| 11 | 29726-66J00-000 | BRACKET,T/F HARNESS | BRACKET,T/F HARNESS |
| 14 | 37680-65J00-000 | SWITCH ASSY,4WD | SWITCH ASSY,4WD |
