Search › Compare › JB416X × JB424X
JB416X
Suzuki GRAND-VITARA — 32 of 4,714 shared
JB424X
Suzuki GRAND-VITARA — 32 of 4,714 shared

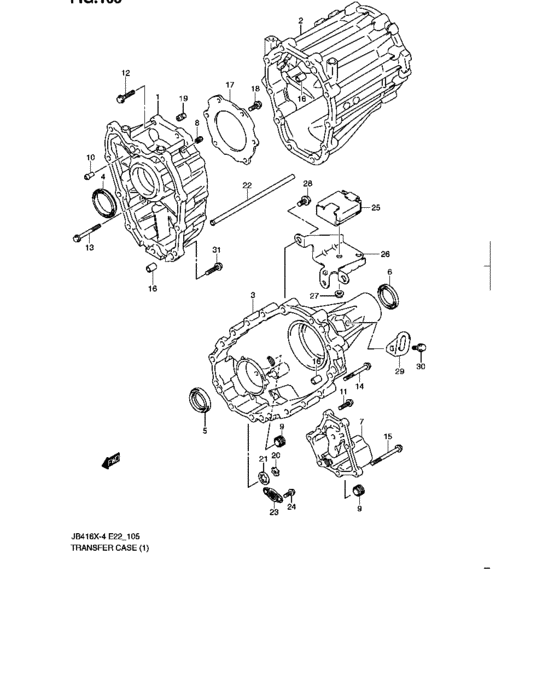

Transfer case 32 / 32
| # | OEM | JB416X | JB424X |
|---|---|---|---|
| 1 | 29511-66J30-000 | CASE,T/F,FR | CASE,T/F,FR |
| 2 | 29521-66J00-000 | CASE,T/F,CENTER | CASE,T/F,CENTER |
| 3 | 29531-66J30-000 | CASE,T/F,RR | CASE,T/F,RR |
| 4 | 29283-66J00-000 | SEAL,INPUT GEAR | SEAL,INPUT GEAR |
| 5 | 09283-40037-000 | SEAL,OIL(40X54X7.3) | SEAL,OIL(40X54X7.3) |
| 6 | 29283-66J30-000 | SEAL,RR OUTPUT SHAFT | SEAL,RR OUTPUT SHAFT |
| 7 | 29613-66J00-000 | COVER,T/F OIL PUMP | COVER,T/F OIL PUMP |
| 8 | 09246-05006-000 | PLUG(1/8PT,H:5.5) | PLUG(1/8PT,H:5.5) |
| 8 | 09283-40035-000 | Seal,oil,40x70.2x20.3 | Seal,oil,40x70.2x20.3 |
| 8 | 09283-40042-000 | SEAL,OIL(40X72X23.3) | SEAL,OIL(40X72X23.3) |
| 9 | 09246-16010-000 | PLUG | PLUG |
| 9 | 09246-16021-000 | Plug,t/m Oil Drain | Plug,t/m Oil Drain |
| 10 | 09364-06007-000 | UNION | UNION |
| 11 | 01550-0830A-000 | Bolt - Bolt, mount oil seal cover | Bolt - Bolt, mount oil seal cover |
| 13 | 01550-0855A-000 | Bolt - Bolt, gear holder | Bolt - Bolt, gear holder |
| 15 | 01550-0895A-000 | Bolt | Bolt |
| 16 | 04211-13149-000 | PIN | PIN |
| 17 | 29515-66J00-000 | PLATE,INPUT GEAR | PLATE,INPUT GEAR |
| 18 | 09103-08266-000 | BOLT(8X20) - Bolt, lower | BOLT(8X20) - Bolt, lower |
| 19 | 11130-85FA1-000 | VALVE,OIL RELIEF | VALVE,OIL RELIEF |
| 20 | 29611-66J00-000 | ROTOR,OIL PUMP INNER | ROTOR,OIL PUMP INNER |
| 21 | 29612-66J00-000 | ROTOR,OIL PUMP OUTER | ROTOR,OIL PUMP OUTER |
| 22 | 29614-66J00-000 | PIPE,TRANSFER OIL | PIPE,TRANSFER OIL |
| 23 | 16520-12C01-000 | STRAINER,ENGINE OIL | STRAINER,ENGINE OIL |
| 24 | 01550-0616A-000 | Bolt | Bolt |
| 25 | 29553-85F30-000 | DAMPER,T/M MASS | DAMPER,T/M MASS |
| 25 | 29553-66J00-000 | DAMPER,TRANSFER CASE | DAMPER,TRANSFER CASE |
| 26 | 29554-66J01-000 | BRACKET,T/F MASS DAMPER | BRACKET,T/F MASS DAMPER |
| 27 | 09159-10117-000 | NUT | NUT |
| 28 | 01550-1025C-000 | Bolt | Bolt |
| 29 | 11851-50F00-000 | HOOK,ENGINE | HOOK,ENGINE |
| 30 | 01550-0816A-000 | Bolt - Bolt, rear | Bolt - Bolt, rear |
| # | OEM | JB416X | JB424X |
|---|---|---|---|
| 16 | 01550-0616A-000 | Bolt | Bolt |
| 10 | 01550-0816A-000 | Bolt - Bolt, rear | Bolt - Bolt, rear |
| 4 | 01550-0830A-000 | Bolt - Bolt, mount oil seal cover | Bolt - Bolt, mount oil seal cover |
| 2 | 01550-0855A-000 | Bolt - Bolt, gear holder | Bolt - Bolt, gear holder |
| 15 | 01550-0895A-000 | Bolt | Bolt |
| 28 | 01550-1025C-000 | Bolt | Bolt |
| 16 | 04211-13149-000 | PIN | PIN |
| 9 | 09103-08266-000 | BOLT(8X20) - Bolt, lower | BOLT(8X20) - Bolt, lower |
| 6 | 09159-10117-000 | NUT | NUT |
| 7 | 09246-05006-000 | PLUG(1/8PT,H:5.5) | PLUG(1/8PT,H:5.5) |
| 28 | 09246-16010-000 | PLUG | PLUG |
| 28 | 09246-16021-000 | Plug,t/m Oil Drain | Plug,t/m Oil Drain |
| 8 | 09283-40035-000 | Seal,oil,40x70.2x20.3 | Seal,oil,40x70.2x20.3 |
| 5 | 09283-40037-000 | SEAL,OIL(40X54X7.3) | SEAL,OIL(40X54X7.3) |
| 8 | 09283-40042-000 | SEAL,OIL(40X72X23.3) | SEAL,OIL(40X72X23.3) |
| 10 | 09364-06007-000 | UNION | UNION |
| 19 | 11130-85FA1-000 | VALVE,OIL RELIEF | VALVE,OIL RELIEF |
| 29 | 11851-50F00-000 | HOOK,ENGINE | HOOK,ENGINE |
| 23 | 16520-12C01-000 | STRAINER,ENGINE OIL | STRAINER,ENGINE OIL |
| 4 | 29283-66J00-000 | SEAL,INPUT GEAR | SEAL,INPUT GEAR |
| 6 | 29283-66J30-000 | SEAL,RR OUTPUT SHAFT | SEAL,RR OUTPUT SHAFT |
| 1 | 29511-66J30-000 | CASE,T/F,FR | CASE,T/F,FR |
| 17 | 29515-66J00-000 | PLATE,INPUT GEAR | PLATE,INPUT GEAR |
| 2 | 29521-66J00-000 | CASE,T/F,CENTER | CASE,T/F,CENTER |
| 3 | 29531-66J30-000 | CASE,T/F,RR | CASE,T/F,RR |
| 25 | 29553-66J00-000 | DAMPER,TRANSFER CASE | DAMPER,TRANSFER CASE |
| 25 | 29553-85F30-000 | DAMPER,T/M MASS | DAMPER,T/M MASS |
| 26 | 29554-66J01-000 | BRACKET,T/F MASS DAMPER | BRACKET,T/F MASS DAMPER |
| 20 | 29611-66J00-000 | ROTOR,OIL PUMP INNER | ROTOR,OIL PUMP INNER |
| 21 | 29612-66J00-000 | ROTOR,OIL PUMP OUTER | ROTOR,OIL PUMP OUTER |
| 7 | 29613-66J00-000 | COVER,T/F OIL PUMP | COVER,T/F OIL PUMP |
| 22 | 29614-66J00-000 | PIPE,TRANSFER OIL | PIPE,TRANSFER OIL |
