Search › Compare › JB416X × JB424X
JB416X
Suzuki GRAND-VITARA — 18 of 4,714 shared
JB424X
Suzuki GRAND-VITARA — 18 of 4,714 shared

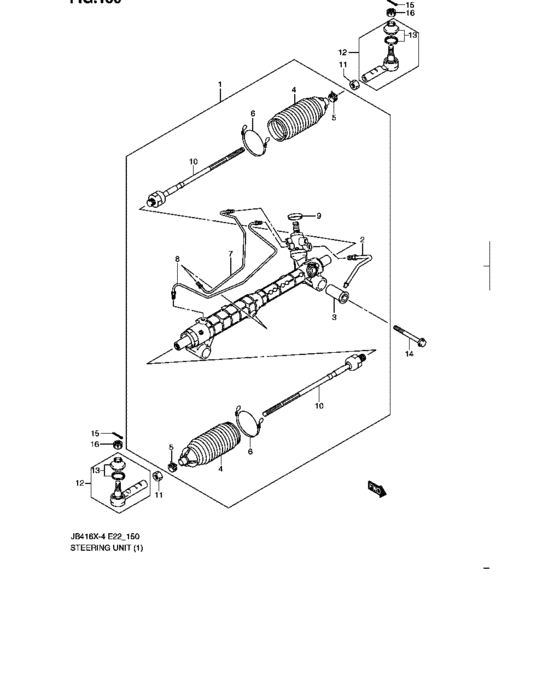

Steering unit (LHD) 18 / 18
| # | OEM | JB416X | JB424X |
|---|---|---|---|
| 1 | 48580-65J51-000 | GEAR,POWER STRG | GEAR,POWER STRG |
| 1 | 48580-65J52-000 | GEAR,POWER STRG | GEAR,POWER STRG |
| 2 | 48516-65J50-000 | PIPE,RETURN | PIPE,RETURN |
| 3 | 48525-65J00-000 | BUSHING,STEERING MOUNT | BUSHING,STEERING MOUNT |
| 4 | 48571-65J00-000 | BOOT,STEERING PINION SIDE | BOOT,STEERING PINION SIDE |
| 5 | 48573-65D00-000 | CLIP,RACK BOOT | CLIP,RACK BOOT |
| 6 | 48575-65J00-000 | WIRE,RACK BOOT PINION SIDE | WIRE,RACK BOOT PINION SIDE |
| 7 | 48581-65J50-000 | PIPE,POWER STEERING GEAR A | PIPE,POWER STEERING GEAR A |
| 8 | 48582-65J50-000 | PIPE,POWER STEERING GEAR B | PIPE,POWER STEERING GEAR B |
| 9 | 48589-65D00-000 | COVER,STRG PINION DUST | COVER,STRG PINION DUST |
| 10 | 48830-65J00-000 | TIE-ROD,STEERING | TIE-ROD,STEERING |
| 11 | 48522-65J00-000 | NUT,TIE-ROD | NUT,TIE-ROD |
| 12 | 48810-79J01-000 | STEERING TIE-ROD END | STEERING TIE-ROD END |
| 13 | 48811-79810-000 | SEAL SET,DUST | SEAL SET,DUST |
| 13 | 48811-79811-000 | Seal Set,dust | Seal Set,dust |
| 14 | 09103-12091-000 | BOLT(12X100) | BOLT(12X100) |
| 15 | 04111-3020A-000 | PIN | PIN |
| 16 | 08314-4012A-000 | NUT | NUT |
| # | OEM | JB416X | JB424X |
|---|---|---|---|
| 15 | 04111-3020A-000 | PIN | PIN |
| 16 | 08314-4012A-000 | NUT | NUT |
| 14 | 09103-12091-000 | BOLT(12X100) | BOLT(12X100) |
| 2 | 48516-65J50-000 | PIPE,RETURN | PIPE,RETURN |
| 11 | 48522-65J00-000 | NUT,TIE-ROD | NUT,TIE-ROD |
| 3 | 48525-65J00-000 | BUSHING,STEERING MOUNT | BUSHING,STEERING MOUNT |
| 4 | 48571-65J00-000 | BOOT,STEERING PINION SIDE | BOOT,STEERING PINION SIDE |
| 5 | 48573-65D00-000 | CLIP,RACK BOOT | CLIP,RACK BOOT |
| 6 | 48575-65J00-000 | WIRE,RACK BOOT PINION SIDE | WIRE,RACK BOOT PINION SIDE |
| 1 | 48580-65J51-000 | GEAR,POWER STRG | GEAR,POWER STRG |
| 1 | 48580-65J52-000 | GEAR,POWER STRG | GEAR,POWER STRG |
| 7 | 48581-65J50-000 | PIPE,POWER STEERING GEAR A | PIPE,POWER STEERING GEAR A |
| 8 | 48582-65J50-000 | PIPE,POWER STEERING GEAR B | PIPE,POWER STEERING GEAR B |
| 9 | 48589-65D00-000 | COVER,STRG PINION DUST | COVER,STRG PINION DUST |
| 12 | 48810-79J01-000 | STEERING TIE-ROD END | STEERING TIE-ROD END |
| 13 | 48811-79810-000 | SEAL SET,DUST | SEAL SET,DUST |
| 13 | 48811-79811-000 | Seal Set,dust | Seal Set,dust |
| 10 | 48830-65J00-000 | TIE-ROD,STEERING | TIE-ROD,STEERING |
