Search › Compare › JB416X × JB424X
JB416X
Suzuki GRAND-VITARA — 38 of 4,714 shared
JB424X
Suzuki GRAND-VITARA — 38 of 4,714 shared

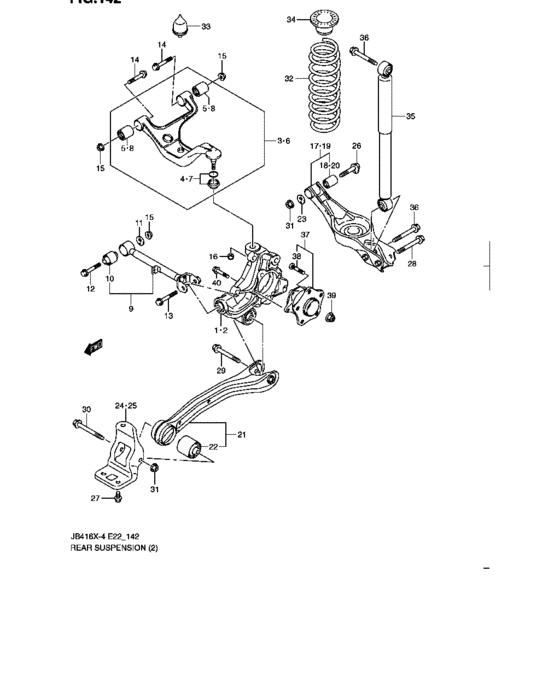

Rear suspension (JB424X,JB419XD) 38 / 38
| # | OEM | JB416X | JB424X |
|---|---|---|---|
| 1 | 46110-79K00-000 | KNUCKLE ASSY,RR SPNSN,R | KNUCKLE ASSY,RR SPNSN,R |
| 2 | 46150-79K00-000 | KNUCKLE ASSY,RR SPNSN,L | KNUCKLE ASSY,RR SPNSN,L |
| 3 | 46201-65J01-000 | ARM ASSY,RR SPNSN UPR,R | ARM ASSY,RR SPNSN UPR,R |
| 4 | 45706-60A00-000 | SEAL SET,SPNSN ARM | SEAL SET,SPNSN ARM |
| 4 | 45706-60A01-000 | Seal Set,spnsn Arm | Seal Set,spnsn Arm |
| 4 | 45700-60810-000 | Seal Set,suspension Arm | Seal Set,suspension Arm |
| 5 | 46231-65J00-000 | BUSH,RR SPNSN UPPER ARM | BUSH,RR SPNSN UPPER ARM |
| 6 | 46202-65J01-000 | ARM ASSY,RR SPNSN UPR,L | ARM ASSY,RR SPNSN UPR,L |
| 9 | 46300-65J10-000 | ROD ASSY,RR SPNSN CONTROL | ROD ASSY,RR SPNSN CONTROL |
| 10 | 46331-65J01-000 | BUSH,RR SPNSN CONT ROD | BUSH,RR SPNSN CONT ROD |
| 11 | 46333-65J00-000 | WASHER,RR SPNSN CONT ROD | WASHER,RR SPNSN CONT ROD |
| 12 | 46431-65J00-000 | BOLT,RR SPNSN CONT ROD INNER | BOLT,RR SPNSN CONT ROD INNER |
| 13 | 09103-14028-000 | BOLT(14X87) | BOLT(14X87) |
| 14 | 09135-14015-000 | BOLT(14X92) | BOLT(14X92) |
| 15 | 09159-14028-000 | NUT | NUT |
| 16 | 09159-14029-000 | NUT | NUT |
| 17 | 46205-65J01-000 | ARM ASSY,RR SPNSN,LWR,R | ARM ASSY,RR SPNSN,LWR,R |
| 18 | 46122-65J00-000 | BUSH,RR SPNSN LATERAL LINK | BUSH,RR SPNSN LATERAL LINK |
| 19 | 46207-65J01-000 | ARM ASSY,RR SPNSN,LWR,L | ARM ASSY,RR SPNSN,LWR,L |
| 21 | 46305-65J00-000 | ROD ASSY,RR SPNSN TRAILING | ROD ASSY,RR SPNSN TRAILING |
| 22 | 46371-65J00-000 | BUSH,RR SPNSN TRAILING ROD | BUSH,RR SPNSN TRAILING ROD |
| 24 | 46381-65J00-000 | BRACKET,RR TRLG MOUNT,R | BRACKET,RR TRLG MOUNT,R |
| 25 | 46391-65J00-000 | BRACKET,RR TRLG MOUNT,L | BRACKET,RR TRLG MOUNT,L |
| 27 | 09103-12105-000 | BOLT(12X20) | BOLT(12X20) |
| 30 | 09103-14030-000 | BOLT(14X108) | BOLT(14X108) |
| 32 | 41311-64J00-000 | SPRING,REAR COIL | SPRING,REAR COIL |
| 32 | 41311-76K00-000 | Spring,rear coil | Spring,rear coil |
| 32 | 41311-76K01-000 | SPRING,RR COIL | SPRING,RR COIL |
| 33 | 42150-65J00-000 | STOPPER,RR BUMP | STOPPER,RR BUMP |
| 34 | 41341-65J00-000 | SEAT,COIL SPRING RUBBER | SEAT,COIL SPRING RUBBER |
| 35 | 41700-65J10-000 | ABSORBER ASSY,RR SHOCK | ABSORBER ASSY,RR SHOCK |
| 35 | 41700-65J11-000 | Absorber Assy, Rr Shock | Absorber Assy, Rr Shock |
| 36 | 09103-12090-000 | BOLT(12X55) | BOLT(12X55) |
| 37 | 43402-57L50-000 | Hub assy,wheel | Hub assy,wheel |
| 37 | 43402-57L51-000 | HUB ASSY,WHL | HUB ASSY,WHL |
| 38 | 09119-12012-000 | BOLT(12X38) | BOLT(12X38) |
| 39 | 43459-65J00-000 | NUT,FR AXLE | NUT,FR AXLE |
| 40 | 09103-10404-000 | BOLT(10X50) | BOLT(10X50) |
| # | OEM | JB416X | JB424X |
|---|---|---|---|
| 31 | 09103-10404-000 | BOLT(10X50) | BOLT(10X50) |
| 36 | 09103-12090-000 | BOLT(12X55) | BOLT(12X55) |
| 27 | 09103-12105-000 | BOLT(12X20) | BOLT(12X20) |
| 13 | 09103-14028-000 | BOLT(14X87) | BOLT(14X87) |
| 30 | 09103-14030-000 | BOLT(14X108) | BOLT(14X108) |
| 29 | 09119-12012-000 | BOLT(12X38) | BOLT(12X38) |
| 25 | 09135-14015-000 | BOLT(14X92) | BOLT(14X92) |
| 26 | 09159-14028-000 | NUT | NUT |
| 27 | 09159-14029-000 | NUT | NUT |
| 32 | 41311-64J00-000 | SPRING,REAR COIL | SPRING,REAR COIL |
| 32 | 41311-76K00-000 | Spring,rear coil | Spring,rear coil |
| 32 | 41311-76K01-000 | SPRING,RR COIL | SPRING,RR COIL |
| 34 | 41341-65J00-000 | SEAT,COIL SPRING RUBBER | SEAT,COIL SPRING RUBBER |
| 35 | 41700-65J10-000 | ABSORBER ASSY,RR SHOCK | ABSORBER ASSY,RR SHOCK |
| 35 | 41700-65J11-000 | Absorber Assy, Rr Shock | Absorber Assy, Rr Shock |
| 33 | 42150-65J00-000 | STOPPER,RR BUMP | STOPPER,RR BUMP |
| 28 | 43402-57L50-000 | Hub assy,wheel | Hub assy,wheel |
| 28 | 43402-57L51-000 | HUB ASSY,WHL | HUB ASSY,WHL |
| 30 | 43459-65J00-000 | NUT,FR AXLE | NUT,FR AXLE |
| 4 | 45700-60810-000 | Seal Set,suspension Arm | Seal Set,suspension Arm |
| 4 | 45706-60A00-000 | SEAL SET,SPNSN ARM | SEAL SET,SPNSN ARM |
| 4 | 45706-60A01-000 | Seal Set,spnsn Arm | Seal Set,spnsn Arm |
| 1 | 46110-79K00-000 | KNUCKLE ASSY,RR SPNSN,R | KNUCKLE ASSY,RR SPNSN,R |
| 18 | 46122-65J00-000 | BUSH,RR SPNSN LATERAL LINK | BUSH,RR SPNSN LATERAL LINK |
| 2 | 46150-79K00-000 | KNUCKLE ASSY,RR SPNSN,L | KNUCKLE ASSY,RR SPNSN,L |
| 3 | 46201-65J01-000 | ARM ASSY,RR SPNSN UPR,R | ARM ASSY,RR SPNSN UPR,R |
| 6 | 46202-65J01-000 | ARM ASSY,RR SPNSN UPR,L | ARM ASSY,RR SPNSN UPR,L |
| 17 | 46205-65J01-000 | ARM ASSY,RR SPNSN,LWR,R | ARM ASSY,RR SPNSN,LWR,R |
| 19 | 46207-65J01-000 | ARM ASSY,RR SPNSN,LWR,L | ARM ASSY,RR SPNSN,LWR,L |
| 5 | 46231-65J00-000 | BUSH,RR SPNSN UPPER ARM | BUSH,RR SPNSN UPPER ARM |
| 9 | 46300-65J10-000 | ROD ASSY,RR SPNSN CONTROL | ROD ASSY,RR SPNSN CONTROL |
| 21 | 46305-65J00-000 | ROD ASSY,RR SPNSN TRAILING | ROD ASSY,RR SPNSN TRAILING |
| 10 | 46331-65J01-000 | BUSH,RR SPNSN CONT ROD | BUSH,RR SPNSN CONT ROD |
| 11 | 46333-65J00-000 | WASHER,RR SPNSN CONT ROD | WASHER,RR SPNSN CONT ROD |
| 22 | 46371-65J00-000 | BUSH,RR SPNSN TRAILING ROD | BUSH,RR SPNSN TRAILING ROD |
| 24 | 46381-65J00-000 | BRACKET,RR TRLG MOUNT,R | BRACKET,RR TRLG MOUNT,R |
| 25 | 46391-65J00-000 | BRACKET,RR TRLG MOUNT,L | BRACKET,RR TRLG MOUNT,L |
| 12 | 46431-65J00-000 | BOLT,RR SPNSN CONT ROD INNER | BOLT,RR SPNSN CONT ROD INNER |
