Search › Compare › JB416X × JB424X
JB416X
Suzuki GRAND-VITARA — 33 of 4,714 shared
JB424X
Suzuki GRAND-VITARA — 33 of 4,714 shared

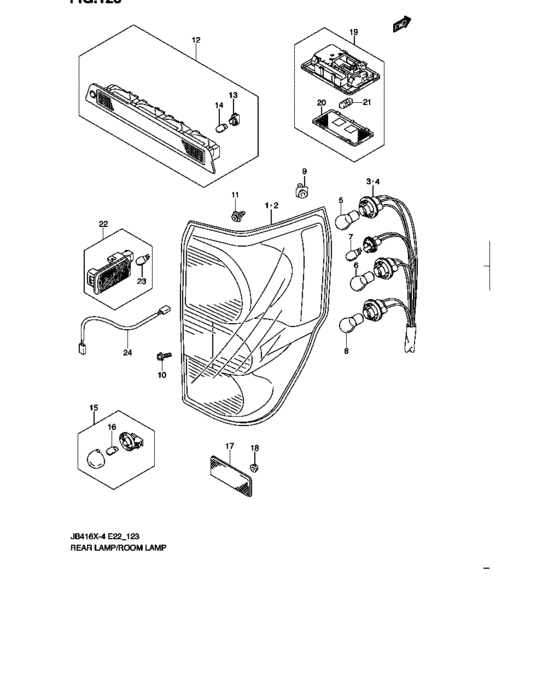

Rear lamp/room lamp (REAR LAMP/ROOM LAMP) 33 / 33
| # | OEM | JB416X | JB424X |
|---|---|---|---|
| 1 | 35650-64J10-000 | UNIT,RR COMB,R | UNIT,RR COMB,R |
| 1 | 35650-64J21-000 | UNIT,RR COMB,R | UNIT,RR COMB,R |
| 2 | 35670-64J20-000 | UNIT,RR COMB,L | UNIT,RR COMB,L |
| 2 | 35670-64J11-000 | UNIT,RR COMB,L | UNIT,RR COMB,L |
| 3 | 35658-64J12-000 | Socket & cord assy | Socket & cord assy |
| 3 | 35658-64J14-000 | SOCKET&CORD ASSY | SOCKET&CORD ASSY |
| 4 | 35658-64J22-000 | Socket & cord assy | Socket & cord assy |
| 4 | 35658-64J24-000 | SOCKET&CORD ASSY | SOCKET&CORD ASSY |
| 5 | 09471-12083-000 | BULB(12V21/5W) | BULB(12V21/5W) |
| 5 | 09471-12128-000 | BULB(12V21/5W,BF141-49642A) | BULB(12V21/5W,BF141-49642A) |
| 6 | 09471-12186-000 | BULB(12V21W,AMBER) | BULB(12V21W,AMBER) |
| 7 | 09471-12146-000 | BULB(12V16W) - Bulb (12v18w) | BULB(12V16W) - Bulb (12v18w) |
| 8 | 09471-12045-000 | BULB(12V21W) | BULB(12V21W) |
| 9 | 35153-65J00-000 | GROMMET,RR COMB LAMP | GROMMET,RR COMB LAMP |
| 10 | 02162-0616C-000 | SCREW | SCREW |
| 10 | 02162-0616B-000 | SCREW - Bolt, adjust | SCREW - Bolt, adjust |
| 10 | 02162-0616E-000 | SCREW | SCREW |
| 11 | 71812-78F00-000 | CLIP | CLIP |
| 12 | 35810-65J01-000 | LAMP ASSY,HIGH MT STOP | LAMP ASSY,HIGH MT STOP |
| 13 | 36218-74F00-000 | SOCKET | SOCKET |
| 14 | 09471-12216-000 | BULB(12V5W) - Bulb (12v5w) | BULB(12V5W) - Bulb (12v5w) |
| 15 | 35910-75F30-000 | Lamp assy,license | Lamp assy,license |
| 15 | 35910-75F31-000 | Lamp assy,license | Lamp assy,license |
| 15 | 35910-75F22-000 | Lamp assy,license | Lamp assy,license |
| 16 | 09471-12081-000 | Bulb (12v,5w) - Bulb, 12v,5w (stanley, wb-227e) | Bulb (12v,5w) - Bulb, 12v,5w (stanley, wb-227e) |
| 17 | 35970-07F01-000 | REFLECTOR ASSY,RR | REFLECTOR ASSY,RR |
| 18 | 08316-1005A-000 | NUT | NUT |
| 19 | 36210-63J10-6GS | LAMP ASSY,ROOM | LAMP ASSY,ROOM |
| 19 | 36210-63J11-6GS | Lamp Assy,room | Lamp Assy,room |
| 20 | 36212-63J00-000 | LENS | LENS |
| 21 | 09471-12181-000 | BULB(12V10W) | BULB(12V10W) |
| 22 | 36210-54G20-000 | LAMP ASSY,LUGGAGE ROOM | LAMP ASSY,LUGGAGE ROOM |
| 24 | 36632-64J00-000 | WIRE,LUGGAGE ROOM LAMP | WIRE,LUGGAGE ROOM LAMP |
| # | OEM | JB416X | JB424X |
|---|---|---|---|
| 15 | 02162-0616B-000 | SCREW - Bolt, adjust | SCREW - Bolt, adjust |
| 10 | 02162-0616C-000 | SCREW | SCREW |
| 9 | 02162-0616E-000 | SCREW | SCREW |
| 18 | 08316-1005A-000 | NUT | NUT |
| 8 | 09471-12045-000 | BULB(12V21W) | BULB(12V21W) |
| 7 | 09471-12081-000 | Bulb (12v,5w) - Bulb, 12v,5w (stanley, wb-227e) | Bulb (12v,5w) - Bulb, 12v,5w (stanley, wb-227e) |
| 5 | 09471-12083-000 | BULB(12V21/5W) | BULB(12V21/5W) |
| 5 | 09471-12128-000 | BULB(12V21/5W,BF141-49642A) | BULB(12V21/5W,BF141-49642A) |
| 7 | 09471-12146-000 | BULB(12V16W) - Bulb (12v18w) | BULB(12V16W) - Bulb (12v18w) |
| 21 | 09471-12181-000 | BULB(12V10W) | BULB(12V10W) |
| 6 | 09471-12186-000 | BULB(12V21W,AMBER) | BULB(12V21W,AMBER) |
| 7 | 09471-12216-000 | BULB(12V5W) - Bulb (12v5w) | BULB(12V5W) - Bulb (12v5w) |
| 9 | 35153-65J00-000 | GROMMET,RR COMB LAMP | GROMMET,RR COMB LAMP |
| 1 | 35650-64J10-000 | UNIT,RR COMB,R | UNIT,RR COMB,R |
| 1 | 35650-64J21-000 | UNIT,RR COMB,R | UNIT,RR COMB,R |
| 3 | 35658-64J12-000 | Socket & cord assy | Socket & cord assy |
| 3 | 35658-64J14-000 | SOCKET&CORD ASSY | SOCKET&CORD ASSY |
| 4 | 35658-64J22-000 | Socket & cord assy | Socket & cord assy |
| 4 | 35658-64J24-000 | SOCKET&CORD ASSY | SOCKET&CORD ASSY |
| 2 | 35670-64J11-000 | UNIT,RR COMB,L | UNIT,RR COMB,L |
| 2 | 35670-64J20-000 | UNIT,RR COMB,L | UNIT,RR COMB,L |
| 12 | 35810-65J01-000 | LAMP ASSY,HIGH MT STOP | LAMP ASSY,HIGH MT STOP |
| 15 | 35910-75F22-000 | Lamp assy,license | Lamp assy,license |
| 15 | 35910-75F30-000 | Lamp assy,license | Lamp assy,license |
| 15 | 35910-75F31-000 | Lamp assy,license | Lamp assy,license |
| 17 | 35970-07F01-000 | REFLECTOR ASSY,RR | REFLECTOR ASSY,RR |
| 22 | 36210-54G20-000 | LAMP ASSY,LUGGAGE ROOM | LAMP ASSY,LUGGAGE ROOM |
| 19 | 36210-63J10-6GS | LAMP ASSY,ROOM | LAMP ASSY,ROOM |
| 19 | 36210-63J11-6GS | Lamp Assy,room | Lamp Assy,room |
| 20 | 36212-63J00-000 | LENS | LENS |
| 13 | 36218-74F00-000 | SOCKET | SOCKET |
| 24 | 36632-64J00-000 | WIRE,LUGGAGE ROOM LAMP | WIRE,LUGGAGE ROOM LAMP |
| 11 | 71812-78F00-000 | CLIP | CLIP |
