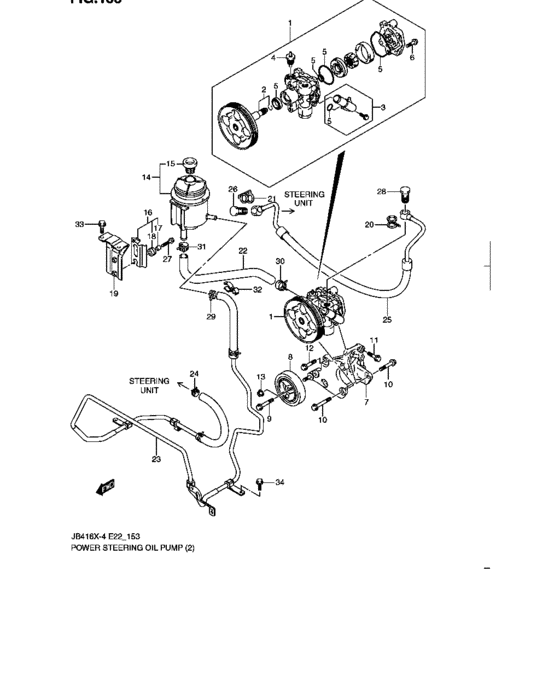

Power steering oil pump (JB416X:RHD) 33 / 33
| # | OEM | JB416X | JB424X |
|---|---|---|---|
| 1 | 49100-64J00-000 | PUMP ASSY,POWER STEERING | PUMP ASSY,POWER STEERING |
| 2 | 49111-64J00-000 | SHAFT SET | SHAFT SET |
| 3 | 49112-64J00-000 | CONNECTOR SET | CONNECTOR SET |
| 4 | 49113-65D00-000 | TERMINAL SET | TERMINAL SET |
| 5 | 49114-73J00-000 | SEAL SET | SEAL SET |
| 6 | 49115-56B30-000 | BOLT SET | BOLT SET |
| 7 | 49120-69G00-000 | BRACKET,POWER STEERING PUMP | BRACKET,POWER STEERING PUMP |
| 8 | 49160-64J01-000 | Puller,belt tension | Puller,belt tension |
| 8 | 49160-64J02-000 | PULLEY,BELT TENSION | PULLEY,BELT TENSION |
| 9 | 09103-08071-000 | BOLT(8X36) | BOLT(8X36) |
| 10 | 01550-0825A-000 | Bolt | Bolt |
| 11 | 01550-0835A-000 | Bolt | Bolt |
| 12 | 01550-0850A-000 | Bolt | Bolt |
| 13 | 08316-1008A-000 | NUT - Nut, idle gear shaft | NUT - Nut, idle gear shaft |
| 14 | 49140-65J00-000 | TANK ASSY,POWER STEERING OIL | TANK ASSY,POWER STEERING OIL |
| 15 | 49142-65D00-000 | CAP,PS OIL TANK | CAP,PS OIL TANK |
| 16 | 49150-60G00-000 | BRACKET ASSY,PS TANK | BRACKET ASSY,PS TANK |
| 17 | 09180-06038-000 | SPACER(6.1X9X7.5) - Spacer (6.1x9x7.5) | SPACER(6.1X9X7.5) - Spacer (6.1x9x7.5) |
| 18 | 09320-08501-000 | CUSHION | CUSHION |
| 19 | 49152-65J00-000 | BRACKET,PS TANK NO.2 | BRACKET,PS TANK NO.2 |
| 20 | 49211-63G03-000 | GASKET,PRESSURE PIPE | GASKET,PRESSURE PIPE |
| 21 | 49211-65J00-000 | GASKET,GEAR BOX | GASKET,GEAR BOX |
| 22 | 49214-64J00-000 | HOSE,SUCTION | HOSE,SUCTION |
| 23 | 49220-78K01-000 | HOSE ASSY,RETURN | HOSE ASSY,RETURN |
| 24 | 49225-65D10-000 | CLAMP,RETURN GEAR SIDE | CLAMP,RETURN GEAR SIDE |
| 25 | 49230-64J00-000 | HOSE,PRESSURE | HOSE,PRESSURE |
| 26 | 49237-65J00-000 | BOLT,UNION GEAR BOX | BOLT,UNION GEAR BOX |
| 27 | 09136-06133-000 | BOLT(6X16) - Screw | BOLT(6X16) - Screw |
| 28 | 09360-16003-000 | UNION | UNION |
| 29 | 09401-15404-000 | CLIP | CLIP |
| 30 | 09401-20405-000 | CLIP - Clip, tank | CLIP - Clip, tank |
| 32 | 09408-00151-000 | CLAMP | CLAMP |
| 33 | 02162-0612A-000 | SCREW - Bolt, bracket | SCREW - Bolt, bracket |
| # | OEM | JB416X | JB424X |
|---|---|---|---|
| 15 | 01550-0825A-000 | Bolt | Bolt |
| 4 | 01550-0835A-000 | Bolt | Bolt |
| 12 | 01550-0850A-000 | Bolt | Bolt |
| 14 | 02162-0612A-000 | SCREW - Bolt, bracket | SCREW - Bolt, bracket |
| 7 | 08316-1008A-000 | NUT - Nut, idle gear shaft | NUT - Nut, idle gear shaft |
| 9 | 09103-08071-000 | BOLT(8X36) | BOLT(8X36) |
| 27 | 09136-06133-000 | BOLT(6X16) - Screw | BOLT(6X16) - Screw |
| 17 | 09180-06038-000 | SPACER(6.1X9X7.5) - Spacer (6.1x9x7.5) | SPACER(6.1X9X7.5) - Spacer (6.1x9x7.5) |
| 18 | 09320-08501-000 | CUSHION | CUSHION |
| 28 | 09360-16003-000 | UNION | UNION |
| 18 | 09401-15404-000 | CLIP | CLIP |
| 26 | 09401-20405-000 | CLIP - Clip, tank | CLIP - Clip, tank |
| 32 | 09408-00151-000 | CLAMP | CLAMP |
| 1 | 49100-64J00-000 | PUMP ASSY,POWER STEERING | PUMP ASSY,POWER STEERING |
| 2 | 49111-64J00-000 | SHAFT SET | SHAFT SET |
| 3 | 49112-64J00-000 | CONNECTOR SET | CONNECTOR SET |
| 4 | 49113-65D00-000 | TERMINAL SET | TERMINAL SET |
| 5 | 49114-73J00-000 | SEAL SET | SEAL SET |
| 6 | 49115-56B30-000 | BOLT SET | BOLT SET |
| 7 | 49120-69G00-000 | BRACKET,POWER STEERING PUMP | BRACKET,POWER STEERING PUMP |
| 14 | 49140-65J00-000 | TANK ASSY,POWER STEERING OIL | TANK ASSY,POWER STEERING OIL |
| 15 | 49142-65D00-000 | CAP,PS OIL TANK | CAP,PS OIL TANK |
| 16 | 49150-60G00-000 | BRACKET ASSY,PS TANK | BRACKET ASSY,PS TANK |
| 19 | 49152-65J00-000 | BRACKET,PS TANK NO.2 | BRACKET,PS TANK NO.2 |
| 8 | 49160-64J01-000 | Puller,belt tension | Puller,belt tension |
| 8 | 49160-64J02-000 | PULLEY,BELT TENSION | PULLEY,BELT TENSION |
| 20 | 49211-63G03-000 | GASKET,PRESSURE PIPE | GASKET,PRESSURE PIPE |
| 21 | 49211-65J00-000 | GASKET,GEAR BOX | GASKET,GEAR BOX |
| 22 | 49214-64J00-000 | HOSE,SUCTION | HOSE,SUCTION |
| 23 | 49220-78K01-000 | HOSE ASSY,RETURN | HOSE ASSY,RETURN |
| 24 | 49225-65D10-000 | CLAMP,RETURN GEAR SIDE | CLAMP,RETURN GEAR SIDE |
| 25 | 49230-64J00-000 | HOSE,PRESSURE | HOSE,PRESSURE |
| 26 | 49237-65J00-000 | BOLT,UNION GEAR BOX | BOLT,UNION GEAR BOX |
