Search › Compare › JB416X × JB424X
JB416X
Suzuki GRAND-VITARA — 8 of 4,714 shared
JB424X
Suzuki GRAND-VITARA — 8 of 4,714 shared

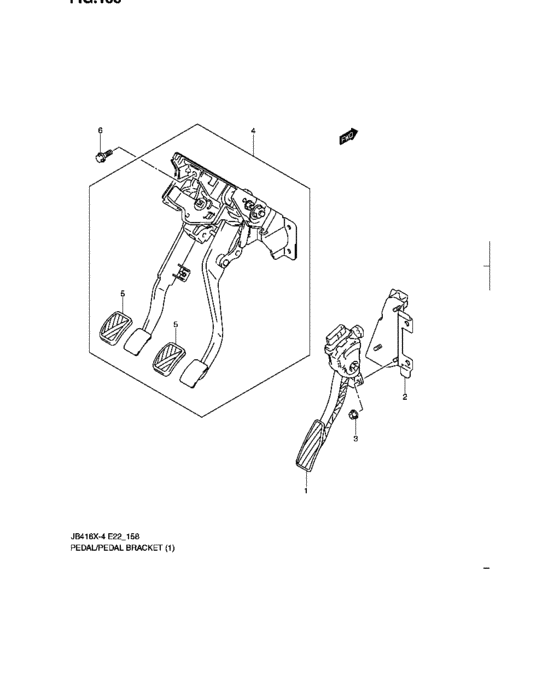

Pedal/pedal bracket (LHD:MT) 8 / 8
| # | OEM | JB416X | JB424X |
|---|---|---|---|
| 1 | 15900-65J02-000 | Pedal assy,accelerator | Pedal assy,accelerator |
| 1 | 15900-65J10-000 | PEDAL ASSY,ACCELERATOR | PEDAL ASSY,ACCELERATOR |
| 2 | 49510-65J50-000 | BRACKET,ACCELERATOR PEDAL | BRACKET,ACCELERATOR PEDAL |
| 3 | 09159-06076-000 | NUT | NUT |
| 4 | 49600-76K50-000 | PEDAL ASSY,BRAKE&CLUTCH | PEDAL ASSY,BRAKE&CLUTCH |
| 5 | 49751-58J00-000 | PAD,PEDAL | PAD,PEDAL |
| 5 | 49751-58J20-000 | PAD,PEDAL | PAD,PEDAL |
| 6 | 01550-0816A-000 | Bolt - Bolt, rear | Bolt - Bolt, rear |
| # | OEM | JB416X | JB424X |
|---|---|---|---|
| 10 | 01550-0816A-000 | Bolt - Bolt, rear | Bolt - Bolt, rear |
| 29 | 09159-06076-000 | NUT | NUT |
| 1 | 15900-65J02-000 | Pedal assy,accelerator | Pedal assy,accelerator |
| 1 | 15900-65J10-000 | PEDAL ASSY,ACCELERATOR | PEDAL ASSY,ACCELERATOR |
| 2 | 49510-65J50-000 | BRACKET,ACCELERATOR PEDAL | BRACKET,ACCELERATOR PEDAL |
| 4 | 49600-76K50-000 | PEDAL ASSY,BRAKE&CLUTCH | PEDAL ASSY,BRAKE&CLUTCH |
| 5 | 49751-58J00-000 | PAD,PEDAL | PAD,PEDAL |
| 5 | 49751-58J20-000 | PAD,PEDAL | PAD,PEDAL |
