Search › Compare › JB416X × JB424X
JB416X
Suzuki GRAND-VITARA — 69 of 4,714 shared
JB424X
Suzuki GRAND-VITARA — 69 of 4,714 shared

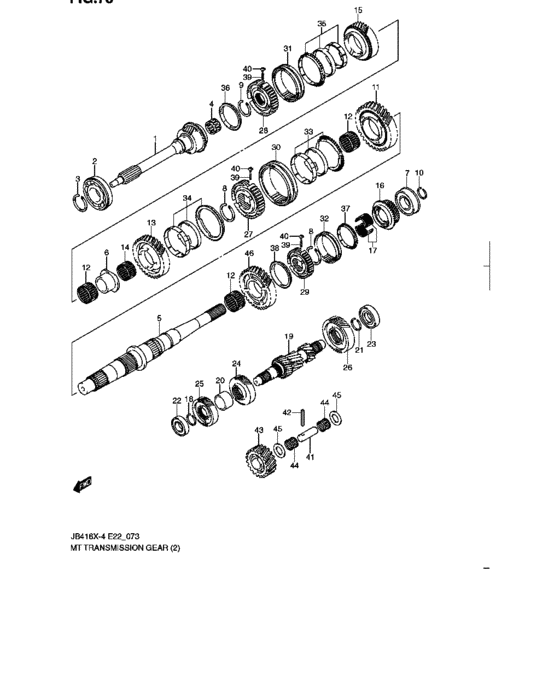

Mt transmission gear (MT:JB419XD:) 69 / 69
| # | OEM | JB416X | JB424X |
|---|---|---|---|
| 1 | 24110-67J00-000 | SHAFT,T/M INPUT | SHAFT,T/M INPUT |
| 2 | 24114-67J00-000 | BEARING,INPUT SHAFT | BEARING,INPUT SHAFT |
| 3 | 24115-67J00-001 | CIRCLIP,T:1.89 | CIRCLIP,T:1.89 |
| 3 | 24115-67J00-002 | CIRCLIP,T:1.98 | CIRCLIP,T:1.98 |
| 3 | 24115-67J00-003 | CIRCLIP,T:2.07 | CIRCLIP,T:2.07 |
| 4 | 24152-67J00-000 | BEARING,INPUT SHAFT NDL | BEARING,INPUT SHAFT NDL |
| 5 | 24121-67J00-000 | SHAFT,T/M MAIN | SHAFT,T/M MAIN |
| 6 | 24122-67J00-000 | BUSH,MAIN SHAFT 3RD GEAR | BUSH,MAIN SHAFT 3RD GEAR |
| 7 | 24125-67J00-000 | BEARING,MAIN SHAFT REAR | BEARING,MAIN SHAFT REAR |
| 8 | 24126-67J00-001 | CIRCLIP,T:1.86 | CIRCLIP,T:1.86 |
| 8 | 24126-67J00-002 | CIRCLIP,T:1.95 | CIRCLIP,T:1.95 |
| 8 | 24126-67J00-003 | CIRCLIP,T:2.04 | CIRCLIP,T:2.04 |
| 9 | 24127-67J00-001 | CIRCLIP,T:1.500 | CIRCLIP,T:1.500 |
| 9 | 24127-67J00-002 | CIRCLIP,T:1.545 | CIRCLIP,T:1.545 |
| 9 | 24127-67J00-003 | CIRCLIP,T:1.590 | CIRCLIP,T:1.590 |
| 9 | 24127-67J00-004 | CIRCLIP,T:1.635 | CIRCLIP,T:1.635 |
| 9 | 24127-67J00-005 | CIRCLIP,T:1.680 | CIRCLIP,T:1.680 |
| 9 | 24127-67J00-006 | CIRCLIP,T:1.725 | CIRCLIP,T:1.725 |
| 10 | 24129-67J00-007 | CIRCLIP,T:1.90 | CIRCLIP,T:1.90 |
| 10 | 24129-67J00-008 | CIRCLIP,T:2.00 | CIRCLIP,T:2.00 |
| 10 | 24129-67J00-009 | CIRCLIP,T:2.10 | CIRCLIP,T:2.10 |
| 11 | 24210-67J00-000 | GEAR,MAIN SFT LOW | GEAR,MAIN SFT LOW |
| 12 | 24215-67J00-000 | BEARING,MAIN SFT LOW GR NDL | BEARING,MAIN SFT LOW GR NDL |
| 13 | 24220-67J00-000 | GEAR,MAIN SFT 2ND | GEAR,MAIN SFT 2ND |
| 14 | 24225-67J00-000 | BEARING,MAIN SFT 2ND GR NDL | BEARING,MAIN SFT 2ND GR NDL |
| 15 | 24230-67J00-000 | GEAR,MAIN SFT 3RD | GEAR,MAIN SFT 3RD |
| 15 | 24230-80K20-000 | GEAR,MAIN SFT 3RD | GEAR,MAIN SFT 3RD |
| 16 | 24250-67J00-000 | GEAR,MAIN SFT 5TH | GEAR,MAIN SFT 5TH |
| 16 | 24250-80K20-000 | GEAR,MAIN SFT 5TH | GEAR,MAIN SFT 5TH |
| 17 | 24255-67J00-000 | BEARING,MAIN SFT 5TH GR NDL | BEARING,MAIN SFT 5TH GR NDL |
| 19 | 24131-67J00-000 | SHAFT,T/M COUNTER | SHAFT,T/M COUNTER |
| 20 | 24132-67J00-000 | SPACER,CTSHFT HIGH SPEED GEAR | SPACER,CTSHFT HIGH SPEED GEAR |
| 21 | 24133-67J00-000 | CIRCLIP,COUNTERSHAFT RR BRG | CIRCLIP,COUNTERSHAFT RR BRG |
| 22 | 24135-67J01-000 | BEARING,COUNTERSHAFT FR | BEARING,COUNTERSHAFT FR |
| 23 | 24135-67J20-000 | BEARING,COUNTERSHAFT RR | BEARING,COUNTERSHAFT RR |
| 24 | 24331-67J00-000 | GEAR,CTSHFT 3RD | GEAR,CTSHFT 3RD |
| 25 | 24341-67J00-000 | GEAR,CTSHFT REDUCTION | GEAR,CTSHFT REDUCTION |
| 26 | 24351-67J00-000 | GEAR,CTSHFT 5TH | GEAR,CTSHFT 5TH |
| 26 | 24351-80K20-000 | GEAR,CTSHFT 5TH | GEAR,CTSHFT 5TH |
| 27 | 24411-67J00-000 | HUB,SYNC LOW SPEED | HUB,SYNC LOW SPEED |
| 27 | 24411-80K00-000 | HUB,SYNC LOW SPEED | HUB,SYNC LOW SPEED |
| 28 | 24412-67J00-000 | HUB,SYNC HIGH SPEED | HUB,SYNC HIGH SPEED |
| 29 | 24413-67J00-000 | HUB,SYNC 5TH&REV | HUB,SYNC 5TH&REV |
| 29 | 24413-80K00-000 | HUB,SYNC 5TH&REV | HUB,SYNC 5TH&REV |
| 30 | 24421-67J00-000 | SLEEVE,LOW SPEED SYNC | SLEEVE,LOW SPEED SYNC |
| 30 | 24421-80K00-000 | SLEEVE,LOW SPEED SYNC | SLEEVE,LOW SPEED SYNC |
| 31 | 24422-67J00-000 | SLEEVE,HIGH SPEED SYNC | SLEEVE,HIGH SPEED SYNC |
| 32 | 24423-67J00-000 | SLEEVE,SYNC 5TH&REV | SLEEVE,SYNC 5TH&REV |
| 32 | 24423-80K00-000 | SLEEVE,SYNC 5TH&REV | SLEEVE,SYNC 5TH&REV |
| 33 | 24431-67J00-000 | RING ASSY,1ST GEAR SYNC | RING ASSY,1ST GEAR SYNC |
| 33 | 24431-80K00-000 | RING ASSY,1ST GEAR SYNC | RING ASSY,1ST GEAR SYNC |
| 34 | 24432-67J00-000 | RING ASSY,2ND GEAR SYNC | RING ASSY,2ND GEAR SYNC |
| 34 | 24432-80K00-000 | RING ASSY,2ND GEAR SYNC | RING ASSY,2ND GEAR SYNC |
| 35 | 24433-67J00-000 | RING ASSY,3RD GEAR SYNC | RING ASSY,3RD GEAR SYNC |
| 35 | 24433-80K20-000 | RING ASSY,3RD GEAR SYNC | RING ASSY,3RD GEAR SYNC |
| 36 | 24434-67J00-000 | RING,4TH GEAR SYNC | RING,4TH GEAR SYNC |
| 37 | 24435-67J00-000 | RING,5TH GEAR SYNC | RING,5TH GEAR SYNC |
| 37 | 24435-80K00-000 | RING,5TH GEAR SYNC | RING,5TH GEAR SYNC |
| 38 | 24436-67J00-000 | RING,REV GEAR SYNC | RING,REV GEAR SYNC |
| 38 | 24436-80K00-000 | RING,REV GEAR SYNC | RING,REV GEAR SYNC |
| 39 | 24441-67J00-000 | SPRING,SYNC KEY | SPRING,SYNC KEY |
| 40 | 24471-67J00-000 | KEY,SYNCHRONIZER | KEY,SYNCHRONIZER |
| 41 | 24551-67J00-000 | SHAFT,T/M REVERSE IDLE GEAR | SHAFT,T/M REVERSE IDLE GEAR |
| 41 | 24471-80K00-000 | KEY,SYNCHRONIZER | KEY,SYNCHRONIZER |
| 42 | 24555-67J00-000 | PIN,REV IDLE GEAR SHAFT | PIN,REV IDLE GEAR SHAFT |
| 43 | 24561-67J00-000 | GEAR,REV IDLE | GEAR,REV IDLE |
| 44 | 24565-67J00-000 | BEARING,REV IDLE GEAR NDL | BEARING,REV IDLE GEAR NDL |
| 45 | 24566-67J00-000 | WASHER,REV IDLE GEAR | WASHER,REV IDLE GEAR |
| 46 | 24680-67J00-000 | GEAR,MAIN SFT REV | GEAR,MAIN SFT REV |
| # | OEM | JB416X | JB424X |
|---|---|---|---|
| 1 | 24110-67J00-000 | SHAFT,T/M INPUT | SHAFT,T/M INPUT |
| 2 | 24114-67J00-000 | BEARING,INPUT SHAFT | BEARING,INPUT SHAFT |
| 3 | 24115-67J00-001 | CIRCLIP,T:1.89 | CIRCLIP,T:1.89 |
| 3 | 24115-67J00-002 | CIRCLIP,T:1.98 | CIRCLIP,T:1.98 |
| 3 | 24115-67J00-003 | CIRCLIP,T:2.07 | CIRCLIP,T:2.07 |
| 5 | 24121-67J00-000 | SHAFT,T/M MAIN | SHAFT,T/M MAIN |
| 6 | 24122-67J00-000 | BUSH,MAIN SHAFT 3RD GEAR | BUSH,MAIN SHAFT 3RD GEAR |
| 7 | 24125-67J00-000 | BEARING,MAIN SHAFT REAR | BEARING,MAIN SHAFT REAR |
| 8 | 24126-67J00-001 | CIRCLIP,T:1.86 | CIRCLIP,T:1.86 |
| 8 | 24126-67J00-002 | CIRCLIP,T:1.95 | CIRCLIP,T:1.95 |
| 8 | 24126-67J00-003 | CIRCLIP,T:2.04 | CIRCLIP,T:2.04 |
| 9 | 24127-67J00-001 | CIRCLIP,T:1.500 | CIRCLIP,T:1.500 |
| 9 | 24127-67J00-002 | CIRCLIP,T:1.545 | CIRCLIP,T:1.545 |
| 9 | 24127-67J00-003 | CIRCLIP,T:1.590 | CIRCLIP,T:1.590 |
| 9 | 24127-67J00-004 | CIRCLIP,T:1.635 | CIRCLIP,T:1.635 |
| 9 | 24127-67J00-005 | CIRCLIP,T:1.680 | CIRCLIP,T:1.680 |
| 9 | 24127-67J00-006 | CIRCLIP,T:1.725 | CIRCLIP,T:1.725 |
| 10 | 24129-67J00-007 | CIRCLIP,T:1.90 | CIRCLIP,T:1.90 |
| 10 | 24129-67J00-008 | CIRCLIP,T:2.00 | CIRCLIP,T:2.00 |
| 10 | 24129-67J00-009 | CIRCLIP,T:2.10 | CIRCLIP,T:2.10 |
| 19 | 24131-67J00-000 | SHAFT,T/M COUNTER | SHAFT,T/M COUNTER |
| 20 | 24132-67J00-000 | SPACER,CTSHFT HIGH SPEED GEAR | SPACER,CTSHFT HIGH SPEED GEAR |
| 21 | 24133-67J00-000 | CIRCLIP,COUNTERSHAFT RR BRG | CIRCLIP,COUNTERSHAFT RR BRG |
| 22 | 24135-67J01-000 | BEARING,COUNTERSHAFT FR | BEARING,COUNTERSHAFT FR |
| 23 | 24135-67J20-000 | BEARING,COUNTERSHAFT RR | BEARING,COUNTERSHAFT RR |
| 4 | 24152-67J00-000 | BEARING,INPUT SHAFT NDL | BEARING,INPUT SHAFT NDL |
| 11 | 24210-67J00-000 | GEAR,MAIN SFT LOW | GEAR,MAIN SFT LOW |
| 12 | 24215-67J00-000 | BEARING,MAIN SFT LOW GR NDL | BEARING,MAIN SFT LOW GR NDL |
| 13 | 24220-67J00-000 | GEAR,MAIN SFT 2ND | GEAR,MAIN SFT 2ND |
| 14 | 24225-67J00-000 | BEARING,MAIN SFT 2ND GR NDL | BEARING,MAIN SFT 2ND GR NDL |
| 15 | 24230-67J00-000 | GEAR,MAIN SFT 3RD | GEAR,MAIN SFT 3RD |
| 15 | 24230-80K20-000 | GEAR,MAIN SFT 3RD | GEAR,MAIN SFT 3RD |
| 16 | 24250-67J00-000 | GEAR,MAIN SFT 5TH | GEAR,MAIN SFT 5TH |
| 16 | 24250-80K20-000 | GEAR,MAIN SFT 5TH | GEAR,MAIN SFT 5TH |
| 17 | 24255-67J00-000 | BEARING,MAIN SFT 5TH GR NDL | BEARING,MAIN SFT 5TH GR NDL |
| 24 | 24331-67J00-000 | GEAR,CTSHFT 3RD | GEAR,CTSHFT 3RD |
| 25 | 24341-67J00-000 | GEAR,CTSHFT REDUCTION | GEAR,CTSHFT REDUCTION |
| 26 | 24351-67J00-000 | GEAR,CTSHFT 5TH | GEAR,CTSHFT 5TH |
| 26 | 24351-80K20-000 | GEAR,CTSHFT 5TH | GEAR,CTSHFT 5TH |
| 27 | 24411-67J00-000 | HUB,SYNC LOW SPEED | HUB,SYNC LOW SPEED |
| 27 | 24411-80K00-000 | HUB,SYNC LOW SPEED | HUB,SYNC LOW SPEED |
| 28 | 24412-67J00-000 | HUB,SYNC HIGH SPEED | HUB,SYNC HIGH SPEED |
| 29 | 24413-67J00-000 | HUB,SYNC 5TH&REV | HUB,SYNC 5TH&REV |
| 29 | 24413-80K00-000 | HUB,SYNC 5TH&REV | HUB,SYNC 5TH&REV |
| 30 | 24421-67J00-000 | SLEEVE,LOW SPEED SYNC | SLEEVE,LOW SPEED SYNC |
| 30 | 24421-80K00-000 | SLEEVE,LOW SPEED SYNC | SLEEVE,LOW SPEED SYNC |
| 31 | 24422-67J00-000 | SLEEVE,HIGH SPEED SYNC | SLEEVE,HIGH SPEED SYNC |
| 32 | 24423-67J00-000 | SLEEVE,SYNC 5TH&REV | SLEEVE,SYNC 5TH&REV |
| 32 | 24423-80K00-000 | SLEEVE,SYNC 5TH&REV | SLEEVE,SYNC 5TH&REV |
| 33 | 24431-67J00-000 | RING ASSY,1ST GEAR SYNC | RING ASSY,1ST GEAR SYNC |
| 33 | 24431-80K00-000 | RING ASSY,1ST GEAR SYNC | RING ASSY,1ST GEAR SYNC |
| 34 | 24432-67J00-000 | RING ASSY,2ND GEAR SYNC | RING ASSY,2ND GEAR SYNC |
| 34 | 24432-80K00-000 | RING ASSY,2ND GEAR SYNC | RING ASSY,2ND GEAR SYNC |
| 35 | 24433-67J00-000 | RING ASSY,3RD GEAR SYNC | RING ASSY,3RD GEAR SYNC |
| 35 | 24433-80K20-000 | RING ASSY,3RD GEAR SYNC | RING ASSY,3RD GEAR SYNC |
| 36 | 24434-67J00-000 | RING,4TH GEAR SYNC | RING,4TH GEAR SYNC |
| 37 | 24435-67J00-000 | RING,5TH GEAR SYNC | RING,5TH GEAR SYNC |
| 37 | 24435-80K00-000 | RING,5TH GEAR SYNC | RING,5TH GEAR SYNC |
| 38 | 24436-67J00-000 | RING,REV GEAR SYNC | RING,REV GEAR SYNC |
| 38 | 24436-80K00-000 | RING,REV GEAR SYNC | RING,REV GEAR SYNC |
| 39 | 24441-67J00-000 | SPRING,SYNC KEY | SPRING,SYNC KEY |
| 40 | 24471-67J00-000 | KEY,SYNCHRONIZER | KEY,SYNCHRONIZER |
| 41 | 24471-80K00-000 | KEY,SYNCHRONIZER | KEY,SYNCHRONIZER |
| 41 | 24551-67J00-000 | SHAFT,T/M REVERSE IDLE GEAR | SHAFT,T/M REVERSE IDLE GEAR |
| 42 | 24555-67J00-000 | PIN,REV IDLE GEAR SHAFT | PIN,REV IDLE GEAR SHAFT |
| 43 | 24561-67J00-000 | GEAR,REV IDLE | GEAR,REV IDLE |
| 44 | 24565-67J00-000 | BEARING,REV IDLE GEAR NDL | BEARING,REV IDLE GEAR NDL |
| 45 | 24566-67J00-000 | WASHER,REV IDLE GEAR | WASHER,REV IDLE GEAR |
| 46 | 24680-67J00-000 | GEAR,MAIN SFT REV | GEAR,MAIN SFT REV |
