Search › Compare › JB416X × JB424X
JB416X
Suzuki GRAND-VITARA — 17 of 4,714 shared
JB424X
Suzuki GRAND-VITARA — 17 of 4,714 shared

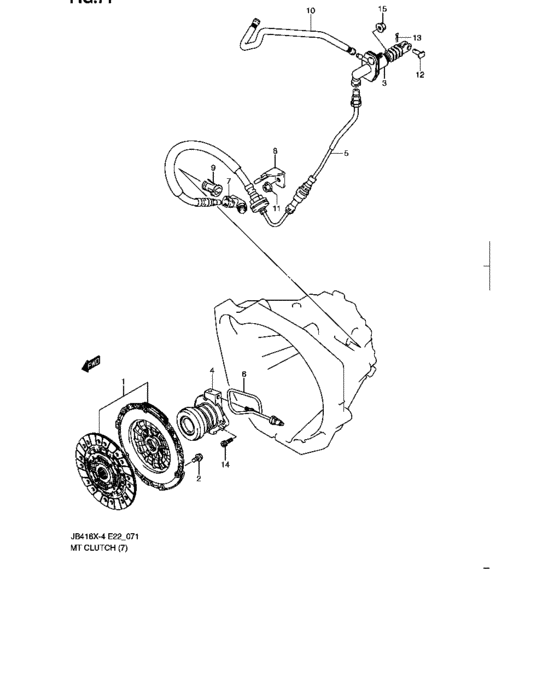

Mt clutch (TYPE 5:MT:JB419XD:LHD) 17 / 17
| # | OEM | JB416X | JB424X |
|---|---|---|---|
| 1 | 22000-80K00-000 | Clutch set | Clutch set |
| 1 | 22000-80K01-000 | CLUTCH SET | CLUTCH SET |
| 2 | 09103-06294-000 | BOLT(6X13) | BOLT(6X13) |
| 3 | 23810-64J00-000 | Cylinder assy,clutch master | Cylinder assy,clutch master |
| 3 | 23810-64J21-000 | CYLINDER ASSY,CLUTCH MASTER | CYLINDER ASSY,CLUTCH MASTER |
| 4 | 23820-64J00-000 | CYLINDER ASSY,CLUTCH OPERATING | CYLINDER ASSY,CLUTCH OPERATING |
| 5 | 23830-80KA0-000 | PIPE,CLUTCH OIL NO.1 | PIPE,CLUTCH OIL NO.1 |
| 6 | 23830-80K60-000 | PIPE,CLUTCH OIL NO.2 | PIPE,CLUTCH OIL NO.2 |
| 7 | 23856-64JA0-000 | JOINT ASSY,CLUTCH PIPE | JOINT ASSY,CLUTCH PIPE |
| 8 | 23871-64J00-000 | BRACKET,CLUTCH OIL HOSE | BRACKET,CLUTCH OIL HOSE |
| 9 | 23874-64J00-000 | SLEEVE,CLUTCH PIPE JOINT | SLEEVE,CLUTCH PIPE JOINT |
| 10 | 23881-64J00-000 | HOSE,CLUTCH RESERVOIR | HOSE,CLUTCH RESERVOIR |
| 11 | 09159-08127-000 | NUT | NUT |
| 12 | 09200-10021-000 | PIN | PIN |
| 13 | 09385-10006-000 | PIN,SNAP | PIN,SNAP |
| 14 | 07130-0620A-000 | Bolt | Bolt |
| 15 | 08316-1006A-000 | NUT | NUT |
| # | OEM | JB416X | JB424X |
|---|---|---|---|
| 15 | 07130-0620A-000 | Bolt | Bolt |
| 32 | 08316-1006A-000 | NUT | NUT |
| 2 | 09103-06294-000 | BOLT(6X13) | BOLT(6X13) |
| 12 | 09159-08127-000 | NUT | NUT |
| 14 | 09200-10021-000 | PIN | PIN |
| 15 | 09385-10006-000 | PIN,SNAP | PIN,SNAP |
| 1 | 22000-80K00-000 | Clutch set | Clutch set |
| 1 | 22000-80K01-000 | CLUTCH SET | CLUTCH SET |
| 4 | 23810-64J00-000 | Cylinder assy,clutch master | Cylinder assy,clutch master |
| 4 | 23810-64J21-000 | CYLINDER ASSY,CLUTCH MASTER | CYLINDER ASSY,CLUTCH MASTER |
| 5 | 23820-64J00-000 | CYLINDER ASSY,CLUTCH OPERATING | CYLINDER ASSY,CLUTCH OPERATING |
| 6 | 23830-80K60-000 | PIPE,CLUTCH OIL NO.2 | PIPE,CLUTCH OIL NO.2 |
| 5 | 23830-80KA0-000 | PIPE,CLUTCH OIL NO.1 | PIPE,CLUTCH OIL NO.1 |
| 8 | 23856-64JA0-000 | JOINT ASSY,CLUTCH PIPE | JOINT ASSY,CLUTCH PIPE |
| 9 | 23871-64J00-000 | BRACKET,CLUTCH OIL HOSE | BRACKET,CLUTCH OIL HOSE |
| 10 | 23874-64J00-000 | SLEEVE,CLUTCH PIPE JOINT | SLEEVE,CLUTCH PIPE JOINT |
| 11 | 23881-64J00-000 | HOSE,CLUTCH RESERVOIR | HOSE,CLUTCH RESERVOIR |
