Search › Compare › JB416X × JB424X
JB416X
Suzuki GRAND-VITARA — 26 of 4,714 shared
JB424X
Suzuki GRAND-VITARA — 26 of 4,714 shared

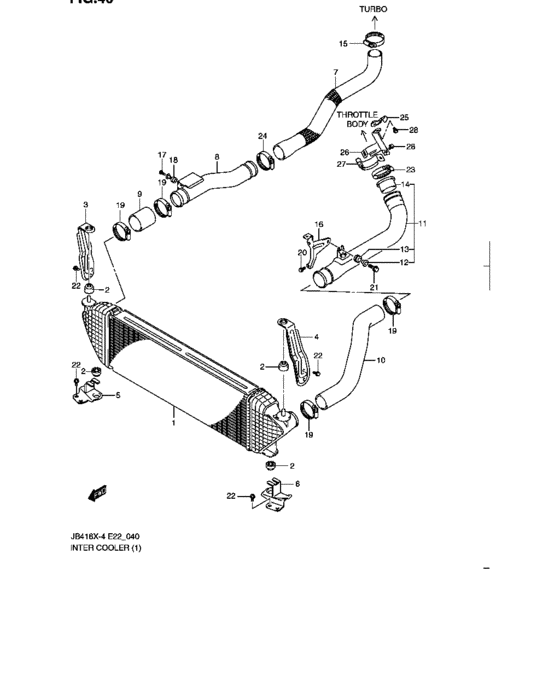

Inter cooler (TYPE 4:JB419XD) 26 / 26
| # | OEM | JB416X | JB424X |
|---|---|---|---|
| 1 | 13620-67J02-000 | COOLER ASSY,INTER | COOLER ASSY,INTER |
| 2 | 13625-67J00-000 | GROMMET,INTER COOLER | GROMMET,INTER COOLER |
| 3 | 13631-80K00-000 | BRACKET,INTER COOLER UPPER,R | BRACKET,INTER COOLER UPPER,R |
| 4 | 13632-80K00-000 | BRACKET,INTER COOLER UPPER,L | BRACKET,INTER COOLER UPPER,L |
| 5 | 13633-80K00-000 | BRACKET,INTER COOLER LOWER,R | BRACKET,INTER COOLER LOWER,R |
| 6 | 13634-80K00-000 | BRACKET,INTER COOLER LOWER,L | BRACKET,INTER COOLER LOWER,L |
| 7 | 13665-67J10-000 | HOSE,INTER COOLER INLET | HOSE,INTER COOLER INLET |
| 8 | 13670-67J00-000 | PIPE,INTER COOLER INLET | PIPE,INTER COOLER INLET |
| 9 | 13675-67J00-000 | HOSE,INTER COOLER CONNECT | HOSE,INTER COOLER CONNECT |
| 10 | 13685-67J00-000 | HOSE,INTER COOLER OUTLET | HOSE,INTER COOLER OUTLET |
| 11 | 13690-67J03-000 | PIPE,I/C OUTLET ENG SIDE | PIPE,I/C OUTLET ENG SIDE |
| 12 | 09169-09008-000 | WASHER | WASHER |
| 13 | 09320-11017-000 | CUSHION | CUSHION |
| 14 | 13693-67J01-000 | INSULATOR,RUBBER ID:50 | INSULATOR,RUBBER ID:50 |
| 15 | 13667-67J00-000 | CLAMP,TURBO CHARGER OUTLET | CLAMP,TURBO CHARGER OUTLET |
| 16 | 13695-67J00-000 | BRACKET,I/C PIPE ENG SIDE | BRACKET,I/C PIPE ENG SIDE |
| 17 | 09111-06092-000 | BOLT(6X19) | BOLT(6X19) |
| 18 | 09320-08077-000 | CUSHION | CUSHION |
| 19 | 09402-70503-000 | CLAMP - Clamp,tank | CLAMP - Clamp,tank |
| 20 | 01550-0612A-000 | Bolt | Bolt |
| 21 | 01550-0825A-000 | Bolt | Bolt |
| 22 | 02162-0612A-000 | SCREW - Bolt, bracket | SCREW - Bolt, bracket |
| 24 | 13668-67J00-000 | CLAMP | CLAMP |
| 25 | 13696-67J00-000 | BRACKET,I/C PIPE NO.1 | BRACKET,I/C PIPE NO.1 |
| 26 | 13697-67J00-000 | BRACKET,I/C PIPE NO.2 | BRACKET,I/C PIPE NO.2 |
| 27 | 13698-67J00-000 | BRACKET,I/C PIPE NO.3 | BRACKET,I/C PIPE NO.3 |
| # | OEM | JB416X | JB424X |
|---|---|---|---|
| 20 | 01550-0612A-000 | Bolt | Bolt |
| 15 | 01550-0825A-000 | Bolt | Bolt |
| 14 | 02162-0612A-000 | SCREW - Bolt, bracket | SCREW - Bolt, bracket |
| 17 | 09111-06092-000 | BOLT(6X19) | BOLT(6X19) |
| 12 | 09169-09008-000 | WASHER | WASHER |
| 23 | 09320-08077-000 | CUSHION | CUSHION |
| 13 | 09320-11017-000 | CUSHION | CUSHION |
| 15 | 09402-70503-000 | CLAMP - Clamp,tank | CLAMP - Clamp,tank |
| 1 | 13620-67J02-000 | COOLER ASSY,INTER | COOLER ASSY,INTER |
| 2 | 13625-67J00-000 | GROMMET,INTER COOLER | GROMMET,INTER COOLER |
| 3 | 13631-80K00-000 | BRACKET,INTER COOLER UPPER,R | BRACKET,INTER COOLER UPPER,R |
| 4 | 13632-80K00-000 | BRACKET,INTER COOLER UPPER,L | BRACKET,INTER COOLER UPPER,L |
| 5 | 13633-80K00-000 | BRACKET,INTER COOLER LOWER,R | BRACKET,INTER COOLER LOWER,R |
| 6 | 13634-80K00-000 | BRACKET,INTER COOLER LOWER,L | BRACKET,INTER COOLER LOWER,L |
| 7 | 13665-67J10-000 | HOSE,INTER COOLER INLET | HOSE,INTER COOLER INLET |
| 15 | 13667-67J00-000 | CLAMP,TURBO CHARGER OUTLET | CLAMP,TURBO CHARGER OUTLET |
| 24 | 13668-67J00-000 | CLAMP | CLAMP |
| 8 | 13670-67J00-000 | PIPE,INTER COOLER INLET | PIPE,INTER COOLER INLET |
| 9 | 13675-67J00-000 | HOSE,INTER COOLER CONNECT | HOSE,INTER COOLER CONNECT |
| 10 | 13685-67J00-000 | HOSE,INTER COOLER OUTLET | HOSE,INTER COOLER OUTLET |
| 11 | 13690-67J03-000 | PIPE,I/C OUTLET ENG SIDE | PIPE,I/C OUTLET ENG SIDE |
| 14 | 13693-67J01-000 | INSULATOR,RUBBER ID:50 | INSULATOR,RUBBER ID:50 |
| 16 | 13695-67J00-000 | BRACKET,I/C PIPE ENG SIDE | BRACKET,I/C PIPE ENG SIDE |
| 25 | 13696-67J00-000 | BRACKET,I/C PIPE NO.1 | BRACKET,I/C PIPE NO.1 |
| 26 | 13697-67J00-000 | BRACKET,I/C PIPE NO.2 | BRACKET,I/C PIPE NO.2 |
| 27 | 13698-67J00-000 | BRACKET,I/C PIPE NO.3 | BRACKET,I/C PIPE NO.3 |
