Search › Compare › JB416X × JB424X
JB416X
Suzuki GRAND-VITARA — 20 of 4,714 shared
JB424X
Suzuki GRAND-VITARA — 20 of 4,714 shared

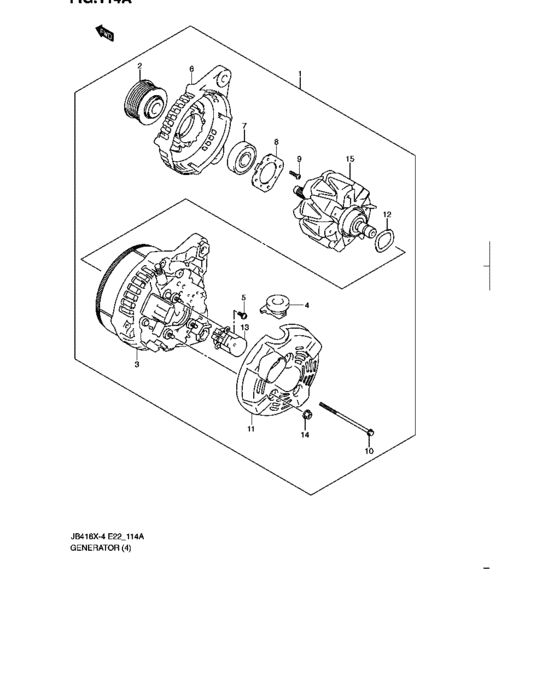

Generator (JB419XD:EURO 5) 20 / 20
| # | OEM | JB416X | JB424X |
|---|---|---|---|
| 1 | 31400-67J10-000 | Generator assy | Generator assy |
| 1 | 31400-67J11-000 | GENERATOR ASSY | GENERATOR ASSY |
| 2 | 31171-67J00-000 | PULLEY | PULLEY |
| 3 | 31401-67J10-000 | COIL ASSY,ALTERNATOR | COIL ASSY,ALTERNATOR |
| 4 | 31514-67J00-000 | TERMINAL | TERMINAL |
| 5 | 31516-85250-000 | SCREW | SCREW |
| 5 | 02112-0406B-000 | SCREW | SCREW |
| 6 | 31580-67J00-000 | Frame assy,drive end | Frame assy,drive end |
| 6 | 31580-67J01-000 | FRAME ASSY,DRIVE END | FRAME ASSY,DRIVE END |
| 7 | 31582-73J00-000 | Bearing | Bearing |
| 7 | 31582-73J01-000 | BEARING | BEARING |
| 8 | 31585-82111-000 | RETAINER,BEARING | RETAINER,BEARING |
| 9 | 31586-73J00-000 | SCREW | SCREW |
| 10 | 31587-61J20-000 | Bolt | Bolt |
| 11 | 31614-67J10-000 | COVER,RR END | COVER,RR END |
| 12 | 31615-77E10-000 | WASHER | WASHER |
| 13 | 31656-61J20-000 | HOLDER ASSY,BRUSH | HOLDER ASSY,BRUSH |
| 14 | 31692-61J20-000 | NUT | NUT |
| 15 | 31710-73J00-000 | Rotor assy | Rotor assy |
| 15 | 31710-73J01-000 | ROTOR ASSY | ROTOR ASSY |
| # | OEM | JB416X | JB424X |
|---|---|---|---|
| 5 | 02112-0406B-000 | SCREW | SCREW |
| 2 | 31171-67J00-000 | PULLEY | PULLEY |
| 9 | 31400-67J10-000 | Generator assy | Generator assy |
| 9 | 31400-67J11-000 | GENERATOR ASSY | GENERATOR ASSY |
| 3 | 31401-67J10-000 | COIL ASSY,ALTERNATOR | COIL ASSY,ALTERNATOR |
| 4 | 31514-67J00-000 | TERMINAL | TERMINAL |
| 5 | 31516-85250-000 | SCREW | SCREW |
| 6 | 31580-67J00-000 | Frame assy,drive end | Frame assy,drive end |
| 6 | 31580-67J01-000 | FRAME ASSY,DRIVE END | FRAME ASSY,DRIVE END |
| 7 | 31582-73J00-000 | Bearing | Bearing |
| 7 | 31582-73J01-000 | BEARING | BEARING |
| 8 | 31585-82111-000 | RETAINER,BEARING | RETAINER,BEARING |
| 9 | 31586-73J00-000 | SCREW | SCREW |
| 10 | 31587-61J20-000 | Bolt | Bolt |
| 11 | 31614-67J10-000 | COVER,RR END | COVER,RR END |
| 12 | 31615-77E10-000 | WASHER | WASHER |
| 13 | 31656-61J20-000 | HOLDER ASSY,BRUSH | HOLDER ASSY,BRUSH |
| 14 | 31692-61J20-000 | NUT | NUT |
| 15 | 31710-73J00-000 | Rotor assy | Rotor assy |
| 15 | 31710-73J01-000 | ROTOR ASSY | ROTOR ASSY |
