Search › Compare › JB416X × JB424X
JB416X
Suzuki GRAND-VITARA — 11 of 4,714 shared
JB424X
Suzuki GRAND-VITARA — 11 of 4,714 shared

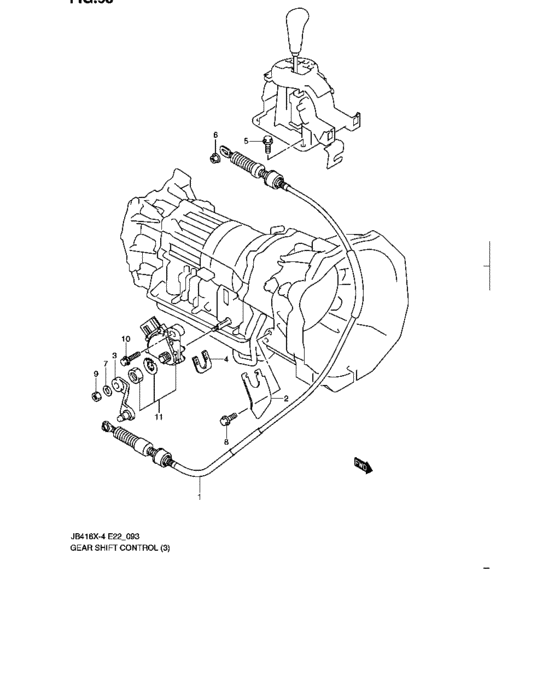

Gear shift control (AT) 11 / 11
| # | OEM | JB416X | JB424X |
|---|---|---|---|
| 1 | 28210-65J11-000 | CABLE ASSY,SELECT | CABLE ASSY,SELECT |
| 2 | 28221-78K10-000 | BRACKET,SELECT CABLE | BRACKET,SELECT CABLE |
| 3 | 28231-65J10-000 | LEVER,MANUAL SLT | LEVER,MANUAL SLT |
| 4 | 29365-79A40-000 | CLIP | CLIP |
| 5 | 09118-08165-000 | BOLT(8X25) | BOLT(8X25) |
| 6 | 09159-08135-000 | NUT | NUT |
| 7 | 09162-08008-000 | WASHER,LOCK - Lock washer | WASHER,LOCK - Lock washer |
| 8 | 01550-0820A-000 | Bolt - Bolt, funnel bracket | Bolt - Bolt, funnel bracket |
| 9 | 08310-0008A-000 | NUT - Nut, bead stopper | NUT - Nut, bead stopper |
| 10 | 29993-65D10-000 | BOLT,SHIFT SW | BOLT,SHIFT SW |
| 11 | 37720-65J10-000 | SWITCH ASSY,SHIFT | SWITCH ASSY,SHIFT |
| # | OEM | JB416X | JB424X |
|---|---|---|---|
| 23 | 01550-0820A-000 | Bolt - Bolt, funnel bracket | Bolt - Bolt, funnel bracket |
| 14 | 08310-0008A-000 | NUT - Nut, bead stopper | NUT - Nut, bead stopper |
| 5 | 09118-08165-000 | BOLT(8X25) | BOLT(8X25) |
| 13 | 09159-08135-000 | NUT | NUT |
| 7 | 09162-08008-000 | WASHER,LOCK - Lock washer | WASHER,LOCK - Lock washer |
| 1 | 28210-65J11-000 | CABLE ASSY,SELECT | CABLE ASSY,SELECT |
| 2 | 28221-78K10-000 | BRACKET,SELECT CABLE | BRACKET,SELECT CABLE |
| 3 | 28231-65J10-000 | LEVER,MANUAL SLT | LEVER,MANUAL SLT |
| 4 | 29365-79A40-000 | CLIP | CLIP |
| 10 | 29993-65D10-000 | BOLT,SHIFT SW | BOLT,SHIFT SW |
| 11 | 37720-65J10-000 | SWITCH ASSY,SHIFT | SWITCH ASSY,SHIFT |
