Search › Compare › JB416X × JB424X
JB416X
Suzuki GRAND-VITARA — 46 of 4,714 shared
JB424X
Suzuki GRAND-VITARA — 46 of 4,714 shared

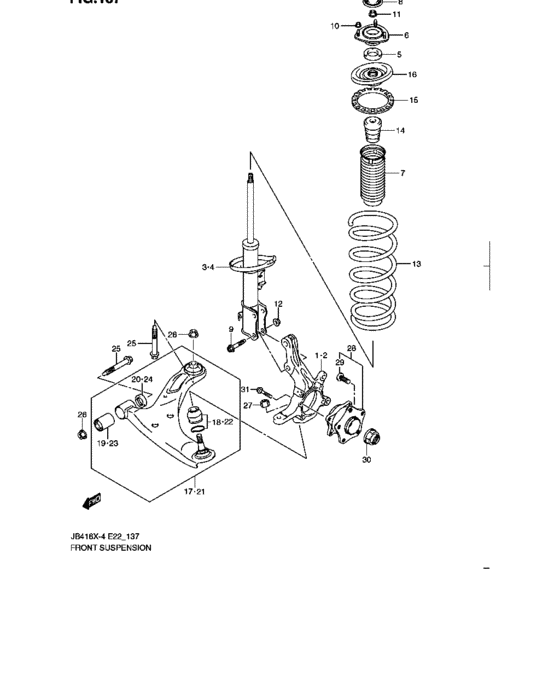

Front suspension (FRONT SUSPENSION) 46 / 46
| # | OEM | JB416X | JB424X |
|---|---|---|---|
| 1 | 45111-65J00-000 | KNUCKLE,STEERING,R | KNUCKLE,STEERING,R |
| 2 | 45151-65J00-000 | KNUCKLE,STEERING,L | KNUCKLE,STEERING,L |
| 3 | 41601-64J00-000 | Strut assy,front suspension,r | Strut assy,front suspension,r |
| 3 | 41601-64J01-000 | STRUT ASSY,FR SUSPENSION,R | STRUT ASSY,FR SUSPENSION,R |
| 3 | 41601-78K00-000 | Strut assy,front suspension,r | Strut assy,front suspension,r |
| 3 | 41601-78K01-000 | STRUT ASSY,FR SUSPENSION,R | STRUT ASSY,FR SUSPENSION,R |
| 3 | 41601-65J00-000 | Strut assy,front suspension,r | Strut assy,front suspension,r |
| 3 | 41601-65J01-000 | STRUT ASSY,FR SUSPENSION,R | STRUT ASSY,FR SUSPENSION,R |
| 4 | 41602-64J00-000 | Strut assy,front suspension,l | Strut assy,front suspension,l |
| 4 | 41602-64J01-000 | STRUT ASSY,FR SUSPENSION,L | STRUT ASSY,FR SUSPENSION,L |
| 4 | 41602-78K00-000 | Strut assy,front suspension,l | Strut assy,front suspension,l |
| 4 | 41602-78K01-000 | STRUT ASSY,FR SUSPENSION,L | STRUT ASSY,FR SUSPENSION,L |
| 4 | 41602-65J00-000 | Strut assy,front suspension,l | Strut assy,front suspension,l |
| 4 | 41602-65J01-000 | STRUT ASSY,FR SUSPENSION,L | STRUT ASSY,FR SUSPENSION,L |
| 5 | 41741-78K00-000 | BEARING,FR STRUT | BEARING,FR STRUT |
| 6 | 41810-78K00-000 | SUPPORT,FRONT STRUT | SUPPORT,FRONT STRUT |
| 7 | 41931-65J00-000 | COVER,STRUT DUST | COVER,STRUT DUST |
| 8 | 41932-65J00-000 | CAP,STRUT SUPPORT | CAP,STRUT SUPPORT |
| 9 | 09103-14025-000 | BOLT(14X60) | BOLT(14X60) |
| 10 | 09159-10117-000 | NUT | NUT |
| 11 | 09159-14030-000 | NUT | NUT |
| 12 | 09159-14031-000 | NUT | NUT |
| 13 | 41111-64J10-000 | Spring,front coil | Spring,front coil |
| 13 | 41111-64J11-000 | SPRING,FR COIL | SPRING,FR COIL |
| 13 | 41111-78K00-000 | Spring,front coil | Spring,front coil |
| 13 | 41111-78K01-000 | SPRING,FR COIL | SPRING,FR COIL |
| 13 | 41111-78K10-000 | Spring,front coil | Spring,front coil |
| 13 | 41111-78K11-000 | SPRING,FR COIL | SPRING,FR COIL |
| 13 | 41111-66J00-000 | SPRING,FRONT COIL | SPRING,FRONT COIL |
| 14 | 42111-65J00-000 | STOPPER,BUMP | STOPPER,BUMP |
| 15 | 41211-65J00-000 | SEAT,COIL SPRING RUBBER UPPER | SEAT,COIL SPRING RUBBER UPPER |
| 16 | 41230-65J00-000 | SEAT,COIL SPRING UPPER | SEAT,COIL SPRING UPPER |
| 17 | 45201-78K00-000 | ARM ASSY,FR SPNSN,R | ARM ASSY,FR SPNSN,R |
| 18 | 43345-65810-000 | SEAL SET,DUST | SEAL SET,DUST |
| 18 | 43345-65811-000 | Seal Set,dust | Seal Set,dust |
| 19 | 45261-65J00-000 | BUSHING,SPNSN ARM,FR | BUSHING,SPNSN ARM,FR |
| 20 | 45531-65J00-000 | STOPPER,RUBBER | STOPPER,RUBBER |
| 21 | 45202-78K00-000 | ARM ASSY,FR SPNSN,L | ARM ASSY,FR SPNSN,L |
| 25 | 09135-14015-000 | BOLT(14X92) | BOLT(14X92) |
| 26 | 09159-14028-000 | NUT | NUT |
| 27 | 09159-14029-000 | NUT | NUT |
| 28 | 43402-57L50-000 | Hub assy,wheel | Hub assy,wheel |
| 28 | 43402-57L51-000 | HUB ASSY,WHL | HUB ASSY,WHL |
| 29 | 09119-12012-000 | BOLT(12X38) | BOLT(12X38) |
| 30 | 43459-65J00-000 | NUT,FR AXLE | NUT,FR AXLE |
| 31 | 09103-10404-000 | BOLT(10X50) | BOLT(10X50) |
| # | OEM | JB416X | JB424X |
|---|---|---|---|
| 31 | 09103-10404-000 | BOLT(10X50) | BOLT(10X50) |
| 9 | 09103-14025-000 | BOLT(14X60) | BOLT(14X60) |
| 29 | 09119-12012-000 | BOLT(12X38) | BOLT(12X38) |
| 25 | 09135-14015-000 | BOLT(14X92) | BOLT(14X92) |
| 6 | 09159-10117-000 | NUT | NUT |
| 26 | 09159-14028-000 | NUT | NUT |
| 27 | 09159-14029-000 | NUT | NUT |
| 11 | 09159-14030-000 | NUT | NUT |
| 12 | 09159-14031-000 | NUT | NUT |
| 13 | 41111-64J10-000 | Spring,front coil | Spring,front coil |
| 13 | 41111-64J11-000 | SPRING,FR COIL | SPRING,FR COIL |
| 13 | 41111-66J00-000 | SPRING,FRONT COIL | SPRING,FRONT COIL |
| 13 | 41111-78K00-000 | Spring,front coil | Spring,front coil |
| 13 | 41111-78K01-000 | SPRING,FR COIL | SPRING,FR COIL |
| 13 | 41111-78K10-000 | Spring,front coil | Spring,front coil |
| 13 | 41111-78K11-000 | SPRING,FR COIL | SPRING,FR COIL |
| 15 | 41211-65J00-000 | SEAT,COIL SPRING RUBBER UPPER | SEAT,COIL SPRING RUBBER UPPER |
| 16 | 41230-65J00-000 | SEAT,COIL SPRING UPPER | SEAT,COIL SPRING UPPER |
| 3 | 41601-64J00-000 | Strut assy,front suspension,r | Strut assy,front suspension,r |
| 3 | 41601-64J01-000 | STRUT ASSY,FR SUSPENSION,R | STRUT ASSY,FR SUSPENSION,R |
| 3 | 41601-65J00-000 | Strut assy,front suspension,r | Strut assy,front suspension,r |
| 3 | 41601-65J01-000 | STRUT ASSY,FR SUSPENSION,R | STRUT ASSY,FR SUSPENSION,R |
| 3 | 41601-78K00-000 | Strut assy,front suspension,r | Strut assy,front suspension,r |
| 3 | 41601-78K01-000 | STRUT ASSY,FR SUSPENSION,R | STRUT ASSY,FR SUSPENSION,R |
| 4 | 41602-64J00-000 | Strut assy,front suspension,l | Strut assy,front suspension,l |
| 4 | 41602-64J01-000 | STRUT ASSY,FR SUSPENSION,L | STRUT ASSY,FR SUSPENSION,L |
| 4 | 41602-65J00-000 | Strut assy,front suspension,l | Strut assy,front suspension,l |
| 4 | 41602-65J01-000 | STRUT ASSY,FR SUSPENSION,L | STRUT ASSY,FR SUSPENSION,L |
| 4 | 41602-78K00-000 | Strut assy,front suspension,l | Strut assy,front suspension,l |
| 4 | 41602-78K01-000 | STRUT ASSY,FR SUSPENSION,L | STRUT ASSY,FR SUSPENSION,L |
| 5 | 41741-78K00-000 | BEARING,FR STRUT | BEARING,FR STRUT |
| 6 | 41810-78K00-000 | SUPPORT,FRONT STRUT | SUPPORT,FRONT STRUT |
| 7 | 41931-65J00-000 | COVER,STRUT DUST | COVER,STRUT DUST |
| 8 | 41932-65J00-000 | CAP,STRUT SUPPORT | CAP,STRUT SUPPORT |
| 14 | 42111-65J00-000 | STOPPER,BUMP | STOPPER,BUMP |
| 18 | 43345-65810-000 | SEAL SET,DUST | SEAL SET,DUST |
| 18 | 43345-65811-000 | Seal Set,dust | Seal Set,dust |
| 28 | 43402-57L50-000 | Hub assy,wheel | Hub assy,wheel |
| 28 | 43402-57L51-000 | HUB ASSY,WHL | HUB ASSY,WHL |
| 30 | 43459-65J00-000 | NUT,FR AXLE | NUT,FR AXLE |
| 1 | 45111-65J00-000 | KNUCKLE,STEERING,R | KNUCKLE,STEERING,R |
| 2 | 45151-65J00-000 | KNUCKLE,STEERING,L | KNUCKLE,STEERING,L |
| 17 | 45201-78K00-000 | ARM ASSY,FR SPNSN,R | ARM ASSY,FR SPNSN,R |
| 21 | 45202-78K00-000 | ARM ASSY,FR SPNSN,L | ARM ASSY,FR SPNSN,L |
| 19 | 45261-65J00-000 | BUSHING,SPNSN ARM,FR | BUSHING,SPNSN ARM,FR |
| 20 | 45531-65J00-000 | STOPPER,RUBBER | STOPPER,RUBBER |
