Search › Compare › JB416X × JB424X
JB416X
Suzuki GRAND-VITARA — 63 of 4,714 shared
JB424X
Suzuki GRAND-VITARA — 63 of 4,714 shared

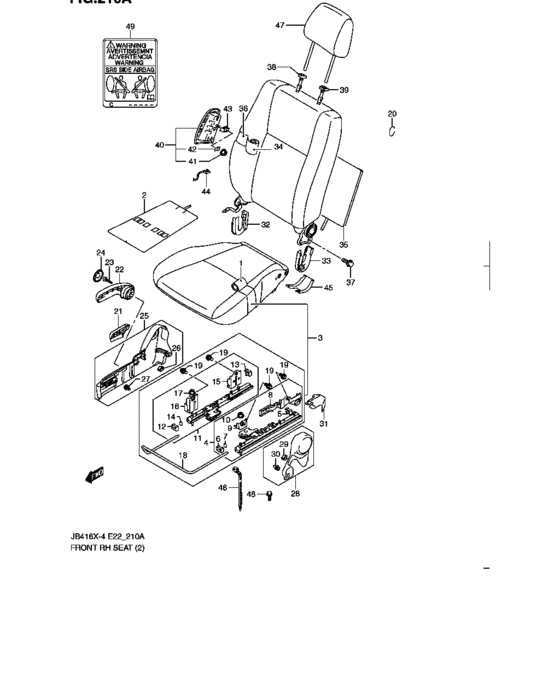

Front rh seat (RHD) 63 / 63
| # | OEM | JB416X | JB424X |
|---|---|---|---|
| 1 | 85180-65J70-FCJ | Trim comp,fr cush,r | Trim comp,fr cush,r |
| 1 | 85180-65J70-JVH | TRIM,FR CUSHION,R | TRIM,FR CUSHION,R |
| 1 | 85180-65J72-JVH | Trim,fr Cushion,r | Trim,fr Cushion,r |
| 2 | 85170-63J00-000 | Heater,fr cush | Heater,fr cush |
| 2 | 85170-63J02-000 | HEATER,FR CUSH | HEATER,FR CUSH |
| 3 | 85105-65J61-000 | CUSHION S/ASSY,FR,R | CUSHION S/ASSY,FR,R |
| 4 | 86601-63J70-000 | ADJUSTER S/ASSY,FR INSIDE,R | ADJUSTER S/ASSY,FR INSIDE,R |
| 5 | 86652-63J00-000 | Cover,lower rail end | Cover,lower rail end |
| 5 | 86652-63J01-000 | CAP,FR ADJUSTER LWR | CAP,FR ADJUSTER LWR |
| 6 | 86653-63J00-000 | Cover,lower rail end | Cover,lower rail end |
| 6 | 86653-63J01-000 | CAP,FR ADJUSTER LWR | CAP,FR ADJUSTER LWR |
| 7 | 86654-63J00-000 | COVER,UPR RAIL END | COVER,UPR RAIL END |
| 8 | 86712-63J70-000 | RISER,RR INS,R | RISER,RR INS,R |
| 9 | 86721-63J70-000 | RISER,FR INS,R | RISER,FR INS,R |
| 10 | 08316-1010A-000 | NUT - Nut, kick starter | NUT - Nut, kick starter |
| 11 | 86603-65J60-000 | ADJUSTER S/ASSY,FR OUTSIDE,R | ADJUSTER S/ASSY,FR OUTSIDE,R |
| 15 | 86641-65J60-000 | RISER,RR OUT | RISER,RR OUT |
| 16 | 86710-65J60-000 | RISER,FR OUT,R | RISER,FR OUT,R |
| 18 | 86691-65J00-000 | HANDLE,FR SEAT ADJ | HANDLE,FR SEAT ADJ |
| 19 | 86717-65J00-000 | BOLT,RISER | BOLT,RISER |
| 20 | 09387-19001-000 | RING | RING |
| 21 | 85211-65J00-5PK | Knob,rclng,r | Knob,rclng,r |
| 21 | 85211-65JA0-5PK | KNOB,RCLNG,R | KNOB,RCLNG,R |
| 22 | 85213-65J00-5PK | LEVER,SEAT LIFTER | LEVER,SEAT LIFTER |
| 23 | 09132-05043-000 | SCREW(5X10) | SCREW(5X10) |
| 24 | 85214-63J20-5PK | CAP,LIFTER LEVER | CAP,LIFTER LEVER |
| 25 | 85220-65J50-5PK | COVER,RCLNG OUTSIDE,R | COVER,RCLNG OUTSIDE,R |
| 26 | 09409-10308-000 | CLIP | CLIP |
| 27 | 09409-10313-000 | CLIP | CLIP |
| 28 | 85240-65J00-5PK | COVER,FR RCLNG INSIDE,R | COVER,FR RCLNG INSIDE,R |
| 31 | 85243-63J70-000 | COVER,RR RISER INSIDE,R | COVER,RR RISER INSIDE,R |
| 32 | 85222-63J00-5PK | COVER,FR BACK FRAME,R | COVER,FR BACK FRAME,R |
| 33 | 85242-63J00-5PK | COVER,FR BACK FRAME,L | COVER,FR BACK FRAME,L |
| 34 | 85380-63J60-FCJ | Trim comp,fr back | Trim comp,fr back |
| 34 | 85380-63J61-JVH | TRIM,FR BACK | TRIM,FR BACK |
| 34 | 85380-63J62-JVH | Trim,fr Back | Trim,fr Back |
| 34 | 85380-63JG0-FCJ | Trim comp,fr back,r | Trim comp,fr back,r |
| 34 | 85380-63JG0-JVH | TRIM,FR BACK,R | TRIM,FR BACK,R |
| 34 | 85380-63JG2-JVH | Trim,fr Back,r | Trim,fr Back,r |
| 35 | 85370-63J00-000 | Heater,fr back | Heater,fr back |
| 35 | 85370-63J01-000 | HEATER,FR BACK | HEATER,FR BACK |
| 36 | 85305-79KG0-000 | BACK S/ASSY,FR,R | BACK S/ASSY,FR,R |
| 36 | 85305-79KN0-000 | BACK S/ASSY,FR,R | BACK S/ASSY,FR,R |
| 36 | 85305-79KN1-000 | BACK S/ASSY,FR,R | BACK S/ASSY,FR,R |
| 37 | 01550-1016A-000 | Bolt - Plug, oil gallery | Bolt - Plug, oil gallery |
| 38 | 85341-63J10-P4Z | GUIDE,HEADRESTRAINT | GUIDE,HEADRESTRAINT |
| 38 | 85341-63J11-P4Z | GUIDE,HEADRESTRAINT | GUIDE,HEADRESTRAINT |
| 38 | 85341-63J12-P4Z | Guide,headrestraint | Guide,headrestraint |
| 39 | 85840-63J10-P4Z | GUIDE,HEADRESTRAINT | GUIDE,HEADRESTRAINT |
| 39 | 85840-63J11-P4Z | GUIDE COMP,HEADRESTRAINT | GUIDE COMP,HEADRESTRAINT |
| 39 | 85840-63J12-P4Z | Guide Comp,headrestraint | Guide Comp,headrestraint |
| 40 | 85350-65J00-5PK | MODULE ASSY,SIDE A/B,R | MODULE ASSY,SIDE A/B,R |
| 41 | 85352-65J00-000 | NUT | NUT |
| 42 | 85353-65J00-000 | SLEEVE | SLEEVE |
| 43 | 85351-62J00-000 | FASTENER,SIDE AIR BAG MTG | FASTENER,SIDE AIR BAG MTG |
| 44 | 85355-77K00-000 | HARNESS ASSY,SIDE AIRBAG | HARNESS ASSY,SIDE AIRBAG |
| 45 | 86658-58J90-S9K | TRIM,FR CUSHION RR | TRIM,FR CUSHION RR |
| 46 | 09407-14403-000 | CLAMP(L:125) - Clamp, spark plug cap | CLAMP(L:125) - Clamp, spark plug cap |
| 47 | 86401-65J00-ENB | Headrestraint assy(black) | Headrestraint assy(black) |
| 47 | 86401-65J01-JVD | HEADRESTRAINT ASSY | HEADRESTRAINT ASSY |
| 47 | 86401-65J02-JVD | Headrestraint Assy | Headrestraint Assy |
| 48 | 09119-08097-000 | BOLT(8X25) | BOLT(8X25) |
| 49 | 85354-59JC1-000 | LABEL,SIDE AIRBAG | LABEL,SIDE AIRBAG |
| # | OEM | JB416X | JB424X |
|---|---|---|---|
| 18 | 01550-1016A-000 | Bolt - Plug, oil gallery | Bolt - Plug, oil gallery |
| 6 | 08316-1010A-000 | NUT - Nut, kick starter | NUT - Nut, kick starter |
| 48 | 09119-08097-000 | BOLT(8X25) | BOLT(8X25) |
| 36 | 09132-05043-000 | SCREW(5X10) | SCREW(5X10) |
| 20 | 09387-19001-000 | RING | RING |
| 46 | 09407-14403-000 | CLAMP(L:125) - Clamp, spark plug cap | CLAMP(L:125) - Clamp, spark plug cap |
| 17 | 09409-10308-000 | CLIP | CLIP |
| 26 | 09409-10313-000 | CLIP | CLIP |
| 3 | 85105-65J61-000 | CUSHION S/ASSY,FR,R | CUSHION S/ASSY,FR,R |
| 2 | 85170-63J00-000 | Heater,fr cush | Heater,fr cush |
| 2 | 85170-63J02-000 | HEATER,FR CUSH | HEATER,FR CUSH |
| 1 | 85180-65J70-FCJ | Trim comp,fr cush,r | Trim comp,fr cush,r |
| 1 | 85180-65J70-JVH | TRIM,FR CUSHION,R | TRIM,FR CUSHION,R |
| 1 | 85180-65J72-JVH | Trim,fr Cushion,r | Trim,fr Cushion,r |
| 22 | 85211-65J00-5PK | Knob,rclng,r | Knob,rclng,r |
| 22 | 85211-65JA0-5PK | KNOB,RCLNG,R | KNOB,RCLNG,R |
| 22 | 85213-65J00-5PK | LEVER,SEAT LIFTER | LEVER,SEAT LIFTER |
| 21 | 85214-63J20-5PK | CAP,LIFTER LEVER | CAP,LIFTER LEVER |
| 25 | 85220-65J50-5PK | COVER,RCLNG OUTSIDE,R | COVER,RCLNG OUTSIDE,R |
| 31 | 85222-63J00-5PK | COVER,FR BACK FRAME,R | COVER,FR BACK FRAME,R |
| 26 | 85240-65J00-5PK | COVER,FR RCLNG INSIDE,R | COVER,FR RCLNG INSIDE,R |
| 32 | 85242-63J00-5PK | COVER,FR BACK FRAME,L | COVER,FR BACK FRAME,L |
| 31 | 85243-63J70-000 | COVER,RR RISER INSIDE,R | COVER,RR RISER INSIDE,R |
| 36 | 85305-79KG0-000 | BACK S/ASSY,FR,R | BACK S/ASSY,FR,R |
| 36 | 85305-79KN0-000 | BACK S/ASSY,FR,R | BACK S/ASSY,FR,R |
| 36 | 85305-79KN1-000 | BACK S/ASSY,FR,R | BACK S/ASSY,FR,R |
| 38 | 85341-63J10-P4Z | GUIDE,HEADRESTRAINT | GUIDE,HEADRESTRAINT |
| 38 | 85341-63J11-P4Z | GUIDE,HEADRESTRAINT | GUIDE,HEADRESTRAINT |
| 38 | 85341-63J12-P4Z | Guide,headrestraint | Guide,headrestraint |
| 37 | 85350-65J00-5PK | MODULE ASSY,SIDE A/B,R | MODULE ASSY,SIDE A/B,R |
| 43 | 85351-62J00-000 | FASTENER,SIDE AIR BAG MTG | FASTENER,SIDE AIR BAG MTG |
| 41 | 85352-65J00-000 | NUT | NUT |
| 42 | 85353-65J00-000 | SLEEVE | SLEEVE |
| 49 | 85354-59JC1-000 | LABEL,SIDE AIRBAG | LABEL,SIDE AIRBAG |
| 44 | 85355-77K00-000 | HARNESS ASSY,SIDE AIRBAG | HARNESS ASSY,SIDE AIRBAG |
| 34 | 85370-63J00-000 | Heater,fr back | Heater,fr back |
| 34 | 85370-63J01-000 | HEATER,FR BACK | HEATER,FR BACK |
| 33 | 85380-63J60-FCJ | Trim comp,fr back | Trim comp,fr back |
| 33 | 85380-63J61-JVH | TRIM,FR BACK | TRIM,FR BACK |
| 33 | 85380-63J62-JVH | Trim,fr Back | Trim,fr Back |
| 31 | 85380-63JG0-FCJ | Trim comp,fr back,r | Trim comp,fr back,r |
| 31 | 85380-63JG0-JVH | TRIM,FR BACK,R | TRIM,FR BACK,R |
| 31 | 85380-63JG2-JVH | Trim,fr Back,r | Trim,fr Back,r |
| 39 | 85840-63J10-P4Z | GUIDE,HEADRESTRAINT | GUIDE,HEADRESTRAINT |
| 39 | 85840-63J11-P4Z | GUIDE COMP,HEADRESTRAINT | GUIDE COMP,HEADRESTRAINT |
| 39 | 85840-63J12-P4Z | Guide Comp,headrestraint | Guide Comp,headrestraint |
| 47 | 86401-65J00-ENB | Headrestraint assy(black) | Headrestraint assy(black) |
| 47 | 86401-65J01-JVD | HEADRESTRAINT ASSY | HEADRESTRAINT ASSY |
| 47 | 86401-65J02-JVD | Headrestraint Assy | Headrestraint Assy |
| 4 | 86601-63J70-000 | ADJUSTER S/ASSY,FR INSIDE,R | ADJUSTER S/ASSY,FR INSIDE,R |
| 11 | 86603-65J60-000 | ADJUSTER S/ASSY,FR OUTSIDE,R | ADJUSTER S/ASSY,FR OUTSIDE,R |
| 15 | 86641-65J60-000 | RISER,RR OUT | RISER,RR OUT |
| 5 | 86652-63J00-000 | Cover,lower rail end | Cover,lower rail end |
| 5 | 86652-63J01-000 | CAP,FR ADJUSTER LWR | CAP,FR ADJUSTER LWR |
| 6 | 86653-63J00-000 | Cover,lower rail end | Cover,lower rail end |
| 6 | 86653-63J01-000 | CAP,FR ADJUSTER LWR | CAP,FR ADJUSTER LWR |
| 7 | 86654-63J00-000 | COVER,UPR RAIL END | COVER,UPR RAIL END |
| 45 | 86658-58J90-S9K | TRIM,FR CUSHION RR | TRIM,FR CUSHION RR |
| 18 | 86691-65J00-000 | HANDLE,FR SEAT ADJ | HANDLE,FR SEAT ADJ |
| 16 | 86710-65J60-000 | RISER,FR OUT,R | RISER,FR OUT,R |
| 8 | 86712-63J70-000 | RISER,RR INS,R | RISER,RR INS,R |
| 19 | 86717-65J00-000 | BOLT,RISER | BOLT,RISER |
| 9 | 86721-63J70-000 | RISER,FR INS,R | RISER,FR INS,R |
