Search › Compare › JB416X × JB424X
JB416X
Suzuki GRAND-VITARA — 21 of 4,714 shared
JB424X
Suzuki GRAND-VITARA — 21 of 4,714 shared

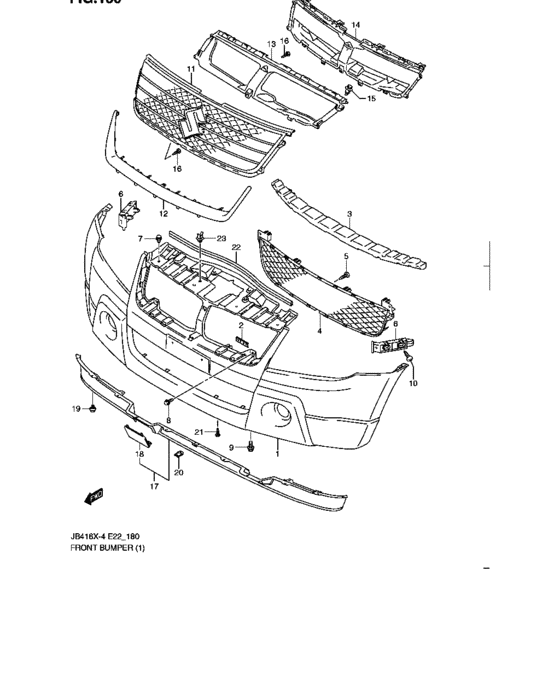

Front bumper (FRONT BUMPER) 21 / 21
| # | OEM | JB416X | JB424X |
|---|---|---|---|
| 1 | 71711-77K40-799 | BUMPER,FR(PRIMARY) | BUMPER,FR(PRIMARY) |
| 1 | 71711-77K60-799 | BUMPER,FR(PRIMARY) | BUMPER,FR(PRIMARY) |
| 2 | 71771-56B00-000 | RETAINER,FR LICENSE PLATE | RETAINER,FR LICENSE PLATE |
| 3 | 71761-77K00-000 | ABSORBER,FR BUMPER | ABSORBER,FR BUMPER |
| 4 | 71721-77K00-000 | NET,FR BUMPER | NET,FR BUMPER |
| 4 | 71721-77K10-000 | NET,FR BUMPER | NET,FR BUMPER |
| 5 | 03541-0516A-000 | SCREW | SCREW |
| 6 | 71731-65J00-000 | HOLDER,FR BPR SIDE | HOLDER,FR BPR SIDE |
| 7 | 09409-07340-000 | CLIP | CLIP |
| 8 | 02162-0616B-000 | SCREW - Bolt, adjust | SCREW - Bolt, adjust |
| 11 | 71741-77K00-38B | GRILLE,RDTR | GRILLE,RDTR |
| 12 | 71742-77K01-0PG | GARNISH,RDTR GRL | GARNISH,RDTR GRL |
| 13 | 71743-65J00-000 | COVER,RDTR GRILLE | COVER,RDTR GRILLE |
| 14 | 71743-77K00-000 | COVER,RADIATOR GRILLE | COVER,RADIATOR GRILLE |
| 16 | 09132-04036-000 | SCREW(4X12) | SCREW(4X12) |
| 17 | 71750-65J03-000 | SKIRT,FR AIR DAM | SKIRT,FR AIR DAM |
| 18 | 71752-65J00-000 | CAP,FR AIR DAM | CAP,FR AIR DAM |
| 20 | 09148-05047-000 | NUT | NUT |
| 21 | 09132-05046-000 | SCREW(5X12) | SCREW(5X12) |
| 22 | 77312-65J00-000 | SEAL,FRONT HOOD | SEAL,FRONT HOOD |
| 23 | 09403-07333-000 | CLAMP | CLAMP |
| # | OEM | JB416X | JB424X |
|---|---|---|---|
| 15 | 02162-0616B-000 | SCREW - Bolt, adjust | SCREW - Bolt, adjust |
| 5 | 03541-0516A-000 | SCREW | SCREW |
| 16 | 09132-04036-000 | SCREW(4X12) | SCREW(4X12) |
| 21 | 09132-05046-000 | SCREW(5X12) | SCREW(5X12) |
| 20 | 09148-05047-000 | NUT | NUT |
| 23 | 09403-07333-000 | CLAMP | CLAMP |
| 4 | 09409-07340-000 | CLIP | CLIP |
| 1 | 71711-77K40-799 | BUMPER,FR(PRIMARY) | BUMPER,FR(PRIMARY) |
| 1 | 71711-77K60-799 | BUMPER,FR(PRIMARY) | BUMPER,FR(PRIMARY) |
| 4 | 71721-77K00-000 | NET,FR BUMPER | NET,FR BUMPER |
| 4 | 71721-77K10-000 | NET,FR BUMPER | NET,FR BUMPER |
| 6 | 71731-65J00-000 | HOLDER,FR BPR SIDE | HOLDER,FR BPR SIDE |
| 11 | 71741-77K00-38B | GRILLE,RDTR | GRILLE,RDTR |
| 12 | 71742-77K01-0PG | GARNISH,RDTR GRL | GARNISH,RDTR GRL |
| 13 | 71743-65J00-000 | COVER,RDTR GRILLE | COVER,RDTR GRILLE |
| 14 | 71743-77K00-000 | COVER,RADIATOR GRILLE | COVER,RADIATOR GRILLE |
| 17 | 71750-65J03-000 | SKIRT,FR AIR DAM | SKIRT,FR AIR DAM |
| 18 | 71752-65J00-000 | CAP,FR AIR DAM | CAP,FR AIR DAM |
| 3 | 71761-77K00-000 | ABSORBER,FR BUMPER | ABSORBER,FR BUMPER |
| 2 | 71771-56B00-000 | RETAINER,FR LICENSE PLATE | RETAINER,FR LICENSE PLATE |
| 22 | 77312-65J00-000 | SEAL,FRONT HOOD | SEAL,FRONT HOOD |
