Search › Compare › JB416X × JB424X
JB416X
Suzuki GRAND-VITARA — 27 of 4,714 shared
JB424X
Suzuki GRAND-VITARA — 27 of 4,714 shared

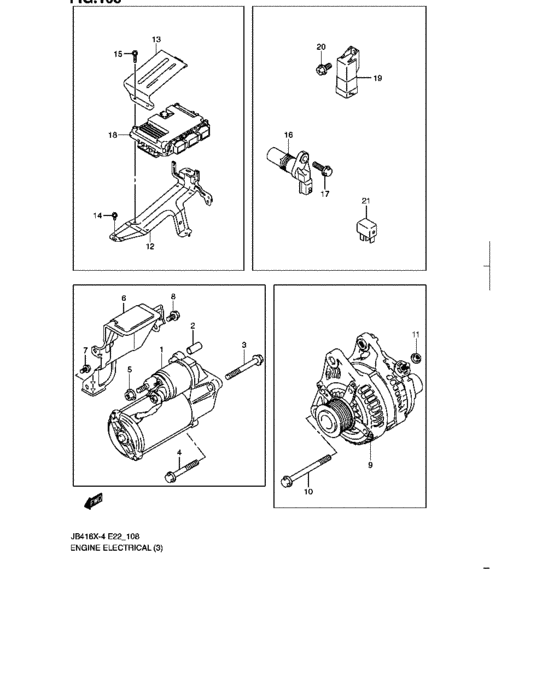

Engine electrical (JB419XD) 27 / 27
| # | OEM | JB416X | JB424X |
|---|---|---|---|
| 1 | 31100-67J00-000 | MOTOR ASSY,STARTING | MOTOR ASSY,STARTING |
| 2 | 24723-84A00-000 | PIN,BLOCK&T/M CASE | PIN,BLOCK&T/M CASE |
| 3 | 09103-10304-000 | BOLT(10X75) | BOLT(10X75) |
| 4 | 01550-1055A-000 | Bolt | Bolt |
| 5 | 08316-1008A-000 | NUT - Nut, idle gear shaft | NUT - Nut, idle gear shaft |
| 6 | 31260-80K00-000 | COVER,STARTING MOTOR | COVER,STARTING MOTOR |
| 7 | 01550-0612A-000 | Bolt | Bolt |
| 8 | 01550-0816A-000 | Bolt - Bolt, rear | Bolt - Bolt, rear |
| 9 | 31400-67J00-000 | Generator assy | Generator assy |
| 9 | 31400-67J01-000 | GENERATOR ASSY | GENERATOR ASSY |
| 9 | 31400-67J10-000 | Generator assy | Generator assy |
| 9 | 31400-67J11-000 | GENERATOR ASSY | GENERATOR ASSY |
| 10 | 01550-1095A-000 | Bolt | Bolt |
| 12 | 33924-65J12-000 | BRACKET,EPI CONT | BRACKET,EPI CONT |
| 13 | 33924-65J20-000 | BRACKET,EPI CONT | BRACKET,EPI CONT |
| 14 | 02162-0612D-000 | SCREW | SCREW |
| 15 | 02162-0625A-000 | SCREW | SCREW |
| 16 | 33220-67J02-000 | SENSOR,SPEED | SENSOR,SPEED |
| 16 | 33220-80K00-000 | SENSOR ASSY,ENG SPEED | SENSOR ASSY,ENG SPEED |
| 17 | 01550-0620A-000 | Bolt | Bolt |
| 18 | 33910-80K00-000 | BASE ASSY,DIESEL ENGINE CONT | BASE ASSY,DIESEL ENGINE CONT |
| 18 | 33910-80KA0-000 | Controller, diesel engine - Black | Controller, diesel engine - Black |
| 19 | 38850-84A00-000 | CONTROLLER ASSY,GLOW PLUG | CONTROLLER ASSY,GLOW PLUG |
| 19 | 38850-80K00-000 | CONTROLLER ASSY,GLOW PLUG | CONTROLLER ASSY,GLOW PLUG |
| 20 | 02162-0612A-000 | SCREW - Bolt, bracket | SCREW - Bolt, bracket |
| 21 | 38860-84A00-000 | RELAY ASSY | RELAY ASSY |
| 21 | 38860-76F01-000 | RELAY ASSY - Relay, starting motor | RELAY ASSY - Relay, starting motor |
| # | OEM | JB416X | JB424X |
|---|---|---|---|
| 20 | 01550-0612A-000 | Bolt | Bolt |
| 31 | 01550-0620A-000 | Bolt | Bolt |
| 10 | 01550-0816A-000 | Bolt - Bolt, rear | Bolt - Bolt, rear |
| 4 | 01550-1055A-000 | Bolt | Bolt |
| 10 | 01550-1095A-000 | Bolt | Bolt |
| 14 | 02162-0612A-000 | SCREW - Bolt, bracket | SCREW - Bolt, bracket |
| 25 | 02162-0612D-000 | SCREW | SCREW |
| 26 | 02162-0625A-000 | SCREW | SCREW |
| 7 | 08316-1008A-000 | NUT - Nut, idle gear shaft | NUT - Nut, idle gear shaft |
| 3 | 09103-10304-000 | BOLT(10X75) | BOLT(10X75) |
| 2 | 24723-84A00-000 | PIN,BLOCK&T/M CASE | PIN,BLOCK&T/M CASE |
| 1 | 31100-67J00-000 | MOTOR ASSY,STARTING | MOTOR ASSY,STARTING |
| 6 | 31260-80K00-000 | COVER,STARTING MOTOR | COVER,STARTING MOTOR |
| 9 | 31400-67J00-000 | Generator assy | Generator assy |
| 9 | 31400-67J01-000 | GENERATOR ASSY | GENERATOR ASSY |
| 9 | 31400-67J10-000 | Generator assy | Generator assy |
| 9 | 31400-67J11-000 | GENERATOR ASSY | GENERATOR ASSY |
| 16 | 33220-67J02-000 | SENSOR,SPEED | SENSOR,SPEED |
| 16 | 33220-80K00-000 | SENSOR ASSY,ENG SPEED | SENSOR ASSY,ENG SPEED |
| 18 | 33910-80K00-000 | BASE ASSY,DIESEL ENGINE CONT | BASE ASSY,DIESEL ENGINE CONT |
| 18 | 33910-80KA0-000 | Controller, diesel engine - Black | Controller, diesel engine - Black |
| 23 | 33924-65J12-000 | BRACKET,EPI CONT | BRACKET,EPI CONT |
| 24 | 33924-65J20-000 | BRACKET,EPI CONT | BRACKET,EPI CONT |
| 19 | 38850-80K00-000 | CONTROLLER ASSY,GLOW PLUG | CONTROLLER ASSY,GLOW PLUG |
| 19 | 38850-84A00-000 | CONTROLLER ASSY,GLOW PLUG | CONTROLLER ASSY,GLOW PLUG |
| 34 | 38860-76F01-000 | RELAY ASSY - Relay, starting motor | RELAY ASSY - Relay, starting motor |
| 35 | 38860-84A00-000 | RELAY ASSY | RELAY ASSY |
