Search › Compare › JB416X × JB424X
JB416X
Suzuki GRAND-VITARA — 77 of 4,714 shared
JB424X
Suzuki GRAND-VITARA — 77 of 4,714 shared

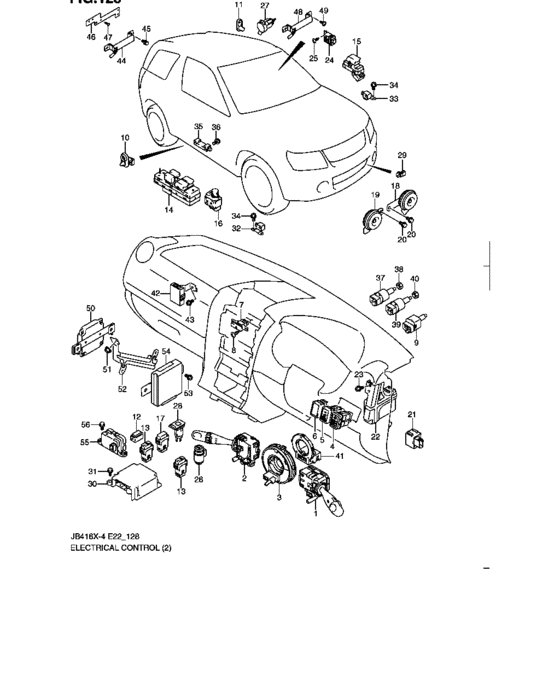

Electrical control (RHD) 77 / 77
| # | OEM | JB416X | JB424X |
|---|---|---|---|
| 1 | 37210-58J20-000 | Switch assy,lighting & turn | Switch assy,lighting & turn |
| 1 | 37210-58J21-000 | SWITCH ASSY,LIGHTING&TURN | SWITCH ASSY,LIGHTING&TURN |
| 1 | 37210-73H00-000 | Switch assy,lighting & turn | Switch assy,lighting & turn |
| 1 | 37210-73H01-000 | SWITCH ASSY,LIGHTING&TURN | SWITCH ASSY,LIGHTING&TURN |
| 2 | 37310-62J31-000 | SWITCH ASSY,WIPER&WASHER | SWITCH ASSY,WIPER&WASHER |
| 2 | 37310-62J21-000 | SWITCH ASSY,WIPER&WASHER | SWITCH ASSY,WIPER&WASHER |
| 3 | 37480-73H00-000 | CABLE ASSY,CONTACT COIL | CABLE ASSY,CONTACT COIL |
| 3 | 37480-62J00-000 | CABLE ASSY,CONTACT COIL | CABLE ASSY,CONTACT COIL |
| 4 | 35180-62J00-000 | SWITCH ASSY,HEADLAMP LEVELING | SWITCH ASSY,HEADLAMP LEVELING |
| 4 | 35180-51K00-000 | SWITCH ASSY,HEADLAMP LEVELING | SWITCH ASSY,HEADLAMP LEVELING |
| 5 | 37270-62J00-000 | SWITCH ASSY,FR FOG | SWITCH ASSY,FR FOG |
| 6 | 37285-62J00-000 | CAP,OPTION SW HOLE | CAP,OPTION SW HOLE |
| 7 | 37430-64J00-5PK | Switch assy,hazard(black) | Switch assy,hazard(black) |
| 7 | 37430-64J01-5PK | SWITCH ASSY,HAZARD WARNING | SWITCH ASSY,HAZARD WARNING |
| 8 | 03541-0416A-000 | SCREW - Screw, trunk box lamp | SCREW - Screw, trunk box lamp |
| 9 | 37740-75H10-000 | SWITCH ASSY,STOP LAMP | SWITCH ASSY,STOP LAMP |
| 9 | 37741-75H10-000 | Switch Assy,stop Lamp | Switch Assy,stop Lamp |
| 9 | 37742-75H10-000 | Bush,stop Lamp Sw | Bush,stop Lamp Sw |
| 10 | 37670-57L00-000 | SWITCH ASSY,DOOR | SWITCH ASSY,DOOR |
| 11 | 37670-79A10-000 | SWITCH ASSY,DOOR | SWITCH ASSY,DOOR |
| 11 | 37670-79A20-000 | SWITCH ASSY,DOOR | SWITCH ASSY,DOOR |
| 12 | 37285-50J01-000 | CAP,OPTION SWITCH HOLE | CAP,OPTION SWITCH HOLE |
| 13 | 37850-64J00-000 | Switch assy,seat heater | Switch assy,seat heater |
| 13 | 37850-64J02-000 | SWITCH ASSY,SEAT HEATER | SWITCH ASSY,SEAT HEATER |
| 14 | 37990-62J00-000 | SWITCH ASSY,P/W MASTER | SWITCH ASSY,P/W MASTER |
| 15 | 37995-62J00-000 | SWITCH ASSY,P/W SUB | SWITCH ASSY,P/W SUB |
| 16 | 37950-62J00-000 | SWITCH ASSY,MIRROR | SWITCH ASSY,MIRROR |
| 16 | 37950-62J01-000 | SWITCH ASSY,MIRROR | SWITCH ASSY,MIRROR |
| 17 | 37865-64J01-000 | Switch assy,at mode | Switch assy,at mode |
| 17 | 37865-64J02-000 | SWITCH ASSY,AT MODE | SWITCH ASSY,AT MODE |
| 18 | 38500-63J00-000 | Horn assy | Horn assy |
| 18 | 38500-63J01-000 | HORN ASSY,LOW PITCHED | HORN ASSY,LOW PITCHED |
| 19 | 38500-65J31-000 | HORN ASSY | HORN ASSY |
| 20 | 09115-08001-000 | BOLT(8X18) | BOLT(8X18) |
| 21 | 38610-84F21-000 | RELAY,TURN SIGNAL | RELAY,TURN SIGNAL |
| 22 | 36770-76K20-000 | Controller assy,body elec | Controller assy,body elec |
| 22 | 36770-76K22-000 | CONTROLLER ASSY,BODY ELEC | CONTROLLER ASSY,BODY ELEC |
| 22 | 36770-76K23-000 | CONTROLLER ASSY,BODY ELEC | CONTROLLER ASSY,BODY ELEC |
| 22 | 36770-76K80-000 | Controller assy,body elec | Controller assy,body elec |
| 22 | 36770-76K82-000 | CONTROLLER ASSY,BODY ELEC | CONTROLLER ASSY,BODY ELEC |
| 22 | 36770-76K83-000 | CONTROLLER ASSY,BODY ELEC | CONTROLLER ASSY,BODY ELEC |
| 22 | 36770-76K40-000 | Controller assy,body elec | Controller assy,body elec |
| 22 | 36770-76K42-000 | CONTROLLER ASSY,BODY ELEC | CONTROLLER ASSY,BODY ELEC |
| 22 | 36770-76K43-000 | CONTROLLER ASSY,BODY ELEC | CONTROLLER ASSY,BODY ELEC |
| 23 | 02162-0616A-000 | SCREW | SCREW |
| 23 | 02162-0616B-000 | SCREW - Bolt, adjust | SCREW - Bolt, adjust |
| 24 | 37190-65J00-000 | RECEIVER ASSY,KEYLESS | RECEIVER ASSY,KEYLESS |
| 24 | 37190-64J20-000 | RECEIVER ASSY,KEYLESS | RECEIVER ASSY,KEYLESS |
| 25 | 03141-0516A-000 | SCREW | SCREW |
| 26 | 39400-65J01-000 | LIGHTER ASSY,CIGARETTE | LIGHTER ASSY,CIGARETTE |
| 27 | 39410-60A01-000 | SOCKET ASSY | SOCKET ASSY |
| 28 | 39410-64J10-5PK | SOCKET ASSY | SOCKET ASSY |
| 29 | 95643-58J00-000 | SENSOR,AIR TEMP | SENSOR,AIR TEMP |
| 30 | 38910-76K40-000 | CONTROLLER ASSY,A/B | CONTROLLER ASSY,A/B |
| 30 | 38910-76K50-000 | CONTROLLER ASSY,A/B | CONTROLLER ASSY,A/B |
| 31 | 09115-06003-000 | BOLT(6X16) | BOLT(6X16) |
| 32 | 38930-65J00-000 | SENSOR ASSY,FORWARD,R | SENSOR ASSY,FORWARD,R |
| 33 | 38930-65J10-000 | SENSOR ASSY,FORWARD,L | SENSOR ASSY,FORWARD,L |
| 34 | 02162-0612A-000 | SCREW - Bolt, bracket | SCREW - Bolt, bracket |
| 35 | 38930-65J30-000 | SENSOR ASSY,SIDE AIR BAG | SENSOR ASSY,SIDE AIR BAG |
| 36 | 02162-0635A-000 | SCREW | SCREW |
| 37 | 37970-64J00-000 | SWITCH ASSY,CLUTCH | SWITCH ASSY,CLUTCH |
| 38 | 09140-10043-000 | NUT - Nut, tie rod rh thread | NUT - Nut, tie rod rh thread |
| 39 | 37970-68J00-000 | SWITCH ASSY,CLUTCH | SWITCH ASSY,CLUTCH |
| 41 | 37440-64J10-000 | SENSOR ASSY,ANGLE | SENSOR ASSY,ANGLE |
| 42 | 37171-64JE2-000 | Controller assy,kls | Controller assy,kls |
| 42 | 37171-64JE3-000 | CONTROLLER ASSY,KLS | CONTROLLER ASSY,KLS |
| 44 | 37175-62J00-000 | ANTENNA ASSY,KLS INSIDE | ANTENNA ASSY,KLS INSIDE |
| 45 | 03141-0512A-000 | SCREW - Screw, belt cooling duct | SCREW - Screw, belt cooling duct |
| 46 | 37169-64J00-000 | BRACKET,KLS ANT LUGGAGE | BRACKET,KLS ANT LUGGAGE |
| 47 | 03141-0410A-000 | SCREW | SCREW |
| 48 | 37175-64J00-000 | ANTENNA ASSY,KLS INSIDE | ANTENNA ASSY,KLS INSIDE |
| 50 | 38885-78K00-000 | CONTROLLER ASSY,4WD | CONTROLLER ASSY,4WD |
| 51 | 08316-1006A-000 | NUT | NUT |
| 52 | 33946-65J10-000 | BRACKET,AT&4WD CONT | BRACKET,AT&4WD CONT |
| 54 | 38880-78K30-000 | CONTROLLER ASSY,AT | CONTROLLER ASSY,AT |
| 55 | 33945-78K00-000 | SENSOR ASSY,YAW | SENSOR ASSY,YAW |
| # | OEM | JB416X | JB424X |
|---|---|---|---|
| 14 | 02162-0612A-000 | SCREW - Bolt, bracket | SCREW - Bolt, bracket |
| 15 | 02162-0616A-000 | SCREW | SCREW |
| 15 | 02162-0616B-000 | SCREW - Bolt, adjust | SCREW - Bolt, adjust |
| 36 | 02162-0635A-000 | SCREW | SCREW |
| 47 | 03141-0410A-000 | SCREW | SCREW |
| 11 | 03141-0512A-000 | SCREW - Screw, belt cooling duct | SCREW - Screw, belt cooling duct |
| 20 | 03141-0516A-000 | SCREW | SCREW |
| 8 | 03541-0416A-000 | SCREW - Screw, trunk box lamp | SCREW - Screw, trunk box lamp |
| 32 | 08316-1006A-000 | NUT | NUT |
| 31 | 09115-06003-000 | BOLT(6X16) | BOLT(6X16) |
| 20 | 09115-08001-000 | BOLT(8X18) | BOLT(8X18) |
| 38 | 09140-10043-000 | NUT - Nut, tie rod rh thread | NUT - Nut, tie rod rh thread |
| 55 | 33945-78K00-000 | SENSOR ASSY,YAW | SENSOR ASSY,YAW |
| 52 | 33946-65J10-000 | BRACKET,AT&4WD CONT | BRACKET,AT&4WD CONT |
| 4 | 35180-51K00-000 | SWITCH ASSY,HEADLAMP LEVELING | SWITCH ASSY,HEADLAMP LEVELING |
| 4 | 35180-62J00-000 | SWITCH ASSY,HEADLAMP LEVELING | SWITCH ASSY,HEADLAMP LEVELING |
| 22 | 36770-76K20-000 | Controller assy,body elec | Controller assy,body elec |
| 22 | 36770-76K22-000 | CONTROLLER ASSY,BODY ELEC | CONTROLLER ASSY,BODY ELEC |
| 22 | 36770-76K23-000 | CONTROLLER ASSY,BODY ELEC | CONTROLLER ASSY,BODY ELEC |
| 22 | 36770-76K40-000 | Controller assy,body elec | Controller assy,body elec |
| 22 | 36770-76K42-000 | CONTROLLER ASSY,BODY ELEC | CONTROLLER ASSY,BODY ELEC |
| 22 | 36770-76K43-000 | CONTROLLER ASSY,BODY ELEC | CONTROLLER ASSY,BODY ELEC |
| 22 | 36770-76K80-000 | Controller assy,body elec | Controller assy,body elec |
| 22 | 36770-76K82-000 | CONTROLLER ASSY,BODY ELEC | CONTROLLER ASSY,BODY ELEC |
| 22 | 36770-76K83-000 | CONTROLLER ASSY,BODY ELEC | CONTROLLER ASSY,BODY ELEC |
| 46 | 37169-64J00-000 | BRACKET,KLS ANT LUGGAGE | BRACKET,KLS ANT LUGGAGE |
| 42 | 37171-64JE2-000 | Controller assy,kls | Controller assy,kls |
| 42 | 37171-64JE3-000 | CONTROLLER ASSY,KLS | CONTROLLER ASSY,KLS |
| 44 | 37175-62J00-000 | ANTENNA ASSY,KLS INSIDE | ANTENNA ASSY,KLS INSIDE |
| 48 | 37175-64J00-000 | ANTENNA ASSY,KLS INSIDE | ANTENNA ASSY,KLS INSIDE |
| 24 | 37190-64J20-000 | RECEIVER ASSY,KEYLESS | RECEIVER ASSY,KEYLESS |
| 24 | 37190-65J00-000 | RECEIVER ASSY,KEYLESS | RECEIVER ASSY,KEYLESS |
| 1 | 37210-58J20-000 | Switch assy,lighting & turn | Switch assy,lighting & turn |
| 1 | 37210-58J21-000 | SWITCH ASSY,LIGHTING&TURN | SWITCH ASSY,LIGHTING&TURN |
| 1 | 37210-73H00-000 | Switch assy,lighting & turn | Switch assy,lighting & turn |
| 1 | 37210-73H01-000 | SWITCH ASSY,LIGHTING&TURN | SWITCH ASSY,LIGHTING&TURN |
| 5 | 37270-62J00-000 | SWITCH ASSY,FR FOG | SWITCH ASSY,FR FOG |
| 22 | 37285-50J01-000 | CAP,OPTION SWITCH HOLE | CAP,OPTION SWITCH HOLE |
| 6 | 37285-62J00-000 | CAP,OPTION SW HOLE | CAP,OPTION SW HOLE |
| 2 | 37310-62J21-000 | SWITCH ASSY,WIPER&WASHER | SWITCH ASSY,WIPER&WASHER |
| 2 | 37310-62J31-000 | SWITCH ASSY,WIPER&WASHER | SWITCH ASSY,WIPER&WASHER |
| 7 | 37430-64J00-5PK | Switch assy,hazard(black) | Switch assy,hazard(black) |
| 7 | 37430-64J01-5PK | SWITCH ASSY,HAZARD WARNING | SWITCH ASSY,HAZARD WARNING |
| 41 | 37440-64J10-000 | SENSOR ASSY,ANGLE | SENSOR ASSY,ANGLE |
| 3 | 37480-62J00-000 | CABLE ASSY,CONTACT COIL | CABLE ASSY,CONTACT COIL |
| 3 | 37480-73H00-000 | CABLE ASSY,CONTACT COIL | CABLE ASSY,CONTACT COIL |
| 10 | 37670-57L00-000 | SWITCH ASSY,DOOR | SWITCH ASSY,DOOR |
| 11 | 37670-79A10-000 | SWITCH ASSY,DOOR | SWITCH ASSY,DOOR |
| 11 | 37670-79A20-000 | SWITCH ASSY,DOOR | SWITCH ASSY,DOOR |
| 9 | 37740-75H10-000 | SWITCH ASSY,STOP LAMP | SWITCH ASSY,STOP LAMP |
| 9 | 37741-75H10-000 | Switch Assy,stop Lamp | Switch Assy,stop Lamp |
| 9 | 37742-75H10-000 | Bush,stop Lamp Sw | Bush,stop Lamp Sw |
| 13 | 37850-64J00-000 | Switch assy,seat heater | Switch assy,seat heater |
| 13 | 37850-64J02-000 | SWITCH ASSY,SEAT HEATER | SWITCH ASSY,SEAT HEATER |
| 17 | 37865-64J01-000 | Switch assy,at mode | Switch assy,at mode |
| 17 | 37865-64J02-000 | SWITCH ASSY,AT MODE | SWITCH ASSY,AT MODE |
| 16 | 37950-62J00-000 | SWITCH ASSY,MIRROR | SWITCH ASSY,MIRROR |
| 16 | 37950-62J01-000 | SWITCH ASSY,MIRROR | SWITCH ASSY,MIRROR |
| 37 | 37970-64J00-000 | SWITCH ASSY,CLUTCH | SWITCH ASSY,CLUTCH |
| 39 | 37970-68J00-000 | SWITCH ASSY,CLUTCH | SWITCH ASSY,CLUTCH |
| 14 | 37990-62J00-000 | SWITCH ASSY,P/W MASTER | SWITCH ASSY,P/W MASTER |
| 15 | 37995-62J00-000 | SWITCH ASSY,P/W SUB | SWITCH ASSY,P/W SUB |
| 18 | 38500-63J00-000 | Horn assy | Horn assy |
| 18 | 38500-63J01-000 | HORN ASSY,LOW PITCHED | HORN ASSY,LOW PITCHED |
| 19 | 38500-65J31-000 | HORN ASSY | HORN ASSY |
| 21 | 38610-84F21-000 | RELAY,TURN SIGNAL | RELAY,TURN SIGNAL |
| 54 | 38880-78K30-000 | CONTROLLER ASSY,AT | CONTROLLER ASSY,AT |
| 50 | 38885-78K00-000 | CONTROLLER ASSY,4WD | CONTROLLER ASSY,4WD |
| 30 | 38910-76K40-000 | CONTROLLER ASSY,A/B | CONTROLLER ASSY,A/B |
| 30 | 38910-76K50-000 | CONTROLLER ASSY,A/B | CONTROLLER ASSY,A/B |
| 32 | 38930-65J00-000 | SENSOR ASSY,FORWARD,R | SENSOR ASSY,FORWARD,R |
| 33 | 38930-65J10-000 | SENSOR ASSY,FORWARD,L | SENSOR ASSY,FORWARD,L |
| 35 | 38930-65J30-000 | SENSOR ASSY,SIDE AIR BAG | SENSOR ASSY,SIDE AIR BAG |
| 26 | 39400-65J01-000 | LIGHTER ASSY,CIGARETTE | LIGHTER ASSY,CIGARETTE |
| 27 | 39410-60A01-000 | SOCKET ASSY | SOCKET ASSY |
| 28 | 39410-64J10-5PK | SOCKET ASSY | SOCKET ASSY |
| 29 | 95643-58J00-000 | SENSOR,AIR TEMP | SENSOR,AIR TEMP |
