Search › Compare › JB416X × JB424X
JB416X
Suzuki GRAND-VITARA — 26 of 4,714 shared
JB424X
Suzuki GRAND-VITARA — 26 of 4,714 shared

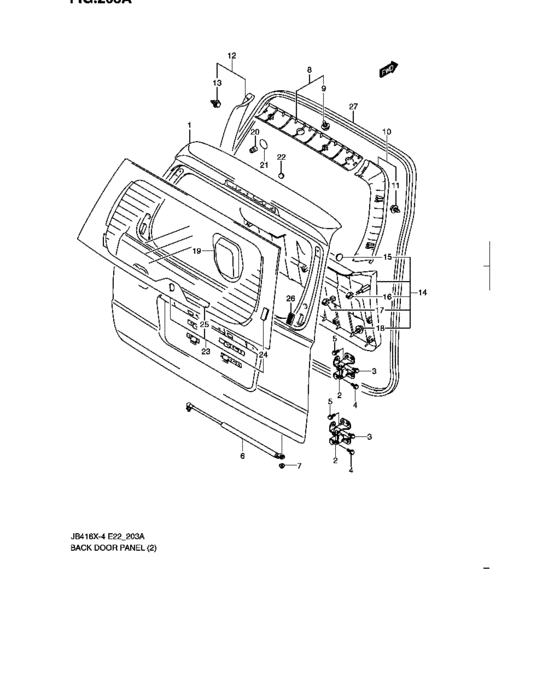

Back door panel (W/BACK DOOR SPARE TIRE CARRIER) 26 / 26
| # | OEM | JB416X | JB424X |
|---|---|---|---|
| 1 | 69100-65850-000 | PANEL SET,BACK DR | PANEL SET,BACK DR |
| 2 | 69510-65J00-000 | Hinge comp,back door | Hinge comp,back door |
| 2 | 69510-65J01-000 | HINGE,BACK DR | HINGE,BACK DR |
| 3 | 09113-08001-000 | BOLT(8X20) | BOLT(8X20) |
| 4 | 01551-0825A-000 | Bolt | Bolt |
| 6 | 81800-65830-000 | BALANCER,BACK DR | BALANCER,BACK DR |
| 7 | 09159-06076-000 | NUT | NUT |
| 8 | 83760-65J00-6GS | TRIM,BACK DOOR UPPER | TRIM,BACK DOOR UPPER |
| 9 | 09409-10312-000 | CLIP | CLIP |
| 10 | 83780-65J00-6GS | TRIM,BACK DOOR UPPER,R | TRIM,BACK DOOR UPPER,R |
| 12 | 83790-65J00-6GS | TRIM,BACK DOOR UPPER,L | TRIM,BACK DOOR UPPER,L |
| 14 | 83770-65J00-5PK | TRIM,BACK DOOR LOWER | TRIM,BACK DOOR LOWER |
| 15 | 83772-75H00-5PK | CAP,BACK DR TRIM | CAP,BACK DR TRIM |
| 16 | 09409-06324-000 | CLIP | CLIP |
| 17 | 09409-10308-000 | CLIP | CLIP |
| 19 | 83951-65J00-000 | COVER,BACK DR SEALING | COVER,BACK DR SEALING |
| 20 | 82683-60B10-000 | CUSHION | CUSHION |
| 21 | 77191-76F00-000 | FILM | FILM |
| 22 | 82711-68H00-000 | STOPPER,DOOR | STOPPER,DOOR |
| 23 | 84580-65J01-000 | Glass,back door window | Glass,back door window |
| 23 | 84580-65J02-000 | GLASS,BACK DR WINDOW | GLASS,BACK DR WINDOW |
| 23 | 84580-65J21-000 | GLASS,BACK DR WINDOW | GLASS,BACK DR WINDOW |
| 24 | 84513-65D00-000 | MALE,GLASS FASTENER NO.2 | MALE,GLASS FASTENER NO.2 |
| 25 | 84582-65J00-000 | SPACER,WINDOW GLASS | SPACER,WINDOW GLASS |
| 26 | 84515-65D00-000 | FEMALE,GLASS FASTENER NO.2 | FEMALE,GLASS FASTENER NO.2 |
| 27 | 84681-65J10-000 | WEATHERSTRIP,BACK DR OPNG | WEATHERSTRIP,BACK DR OPNG |
| # | OEM | JB416X | JB424X |
|---|---|---|---|
| 4 | 01551-0825A-000 | Bolt | Bolt |
| 3 | 09113-08001-000 | BOLT(8X20) | BOLT(8X20) |
| 29 | 09159-06076-000 | NUT | NUT |
| 16 | 09409-06324-000 | CLIP | CLIP |
| 17 | 09409-10308-000 | CLIP | CLIP |
| 9 | 09409-10312-000 | CLIP | CLIP |
| 1 | 69100-65850-000 | PANEL SET,BACK DR | PANEL SET,BACK DR |
| 2 | 69510-65J00-000 | Hinge comp,back door | Hinge comp,back door |
| 2 | 69510-65J01-000 | HINGE,BACK DR | HINGE,BACK DR |
| 21 | 77191-76F00-000 | FILM | FILM |
| 6 | 81800-65830-000 | BALANCER,BACK DR | BALANCER,BACK DR |
| 20 | 82683-60B10-000 | CUSHION | CUSHION |
| 22 | 82711-68H00-000 | STOPPER,DOOR | STOPPER,DOOR |
| 8 | 83760-65J00-6GS | TRIM,BACK DOOR UPPER | TRIM,BACK DOOR UPPER |
| 14 | 83770-65J00-5PK | TRIM,BACK DOOR LOWER | TRIM,BACK DOOR LOWER |
| 15 | 83772-75H00-5PK | CAP,BACK DR TRIM | CAP,BACK DR TRIM |
| 10 | 83780-65J00-6GS | TRIM,BACK DOOR UPPER,R | TRIM,BACK DOOR UPPER,R |
| 12 | 83790-65J00-6GS | TRIM,BACK DOOR UPPER,L | TRIM,BACK DOOR UPPER,L |
| 19 | 83951-65J00-000 | COVER,BACK DR SEALING | COVER,BACK DR SEALING |
| 24 | 84513-65D00-000 | MALE,GLASS FASTENER NO.2 | MALE,GLASS FASTENER NO.2 |
| 26 | 84515-65D00-000 | FEMALE,GLASS FASTENER NO.2 | FEMALE,GLASS FASTENER NO.2 |
| 23 | 84580-65J01-000 | Glass,back door window | Glass,back door window |
| 23 | 84580-65J02-000 | GLASS,BACK DR WINDOW | GLASS,BACK DR WINDOW |
| 23 | 84580-65J21-000 | GLASS,BACK DR WINDOW | GLASS,BACK DR WINDOW |
| 25 | 84582-65J00-000 | SPACER,WINDOW GLASS | SPACER,WINDOW GLASS |
| 27 | 84681-65J10-000 | WEATHERSTRIP,BACK DR OPNG | WEATHERSTRIP,BACK DR OPNG |
