Search › Compare › JB416X × JB424X
JB416X
Suzuki GRAND-VITARA — 13 of 4,714 shared
JB424X
Suzuki GRAND-VITARA — 13 of 4,714 shared

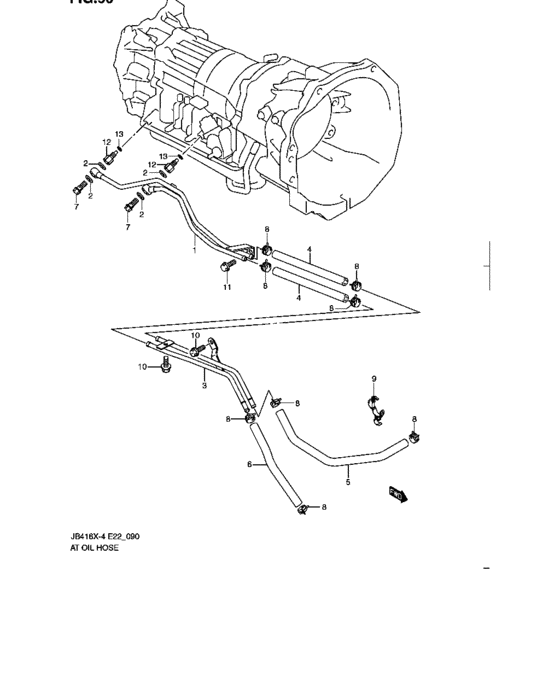

At oil hose (AT) 13 / 13
| # | OEM | JB416X | JB424X |
|---|---|---|---|
| 1 | 22910-78K10-000 | PIPE,OIL NO.1 | PIPE,OIL NO.1 |
| 2 | 22913-59J10-000 | GASKET,14X20X0.9 | GASKET,14X20X0.9 |
| 3 | 22920-78K10-000 | PIPE,OIL NO.2 | PIPE,OIL NO.2 |
| 4 | 22931-78K10-000 | HOSE,OIL NO.1 | HOSE,OIL NO.1 |
| 5 | 22933-64J30-000 | HOSE,OIL NO.3 | HOSE,OIL NO.3 |
| 6 | 22934-64J30-000 | HOSE,OIL NO.4 | HOSE,OIL NO.4 |
| 7 | 22935-79J10-000 | BOLT,OIL PIPE UNION | BOLT,OIL PIPE UNION |
| 8 | 09401-15410-000 | CLIP | CLIP |
| 9 | 09408-00213-000 | CLAMP | CLAMP |
| 10 | 01550-0816A-000 | Bolt - Bolt, rear | Bolt - Bolt, rear |
| 11 | 02162-0610A-000 | SCREW | SCREW |
| 12 | 24743-57B10-000 | UNION,OIL | UNION,OIL |
| 13 | 29737-57B00-000 | O-RING,OIL PIPE | O-RING,OIL PIPE |
| # | OEM | JB416X | JB424X |
|---|---|---|---|
| 10 | 01550-0816A-000 | Bolt - Bolt, rear | Bolt - Bolt, rear |
| 11 | 02162-0610A-000 | SCREW | SCREW |
| 8 | 09401-15410-000 | CLIP | CLIP |
| 9 | 09408-00213-000 | CLAMP | CLAMP |
| 1 | 22910-78K10-000 | PIPE,OIL NO.1 | PIPE,OIL NO.1 |
| 2 | 22913-59J10-000 | GASKET,14X20X0.9 | GASKET,14X20X0.9 |
| 3 | 22920-78K10-000 | PIPE,OIL NO.2 | PIPE,OIL NO.2 |
| 4 | 22931-78K10-000 | HOSE,OIL NO.1 | HOSE,OIL NO.1 |
| 5 | 22933-64J30-000 | HOSE,OIL NO.3 | HOSE,OIL NO.3 |
| 6 | 22934-64J30-000 | HOSE,OIL NO.4 | HOSE,OIL NO.4 |
| 7 | 22935-79J10-000 | BOLT,OIL PIPE UNION | BOLT,OIL PIPE UNION |
| 12 | 24743-57B10-000 | UNION,OIL | UNION,OIL |
| 13 | 29737-57B00-000 | O-RING,OIL PIPE | O-RING,OIL PIPE |
