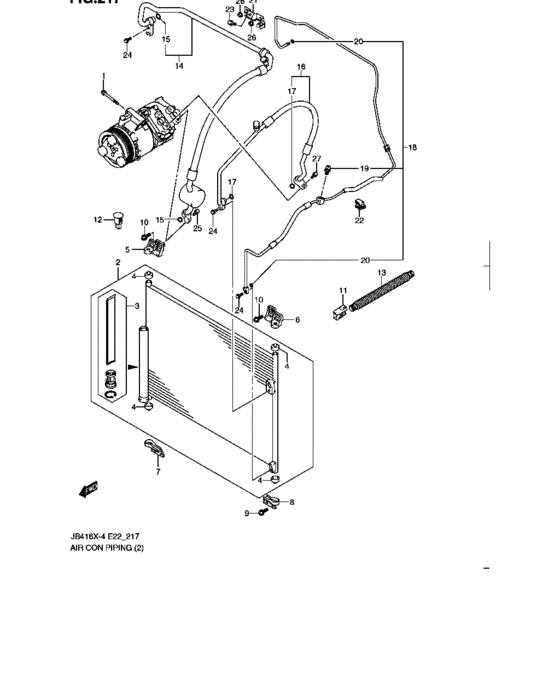

Air con piping (LHD:JB424X) 26 / 26
| # | OEM | JB416X | JB424X |
|---|---|---|---|
| 1 | 01550-0875A-000 | Bolt | Bolt |
| 2 | 95310-64JA0-000 | CONDENSER ASSY | CONDENSER ASSY |
| 3 | 95339-58J10-000 | DRYER KIT | DRYER KIT |
| 4 | 95851-64J00-000 | BUSH | BUSH |
| 5 | 95391-64J00-000 | BRACKET,COND UPPER,R | BRACKET,COND UPPER,R |
| 6 | 95391-64J10-000 | BRACKET,COND UPPER,L | BRACKET,COND UPPER,L |
| 7 | 95392-64J00-000 | BRACKET,COND LOWER,R | BRACKET,COND LOWER,R |
| 8 | 95392-64J10-000 | BRACKET,COND LOWER,L | BRACKET,COND LOWER,L |
| 9 | 02162-0612A-000 | SCREW - Bolt, bracket | SCREW - Bolt, bracket |
| 10 | 02162-0616A-000 | SCREW | SCREW |
| 10 | 02162-0616B-000 | SCREW - Bolt, adjust | SCREW - Bolt, adjust |
| 11 | 95641-59J00-000 | SENSOR,ROOM TEMP | SENSOR,ROOM TEMP |
| 12 | 95642-54J01-000 | SENSOR,SUN LIGHT | SENSOR,SUN LIGHT |
| 13 | 95647-64J00-000 | DUCT,ROOM TEMP SNSR | DUCT,ROOM TEMP SNSR |
| 14 | 95710-76K10-000 | HOSE,SUCTION | HOSE,SUCTION |
| 15 | 95896-50G00-000 | O-RING,D:2.4 ID:13.4 - O ring (d:2.5,id:13.4) | O-RING,D:2.4 ID:13.4 - O ring (d:2.5,id:13.4) |
| 16 | 95720-76K00-000 | HOSE,DISCHARGE | HOSE,DISCHARGE |
| 17 | 95895-50G00-000 | O-RING,D:2.4 ID:10.8 | O-RING,D:2.4 ID:10.8 |
| 18 | 95731-64J10-000 | HOSE,LIQUID | HOSE,LIQUID |
| 19 | 95546-58J00-000 | SENSOR,PRESSURE | SENSOR,PRESSURE |
| 20 | 95891-50G00-000 | O-RING,D:1.8 ID:6.7 | O-RING,D:1.8 ID:6.7 |
| 21 | 95781-64J10-000 | STAY,SUCT HOSE | STAY,SUCT HOSE |
| 22 | 09403-08331-000 | CLAMP | CLAMP |
| 23 | 01550-0620A-000 | Bolt | Bolt |
| 26 | 09159-06076-000 | NUT | NUT |
| 27 | 09136-06141-000 | SCREW(6X25) | SCREW(6X25) |
| # | OEM | JB416X | JB424X |
|---|---|---|---|
| 31 | 01550-0620A-000 | Bolt | Bolt |
| 6 | 01550-0875A-000 | Bolt | Bolt |
| 14 | 02162-0612A-000 | SCREW - Bolt, bracket | SCREW - Bolt, bracket |
| 15 | 02162-0616A-000 | SCREW | SCREW |
| 15 | 02162-0616B-000 | SCREW - Bolt, adjust | SCREW - Bolt, adjust |
| 28 | 09136-06141-000 | SCREW(6X25) | SCREW(6X25) |
| 29 | 09159-06076-000 | NUT | NUT |
| 27 | 09403-08331-000 | CLAMP | CLAMP |
| 7 | 95310-64JA0-000 | CONDENSER ASSY | CONDENSER ASSY |
| 8 | 95339-58J10-000 | DRYER KIT | DRYER KIT |
| 10 | 95391-64J00-000 | BRACKET,COND UPPER,R | BRACKET,COND UPPER,R |
| 11 | 95391-64J10-000 | BRACKET,COND UPPER,L | BRACKET,COND UPPER,L |
| 12 | 95392-64J00-000 | BRACKET,COND LOWER,R | BRACKET,COND LOWER,R |
| 13 | 95392-64J10-000 | BRACKET,COND LOWER,L | BRACKET,COND LOWER,L |
| 24 | 95546-58J00-000 | SENSOR,PRESSURE | SENSOR,PRESSURE |
| 16 | 95641-59J00-000 | SENSOR,ROOM TEMP | SENSOR,ROOM TEMP |
| 17 | 95642-54J01-000 | SENSOR,SUN LIGHT | SENSOR,SUN LIGHT |
| 18 | 95647-64J00-000 | DUCT,ROOM TEMP SNSR | DUCT,ROOM TEMP SNSR |
| 14 | 95710-76K10-000 | HOSE,SUCTION | HOSE,SUCTION |
| 16 | 95720-76K00-000 | HOSE,DISCHARGE | HOSE,DISCHARGE |
| 23 | 95731-64J10-000 | HOSE,LIQUID | HOSE,LIQUID |
| 26 | 95781-64J10-000 | STAY,SUCT HOSE | STAY,SUCT HOSE |
| 9 | 95851-64J00-000 | BUSH | BUSH |
| 25 | 95891-50G00-000 | O-RING,D:1.8 ID:6.7 | O-RING,D:1.8 ID:6.7 |
| 22 | 95895-50G00-000 | O-RING,D:2.4 ID:10.8 | O-RING,D:2.4 ID:10.8 |
| 20 | 95896-50G00-000 | O-RING,D:2.4 ID:13.4 - O ring (d:2.5,id:13.4) | O-RING,D:2.4 ID:13.4 - O ring (d:2.5,id:13.4) |
