Search › Compare › JA71C × JA71V
JA71C
Suzuki JIMNY — 51 of 2,515 shared
JA71V
Suzuki JIMNY — 51 of 2,510 shared

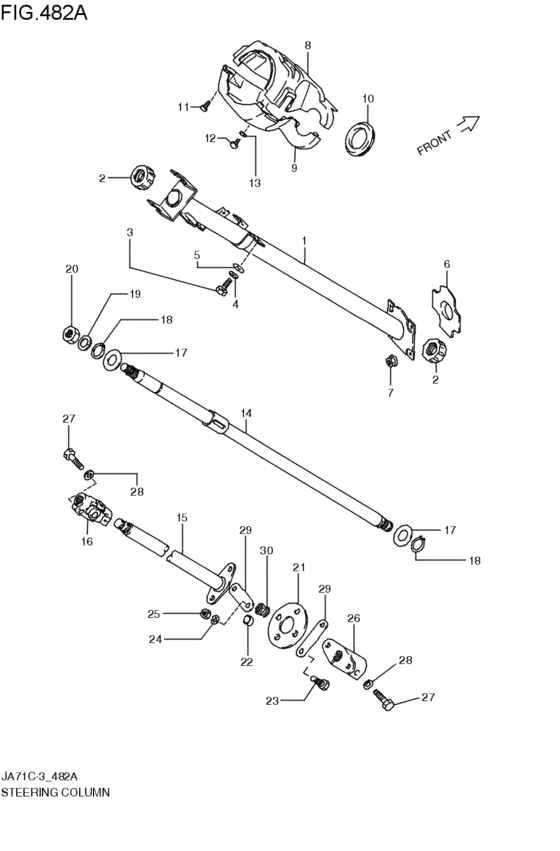

steering column (1987-11-01~1990-01-01) 51 / 51
| # | OEM | JA71C | JA71V |
|---|---|---|---|
| 1 | 48310-80111-000 | COLUMN,STRG | COLUMN,STRG |
| 2 | 48381-51040-000 | BUSHING STEERING | BUSHING STEERING |
| 2 | 48381-51041-000 | BUSHING,STRG COLUMN | BUSHING,STRG COLUMN |
| 3 | 01107-08206-000 | Bolt | Bolt |
| 3 | 01500-0820A-000 | Bolt | Bolt |
| 4 | 08321-21086-000 | Wsherlck8.2x15.2x1.6 | Wsherlck8.2x15.2x1.6 |
| 4 | 08321-0108B-000 | WASHER,LOCK | WASHER,LOCK |
| 4 | 08321-0108A-000 | WASHER,LOCK | WASHER,LOCK |
| 5 | 08322-11086-000 | Washer | Washer |
| 5 | 08322-0108B-000 | WASHER | WASHER |
| 5 | 08322-0108A-000 | WASHER | WASHER |
| 6 | 48491-80000-000 | SEAL,STEERING COLUMN | SEAL,STEERING COLUMN |
| 7 | 08316-16086-000 | Nut, reverse lever pivot | Nut, reverse lever pivot |
| 7 | 08316-1008B-000 | NUT | NUT |
| 8 | 48411-80251-5ES | カバー,ステアリングコラム,アッパ(ブラック) | カバー,ステアリングコラム,アッパ(ブラック) |
| 8 | 48400-80250-5ES | COVER SET,STRG COLUMN | COVER SET,STRG COLUMN |
| 9 | 48421-80200-5ES | カバー,ステアリングコラム,ロア(ブラック) | カバー,ステアリングコラム,ロア(ブラック) |
| 10 | 48419-75000-000 | SEAL,STEERING COVER | SEAL,STEERING COVER |
| 11 | 03211-05166-000 | Screw, l:16 - Vis | Screw, l:16 - Vis |
| 11 | 03211-0516A-000 | SCREW | SCREW |
| 12 | 02112-05126-000 | Screw m5x.08x12 | Screw m5x.08x12 |
| 12 | 02112-0512A-000 | SCREW | SCREW |
| 13 | 09160-05034-000 | Washer,5.3x10x1 | Washer,5.3x10x1 |
| 13 | 09160-05044-000 | WASHER(5.5X10X1) | WASHER(5.5X10X1) |
| 14 | 48210-80120-000 | SHAFT,STEERING UPPER | SHAFT,STEERING UPPER |
| 15 | 48220-80100-000 | SHAFT,STRG LOWER | SHAFT,STRG LOWER |
| 16 | 48230-80110-000 | ジョイント,ステアリング | ジョイント,ステアリング |
| 16 | 48230-80100-000 | JOINT,STEERING | JOINT,STEERING |
| 17 | 09160-17021-000 | Washer | Washer |
| 17 | 09160-17501-XC0 | WASHER(17.5X34X2) | WASHER(17.5X34X2) |
| 18 | 08331-31176-000 | Circlip | Circlip |
| 18 | 08331-31179-000 | CIRCLIP | CIRCLIP |
| 19 | 08321-31126-000 | Washer lock | Washer lock |
| 19 | 08321-0112A-000 | WASHER,LOCK | WASHER,LOCK |
| 20 | 09140-12022-000 | ナット | ナット |
| 20 | 09159-12025-000 | NUT | NUT |
| 21 | 48251-52000-000 | JOINT,RUBBER | JOINT,RUBBER |
| 22 | 09180-08007-000 | SPACER(8.1X11X9) | SPACER(8.1X11X9) |
| 23 | 01107-08256-000 | Bolt | Bolt |
| 23 | 01500-0825A-000 | Bolt | Bolt |
| 24 | 08321-31086-000 | Lock washer | Lock washer |
| 25 | 08310-12086-000 | NUT | NUT |
| 25 | 08310-0008A-000 | NUT - Nut, bead stopper | NUT - Nut, bead stopper |
| 25 | 08310-0008B-000 | NUT | NUT |
| 26 | 48270-80010-000 | Frange,steering joint | Frange,steering joint |
| 26 | 48270-80011-000 | FLANGE,STRG RUBBER JOINT | FLANGE,STRG RUBBER JOINT |
| 27 | 09111-08066-000 | BOLT(8X30) | BOLT(8X30) |
| 28 | 08321-31083-000 | New Genuine Part | New Genuine Part |
| 29 | 48262-58001-000 | PLATE,STRG RUBBER JOINT | PLATE,STRG RUBBER JOINT |
| 30 | 48281-85000-000 | Spring | Spring |
| 30 | 09440-18002-000 | SPRING | SPRING |
| # | OEM | JA71C | JA71V |
|---|---|---|---|
| 11 | 01107-08206-000 | Bolt | Bolt |
| 23 | 01107-08256-000 | Bolt | Bolt |
| 14 | 01500-0820A-000 | Bolt | Bolt |
| 6 | 01500-0825A-000 | Bolt | Bolt |
| 12 | 02112-05126-000 | Screw m5x.08x12 | Screw m5x.08x12 |
| 9 | 02112-0512A-000 | SCREW | SCREW |
| 11 | 03211-05166-000 | Screw, l:16 - Vis | Screw, l:16 - Vis |
| 11 | 03211-0516A-000 | SCREW | SCREW |
| 4 | 08310-0008A-000 | NUT - Nut, bead stopper | NUT - Nut, bead stopper |
| 4 | 08310-0008B-000 | NUT | NUT |
| 23 | 08310-12086-000 | NUT | NUT |
| 2 | 08316-1008B-000 | NUT | NUT |
| 7 | 08316-16086-000 | Nut, reverse lever pivot | Nut, reverse lever pivot |
| 7 | 08321-0108A-000 | WASHER,LOCK | WASHER,LOCK |
| 7 | 08321-0108B-000 | WASHER,LOCK | WASHER,LOCK |
| 9 | 08321-0112A-000 | WASHER,LOCK | WASHER,LOCK |
| 33 | 08321-21086-000 | Wsherlck8.2x15.2x1.6 | Wsherlck8.2x15.2x1.6 |
| 20 | 08321-31083-000 | New Genuine Part | New Genuine Part |
| 24 | 08321-31086-000 | Lock washer | Lock washer |
| 9 | 08321-31126-000 | Washer lock | Washer lock |
| 16 | 08322-0108A-000 | WASHER | WASHER |
| 16 | 08322-0108B-000 | WASHER | WASHER |
| 34 | 08322-11086-000 | Washer | Washer |
| 18 | 08331-31176-000 | Circlip | Circlip |
| 18 | 08331-31179-000 | CIRCLIP | CIRCLIP |
| 27 | 09111-08066-000 | BOLT(8X30) | BOLT(8X30) |
| 20 | 09140-12022-000 | ナット | ナット |
| 20 | 09159-12025-000 | NUT | NUT |
| 13 | 09160-05034-000 | Washer,5.3x10x1 | Washer,5.3x10x1 |
| 13 | 09160-05044-000 | WASHER(5.5X10X1) | WASHER(5.5X10X1) |
| 17 | 09160-17021-000 | Washer | Washer |
| 17 | 09160-17501-XC0 | WASHER(17.5X34X2) | WASHER(17.5X34X2) |
| 22 | 09180-08007-000 | SPACER(8.1X11X9) | SPACER(8.1X11X9) |
| 30 | 09440-18002-000 | SPRING | SPRING |
| 14 | 48210-80120-000 | SHAFT,STEERING UPPER | SHAFT,STEERING UPPER |
| 15 | 48220-80100-000 | SHAFT,STRG LOWER | SHAFT,STRG LOWER |
| 16 | 48230-80100-000 | JOINT,STEERING | JOINT,STEERING |
| 16 | 48230-80110-000 | ジョイント,ステアリング | ジョイント,ステアリング |
| 21 | 48251-52000-000 | JOINT,RUBBER | JOINT,RUBBER |
| 29 | 48262-58001-000 | PLATE,STRG RUBBER JOINT | PLATE,STRG RUBBER JOINT |
| 26 | 48270-80010-000 | Frange,steering joint | Frange,steering joint |
| 26 | 48270-80011-000 | FLANGE,STRG RUBBER JOINT | FLANGE,STRG RUBBER JOINT |
| 30 | 48281-85000-000 | Spring | Spring |
| 1 | 48310-80111-000 | COLUMN,STRG | COLUMN,STRG |
| 2 | 48381-51040-000 | BUSHING STEERING | BUSHING STEERING |
| 2 | 48381-51041-000 | BUSHING,STRG COLUMN | BUSHING,STRG COLUMN |
| 8 | 48400-80250-5ES | COVER SET,STRG COLUMN | COVER SET,STRG COLUMN |
| 8 | 48411-80251-5ES | カバー,ステアリングコラム,アッパ(ブラック) | カバー,ステアリングコラム,アッパ(ブラック) |
| 10 | 48419-75000-000 | SEAL,STEERING COVER | SEAL,STEERING COVER |
| 9 | 48421-80200-5ES | カバー,ステアリングコラム,ロア(ブラック) | カバー,ステアリングコラム,ロア(ブラック) |
| 6 | 48491-80000-000 | SEAL,STEERING COLUMN | SEAL,STEERING COLUMN |
