Search › Compare › JA71C × JA71V
JA71C
Suzuki JIMNY — 24 of 2,515 shared
JA71V
Suzuki JIMNY — 24 of 2,510 shared

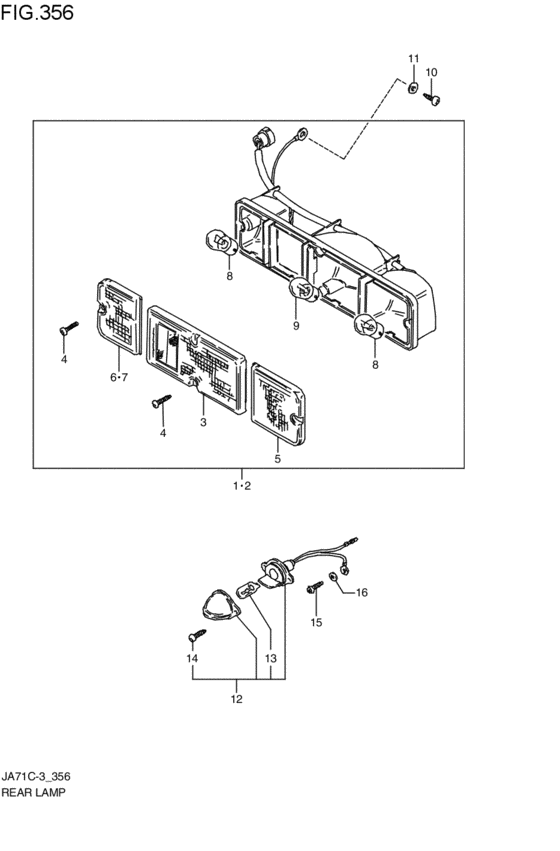

rear lamp (1987-11-01~1990-01-01) 24 / 24
| # | OEM | JA71C | JA71V |
|---|---|---|---|
| 1 | 35603-80002-000 | LAMP ASSY,RR COMB,R | LAMP ASSY,RR COMB,R |
| 2 | 35604-80002-000 | LAMP ASSY,RR COMB,L | LAMP ASSY,RR COMB,L |
| 3 | 35712-80000-000 | LENS,TAIL/STOP - [RED] | LENS,TAIL/STOP - [RED] |
| 4 | 03112-05259-000 | New Genuine Part | New Genuine Part |
| 4 | 03112-0525B-000 | SCREW | SCREW |
| 5 | 35662-80000-000 | LENS,TURN SIGNAL - [AMBER] | LENS,TURN SIGNAL - [AMBER] |
| 6 | 36252-80000-000 | LENS,BACKUP,RH - [CLEAR] | LENS,BACKUP,RH - [CLEAR] |
| 7 | 36272-80000-000 | LENS,BACKUP,LH - [CLEAR] | LENS,BACKUP,LH - [CLEAR] |
| 8 | 09471-12056-000 | Bulb (12v, 21w) | Bulb (12v, 21w) |
| 8 | 09471-12045-000 | BULB(12V21W) | BULB(12V21W) |
| 9 | 09471-12057-000 | Bulb (12v, 21/5w) | Bulb (12v, 21/5w) |
| 9 | 09471-12128-000 | BULB(12V21/5W,BF141-49642A) | BULB(12V21/5W,BF141-49642A) |
| 9 | 09471-12083-000 | BULB(12V21/5W) | BULB(12V21/5W) |
| 10 | 03111-05126-000 | New Genuine Part | New Genuine Part |
| 10 | 03111-0512A-000 | SCREW | SCREW |
| 11 | 08322-21056-000 | Washer | Washer |
| 11 | 08322-0105B-000 | WASHER | WASHER |
| 11 | 08322-0105A-000 | WASHER - Washer, front | WASHER - Washer, front |
| 12 | 35910-80001-000 | ランプアッシ,ライセンス(グレー) | ランプアッシ,ライセンス(グレー) |
| 12 | 35910-80011-000 | Lamp assy,license | Lamp assy,license |
| 13 | 09471-12081-000 | Bulb (12v,5w) - Bulb, 12v,5w (stanley, wb-227e) | Bulb (12v,5w) - Bulb, 12v,5w (stanley, wb-227e) |
| 13 | 09471-12216-000 | BULB(12V5W) - Bulb (12v5w) | BULB(12V5W) - Bulb (12v5w) |
| 14 | 03112-04165-000 | Screw | Screw |
| 14 | 03111-0416A-000 | SCREW | SCREW |
| # | OEM | JA71C | JA71V |
|---|---|---|---|
| 20 | 03111-0416A-000 | SCREW | SCREW |
| 10 | 03111-05126-000 | New Genuine Part | New Genuine Part |
| 10 | 03111-0512A-000 | SCREW | SCREW |
| 14 | 03112-04165-000 | Screw | Screw |
| 4 | 03112-05259-000 | New Genuine Part | New Genuine Part |
| 4 | 03112-0525B-000 | SCREW | SCREW |
| 11 | 08322-0105A-000 | WASHER - Washer, front | WASHER - Washer, front |
| 11 | 08322-0105B-000 | WASHER | WASHER |
| 11 | 08322-21056-000 | Washer | Washer |
| 13 | 09471-12045-000 | BULB(12V21W) | BULB(12V21W) |
| 13 | 09471-12056-000 | Bulb (12v, 21w) | Bulb (12v, 21w) |
| 9 | 09471-12057-000 | Bulb (12v, 21/5w) | Bulb (12v, 21/5w) |
| 21 | 09471-12081-000 | Bulb (12v,5w) - Bulb, 12v,5w (stanley, wb-227e) | Bulb (12v,5w) - Bulb, 12v,5w (stanley, wb-227e) |
| 9 | 09471-12083-000 | BULB(12V21/5W) | BULB(12V21/5W) |
| 9 | 09471-12128-000 | BULB(12V21/5W,BF141-49642A) | BULB(12V21/5W,BF141-49642A) |
| 21 | 09471-12216-000 | BULB(12V5W) - Bulb (12v5w) | BULB(12V5W) - Bulb (12v5w) |
| 1 | 35603-80002-000 | LAMP ASSY,RR COMB,R | LAMP ASSY,RR COMB,R |
| 2 | 35604-80002-000 | LAMP ASSY,RR COMB,L | LAMP ASSY,RR COMB,L |
| 5 | 35662-80000-000 | LENS,TURN SIGNAL - [AMBER] | LENS,TURN SIGNAL - [AMBER] |
| 3 | 35712-80000-000 | LENS,TAIL/STOP - [RED] | LENS,TAIL/STOP - [RED] |
| 12 | 35910-80001-000 | ランプアッシ,ライセンス(グレー) | ランプアッシ,ライセンス(グレー) |
| 12 | 35910-80011-000 | Lamp assy,license | Lamp assy,license |
| 6 | 36252-80000-000 | LENS,BACKUP,RH - [CLEAR] | LENS,BACKUP,RH - [CLEAR] |
| 7 | 36272-80000-000 | LENS,BACKUP,LH - [CLEAR] | LENS,BACKUP,LH - [CLEAR] |
