Search › Compare › JA71C × JA71V
JA71C
Suzuki JIMNY — 18 of 2,515 shared
JA71V
Suzuki JIMNY — 18 of 2,510 shared

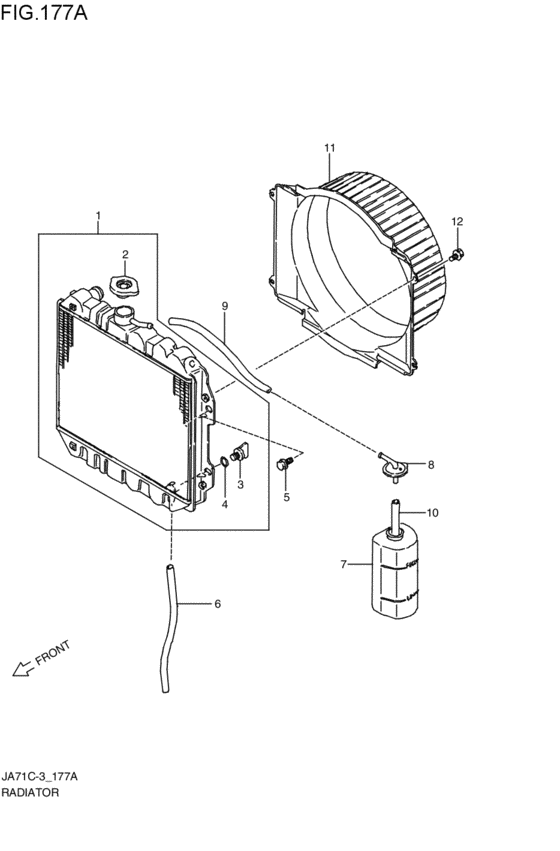

radiator (1987-11-01~1990-01-01) 18 / 18
| # | OEM | JA71C | JA71V |
|---|---|---|---|
| 1 | 17700-80302-000 | Radiator assy | Radiator assy |
| 2 | 17920-60B20-000 | RADIATOR CAP | RADIATOR CAP |
| 2 | 17920-60B21-000 | CAP,RADIATOR 0.9 | CAP,RADIATOR 0.9 |
| 3 | 17751-72010-000 | PLUG,DRAIN | PLUG,DRAIN |
| 4 | 17759-72010-000 | O-RING | O-RING |
| 5 | 01517-06103-000 | BOLT 6X10 | BOLT 6X10 |
| 5 | 01550-0610A-000 | Bolt | Bolt |
| 5 | 01550-0610B-000 | Bolt | Bolt |
| 6 | 09351-75111-300 | ホース,7.5X11.5X300 | ホース,7.5X11.5X300 |
| 6 | 09351-75111-600 | HOSE(7.5X11.5X600) | HOSE(7.5X11.5X600) |
| 7 | 17931-72000-000 | WATER RESERVE TANK | WATER RESERVE TANK |
| 7 | 17931-80001-000 | TANK,WATER RESERVE | TANK,WATER RESERVE |
| 8 | 17932-78100-000 | CAP,RESERVE TANK | CAP,RESERVE TANK |
| 9 | 09352-70121-300 | Hose 7x12.1x600 - Hose (7x12.1x300) | Hose 7x12.1x600 - Hose (7x12.1x300) |
| 9 | 09352-70121-600 | HOSE(7X12.1X600) - Hose (inmani to iac) | HOSE(7X12.1X600) - Hose (inmani to iac) |
| 11 | 17761-80700-000 | シュラウド,ファン | シュラウド,ファン |
| 11 | 17761-80701-000 | シュラウド,ファン | シュラウド,ファン |
| 11 | 17761-80710-000 | シュラウド,ファン | シュラウド,ファン |
| # | OEM | JA71C | JA71V |
|---|---|---|---|
| 16 | 01517-06103-000 | BOLT 6X10 | BOLT 6X10 |
| 16 | 01550-0610A-000 | Bolt | Bolt |
| 16 | 01550-0610B-000 | Bolt | Bolt |
| 6 | 09351-75111-300 | ホース,7.5X11.5X300 | ホース,7.5X11.5X300 |
| 6 | 09351-75111-600 | HOSE(7.5X11.5X600) | HOSE(7.5X11.5X600) |
| 23 | 09352-70121-300 | Hose 7x12.1x600 - Hose (7x12.1x300) | Hose 7x12.1x600 - Hose (7x12.1x300) |
| 23 | 09352-70121-600 | HOSE(7X12.1X600) - Hose (inmani to iac) | HOSE(7X12.1X600) - Hose (inmani to iac) |
| 1 | 17700-80302-000 | Radiator assy | Radiator assy |
| 3 | 17751-72010-000 | PLUG,DRAIN | PLUG,DRAIN |
| 4 | 17759-72010-000 | O-RING | O-RING |
| 11 | 17761-80700-000 | シュラウド,ファン | シュラウド,ファン |
| 11 | 17761-80701-000 | シュラウド,ファン | シュラウド,ファン |
| 11 | 17761-80710-000 | シュラウド,ファン | シュラウド,ファン |
| 2 | 17920-60B20-000 | RADIATOR CAP | RADIATOR CAP |
| 2 | 17920-60B21-000 | CAP,RADIATOR 0.9 | CAP,RADIATOR 0.9 |
| 7 | 17931-72000-000 | WATER RESERVE TANK | WATER RESERVE TANK |
| 7 | 17931-80001-000 | TANK,WATER RESERVE | TANK,WATER RESERVE |
| 8 | 17932-78100-000 | CAP,RESERVE TANK | CAP,RESERVE TANK |
