Search › Compare › JA71C × JA71V
JA71C
Suzuki JIMNY — 21 of 2,515 shared
JA71V
Suzuki JIMNY — 21 of 2,510 shared

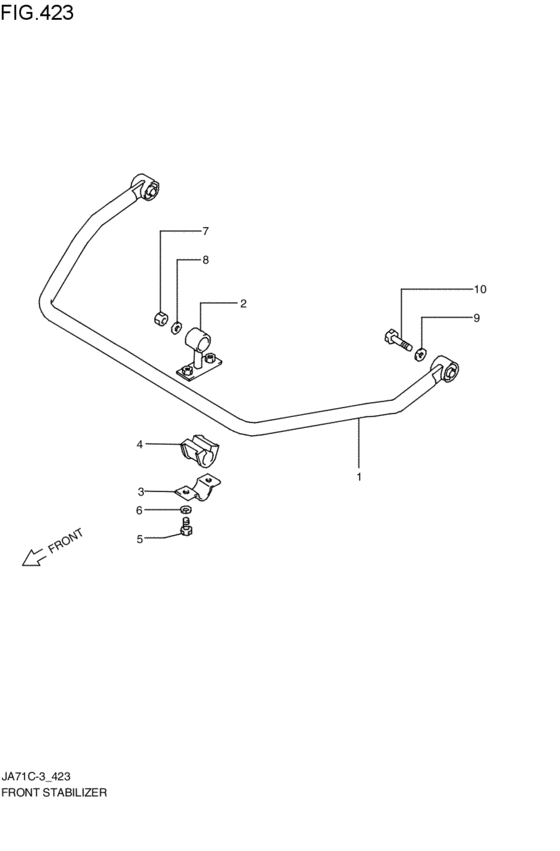

front stabilizer (1987-11-01~1990-01-01) 21 / 21
| # | OEM | JA71C | JA71V |
|---|---|---|---|
| 1 | 42300-73A01-000 | STABILIZER ASSY,FR | STABILIZER ASSY,FR |
| 2 | 42400-83001-000 | ROD ASSY,FR STABILIZER | ROD ASSY,FR STABILIZER |
| 3 | 42415-83000-000 | PLATE FR STABILIZER | PLATE FR STABILIZER |
| 3 | 42415-66D00-000 | BRACKET,STABILIZER BAR MOUNT | BRACKET,STABILIZER BAR MOUNT |
| 4 | 42412-70A00-000 | BUSHING FR STABILIZER | BUSHING FR STABILIZER |
| 4 | 42412-65D00-000 | BUSHING,STAB BAR MOUNT | BUSHING,STAB BAR MOUNT |
| 5 | 01107-08203-000 | Bolt | Bolt |
| 5 | 01500-0820A-000 | Bolt | Bolt |
| 6 | 08321-21083-000 | Washr,lk8.2x15. - Lock washer | Washr,lk8.2x15. - Lock washer |
| 6 | 08321-0108B-000 | WASHER,LOCK | WASHER,LOCK |
| 6 | 08321-0108A-000 | WASHER,LOCK | WASHER,LOCK |
| 7 | 08310-12103-000 | Nut | Nut |
| 7 | 08310-0010B-000 | NUT | NUT |
| 7 | 08310-0010A-000 | NUT | NUT |
| 8 | 08321-31103-000 | ロックワッシャ | ロックワッシャ |
| 8 | 08321-0110A-000 | WASHER,LOCK | WASHER,LOCK |
| 8 | 08321-0110B-000 | WASHER,LOCK - Washer, knuckle end | WASHER,LOCK - Washer, knuckle end |
| 9 | 08321-31123-000 | WASHER LOCK | WASHER LOCK |
| 9 | 08321-0112A-000 | WASHER,LOCK | WASHER,LOCK |
| 10 | 09100-12041-000 | BOLT 12X55 | BOLT 12X55 |
| 10 | 09103-12501-000 | BOLT(12X55) | BOLT(12X55) |
| # | OEM | JA71C | JA71V |
|---|---|---|---|
| 14 | 01107-08203-000 | Bolt | Bolt |
| 14 | 01500-0820A-000 | Bolt | Bolt |
| 3 | 08310-0010A-000 | NUT | NUT |
| 3 | 08310-0010B-000 | NUT | NUT |
| 3 | 08310-12103-000 | Nut | Nut |
| 7 | 08321-0108A-000 | WASHER,LOCK | WASHER,LOCK |
| 7 | 08321-0108B-000 | WASHER,LOCK | WASHER,LOCK |
| 2 | 08321-0110A-000 | WASHER,LOCK | WASHER,LOCK |
| 2 | 08321-0110B-000 | WASHER,LOCK - Washer, knuckle end | WASHER,LOCK - Washer, knuckle end |
| 9 | 08321-0112A-000 | WASHER,LOCK | WASHER,LOCK |
| 7 | 08321-21083-000 | Washr,lk8.2x15. - Lock washer | Washr,lk8.2x15. - Lock washer |
| 2 | 08321-31103-000 | ロックワッシャ | ロックワッシャ |
| 9 | 08321-31123-000 | WASHER LOCK | WASHER LOCK |
| 10 | 09100-12041-000 | BOLT 12X55 | BOLT 12X55 |
| 10 | 09103-12501-000 | BOLT(12X55) | BOLT(12X55) |
| 1 | 42300-73A01-000 | STABILIZER ASSY,FR | STABILIZER ASSY,FR |
| 2 | 42400-83001-000 | ROD ASSY,FR STABILIZER | ROD ASSY,FR STABILIZER |
| 4 | 42412-65D00-000 | BUSHING,STAB BAR MOUNT | BUSHING,STAB BAR MOUNT |
| 4 | 42412-70A00-000 | BUSHING FR STABILIZER | BUSHING FR STABILIZER |
| 3 | 42415-66D00-000 | BRACKET,STABILIZER BAR MOUNT | BRACKET,STABILIZER BAR MOUNT |
| 3 | 42415-83000-000 | PLATE FR STABILIZER | PLATE FR STABILIZER |
