Search › Compare › JA71C × JA71V
JA71C
Suzuki JIMNY — 41 of 2,515 shared
JA71V
Suzuki JIMNY — 41 of 2,510 shared

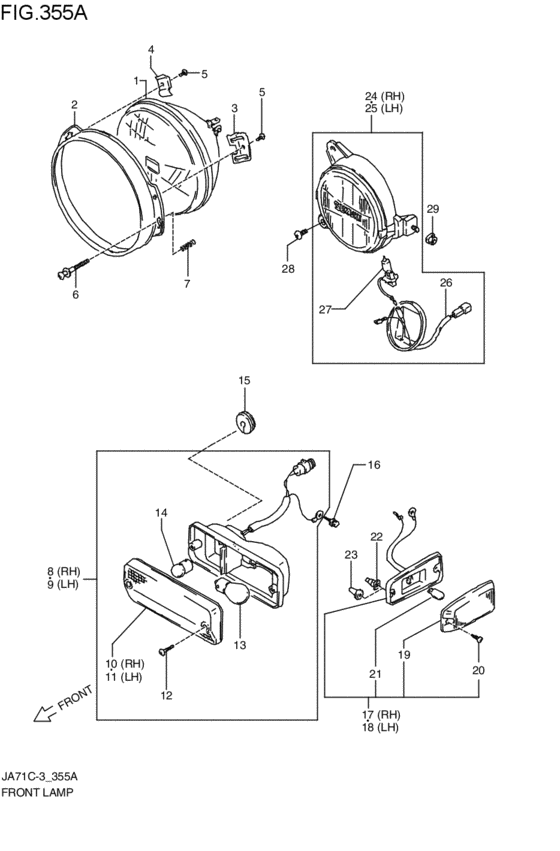

front lamp (1987-11-01~1990-01-01) 41 / 41
| # | OEM | JA71C | JA71V |
|---|---|---|---|
| 1 | 35121-83021-000 | UNIT,LAMP | UNIT,LAMP |
| 2 | 35131-64031-000 | RIM,HEADLAMP | RIM,HEADLAMP |
| 3 | 35132-72600-000 | PLATE,NO.2 | PLATE,NO.2 |
| 4 | 35136-51030-000 | PLATE,NO.3 | PLATE,NO.3 |
| 5 | 02112-04087-000 | SCREW | SCREW |
| 6 | 35151-78020-000 | スクリュ,ヘッドランプ | スクリュ,ヘッドランプ |
| 6 | 09122-45001-000 | SCREW(5X45) | SCREW(5X45) |
| 7 | 35154-51030-000 | スプリング | スプリング |
| 7 | 35154-80C01-000 | SPRING,HEADLAMP | SPRING,HEADLAMP |
| 8 | 35601-80052-000 | LAMP ASSY,FR COMB,R | LAMP ASSY,FR COMB,R |
| 9 | 35602-80052-000 | LAMP ASSY,FR COMB,L | LAMP ASSY,FR COMB,L |
| 10 | 35612-78000-000 | LENS,R | LENS,R |
| 11 | 35632-78000-000 | LENS,L | LENS,L |
| 12 | 03112-04309-000 | SCREW | SCREW |
| 13 | 09471-12056-000 | Bulb (12v, 21w) | Bulb (12v, 21w) |
| 13 | 09471-12045-000 | BULB(12V21W) | BULB(12V21W) |
| 14 | 09471-12058-000 | Bulb 12v5w | Bulb 12v5w |
| 14 | 09471-12140-000 | BULB(12V5W) | BULB(12V5W) |
| 15 | 09308-08007-000 | GROMMET | GROMMET |
| 16 | 09115-06001-000 | Bolt, lh - Bolt (6x16) | Bolt, lh - Bolt (6x16) |
| 16 | 09115-06005-000 | BOLT(6X16) | BOLT(6X16) |
| 17 | 36410-80001-000 | LAMP ASSY,SIDE TURN SIG,R | LAMP ASSY,SIDE TURN SIG,R |
| 18 | 36430-80001-000 | LAMP ASSY,SIDE TURN SIG,L | LAMP ASSY,SIDE TURN SIG,L |
| 19 | 36412-80000-000 | LENS | LENS |
| 20 | 03112-04169-000 | スクリュ | スクリュ |
| 20 | 03111-0416A-000 | SCREW | SCREW |
| 21 | 09471-12081-000 | Bulb (12v,5w) - Bulb, 12v,5w (stanley, wb-227e) | Bulb (12v,5w) - Bulb, 12v,5w (stanley, wb-227e) |
| 21 | 09471-12216-000 | BULB(12V5W) - Bulb (12v5w) | BULB(12V5W) - Bulb (12v5w) |
| 22 | 09159-04002-000 | NUT | NUT |
| 23 | 09159-04004-000 | NUT | NUT |
| 24 | 35501-70A00-000 | ランプアッシ,フォグ,ライト | ランプアッシ,フォグ,ライト |
| 24 | 35501-70A0V-000 | LAMP ASSY,FOG,R | LAMP ASSY,FOG,R |
| 25 | 35502-70A00-000 | ランプアッシ,フォグ,レフト | ランプアッシ,フォグ,レフト |
| 25 | 35502-70A0V-000 | LAMP ASSY,FOG,L | LAMP ASSY,FOG,L |
| 26 | 35530-70A00-000 | コードアッシ | コードアッシ |
| 27 | 09471-12106-000 | BULB(12V55W,H3) | BULB(12V55W,H3) |
| 27 | 09471-12106-CDN | Bulb,h3 64151 | Bulb,h3 64151 |
| 28 | 02142-05123-000 | Screw 5x12 | Screw 5x12 |
| 28 | 02142-0512A-000 | SCREW - Screw, lower | SCREW - Screw, lower |
| 29 | 08316-16053-000 | Nut | Nut |
| 29 | 08316-1005A-000 | NUT | NUT |
| # | OEM | JA71C | JA71V |
|---|---|---|---|
| 5 | 02112-04087-000 | SCREW | SCREW |
| 14 | 02142-05123-000 | Screw 5x12 | Screw 5x12 |
| 14 | 02142-0512A-000 | SCREW - Screw, lower | SCREW - Screw, lower |
| 20 | 03111-0416A-000 | SCREW | SCREW |
| 20 | 03112-04169-000 | スクリュ | スクリュ |
| 12 | 03112-04309-000 | SCREW | SCREW |
| 29 | 08316-1005A-000 | NUT | NUT |
| 29 | 08316-16053-000 | Nut | Nut |
| 16 | 09115-06001-000 | Bolt, lh - Bolt (6x16) | Bolt, lh - Bolt (6x16) |
| 16 | 09115-06005-000 | BOLT(6X16) | BOLT(6X16) |
| 6 | 09122-45001-000 | SCREW(5X45) | SCREW(5X45) |
| 22 | 09159-04002-000 | NUT | NUT |
| 23 | 09159-04004-000 | NUT | NUT |
| 15 | 09308-08007-000 | GROMMET | GROMMET |
| 13 | 09471-12045-000 | BULB(12V21W) | BULB(12V21W) |
| 13 | 09471-12056-000 | Bulb (12v, 21w) | Bulb (12v, 21w) |
| 14 | 09471-12058-000 | Bulb 12v5w | Bulb 12v5w |
| 21 | 09471-12081-000 | Bulb (12v,5w) - Bulb, 12v,5w (stanley, wb-227e) | Bulb (12v,5w) - Bulb, 12v,5w (stanley, wb-227e) |
| 27 | 09471-12106-000 | BULB(12V55W,H3) | BULB(12V55W,H3) |
| 27 | 09471-12106-CDN | Bulb,h3 64151 | Bulb,h3 64151 |
| 14 | 09471-12140-000 | BULB(12V5W) | BULB(12V5W) |
| 21 | 09471-12216-000 | BULB(12V5W) - Bulb (12v5w) | BULB(12V5W) - Bulb (12v5w) |
| 1 | 35121-83021-000 | UNIT,LAMP | UNIT,LAMP |
| 2 | 35131-64031-000 | RIM,HEADLAMP | RIM,HEADLAMP |
| 3 | 35132-72600-000 | PLATE,NO.2 | PLATE,NO.2 |
| 4 | 35136-51030-000 | PLATE,NO.3 | PLATE,NO.3 |
| 6 | 35151-78020-000 | スクリュ,ヘッドランプ | スクリュ,ヘッドランプ |
| 7 | 35154-51030-000 | スプリング | スプリング |
| 7 | 35154-80C01-000 | SPRING,HEADLAMP | SPRING,HEADLAMP |
| 24 | 35501-70A00-000 | ランプアッシ,フォグ,ライト | ランプアッシ,フォグ,ライト |
| 24 | 35501-70A0V-000 | LAMP ASSY,FOG,R | LAMP ASSY,FOG,R |
| 25 | 35502-70A00-000 | ランプアッシ,フォグ,レフト | ランプアッシ,フォグ,レフト |
| 25 | 35502-70A0V-000 | LAMP ASSY,FOG,L | LAMP ASSY,FOG,L |
| 26 | 35530-70A00-000 | コードアッシ | コードアッシ |
| 8 | 35601-80052-000 | LAMP ASSY,FR COMB,R | LAMP ASSY,FR COMB,R |
| 9 | 35602-80052-000 | LAMP ASSY,FR COMB,L | LAMP ASSY,FR COMB,L |
| 10 | 35612-78000-000 | LENS,R | LENS,R |
| 11 | 35632-78000-000 | LENS,L | LENS,L |
| 17 | 36410-80001-000 | LAMP ASSY,SIDE TURN SIG,R | LAMP ASSY,SIDE TURN SIG,R |
| 19 | 36412-80000-000 | LENS | LENS |
| 18 | 36430-80001-000 | LAMP ASSY,SIDE TURN SIG,L | LAMP ASSY,SIDE TURN SIG,L |
